• Pull-Out Table Fitting, Top Flex
1 6

Pull-Out Table Fitting, Top Flex

$818.00 CAD
$818.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

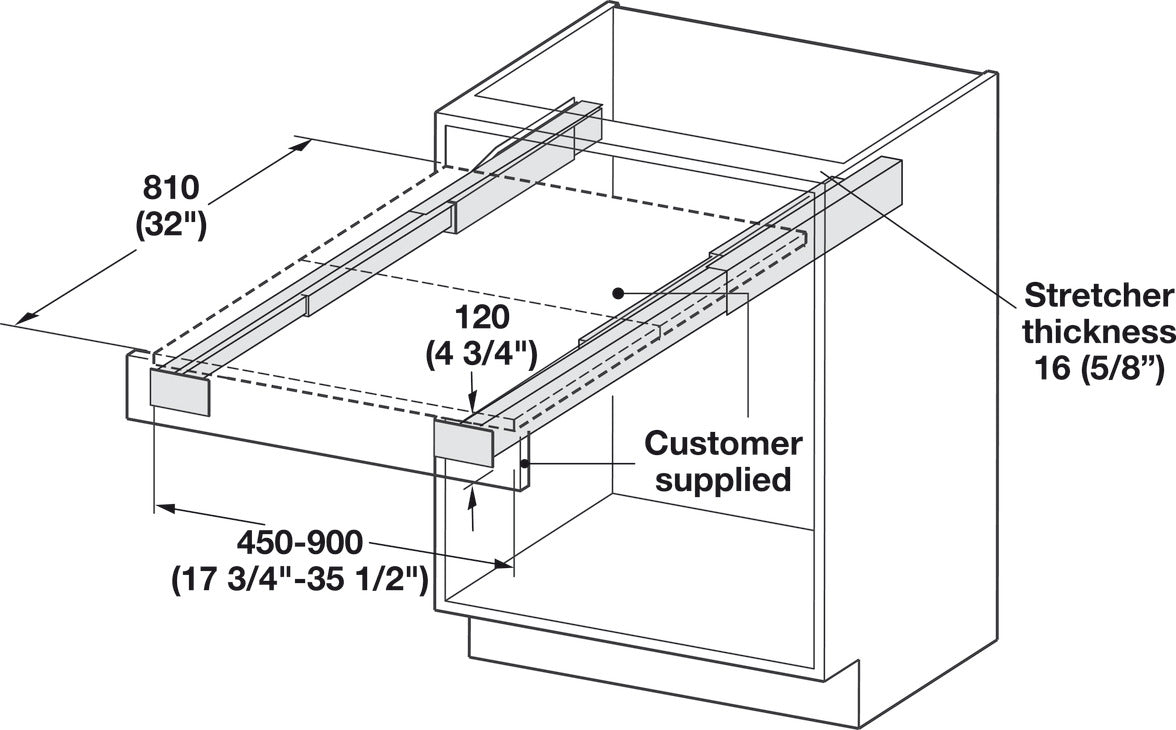

  • • Extension fitting can support any width surface up to 900 mm (35 1/2")

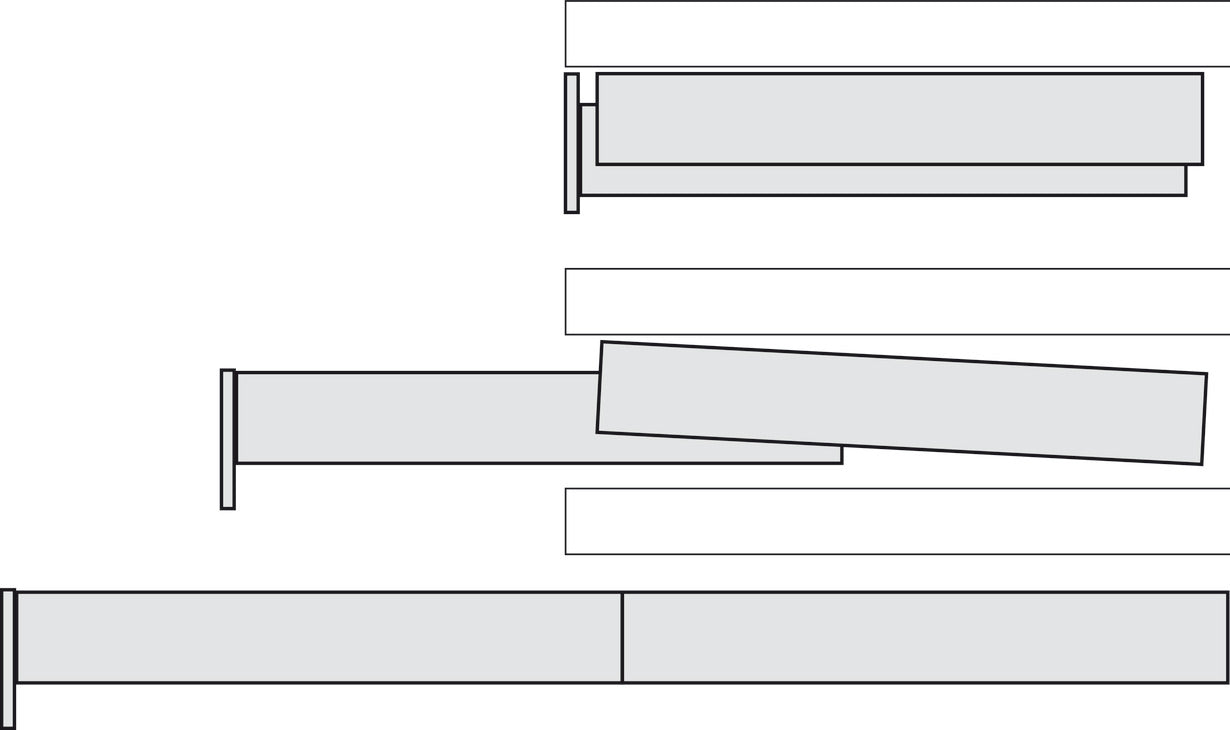

    • As the table is extended, the front panel drops down automatically until the top is flush with the table

  • Extension length: 810 mm
  • Extension length: 32"
  • Min. internal cabinet depth: 500 mm
  • For internal cabinet height: 26 - 32"
  • Color/finish: White aluminium, RAL 9006, zinc plated or powder coated, Galvanized or powder coated, white aluminium, RAL 9006
  • For cabinet depth: Min. 20"
  • For cabinet width: 17 3/4 - 35 1/2"
  • Internal cabinet height: 4 3/4"
  • Cabinet depth: Min. 20"
  • Version :

    Front panel automatically drops to level of additional worktop, with lateral cover for the hardware and fitting system

  • Material :

    Steel, plated

  • Load bearing capacity : 30 kg
  • For cabinet width : 450 – 900 mm
  • Installation reference :

    Table top and front panel are customer supplied.

  • Supplied with :

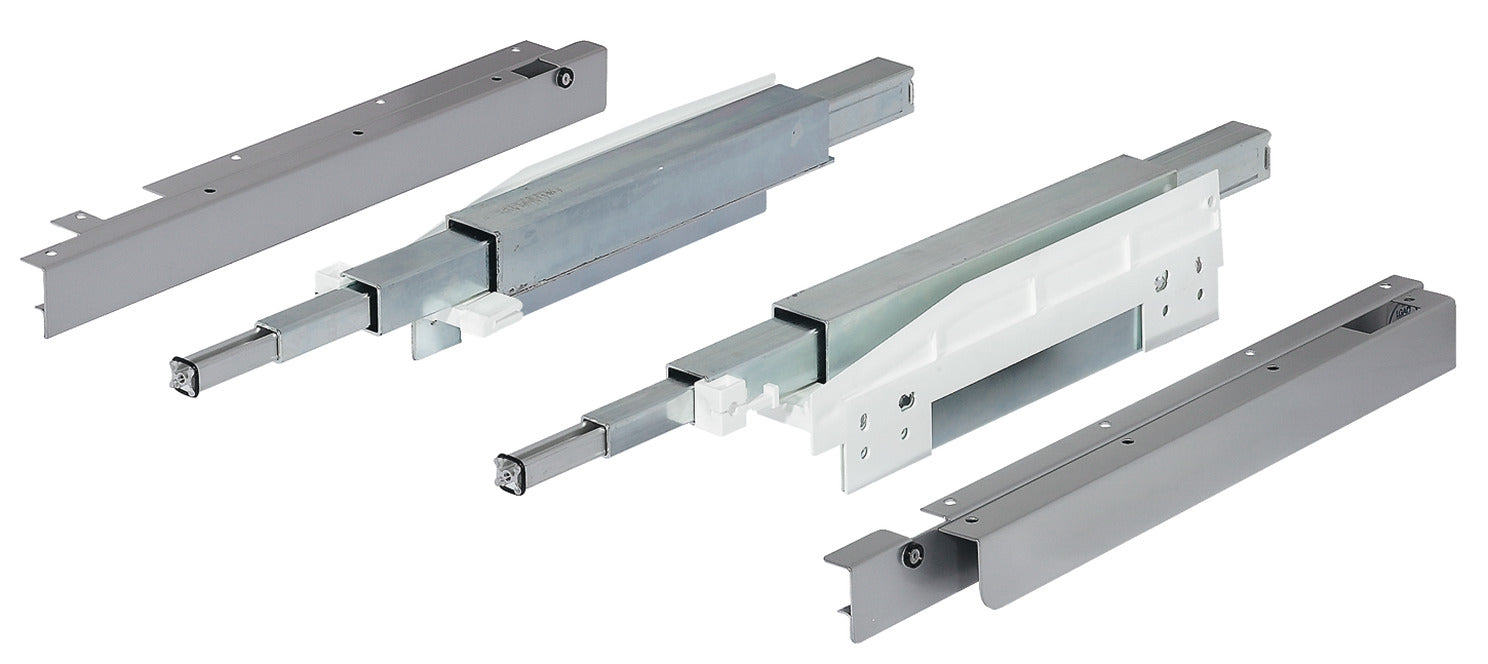

    1 pull out table fitting
    1 set of installation instructions
