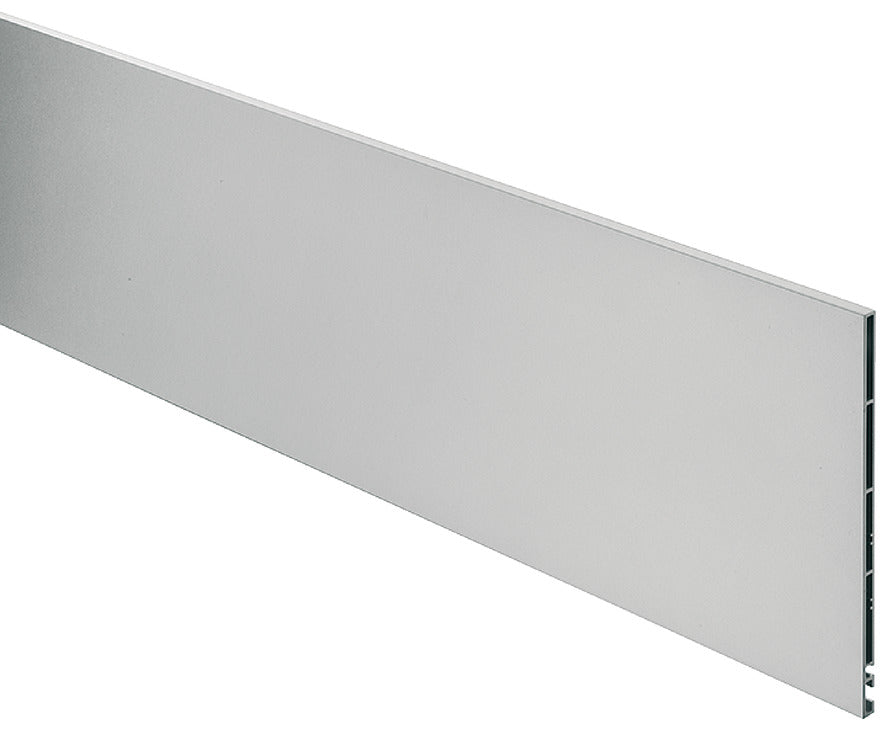

• Front Panel for Grass Vionaro, for Side Height: (7 1/4") 185 mm
1 6

Front Panel for Grass Vionaro, for Side Height: (7 1/4") 185 mm

$203.00 CAD
$203.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Length: 1160 mm
  • Length (inch): 45 11/16"
  • For cabinet width: 1200 mm
  • Thickness: 5/16"
  • Panel height: 7 7/8"
  • Suitable for : Drawer side runner system Grass
  • Area of application :

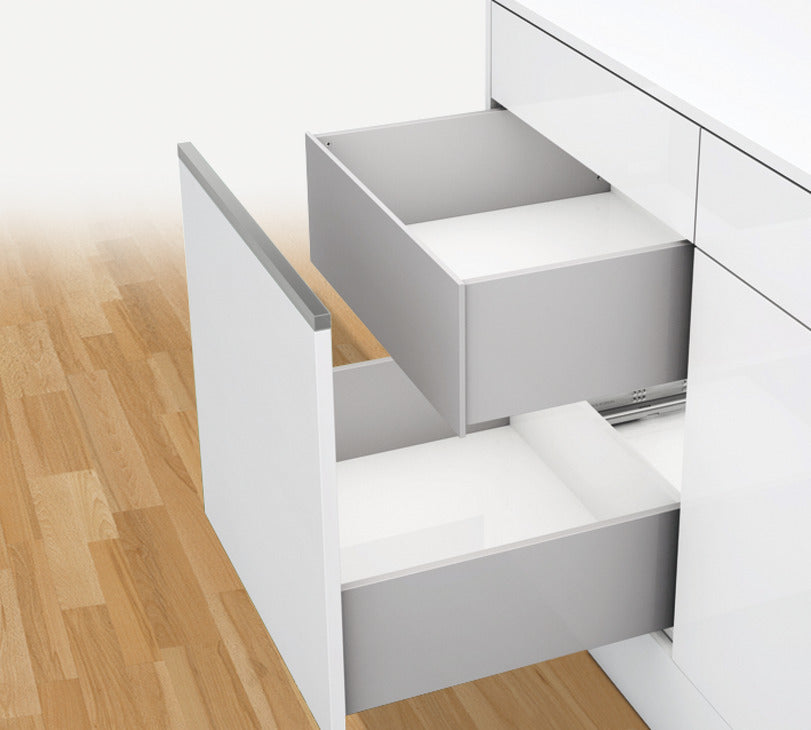

    Allows Vionaro drawers to be used in an internal drawer application

  • Material : Aluminum
  • Installation :

    For cutting to size: Internal cabinet width – 8 mm
    for screw fixing to front brackets

  • For side panel thickness : 16 mm
  • Height (inch) : 7 1/4"
  • Installation reference :

    Color coordinated front panel profile
    Cubist design with 90° angles
    Slimline 13 mm (1/2”) side width
    Bottom panel is cut to size without notching

  • Order reference :

    Cut dimension is determined by ICW-8 mm (5/16”)
