• Mounting Plate, Bed Connector
1 6

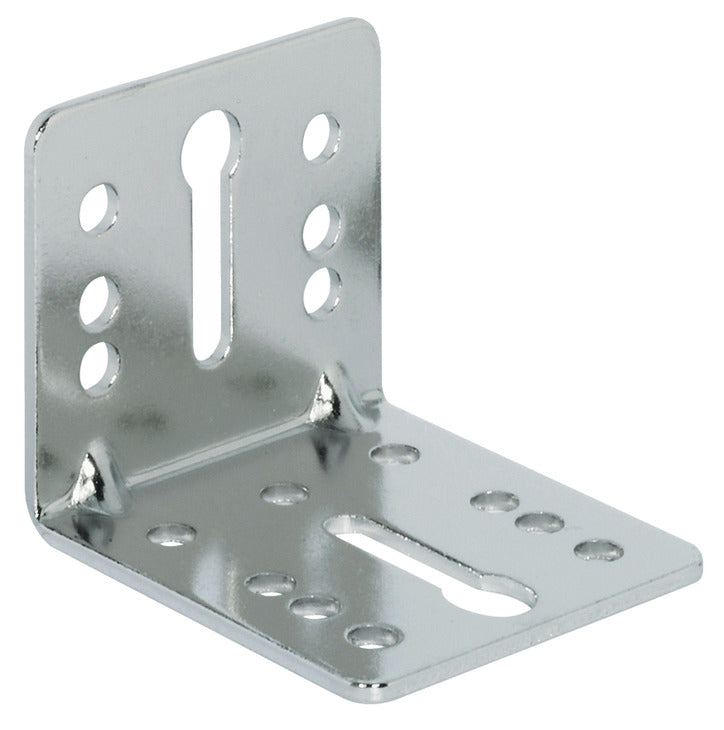

Mounting Plate, Bed Connector

$3.00 CAD
$3.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Material: Steel
  • Screw holes:

    With 2 horizontal slots and additional screw holes

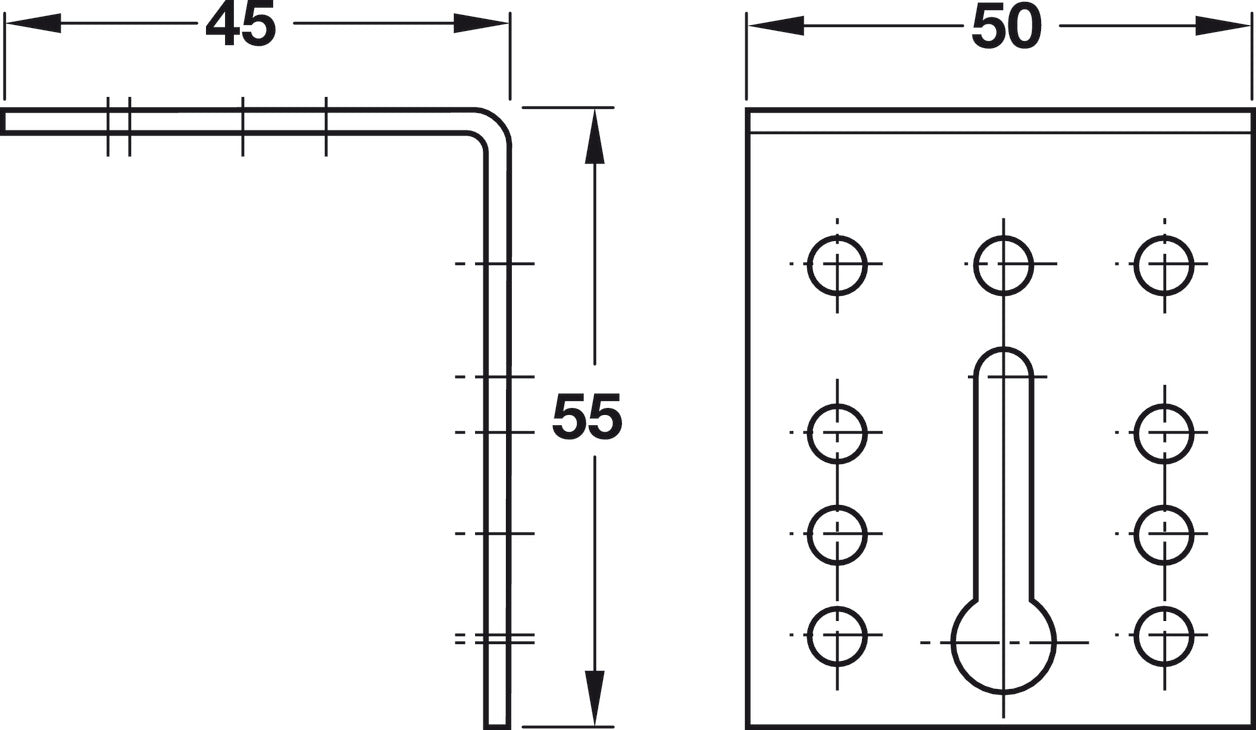

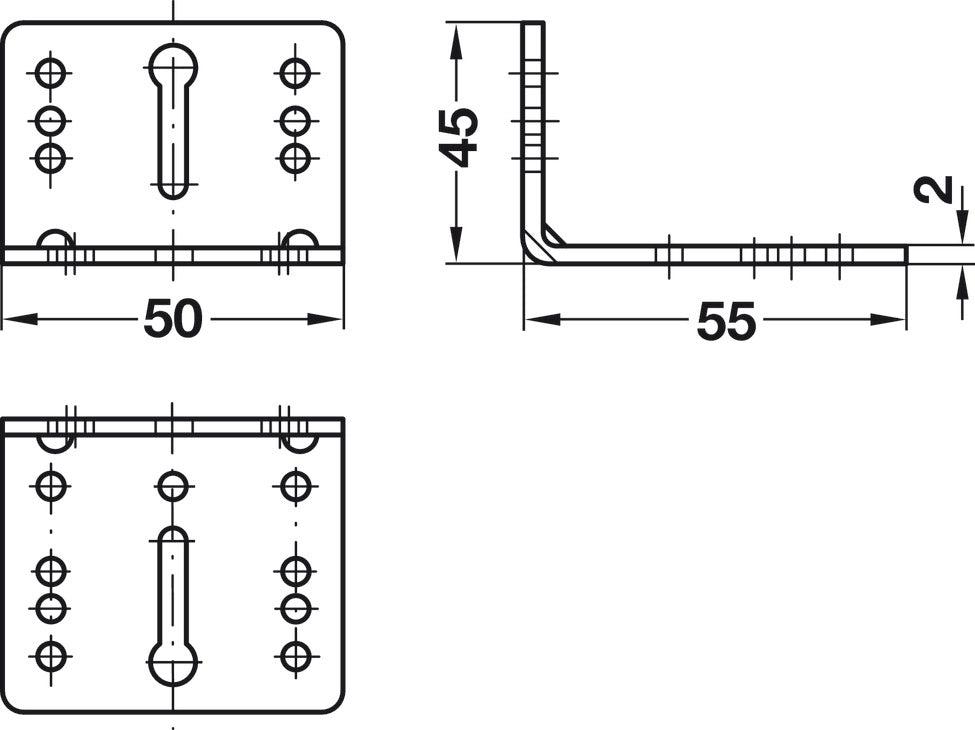

  • Dim. (L x W x H): 55 x 50 x 45 mm
  • Area of application :

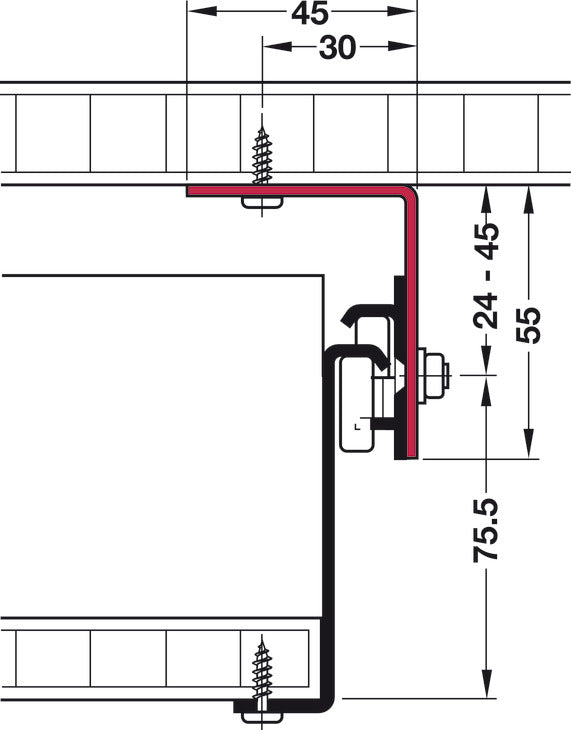

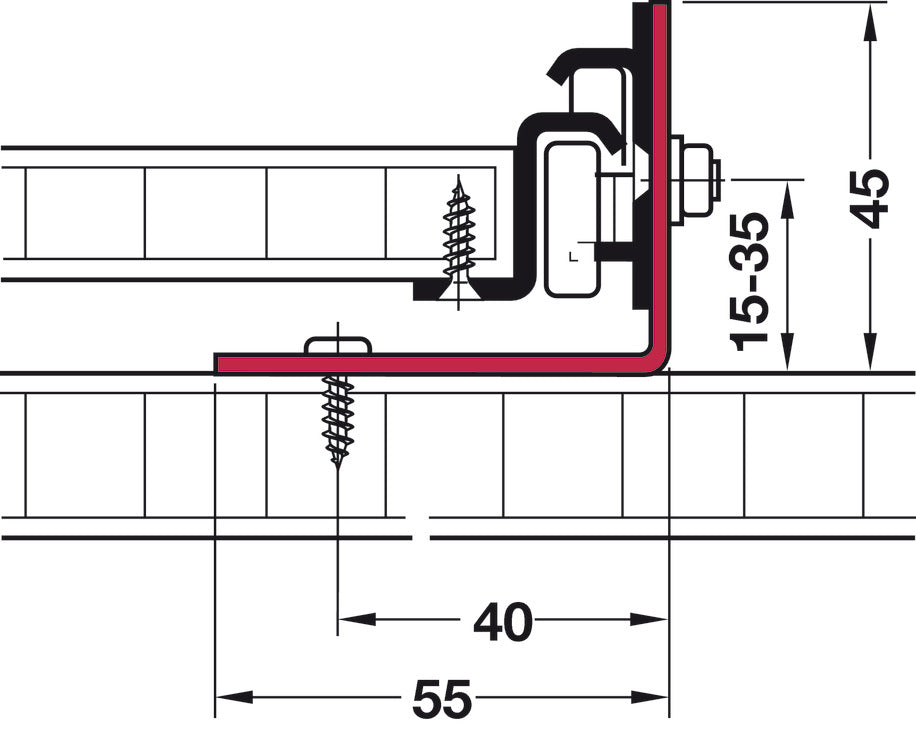

    For fixing the carcase rail without existing side panel or for use as universal connection bracket

  • Installation :

    For screw fixing to base and carcase rail with countersunk head screws M4x10 mm, hexagonal nut and lock washer

  • Material thickness : 2 mm
