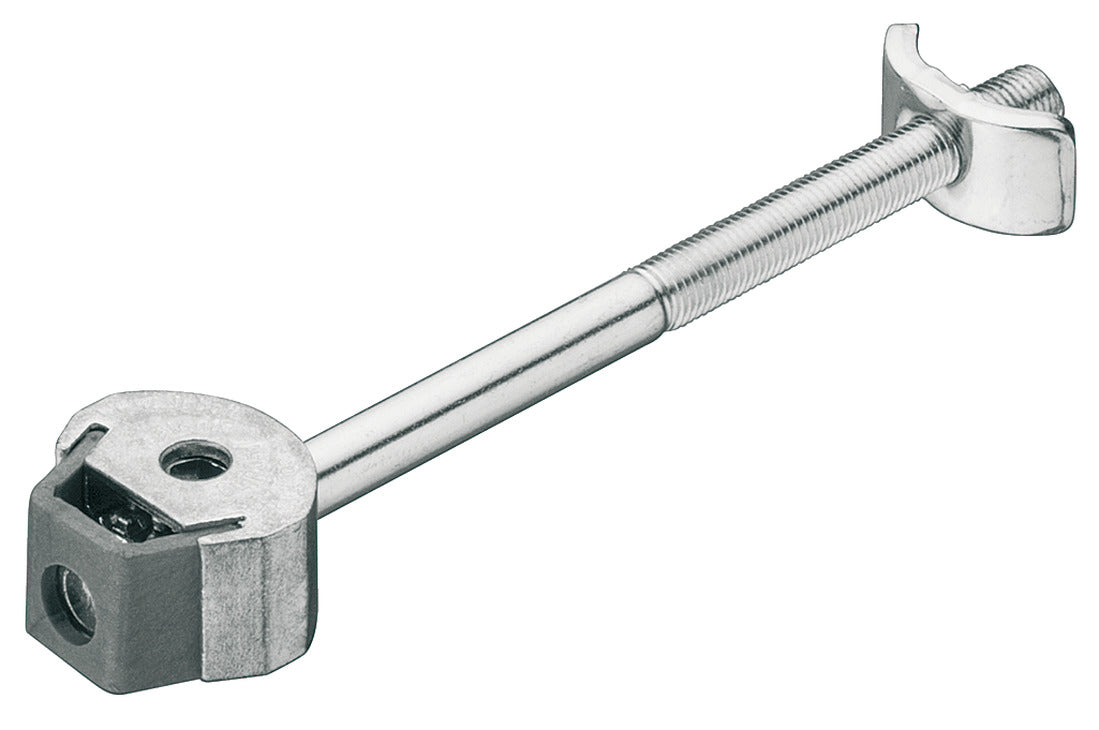

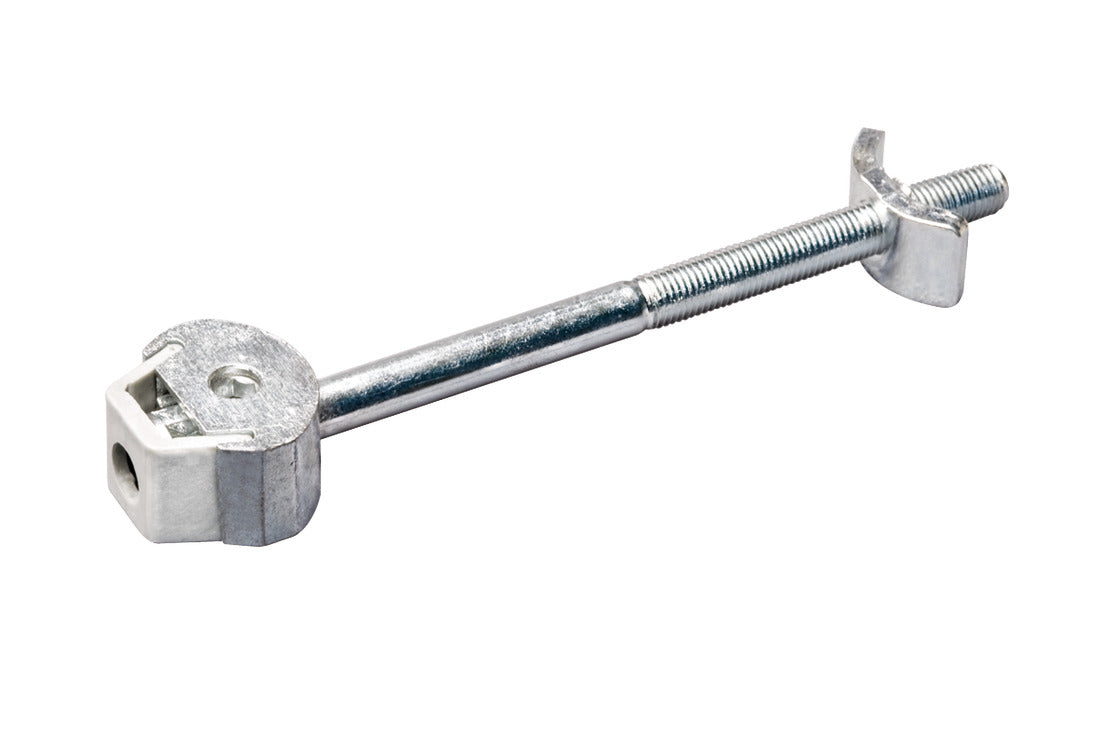

Zipbolt Work Surface Connector, Mini-UT

$9.00 CAD
$9.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

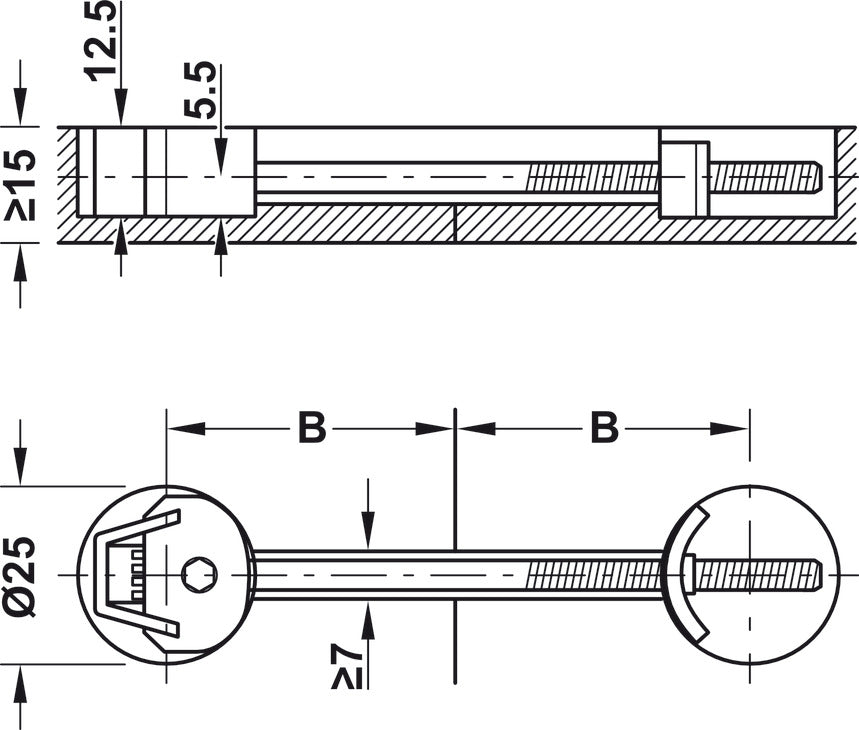

  • For wood thickness min.: 15 mm
  • Drive: Hexagon socket SW4
  • Bolt length BL: 102 mm

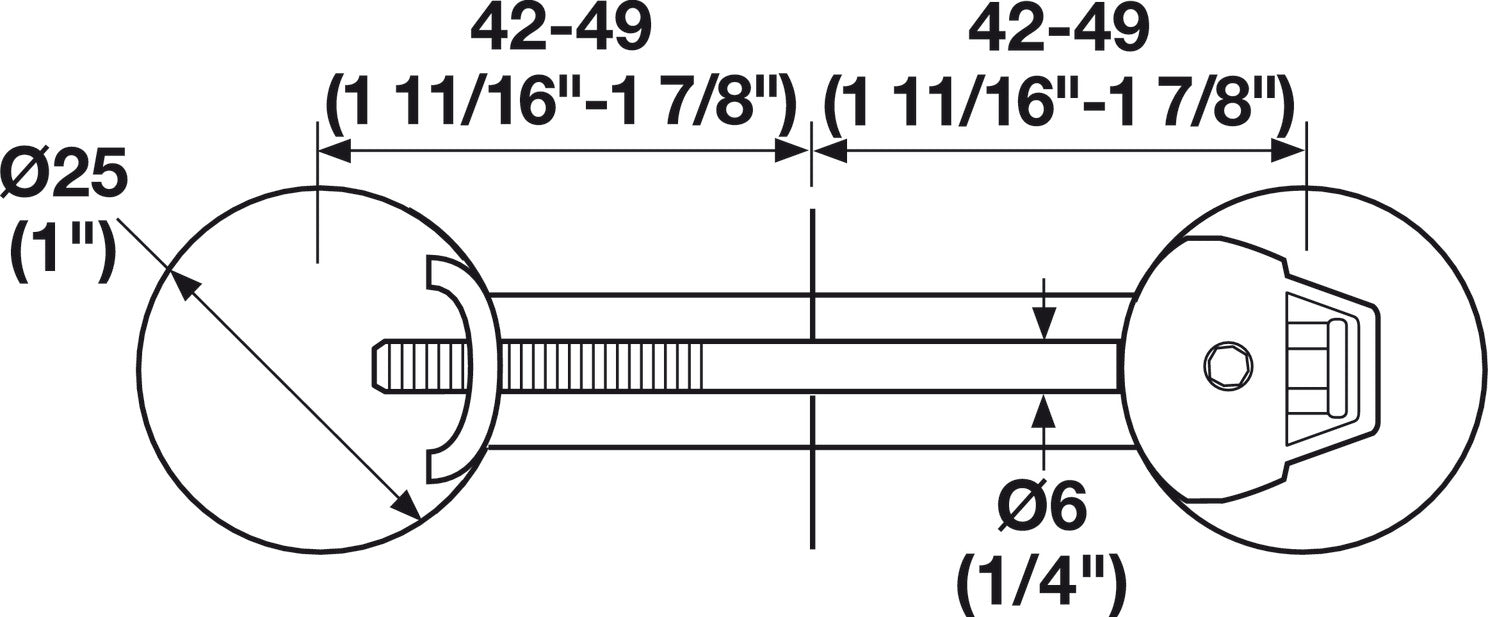

  • Center to Center: 42 – 49 mm
  • Area of application :

    For two butting or mitre cut worktop sections
    For thin panels

  • Material :

    Housing: zinc alloy and plastic
    Bolt and pressure plate: steel

  • Color/finish : Housing, bolt and pressure plate: zinc plated, Housing, bolt and pressure plate: Galvanized
  • Version :

    Bolt and pressure plate pre-mounted

  • Installation :

    For recess mounting, with rapid-action clamping
