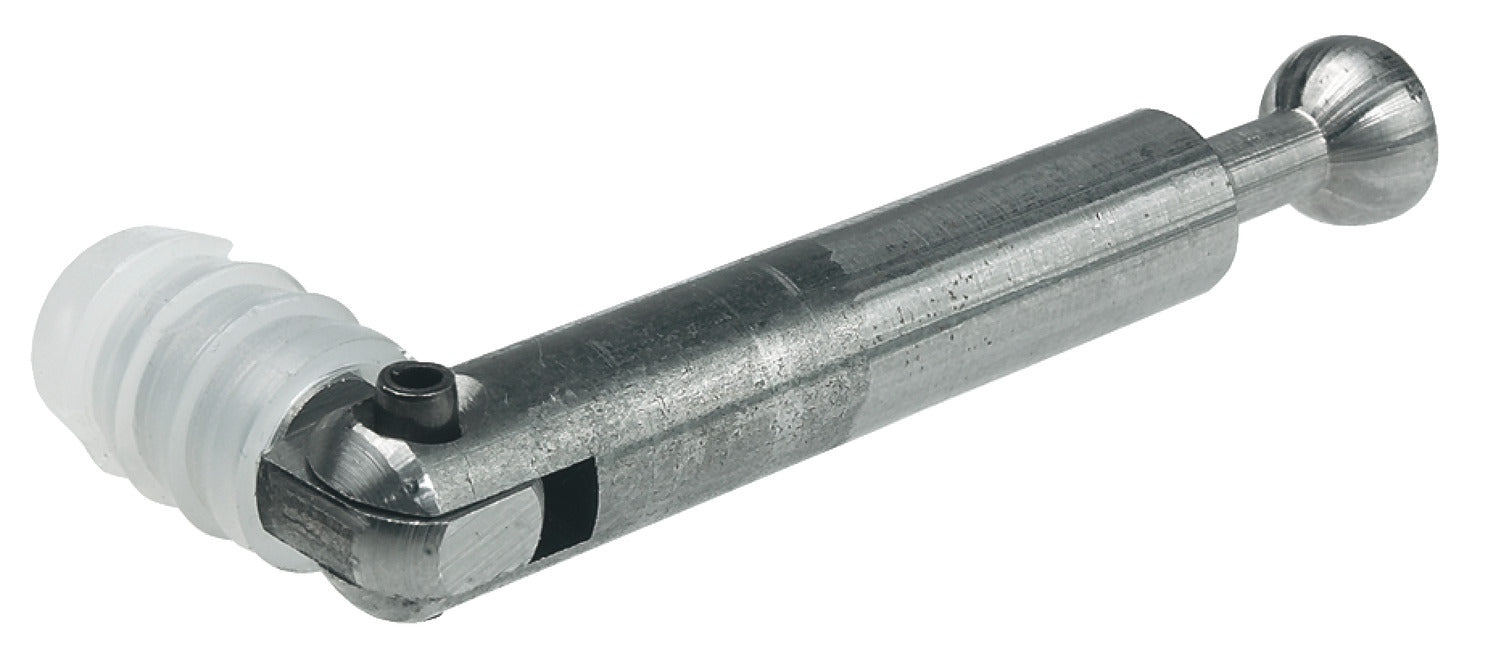

• Miter Joint Connector, Minifix® GV, for One-Sided Installation
1 3

Miter Joint Connector, Minifix® GV, for One-Sided Installation

$2.00 CAD
$2.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • A practical method of joining miter-jointed cabinets and profiles without costly gluing, and making large panels of furniture with miter joints

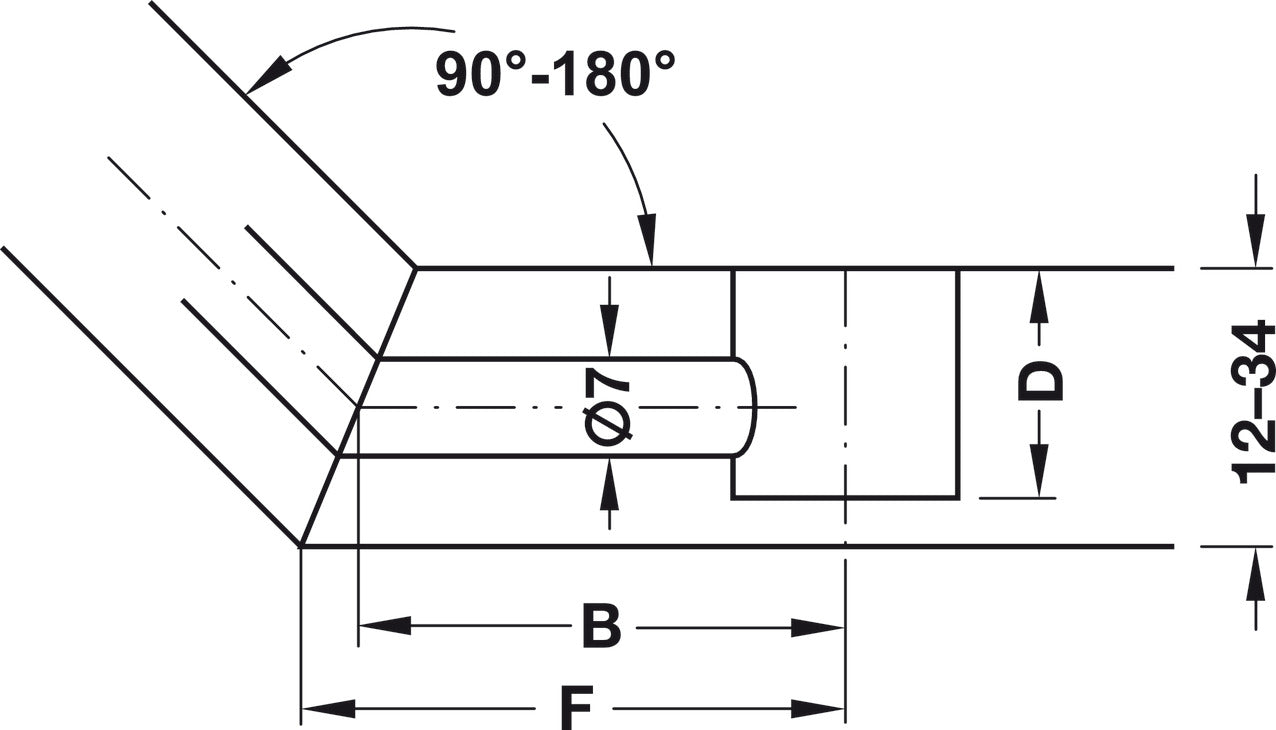

    Minifix® GV miter joint connectors are hinged connecting bolts, capable of securing miter joints at any angle from 90° to 180°
    These connectors should preferably be used only with Ø15 mm zinc die-cast Minifix® cams

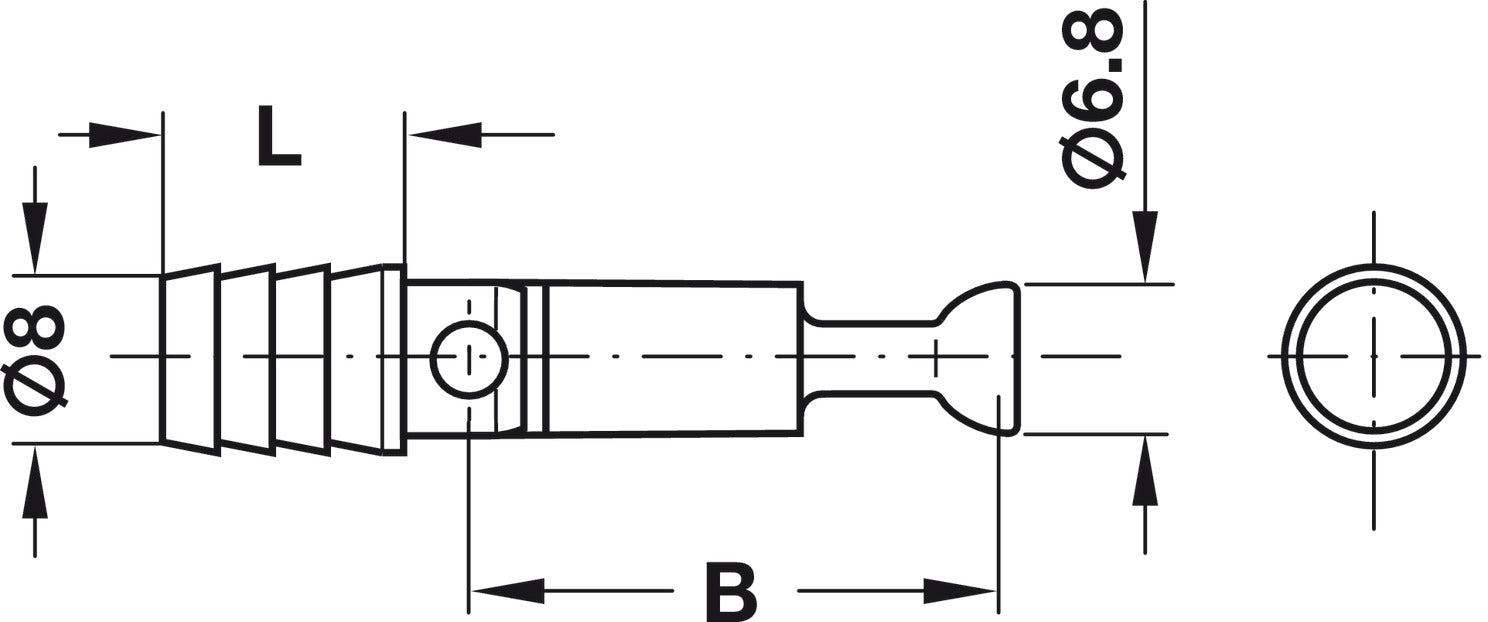

  • Thread length: 11 mm
  • Drilling dim.: 44 mm
  • Color/finish: Zinc plated, Galvanized
  • Area of application :

    For miter angles of 90° to 180°

  • Material :

    Steel

  • Thread : Polyamide sleeve with harpoon-type thread
  • Bolt hole : 7 mm
