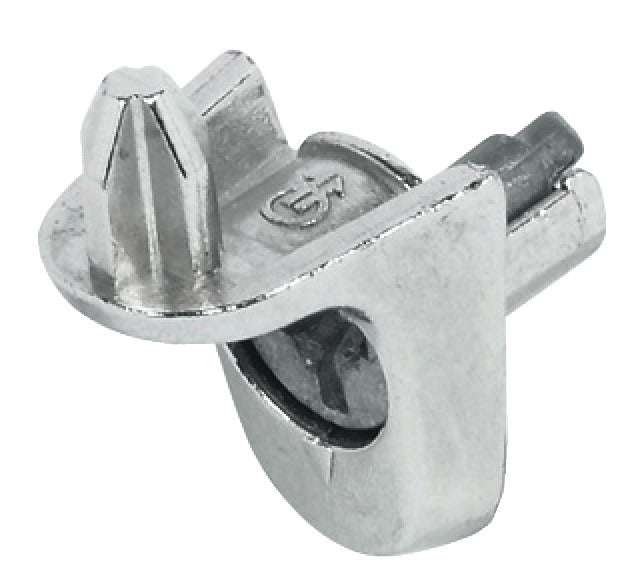

Shelf Support, for Ø5 mm Hole

$1.00 CAD
$1.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Avoid surface damage to the hole by tightening with screw

  • For insertion and tightening into a drilled hole

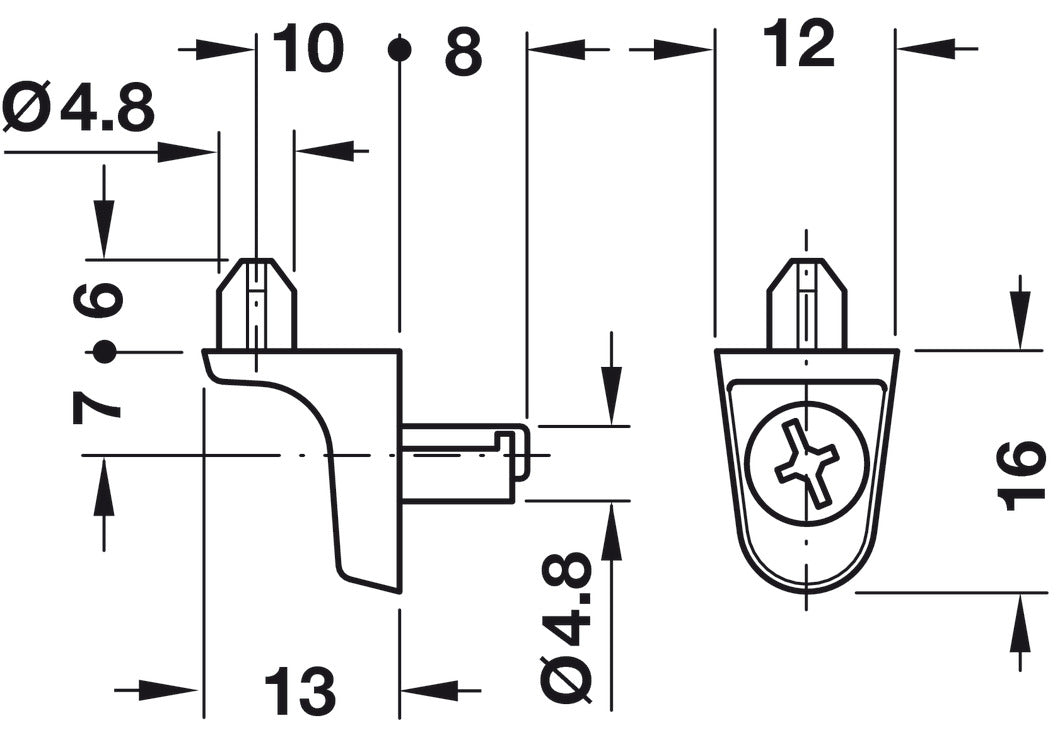

  • Distance fixing lug: 10 mm
  • Color/finish: Nickel plated, Nickel-plated
  • Version :

    With fixing lug as shelf security feature

  • Material :

    Zinc alloy

  • Installation : For insert fitting
  • Installation reference :

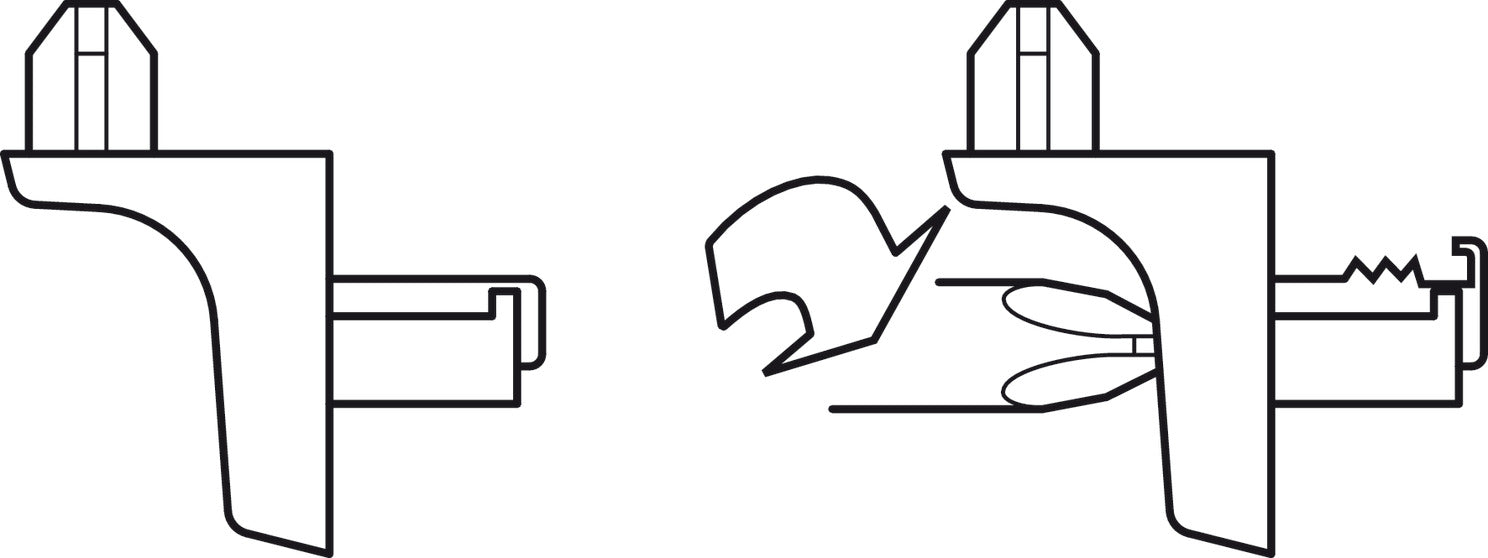

    Tightening by a 180° turn of the clamping screw; therefore avoiding surface damage to the drill hole
    For inserting into drill hole Ø 5 mm
    Avoid surface damage to the hole by tightening with screw

  • For drill hole Ø : 5 mm
  • Load bearing capacity : 12.5 kg
  • Note on load bearing capacity :

    Load bearing capacity per item, i.e. load bearing capacity of 50 kg when using 4 shelf supports
    Tested with 1.7 kg plate for impact test in compliance with DIN EN 16337:2013-08 kg

  • Support size : 7 mm
  • Pin length : 8 mm
  • Area of application :

    For insertion and tightening into a drilled hole
