• Shelf Support, with Shelf Fixing Plug
1 2

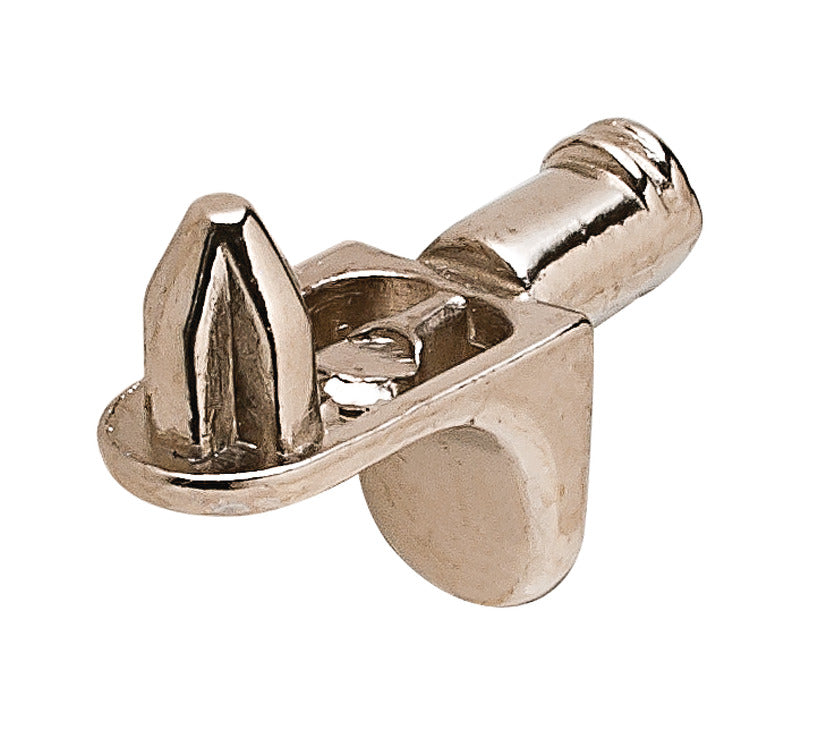

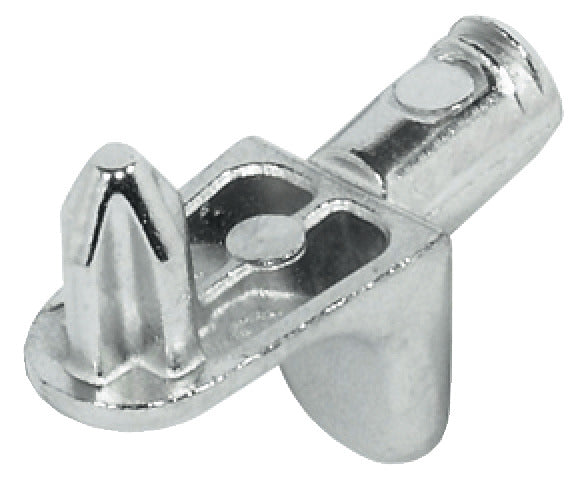

Shelf Support, with Shelf Fixing Plug

$1.00 CAD
$1.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Distance fixing lug: 10 mm
  • Color/finish: Nickel plated, Nickel-plated
  • Version :

    With fixing lug as shelf security feature

  • Material :

    Zinc die-cast

  • Installation : For insert fitting
  • For drill hole Ø : 5 mm
  • Load bearing capacity : 15.6 kg
  • Note on load bearing capacity :

    Load bearing capacity per item, i.e. load bearing capacity of 62.4 kg when using 4 shelf supports
    tested with 1.7 kg plate for impact test in compliance with DIN EN 16337:2013-08

  • Support size : 1 mm
  • Pin length : 8 mm
  • Area of application :

    For interlocking shelves in board material
