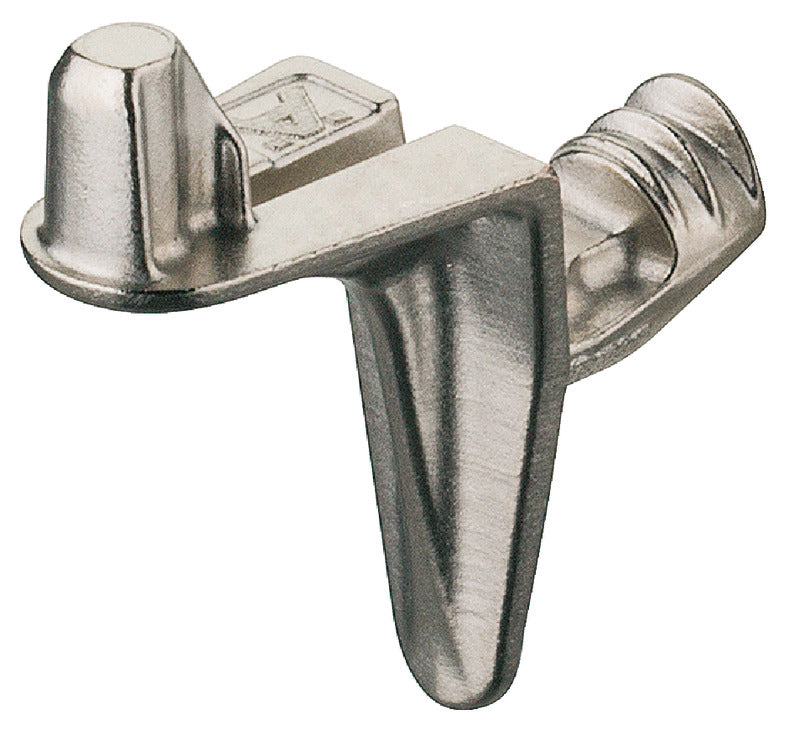

• Shelf Support, with Shelf Fixing Plug, Offset, 125 kg
1 2

Shelf Support, with Shelf Fixing Plug, Offset, 125 kg

$1.00 CAD
$1.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

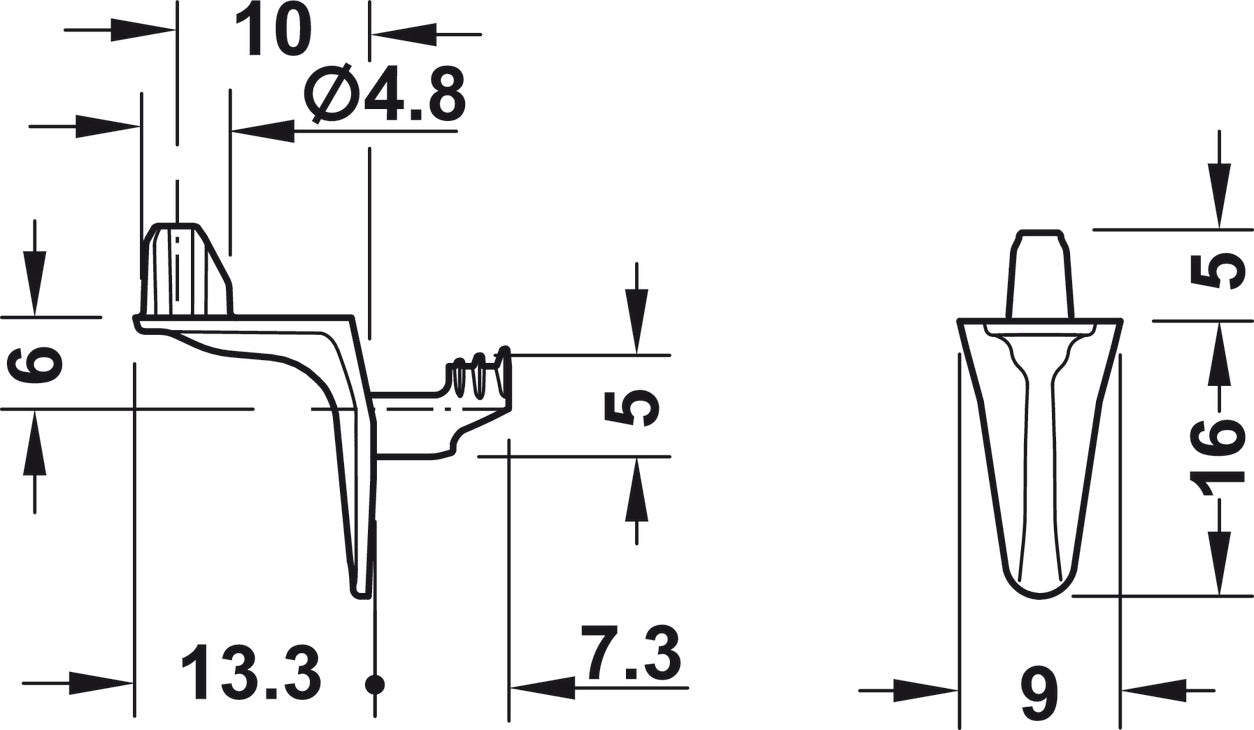

  • Distance fixing lug: 10 mm
  • Color/finish: Nickel plated, Nickel plated
  • Version :

    With three wedged ribs and shelf fixing plug

  • Material :

    zinc alloy

  • Installation : For insert fitting
  • For drill hole Ø : 5 mm
  • Load bearing capacity : 15.6 kg
  • Note on load bearing capacity :

    Tested to DIN EN 16337:2013-08 with 1.7 kg striking cap, i.e. 62.4 kg load bearing capacity when using 4 shelf supports

  • Support size : 6 mm
  • Pin length : 7.3 mm
  • Area of application :

    For wooden shelves
