• Shelf Support, Ø5 mm
1 2

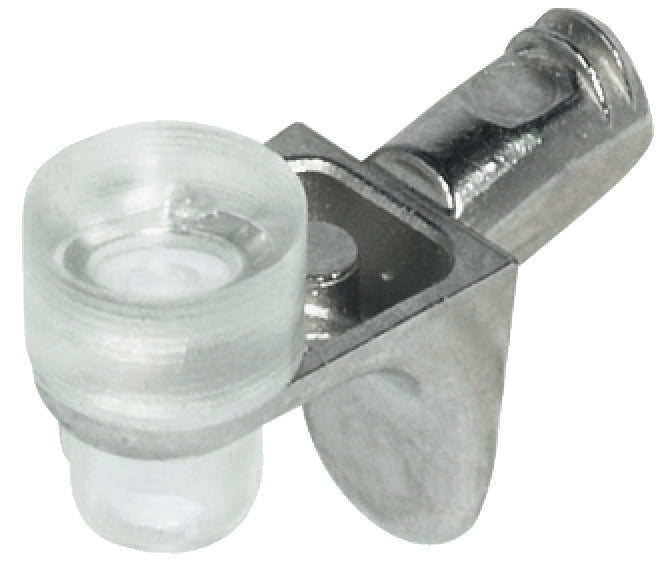

Shelf Support, Ø5 mm

$1.00 CAD
$1.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Color/finish: Support: Transparent, Nickel plated
  • Version :

    With 2 wedges

  • Material :

    Zinc alloy

  • Installation : For insert fitting
  • Installation reference :

    Ribs anchor themselves in the system holes due to pressure from the shelf, which is an important feature for areas prone to earthquakes.

  • For drill hole Ø : 5 mm
  • Load bearing capacity : 6.25 kg
  • Note on load bearing capacity :

    Load bearing capacity per item, i.e. load bearing capacity of 25 kg when using 4 shelf supports
    tested with 1.7 kg plate for impact test in compliance with DIN EN 16337:2013-08

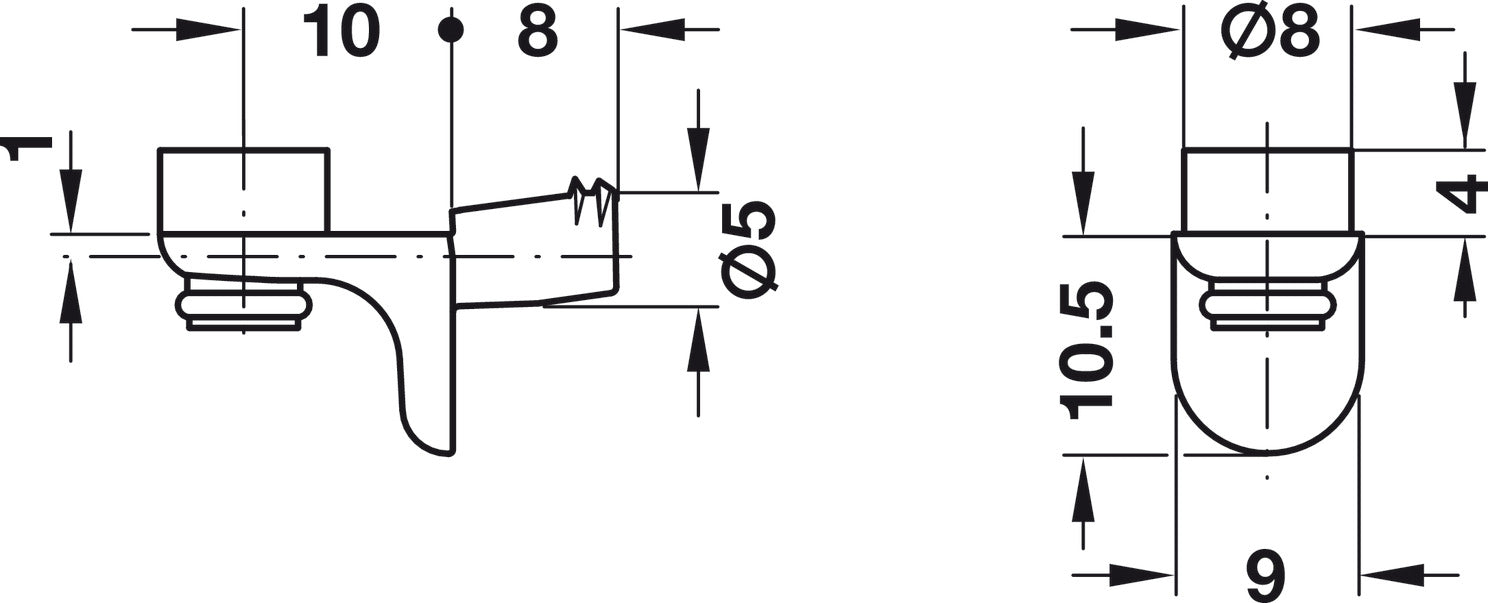

  • Support size : 5 mm
  • Pin length : 8 mm
  • Area of application :

    For wooden shelves
