Shelf Support, Glass Shelves, Ø20 mm

$70.00 CAD
$70.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

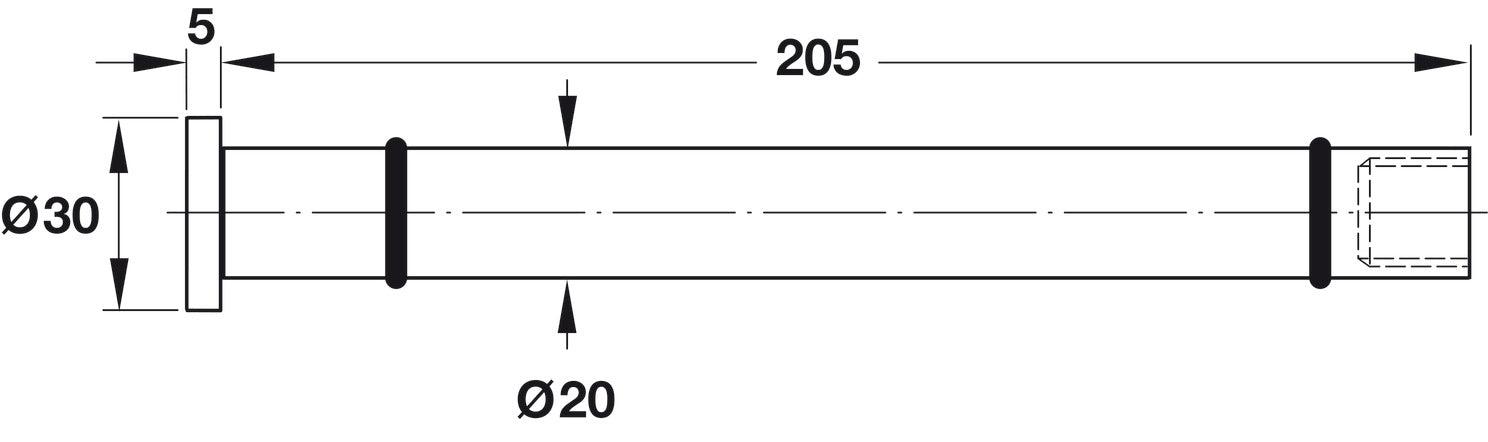

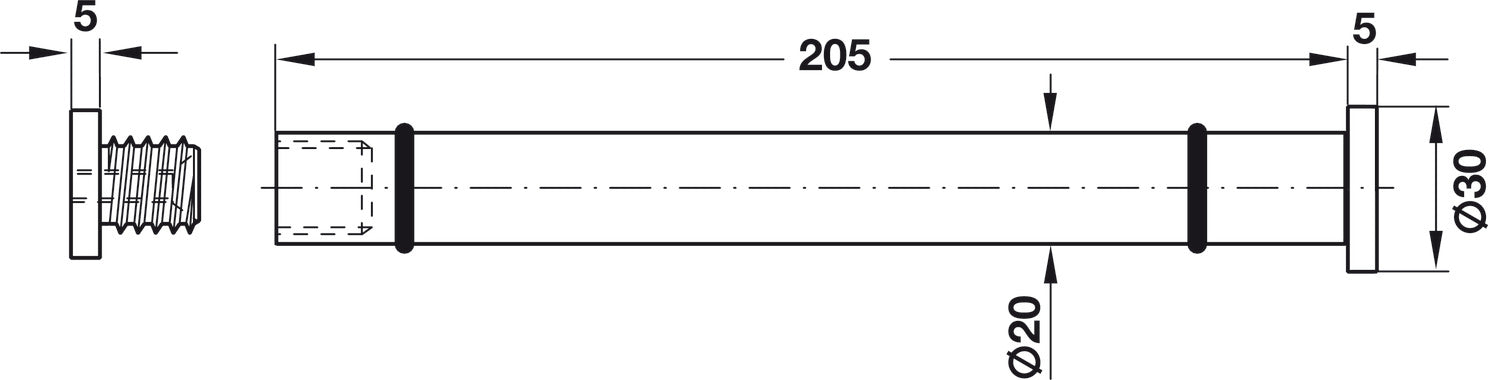

  • Diameter: 20 mm
  • Material:

    Support and base: Stainless steel
    Countersunk screw: Steel
    Wall anchor: Plastic, O-ring: Rubber

  • Color/finish: Matt, brushed
  • Version :

    Support tube with 1.5 mm thick walls

  • Load bearing capacity : 10 kg
  • Load bearing capacity information : per piece tested in accordance with DIN EN 16337:2013-08 with 1.7 kg plate for impact test, i.e. 20 kg load bearing capacity with surface load and 2 supports with shelf size 200 x 1000 mm
  • Adjustment facility : Height adjustment facility: ±4 mm, by turning the support bolt

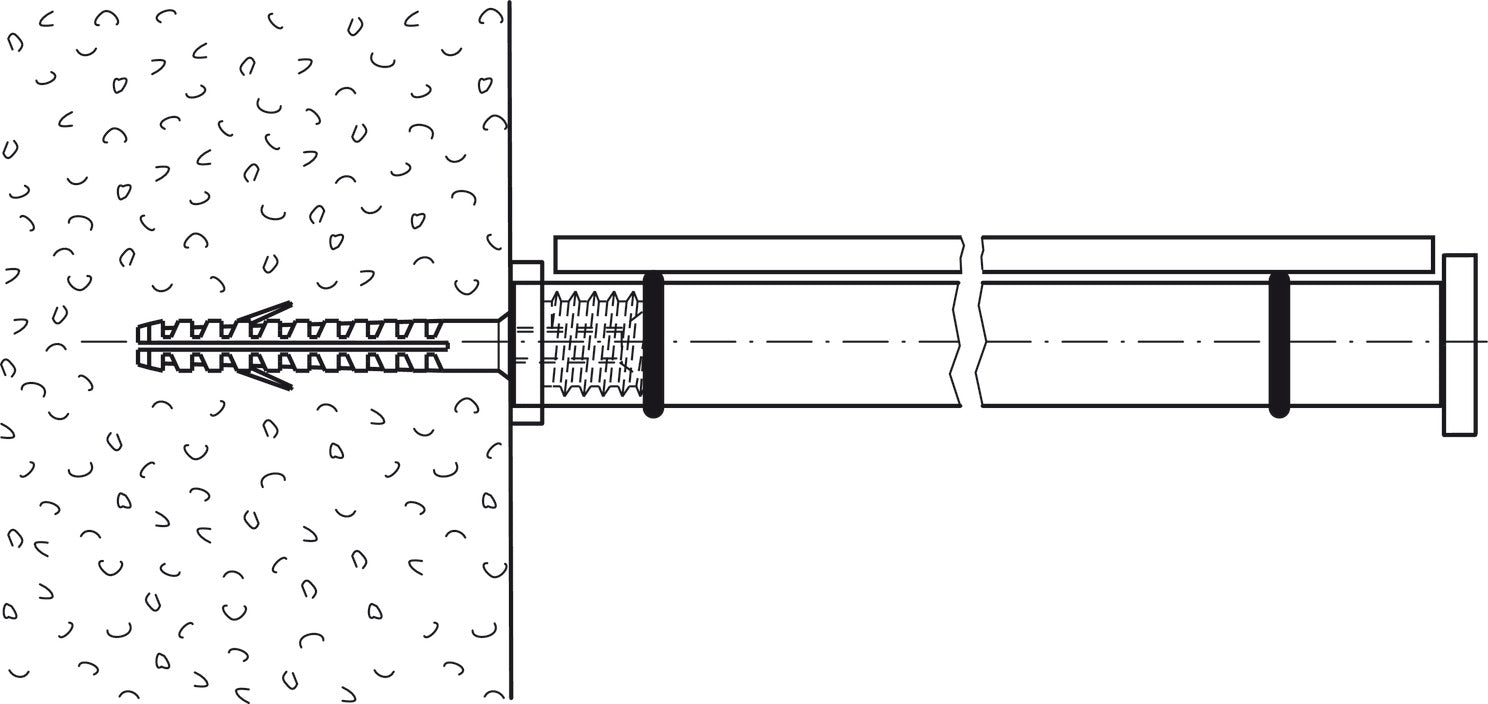

  • Installation :

    For screw fixing to support element
    shelf is placed onto shelf support

  • Installation reference :

    Distance between supports: max. 700 mm
    Load capacity: up to 85 kg (187 lbs) per m2 by evenly distributed loading on the shelf
    With assembly instructions
    For wall thickness 1.5 mm

  • Order reference :

    Packing is one set (2 sets needed for one shelf)

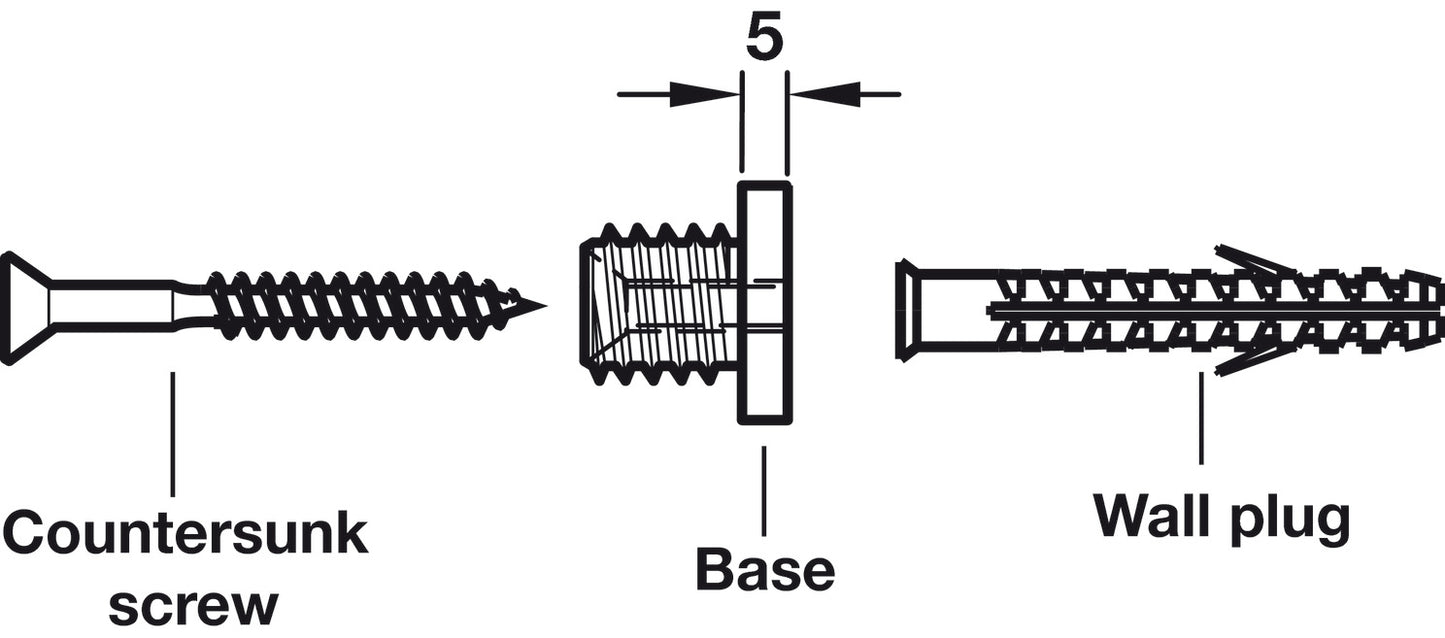

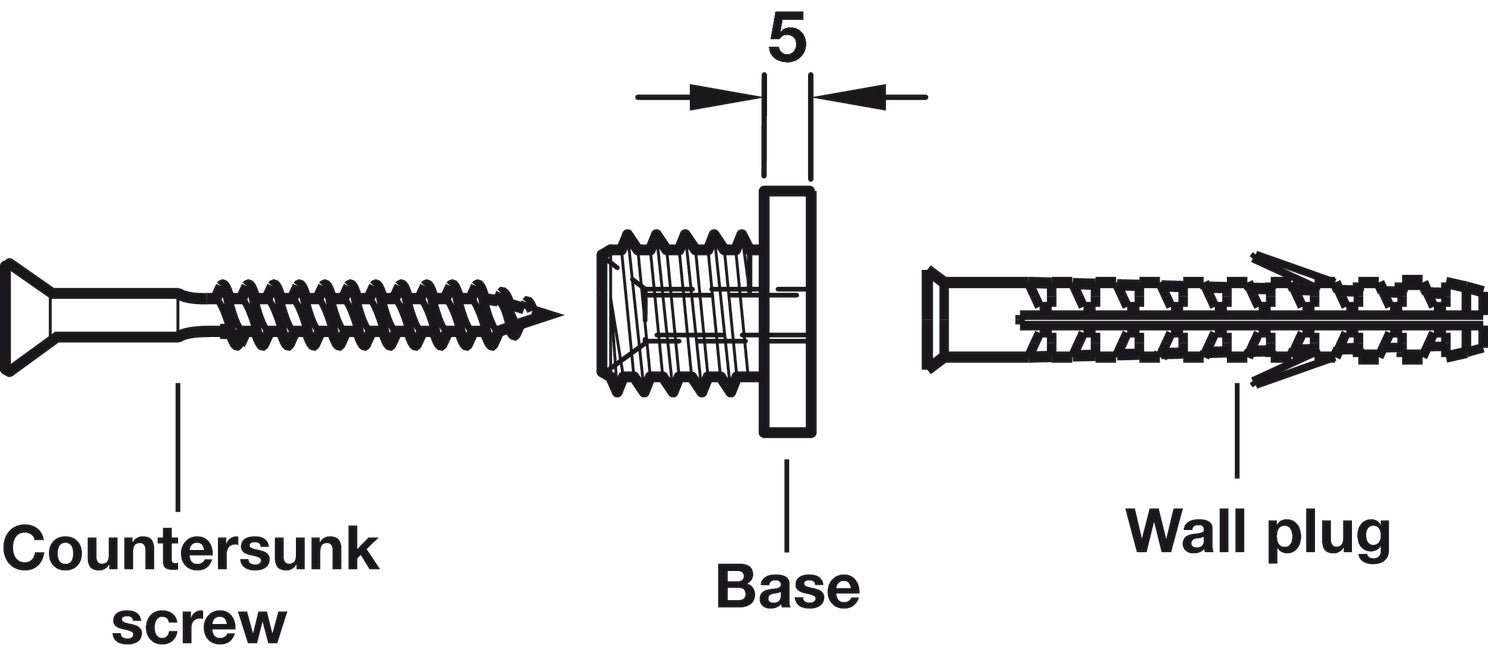

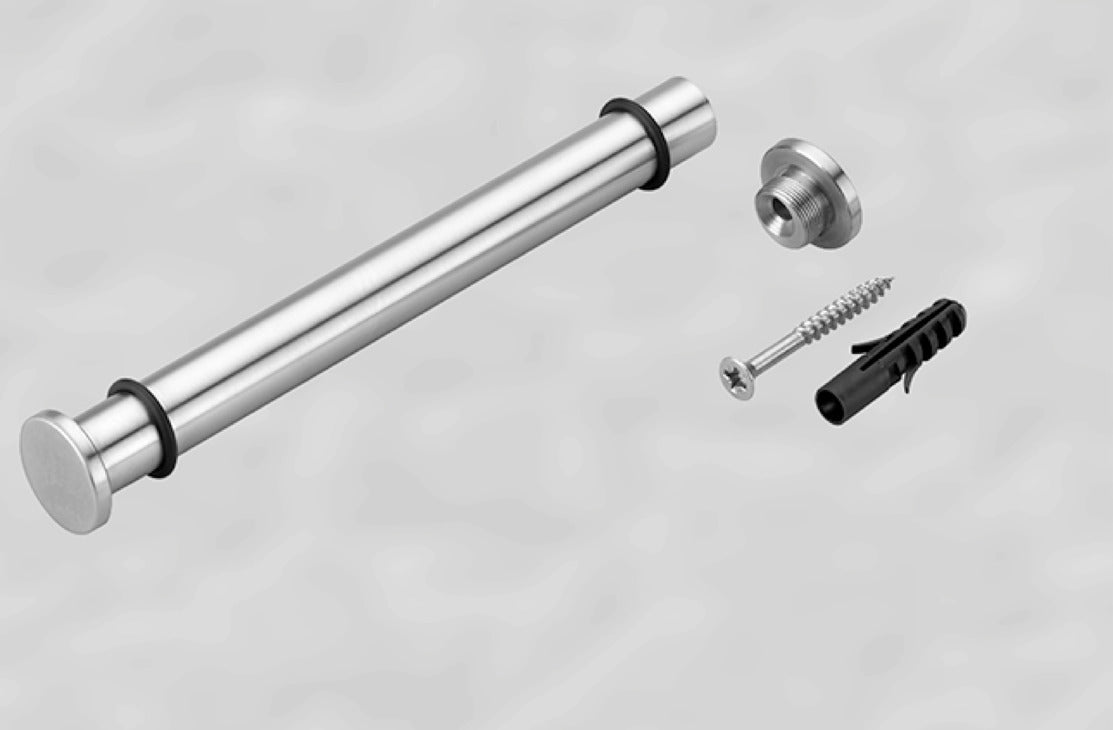

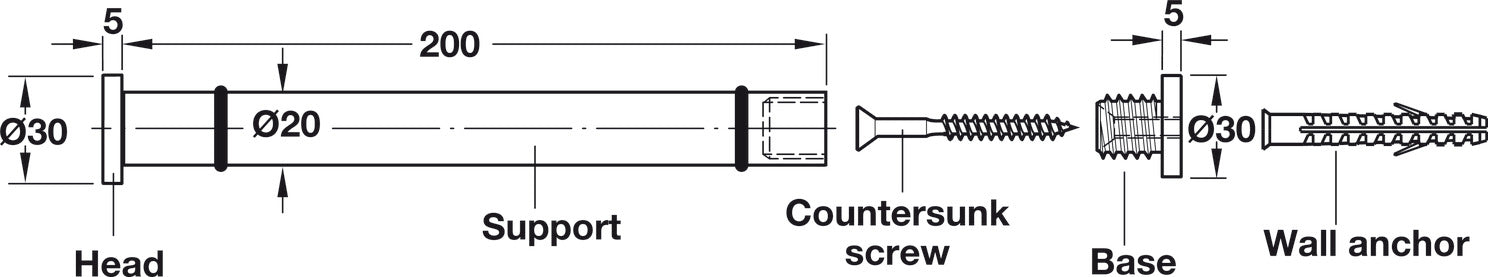

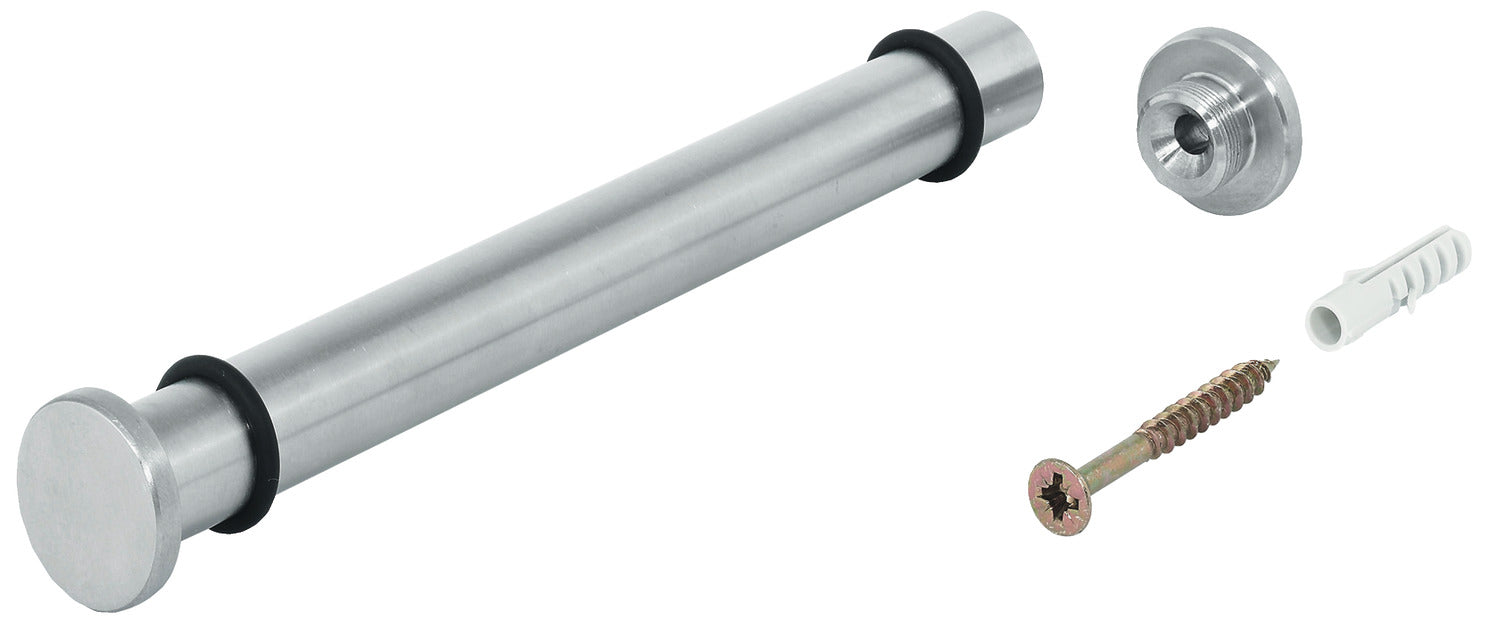

  • Supplied with :

    Support, Ø20 mm
    Base
    2 0-rings
    Countersunk head screw M6 x 60 mm
    Wall anchor
