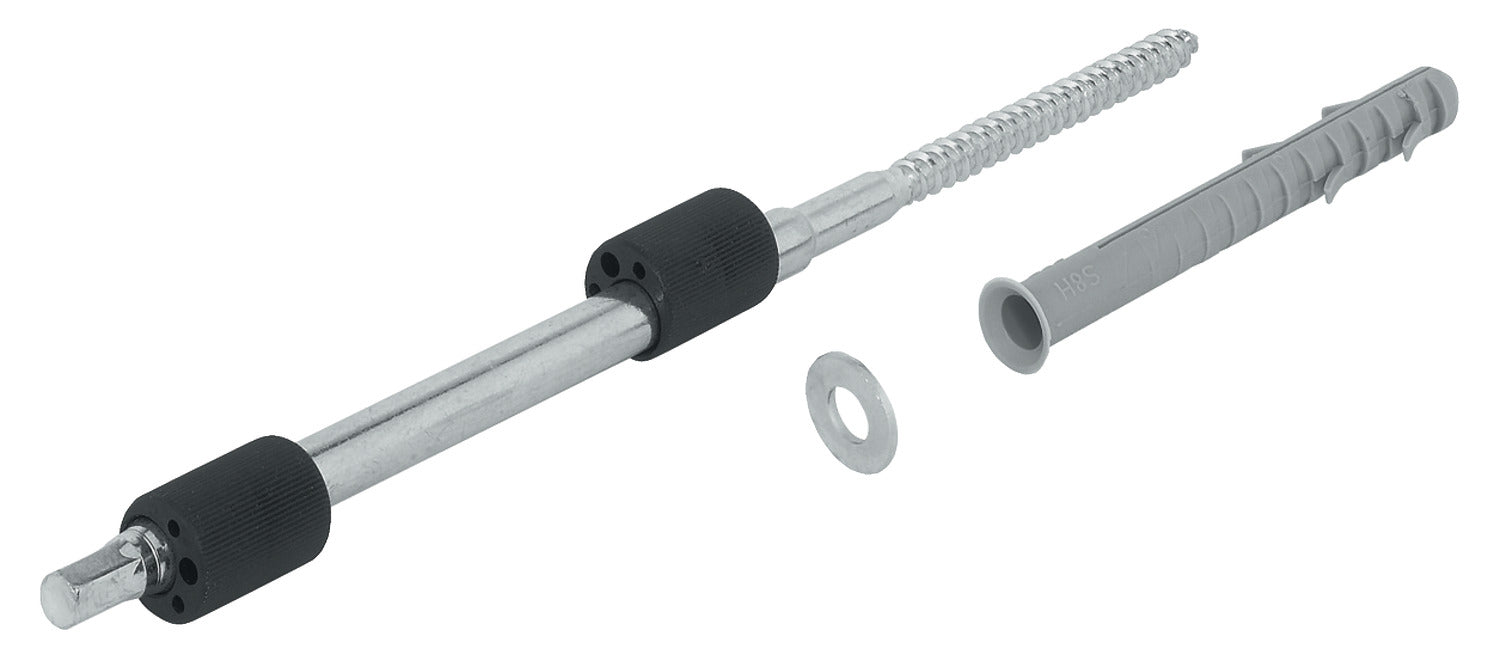

Shelf Support, 12 mm, Press-Fit Type

Support bolt with eccentric sleeve, wood-screw thread and wall plug

For concealed installation

Steel
Sleeves: Plastic, Polyamide

For screw fixing to support element
for mounting in drilled hole in shelf

Shelf supports, for invisible fastening of shelves with a 19 mm wood thickness or greater in living room, kitchen, bath and bedroom areas.
Adjustment without tools by turning the plastic sleeve
The hexagonal end on the shelf support permits installation with 1/4" using a cordless drill or a 6 mm open end or box-end wrench

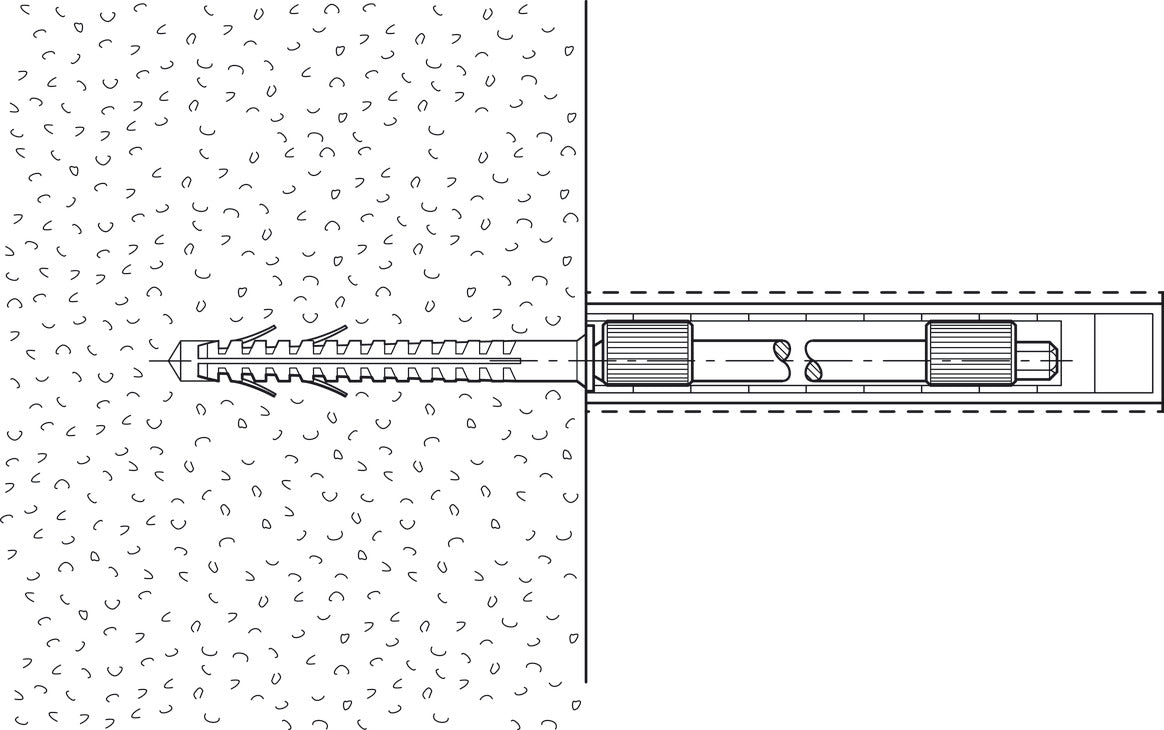

Can be installed directly into masonry walls or woodwork
To make adjustments possible, the insertion hole must be laterally elongated, with a slot drilling machine or a chain mill

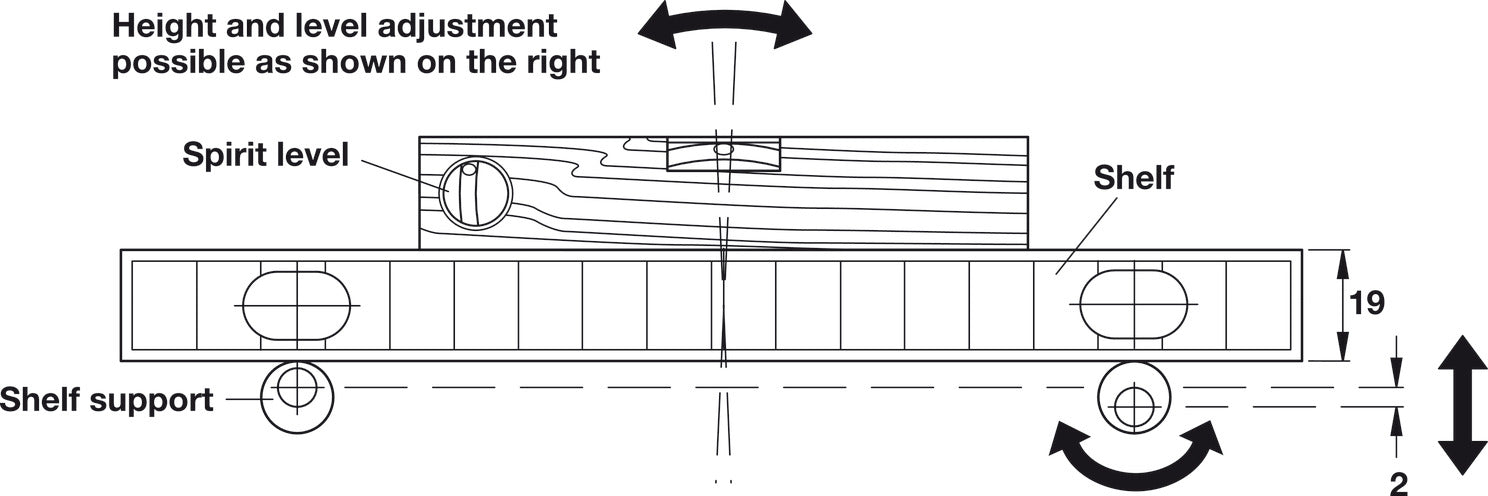

Adjust height and level, set the shelf on the shelf supports mounted in the wall and then adjust by turning the plastic sleeves

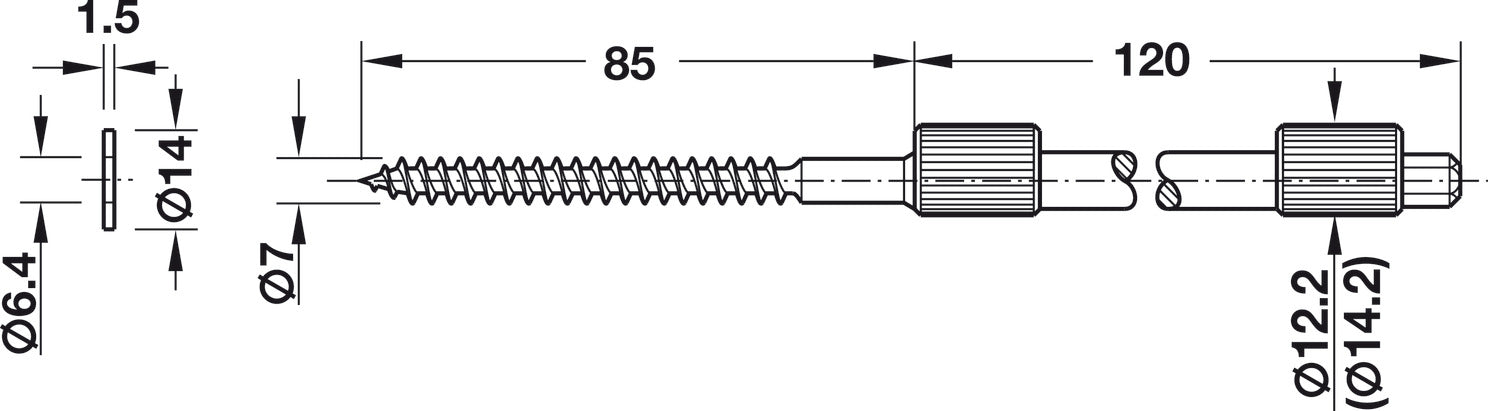

1 support bolt
2 pre-mounted eccentric sleeves
1 washer
1 S8H 80R Fischer wall plug
