• Hinged Spring Bracket, 40 kg
1 6

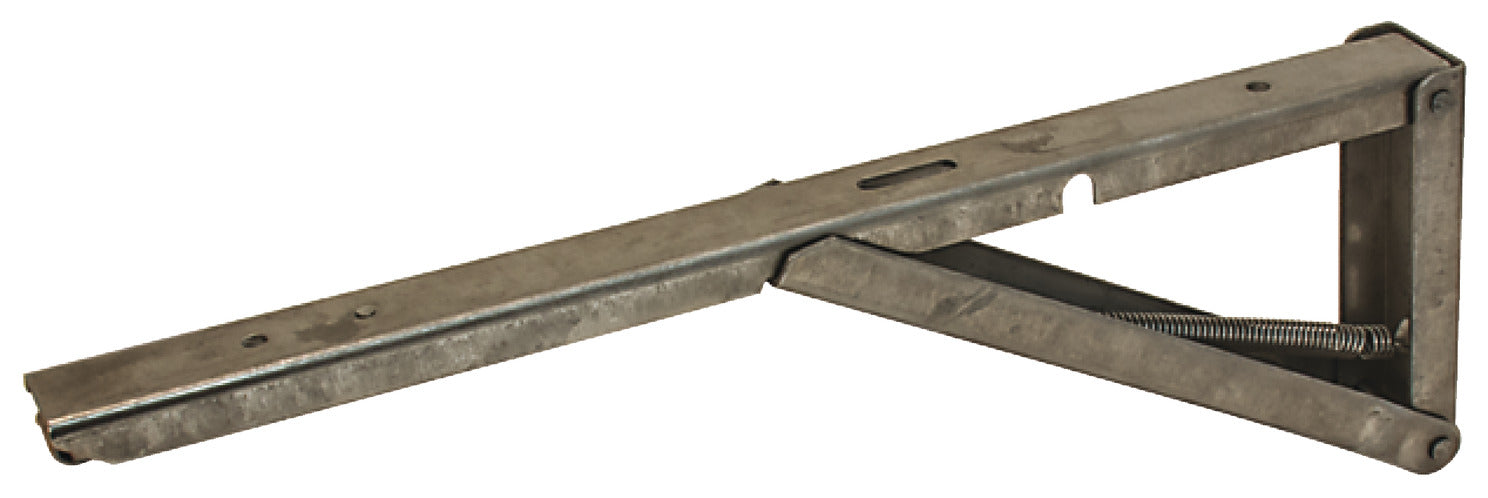

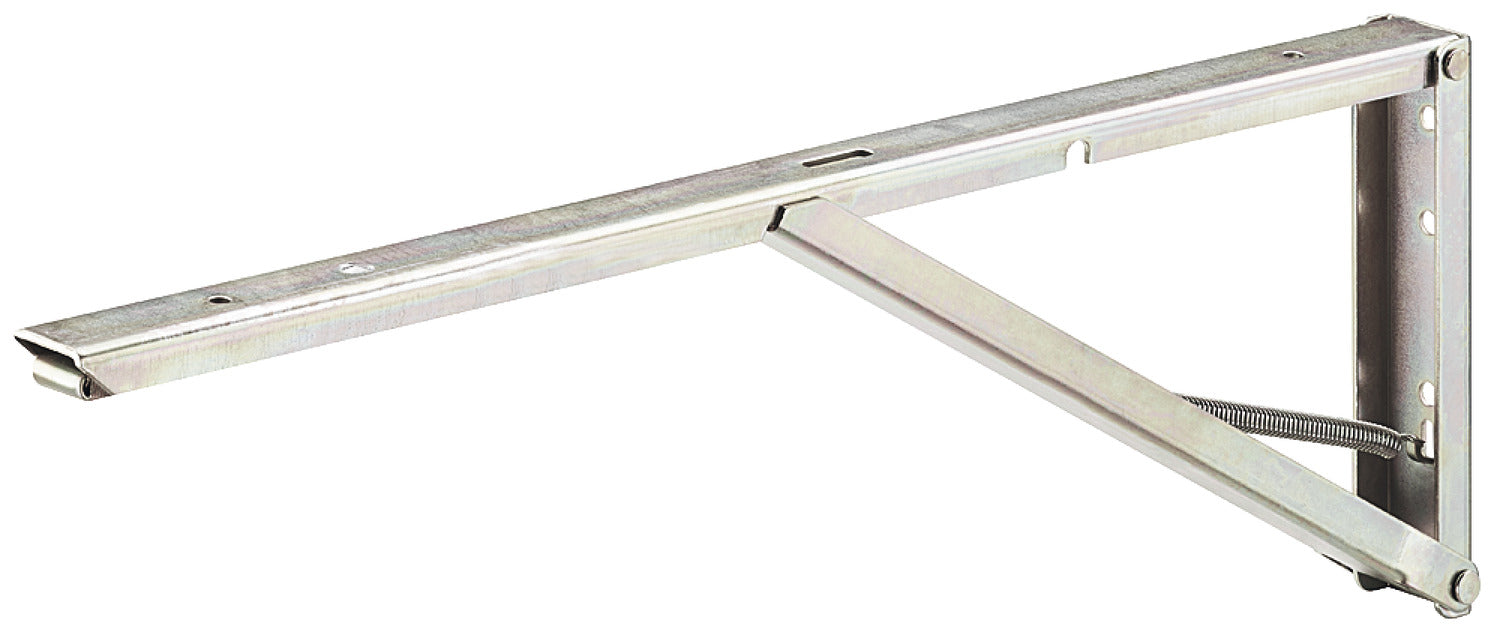

Hinged Spring Bracket, 40 kg

$41.00 CAD
$41.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • The specified load bearing capacity applies:
    Only when used in pairs
    With even load distribution (surface loads)
    With proper and reliable mounting on the wall
    The mounting method depends on the wall material: Please check screws and wall plugs in accordance with the type of wall (use other fixing material if necessary).

  • Material: Steel
  • Color/finish: Yellow, chromated
  • Width: 25 mm
  • Area of application :

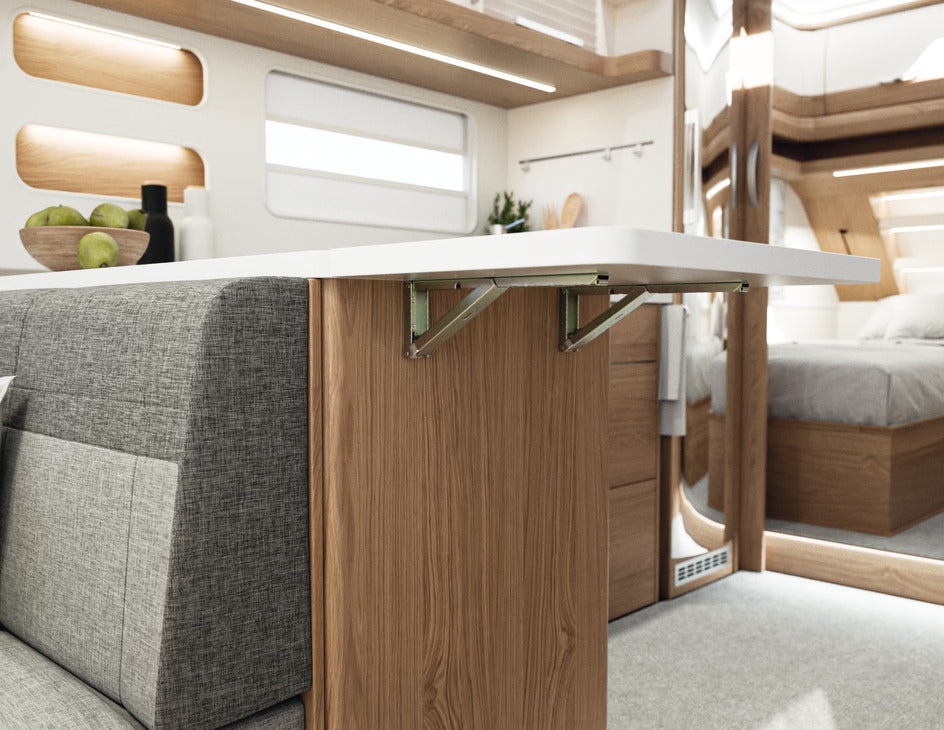

    For extending tables and worktops

  • Version :

    Folding
    With locking mechanism via spring loaded support

  • Functionality :

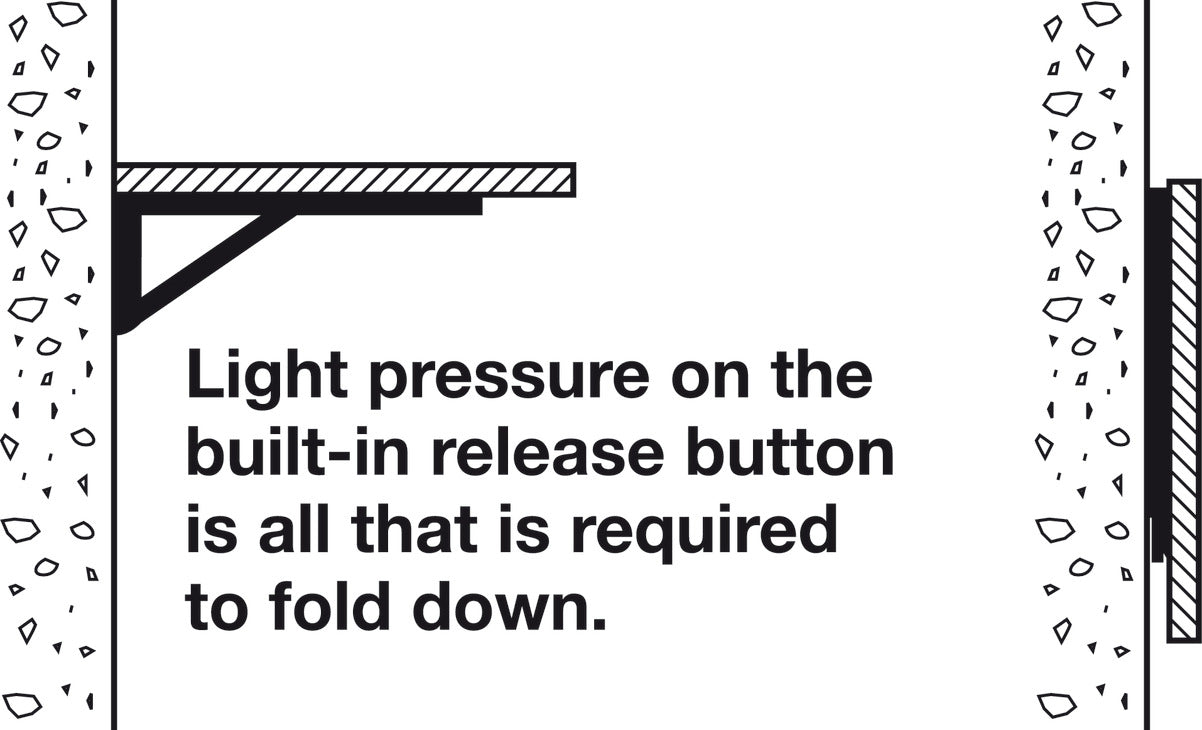

    Press integral release button to fold down.

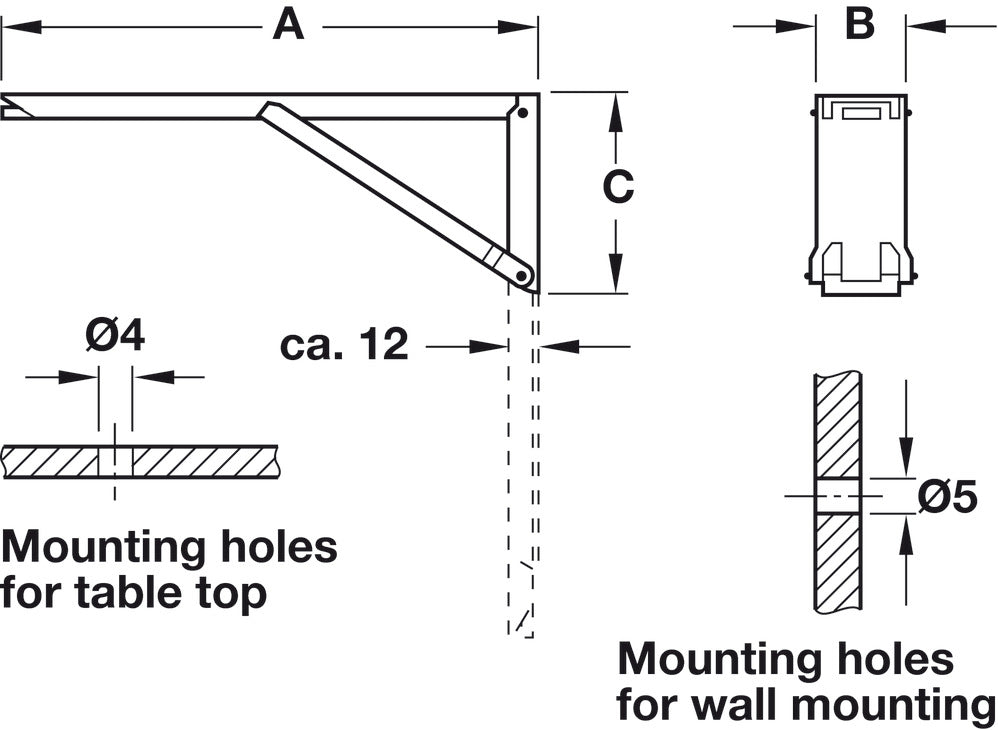

  • Installation :

    Screw-mounted, for vertical installation

  • Installation reference :

    Load capacities are approximate figures and can change depending on application. These figures were determined by static testing distributing the weight evenly over the surface, but not extending the length of the bracket.

  • Order reference :

    Load capacities are approximate figures and can change depending on application. These figures were determined by static testing distributing the weight evenly over the surface, but not extending the length of the bracket.
