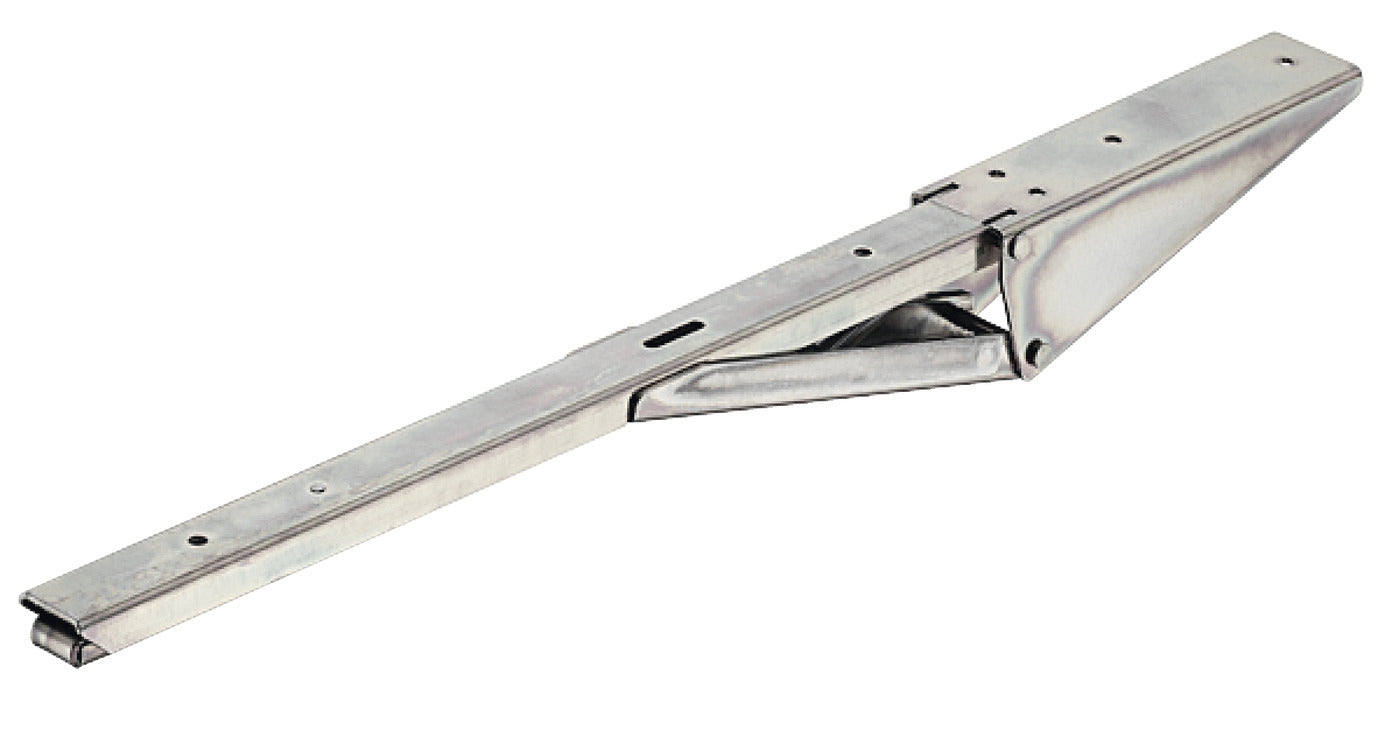

• Hinged Spring Bracket, For table extension, folding
1 4

Hinged Spring Bracket, For table extension, folding

$48.00 CAD
$48.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Only use in pairs
    With even load distribution (surface loads)
    With proper and reliable mounting on the wall.
    The mounting method depends on the wall material. Please check screws and wall plugs in accordance with the type of wall (use other fixing material if necessary).

  • Material: Steel
  • Color/finish: Yellow, chromated

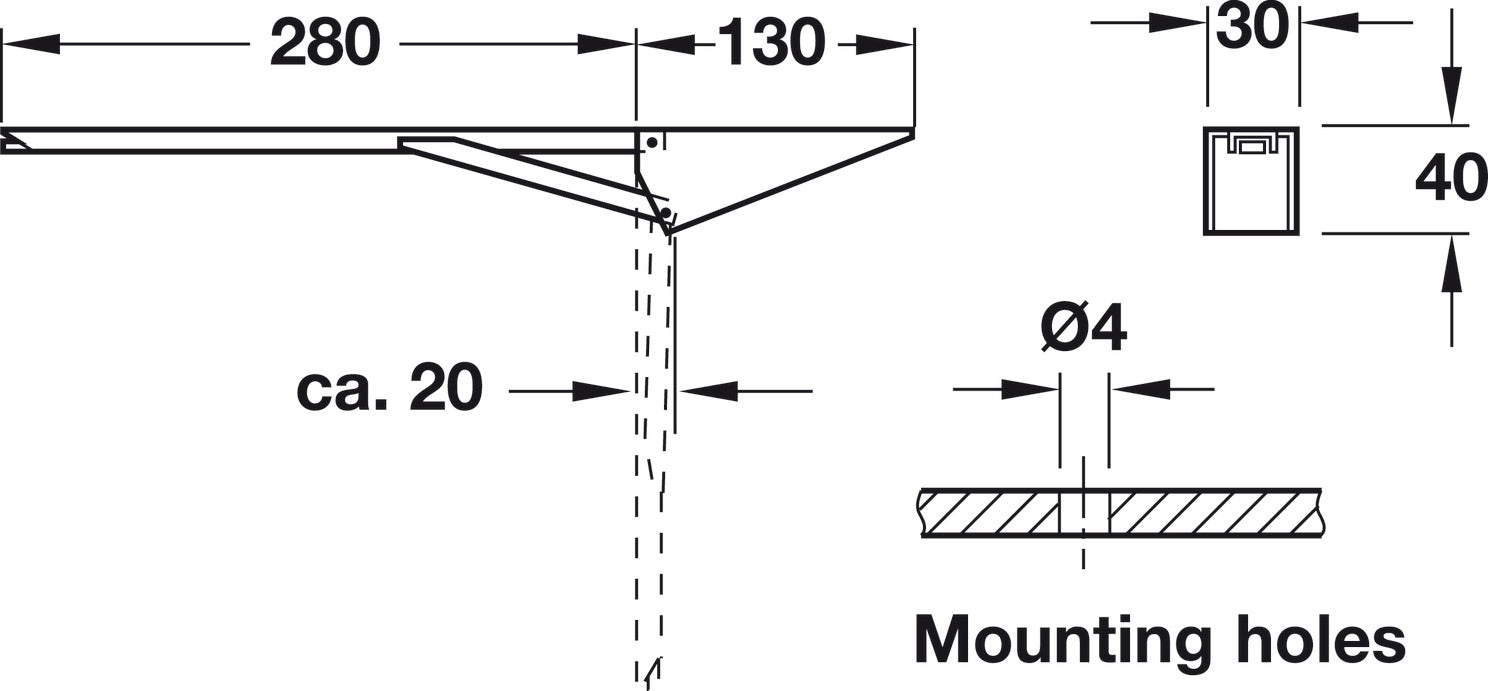

  • Length: 280 mm
  • Width: 30 mm
  • Height: 40 mm
  • Dim. D: 130 mm
  • Area of application :

    For extending table tops and worktops

  • Version :

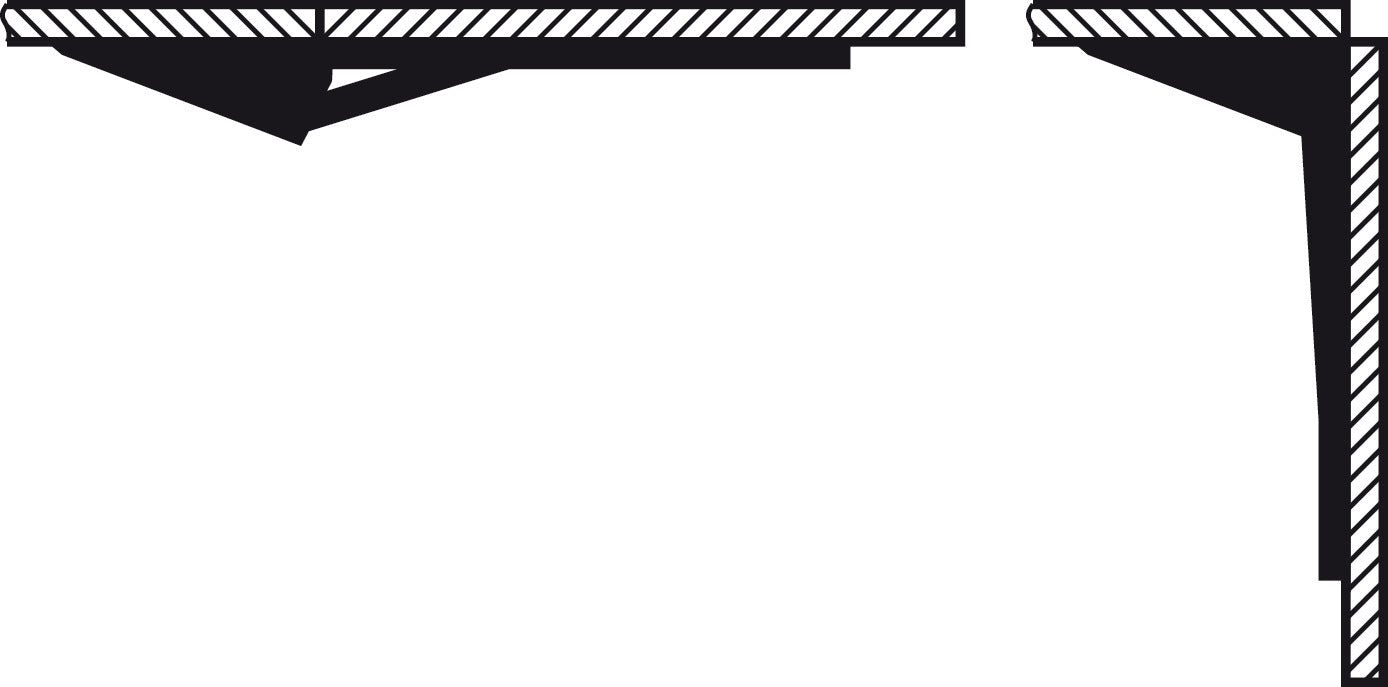

    Folding

  • Functionality :

    The folding bracket with spring locks automatically when raised.

  • Installation :

    Screw-mounted, for horizontal installation

  • Installation reference :

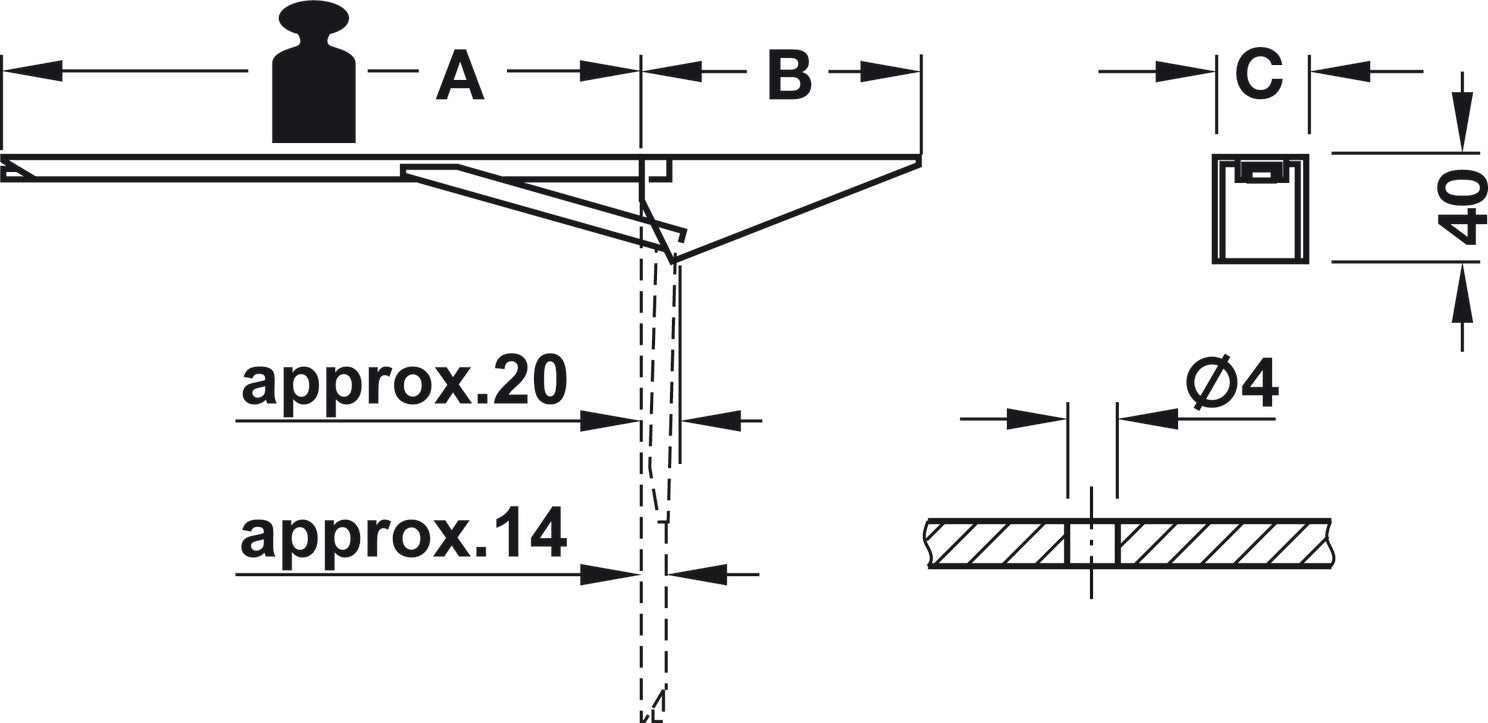

    Load capacities are approximate figures and can change depending on application. These figures were determined by static testing distributing the weight evenly over the surface, but not extending the length of the bracket.
