SpeedBrace Work Surface Bracket, Rigid
*Free Standard Ground Shipping on Orders over $199
-
The specified load bearing capacity applies:
Only when used in pairs
With even load distribution (surface loads)
With proper and reliable attachment to the wall
The fixing method depends on the wall material: Please check screws and wall plugs in accordance with the type of wall (use other fixing material if necessary).
-

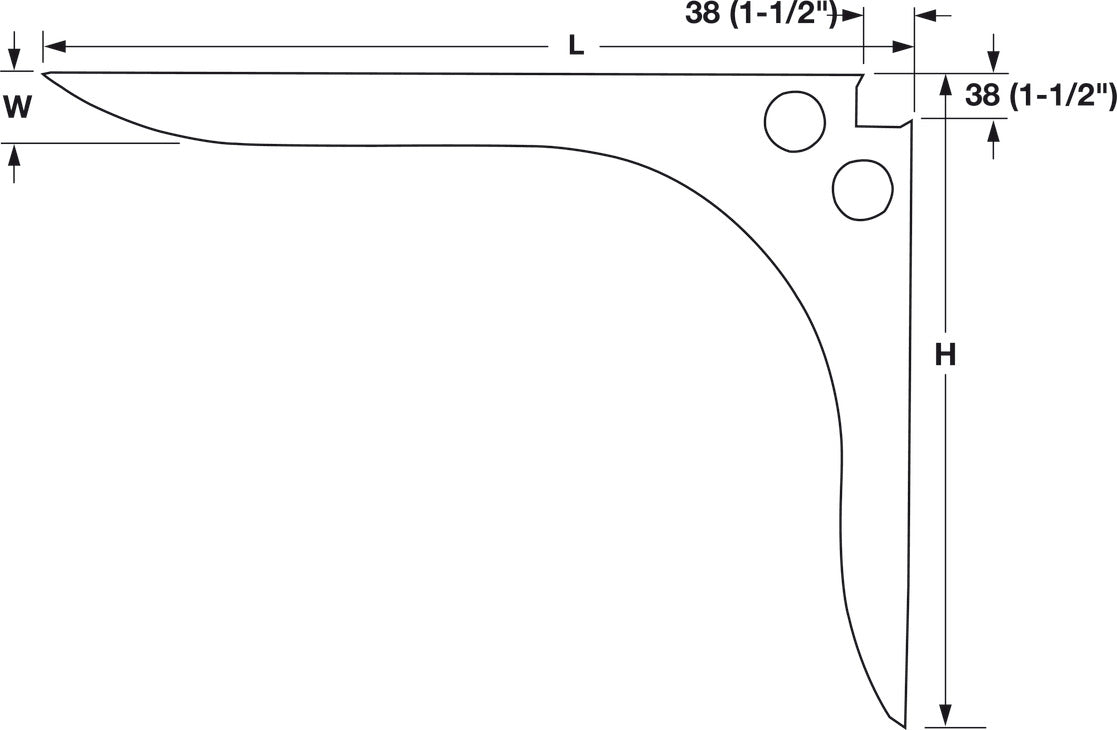

Recommended Countertop Sizes:
21" x 28" brace: 30"-32" tops
28" x 21" brace: 22"-24" tops
15" x 18" brace: 20"-24" tops
18" x 15" brace: 16"-20" tops
8" x 12" brace: 10"-16" tops
Rigid
Two different sized arm lengths, which allow for one brace to be used for two different sized countertops
Two conduit holes, which are designed for running power and communication cables independently
Steel
The specified load bearing capacity applies:
Only when used in pairs
With even load distribution (surface loads)
With proper and reliable mounting on the wall
The mounting method depends on the wall material: Please check screws and wall plugs in accordance with the type of wall (use other fixing material if necessary).
Load capacity: 1,000 lbs. per pair when mounted on 16" centers
A 3/4" x 1 1/2" notching system for fast and easy alignment after installing a level wall cleat
Two different sized arm lengths, which allow for one brace to be used for two different sized countertops
Heavy-duty folded steel design for strength
Two conduit holes, which are designed for running power and communication cables independently
Countersunk screw holes allow screws to be mounted flush, recommended screw size is a #8 with a countersunk head

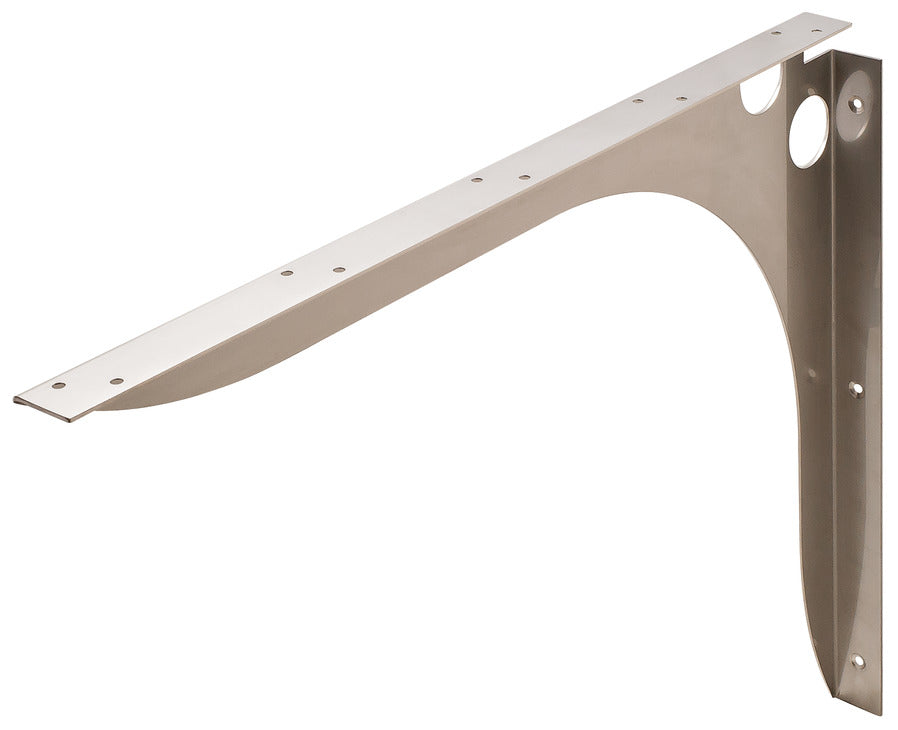

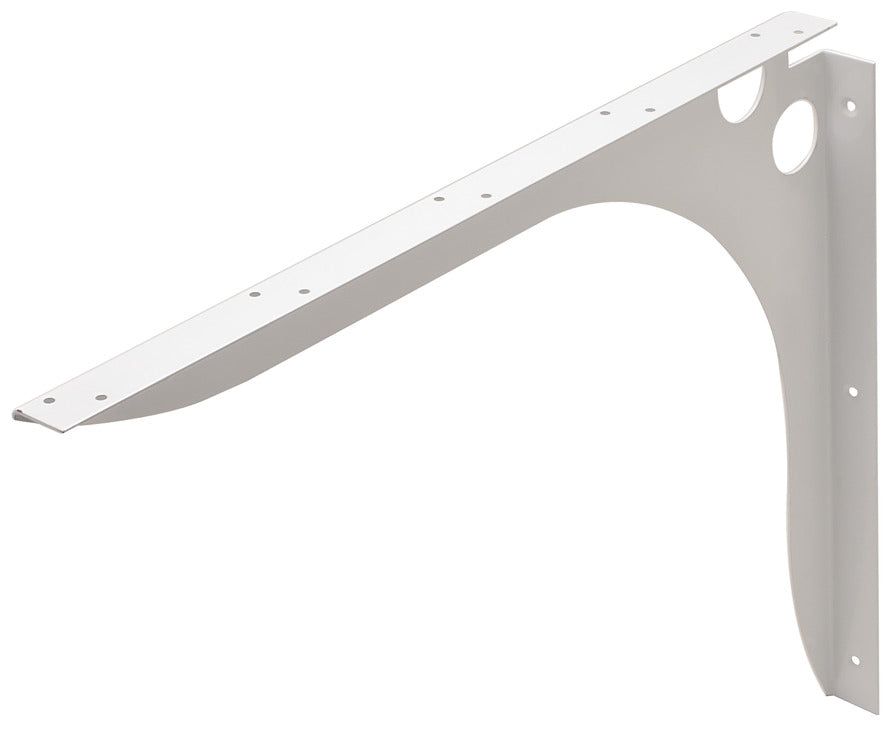

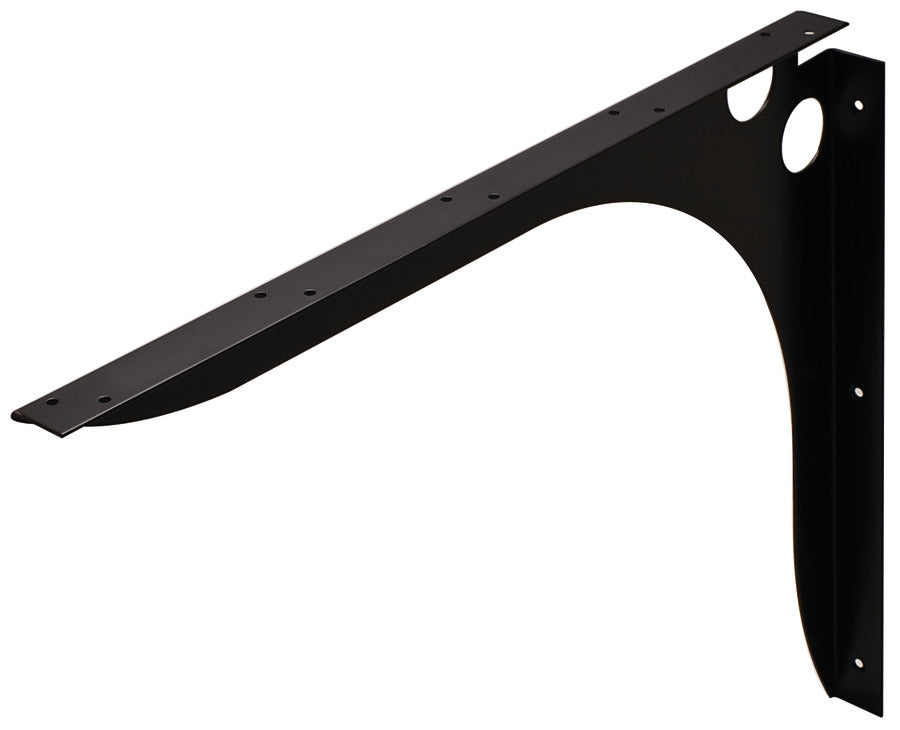

Available in epoxy-coated or stainless steel
