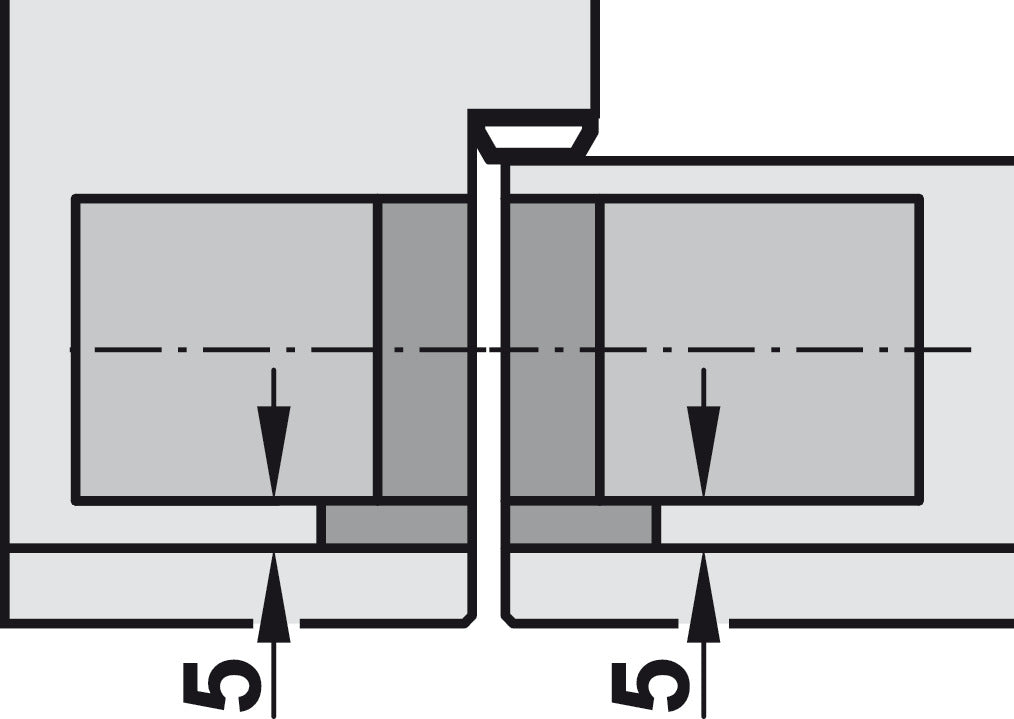

Concealed Hinge, TECTUS TE 540 3D A8
Regular price
$372.00 CAD
Regular price
Sale price
$372.00 CAD
Unit price
per
Shipping calculated at checkout.
*Free Standard Ground Shipping on Orders over $199
- Mounting: For DIN left and DIN right hand use
- Version:
Maintenance-free slide bearings
- Flange shape: rounded
- Flange width: 32 mm
- Material: Aluminum, Steel
- Flange height: 200 mm
- Door weight max.: 220 lbs
- Door thickness min.: 1 9/16"
- Model series : TECTUS TE 540 3D A8
-
Area of application
:
Used in door frames made out of hollow metal or wood for flush doors with an additional up to 8 mm (5/16â€) thick surface applied panel
UL listed for 20 minute rated fire doors (maximum door size: 4' x 8' for a single door, 8' x 8' for a pair of doors)
Left and right applications - For frame type : Steel frame, Wooden frame, Aluminum frame
- Max. door weight for 2 hinges : 100 kg
- Opening angle : 180 °
- Door thickness : ≥40 mm
- Router bit Ø : 24 mm
- Router bit Ø : Bit: 15/16"#Guide: 1 3/16"
- Thrust ring Ø : 30 mm
- Adjustment facility : 3D Continuous, Side: ±3 mm, Height: ±3 mm, Closing pressure: ±1 mm
- Standard : Certified in compliance with EN 1935:2002
- Grade : 4|7|5|1|1|3|1|12
