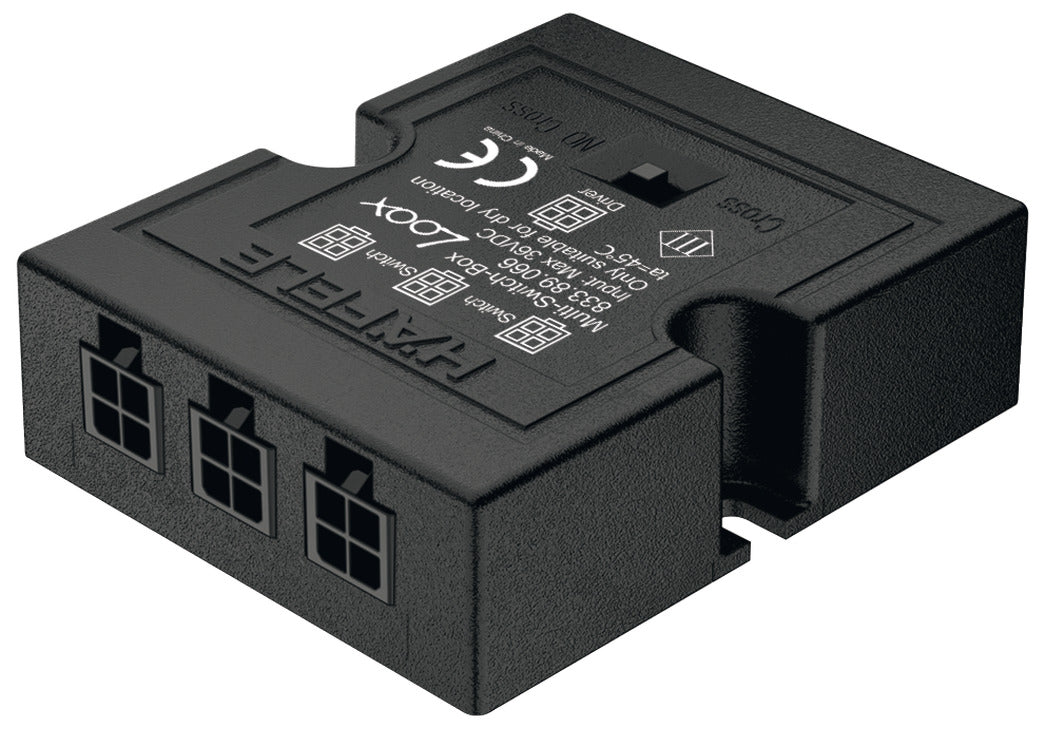

Multi Switch Box, With cross circuit

$42.00 CAD
$42.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • 1 LED driver/distributor with switching function operated by up to 3 switches.
    Allows the LED driver or distributor with switching function to be switched on and off from different positions.

  • Standby power consumption: 0.3 W
  • Height (inch): 5/8"
  • Length (inch): 2 3/16"
  • Width (inch): 1 3/4"
  • Functionality :

    2 operating modes can be selected using an integrated toggle switch.
    Cross circuit: On/off switching at alternating switches.
    Deactivated cross circuit: Switching on with switch 1, 2 or 3
    for switching off, all switches that were switched on have to be operated again.

  • Operation mode : With cross circuit, Deactivated cross circuit
  • Material : Plastic
  • Color/finish : Black
  • Dim. (L x W x H) : 55 x 45 x 16 mm
  • Degree of protection : IP20
  • Cable length : 1000 mm

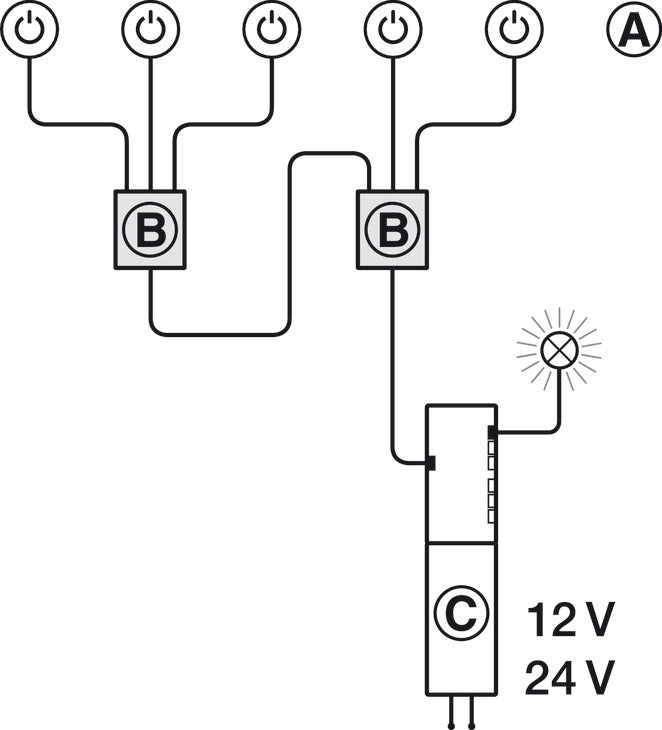

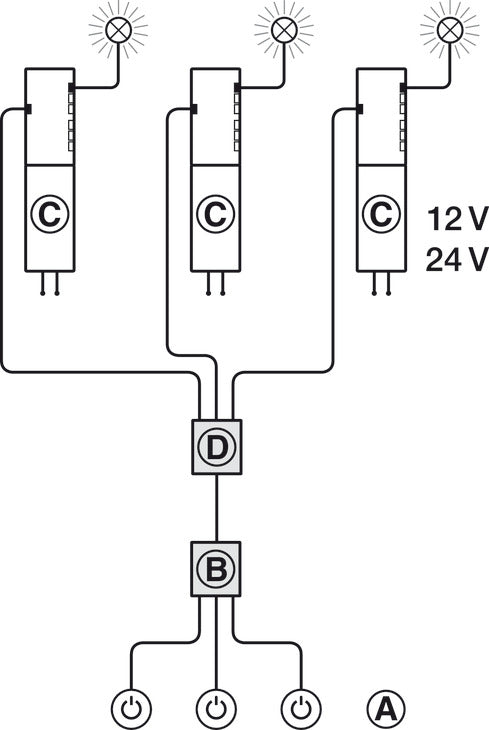

  • Installation reference :

    1 LED driver operated by up to 3 switches. Allows the LED driver to be switched on and off from different positions.

    2 operating modes can be selected using an integrated toggle switch
    Cross circuit: On/off switching at different switches
    OR circuit: Switching on with switch 1, 2, or 3. For switching off, all switches with soft on/off cannot be used in combination with multi switch boxes.
    Lead length from driver to switch max. 6 m (19’ 8 1/4”)
    The drill hole for switch leads is 12 mm (1/2”)

  • Order reference :

    Please order lead for switch with other lengths separately.

  • Supplied with :

    39 3/8” lead
