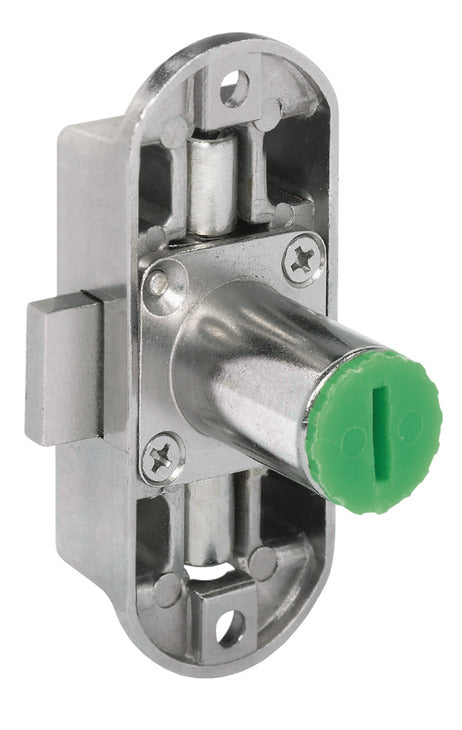

Espagnolette Lock, Symo Piccolo-Nova, Backset 15 mm

$10.00 CAD
$10.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Material:

    Zinc alloy

  • Color/finish: Nickel plated

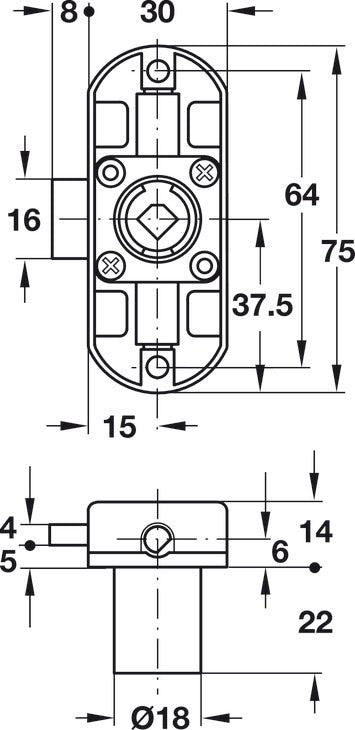

  • Backset (mm): 15 mm
  • Installation:

    Screw-mounted

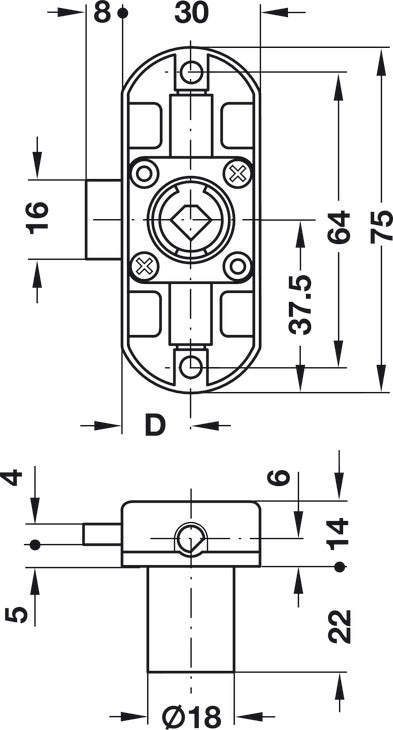

  • Backset D: 15 mm
  • Refinement:

    Nickel plated

  • Area of application :

    For divided profile rod Ø 6 mm
    For cylinder cores that are inserted from the front on site

  • Cylinder shape : prepared for round cylinder
  • Cylinder housing length : 22 mm
  • Installation reference :

    Please note that the pivot rods must be cut to the required size when designing the cabinet and choosing the accessories for the espagnolette lock.

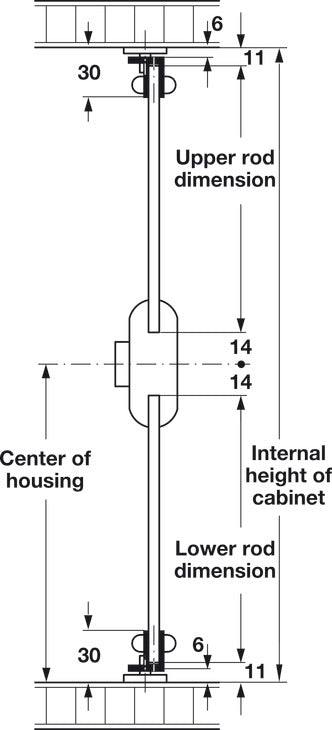

    With the existing internal cabinet height ⓒ and installing the espagnolette lock at half height, the upper rod dimension is ⓐ and the lower rod dimension is ⓑ. Housing centre ⓓ – 25 mm
    Due to the three different backsets (15, 25 and 40 mm), identical gap sizes can be achieved for corner cabinets and rows of cabinets with the same drilling pattern.

  • with key : No
