• Drive Actuator
1 3

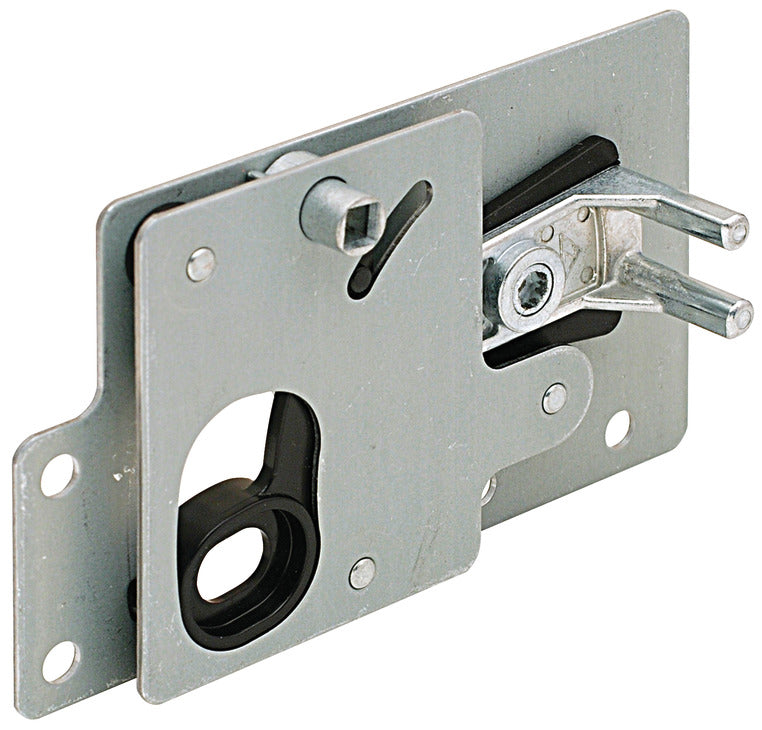

Drive Actuator

$13.00 CAD
$13.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

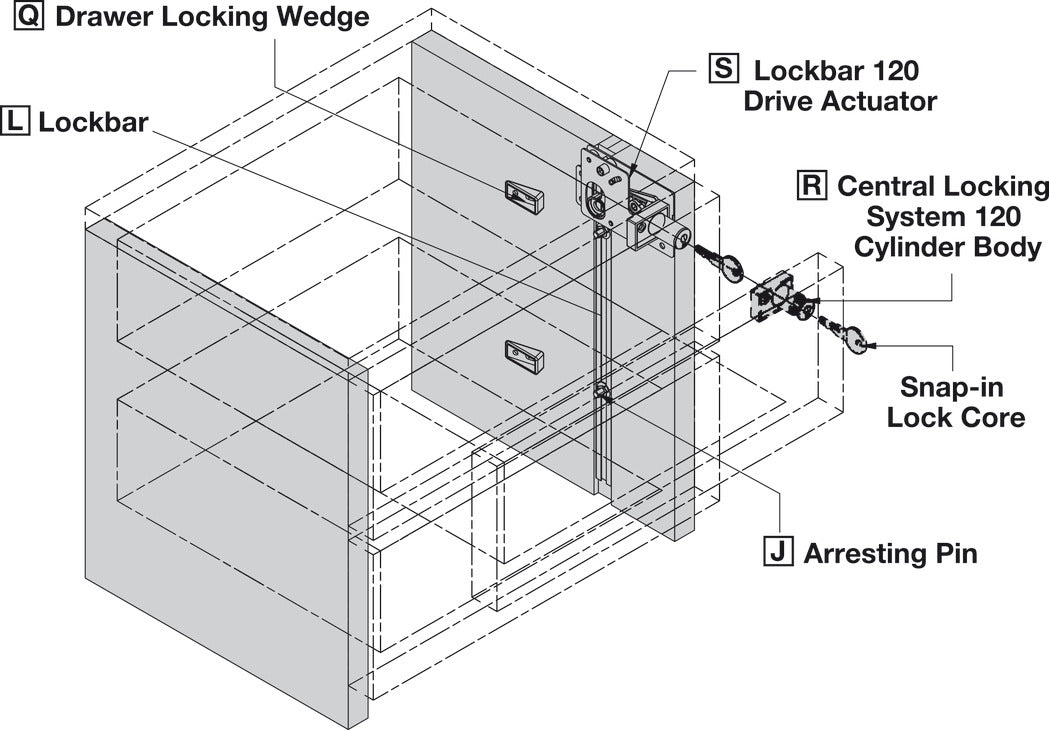

  • Transmits horizontal rotation of drive shaft to vertical movement of lockbar
    Easy to position on side panel
    Lockbar is held in position when drawer is opened
    Unique adjustment cam design allows for easy movement of lock interface for accurate pin alignmen
    Use a 4 mm (5/32") hex key to adjust

  • Version:

    Transmits horizontal rotation of drive shaft to vertical movement of lockbar

  • Material:

    Steel
    Cam: Die-cast zinc
    Linkage arm: Plastic

  • Color/finish: Linkage arm: Black, Cam: Zinc
  • Installation:

    Easy to position on side panel

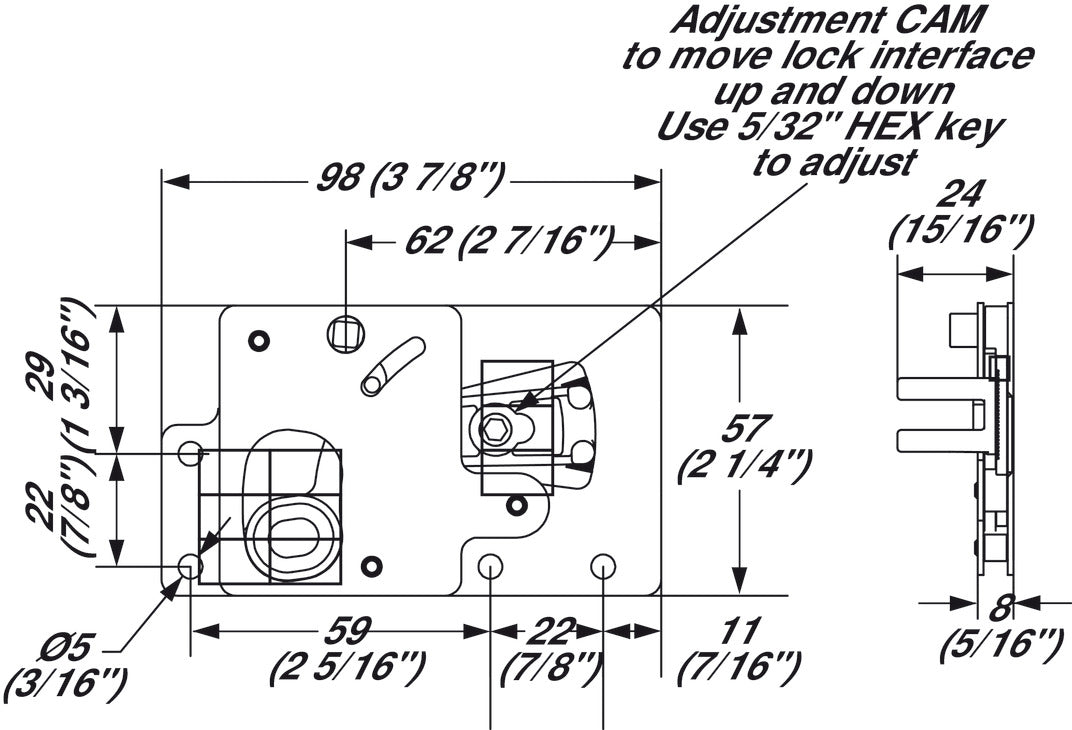

    Unique adjustment cam design allows for easy movement of lock interface for accurate pin alignment; use a 4 mm (5/32") hex key to adjust

  • Product type: Drive Actuator
  • Suitable for : Transmits horizontal rotation of drive shaft to vertical movement of lockbar
