• Safe-O-Mat® - Coin Return, 800 Series
1 4

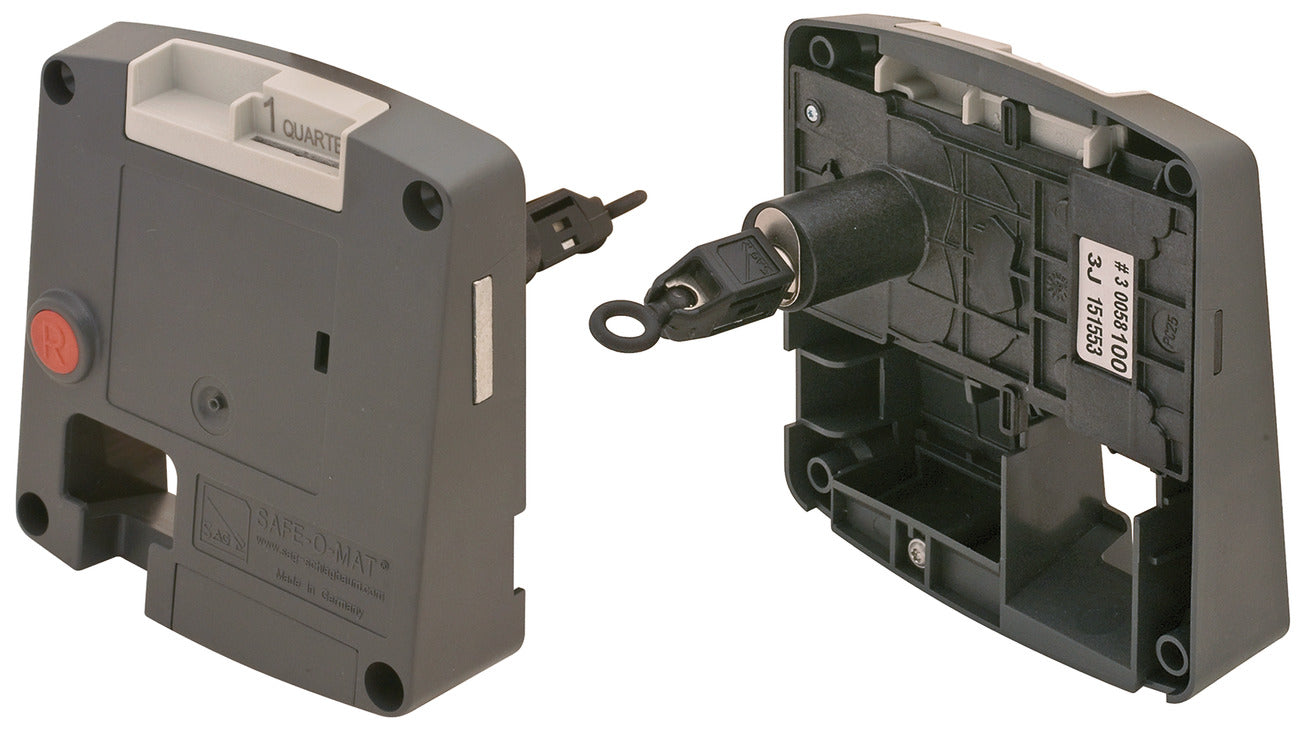

Safe-O-Mat® - Coin Return, 800 Series

$105.00 CAD
$105.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • To Lock:
    1. Insert coin(s) into slot
    2. Close door, turn key to extended bolt, coin is temporarily
    3. Remove key

    To Unlock:
    Insert and turn key to retract bolt, coin is returned to Coins (s) Return Catch.

  • Color/finish: Gray

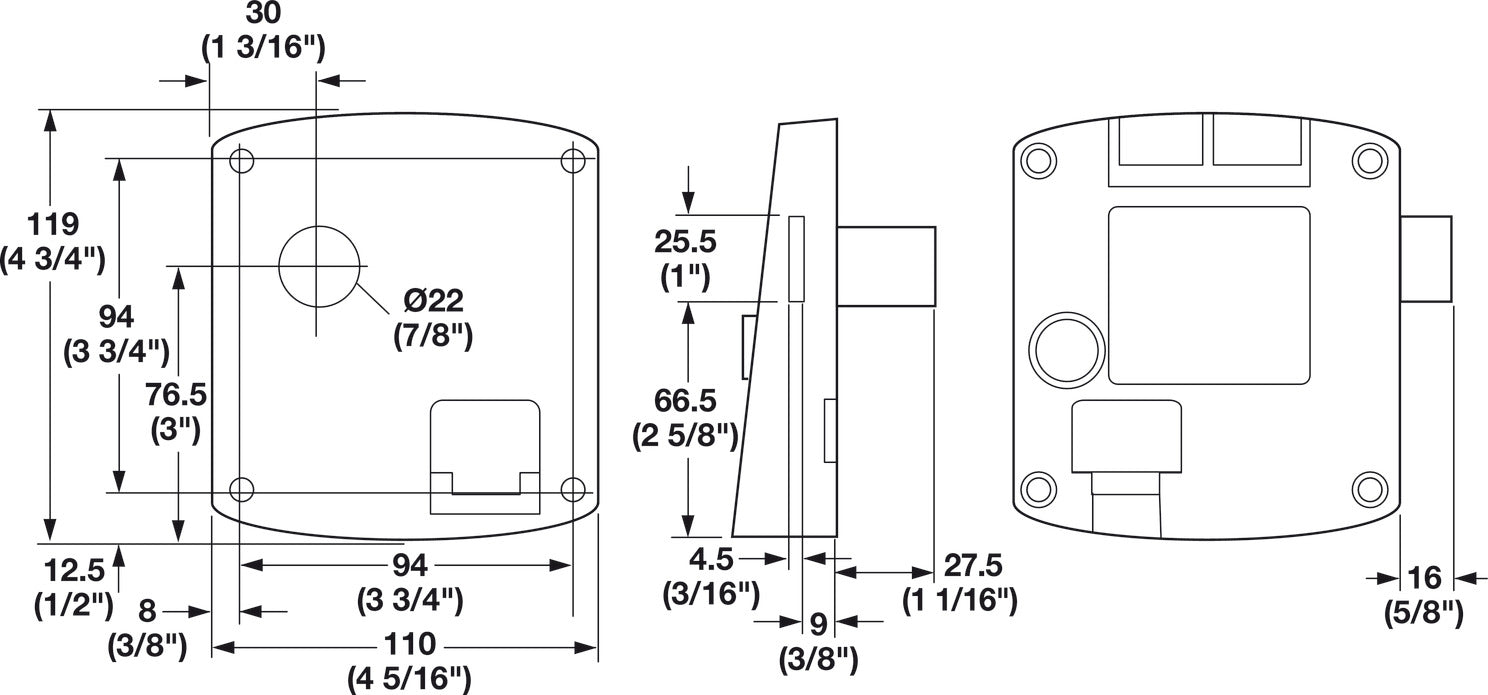

  • Dim. (L x W x H): 110 x 57.5 x 119 mm
  • Backset (mm): 30 mm
  • Model series: 800 - Coin Return
  • Length (inch): 4 5/16"
  • Width (inch): 2 1/4"
  • Height (inch): 4 3/4"
  • For door thickness min.: 1/2"
  • For door thickness max.: 1"
  • For cabinet width: Min: 5 1/2"
  • Temperature min.: 32 °F
  • Temperature max.: 140 °F
  • Area of application :

    Fitness centers
    Amusement parks
    Resorts
    Transportation terminals

  • Material :

    Plastic

  • Cylinder length : 27 mm
  • Cylinder Ø (mm) : 22 mm
  • Weight : 0.225 kg

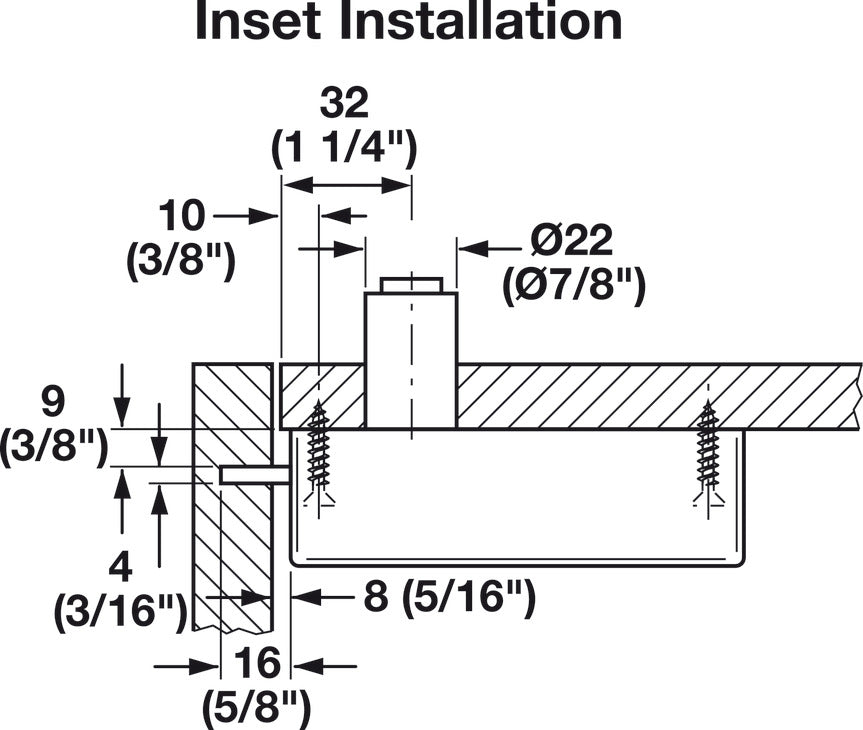

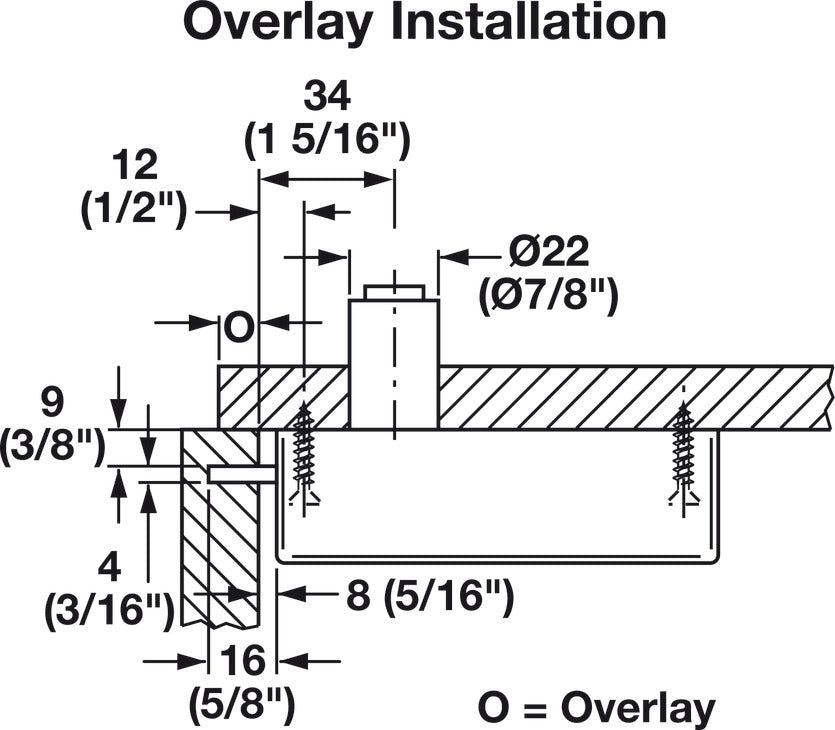

  • Installation reference :

    Screw length depends on door thickness.
    Other currency or token locks available upon request.

    Please contact Häfele at 1-800-423-3531 and have the following information available:
    “Handing” Specification
    Key Plan specifications

  • with key : Yes
  • Supplied with :

    4 mounting screws
    Outside instruction decal
