• Safe-O-Mat® - Coin Collect, 800 Series
1 7

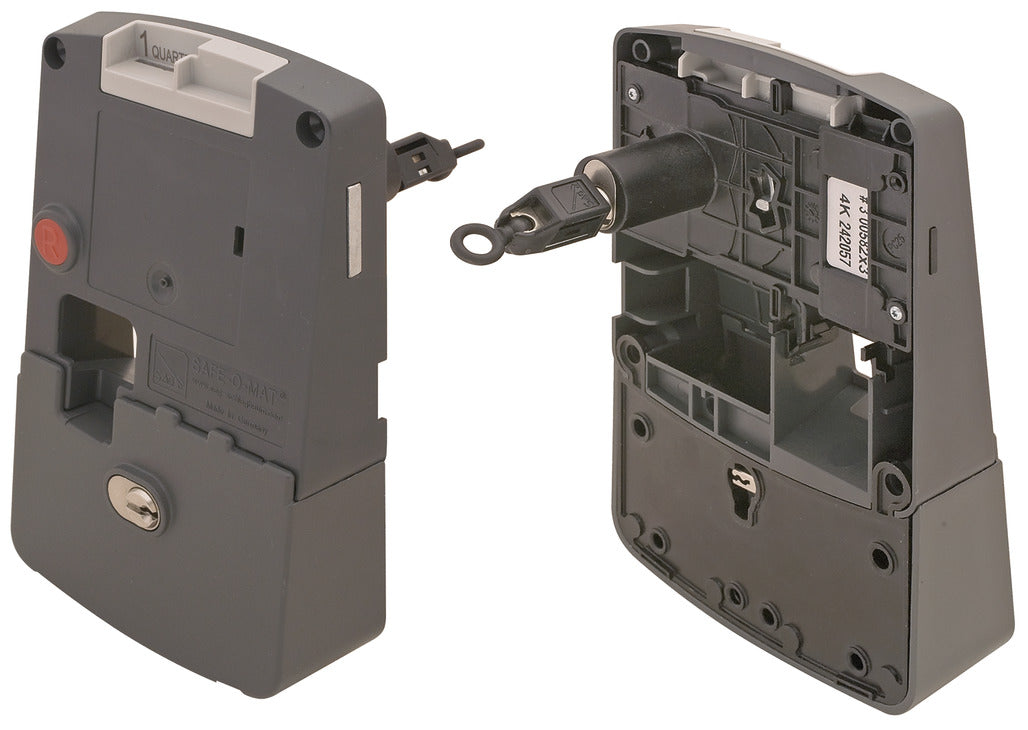

Safe-O-Mat® - Coin Collect, 800 Series

$107.00 CAD
$107.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • To Lock
    1. Insert card into slot
    2. Close door, turn key to extend bolt
    3. Remove key

    To Unlock
    Insert and turn key to retract bolt, card can be removed, key is again trapped.

  • Color/finish: Gray, Housing: Anthracite cylinder: Matt nickel plated
  • Type of locking: with 6 pin tumblers

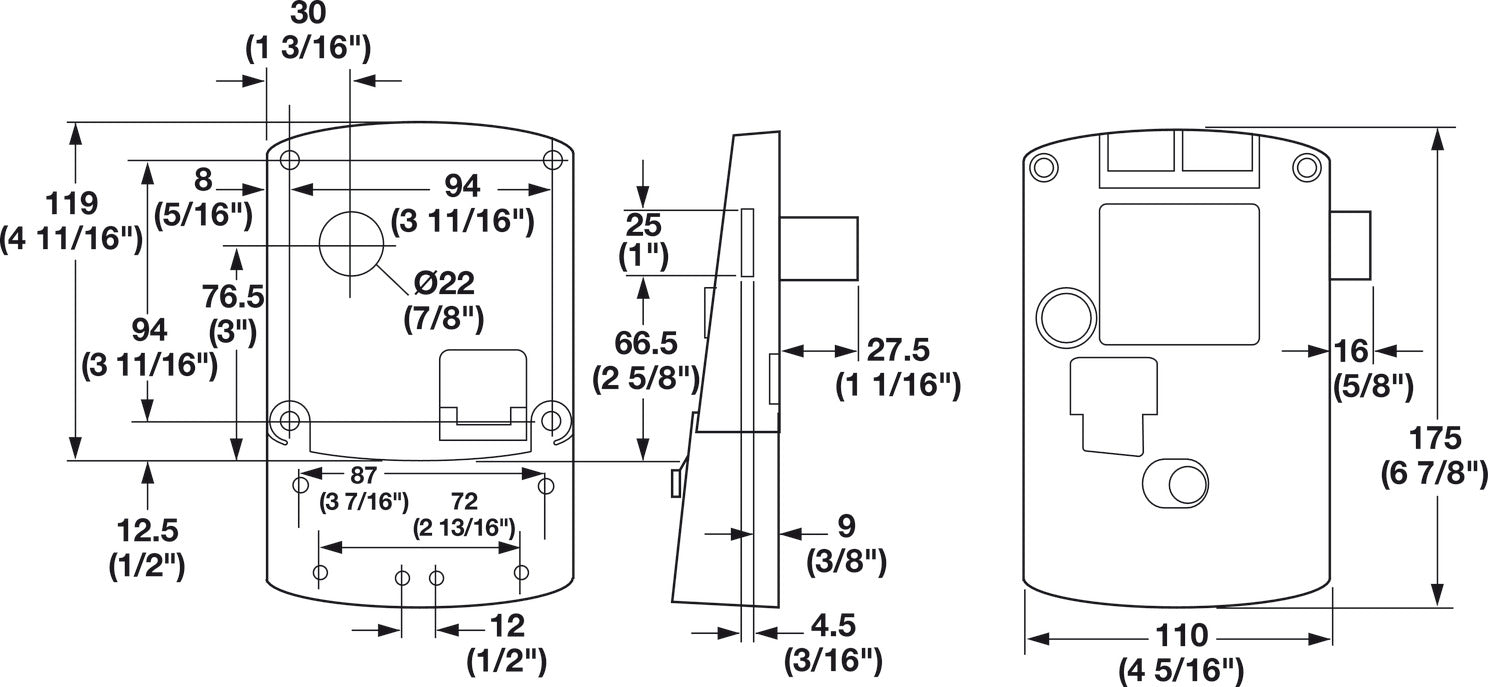

  • Dim. (L x W x H): 110 x 58 x 175 mm
  • Backset (mm): 30 mm

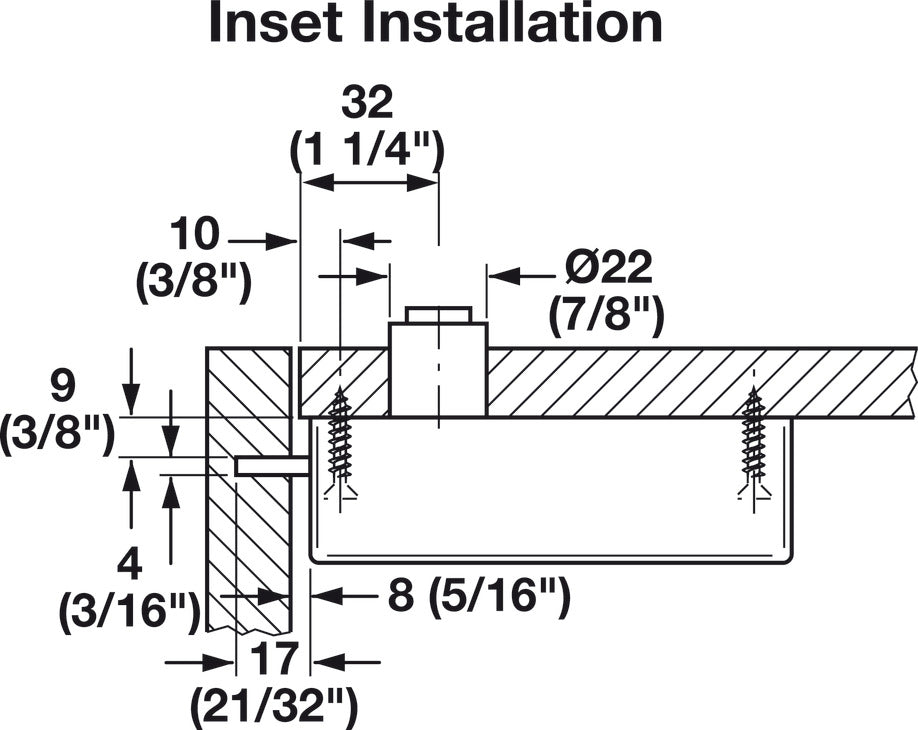

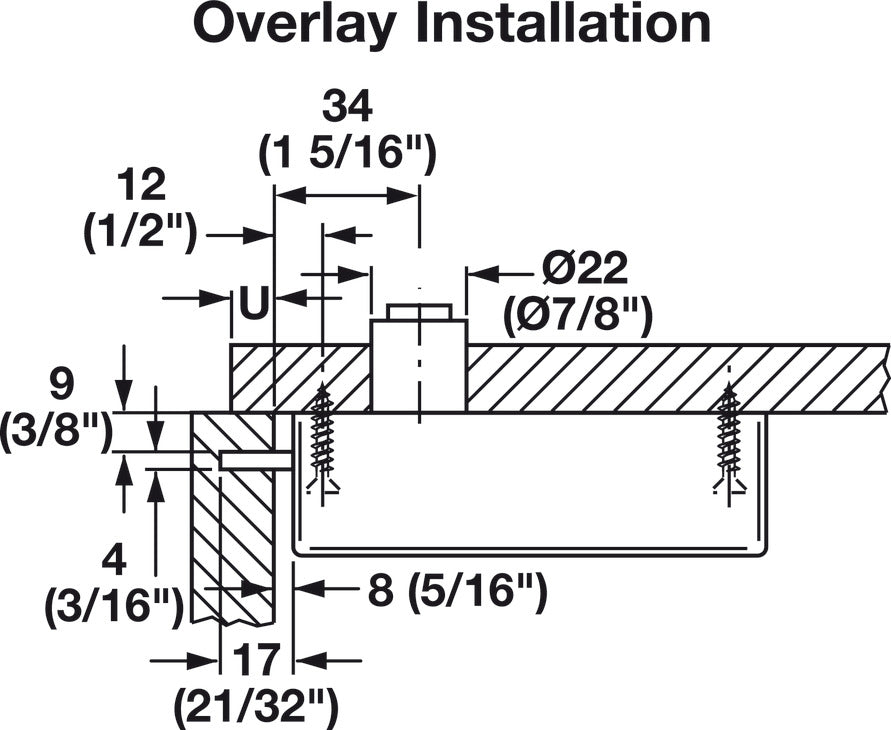

  • Installation:

    Right

  • Mounting:

    Right

  • Model series: 800 - Coin Collect
  • Length (inch): 4 5/16"
  • Width (inch): 2 1/4"
  • Height (inch): 6 7/8"
  • For door thickness min.: 1/2"
  • For door thickness max.: 1"
  • For cabinet width: Min: 5 1/2"
  • Temperature min.: 32 °F
  • Temperature max.: 140 °F
  • Area of application :

    • Fitness centers
    • Amusement parks
    • Resorts
    • Transportation terminals

  • Material :

    Plastic
    Cash box: Steel

  • Functionality :

    After inserting a coin, the key can be removed. After unlocking and coin return the bolt relocks.

  • Cylinder length : 27 mm
  • Cylinder Ø (mm) : 22 mm
  • Weight : 0.6 kg
  • Installation reference :

    Please contact Häfele at 1-800-423-3531 and have the following information available:
    “Handing” specifications
    Key Plan specifications

    Each lock requires (sold separately):
    Cylinder core and user key
    Cash box

    Every order requires (sold separately):
    Cylinder change (removal) key
    Master key
    Cash box key


    Screw length depends on door thickness.
    Other currency or token locks available upon request.

  • with key : Yes
  • Order reference :

    Specify additionally to Cat. No.:
    a) Required coin values for slot A and B
    b) For wooden or metal doors

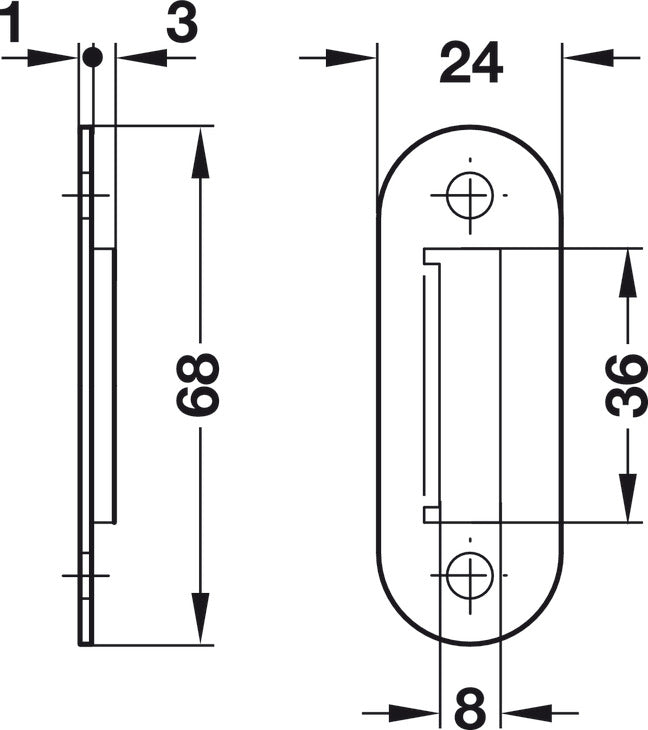

    c) Angled striking plate or striking plate
    d) Installation location with project name and postcode

  • Supplied with :

    4 mounting screws
    Outside instructions decal per pc.
