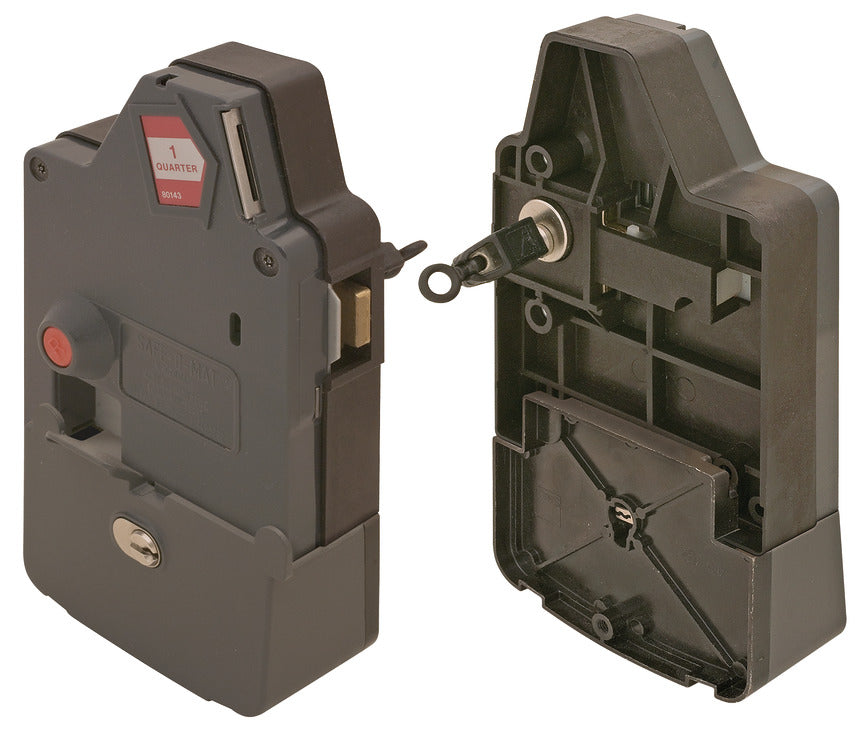

Safe-O-Mat® - Coin Collect, Model S-6

$201.00 CAD
$201.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • To Lock
    1. Insert coin(s)/token into slot
    2. Close door and turn key to extend bolt,
    coin(s)/token is temporarily retained
    3. Remove key

    To Unlock
    1. Insert and turn key to retract bolt, coin(s)/token are returned to Coin Return Catch

  • Version:

    1 Quarter

  • Color/finish: Gray, Housing: Anthracite cylinder: Matt nickel plated
  • Type of locking: with 6 pin tumblers

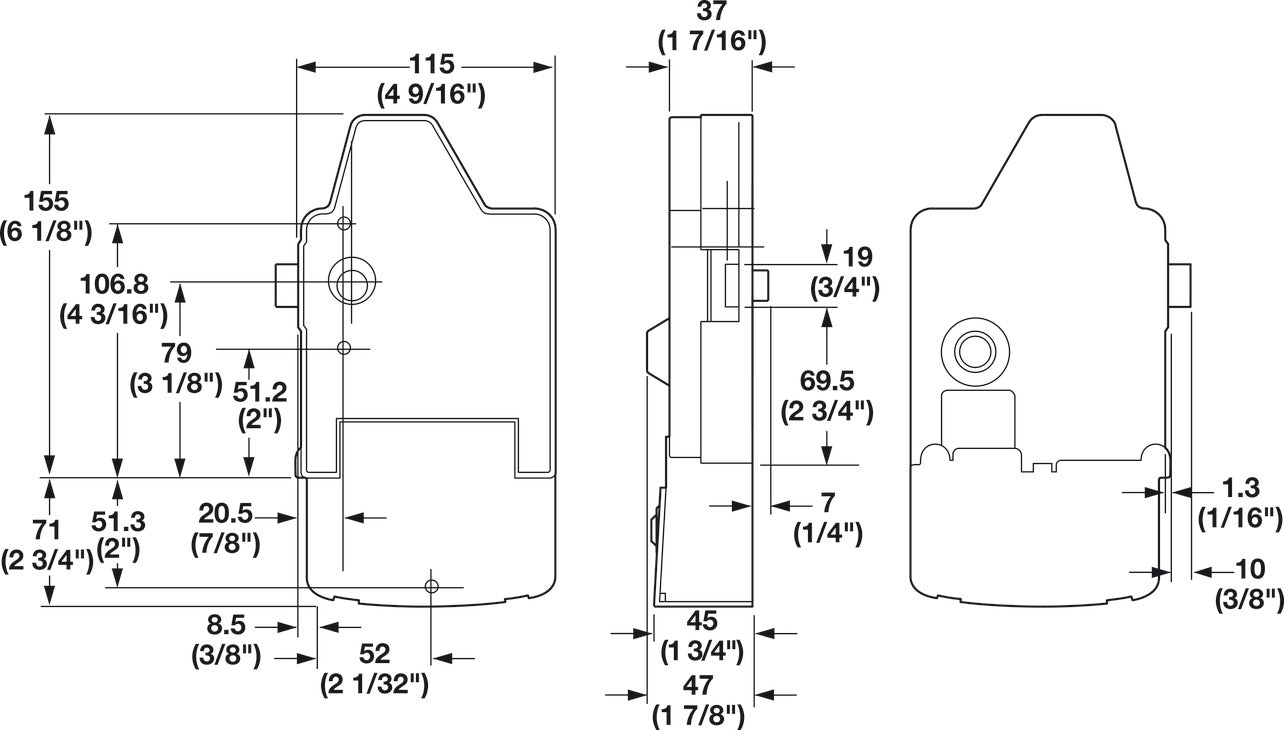

  • Dim. (L x W x H): 115 x 54 x 226 mm
  • Backset (mm): 30 mm
  • Installation:

    For screw fixing

  • Model series: S-6 Coin Collect
  • Length (inch): 4 9/16"
  • Width (inch): 2 1/8"
  • Height (inch): 8 7/8"
  • Temperature min.: 32 °F
  • Temperature max.: 140 °F
  • Area of application :

    •Fitness centers
    • Amusement parks
    • Resorts
    • Sports-arenas
    • Transportation terminals

  • Material :

    Plastic
    Cash box: Steel

  • Functionality :

    After inserting a coin, the key can be removed. After unlocking and coin return the bolt relocks.

  • Cylinder length : 27 mm
  • Cylinder Ø (mm) : 22 mm
  • Weight : 1.2 kg
  • Installation reference :

    Please contact Häfele at 1-800-423-3531 and have the following information available:
    “Handing” specifications
    Key Plan specifications

    Every order requires (sold separately):
    Master key
    Cash box key

  • with key : Yes
  • Order reference :

    Specify additionally to Cat. No.:
    a) Required coin values for slot A and B
    b) For wooden or metal doors

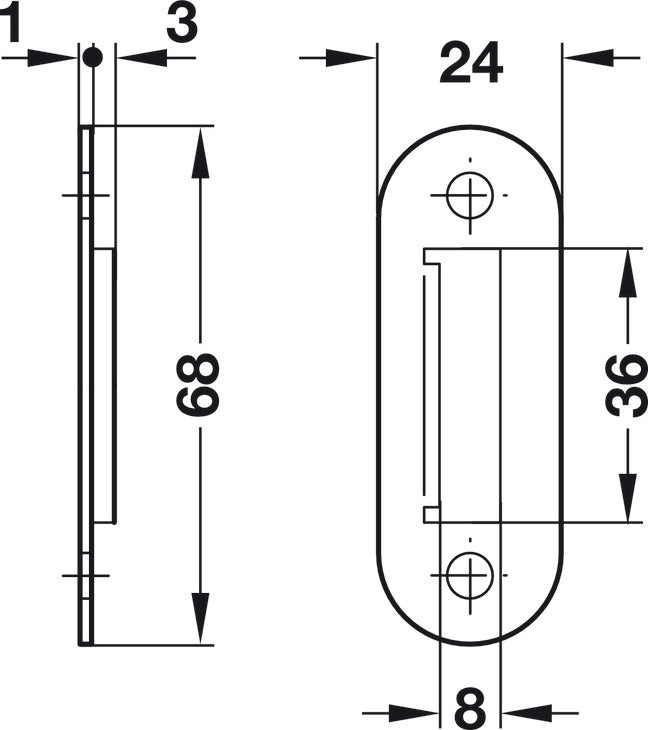

    c) Angled striking plate or striking plate
    d) Installation location with project name and postcode

  • Supplied with :

    3 mounting screws
    Outside instruction decal
