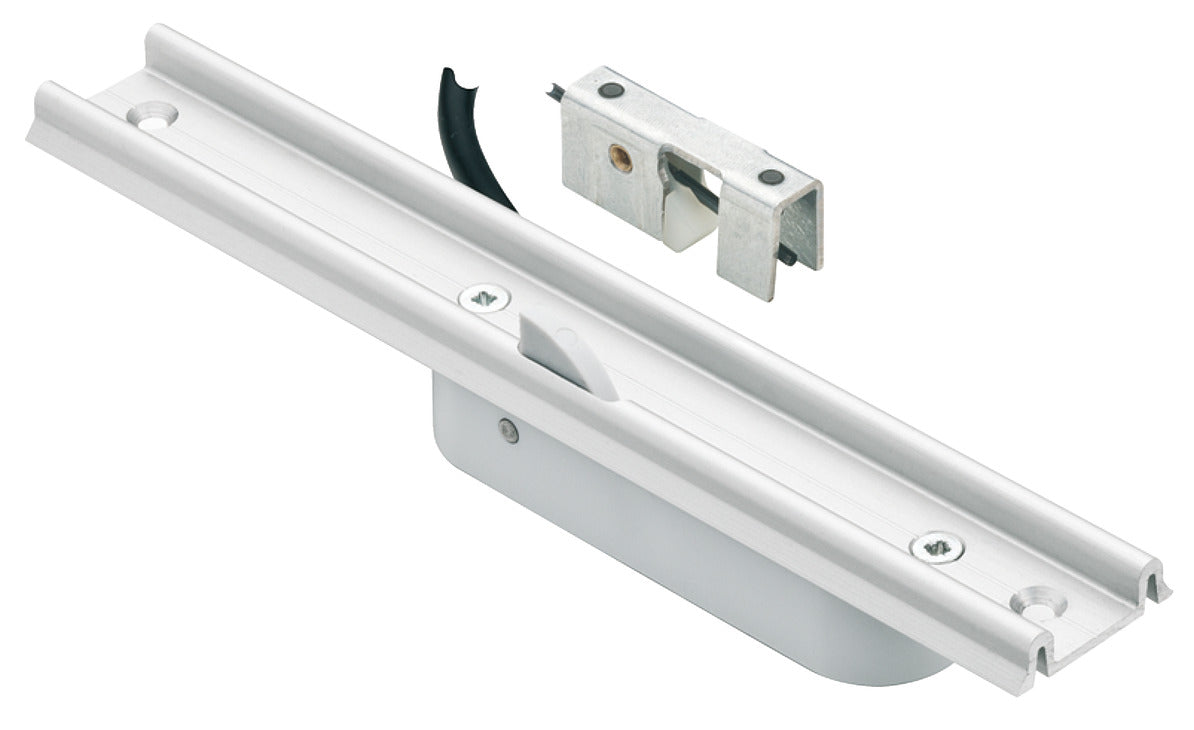

• Electronic Furniture Lock, EFL41
1 5

Electronic Furniture Lock, EFL41

$598.00 CAD
$598.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Electric lock for indoor use
    The lock remains unlocked for 3 seconds via the DFT (standard), the door is locked again after 3 seconds, integrated feedback contact “Locked/Unlocked”

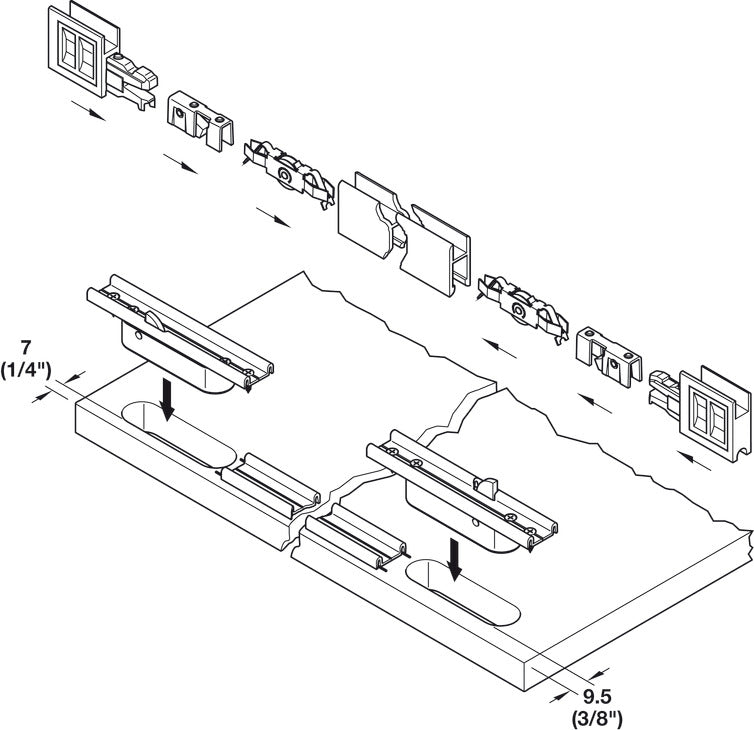

    Lock with AMP plug, locking unit for sliding into the Design 25 IF bottom running track
    For groove mounting into base panel

  • Article variant:

    EFL 41 glass sliding door lock

  • Product type: Electronic Furniture Lock
  • Area of application :

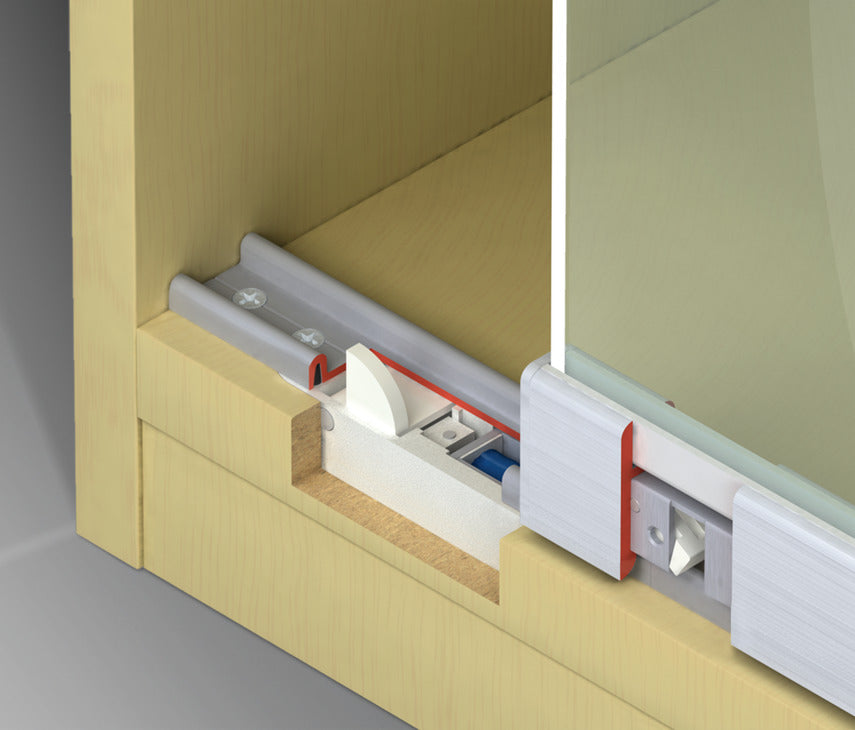

    Electric lock for indoor use: For glass sliding doors in furniture and office equipment

  • Version :

    EFL 41 glass sliding door lock

  • Functionality :

    The lock remains unlocked for 3 seconds via the FT 120/ FT 200 (standard), the door is locked again after 3 seconds.
    Integrated feedback contact "Lock locked/unlocked"

  • Connection : FT 120 furniture terminal: Connection via CC 140 multi-lock adapter, FT 200 furniture terminal: Connection via MLA 8 multi-lock adapter
  • Material :

    Locking unit: Plastic/Aluminum; Latch: Steel
    End cap: Zinc alloy; Guide pins: Steel

  • Color/finish : Double running track: Stained, silver coloured anodized
  • For glass thickness : 6–8 mm
  • Installation :

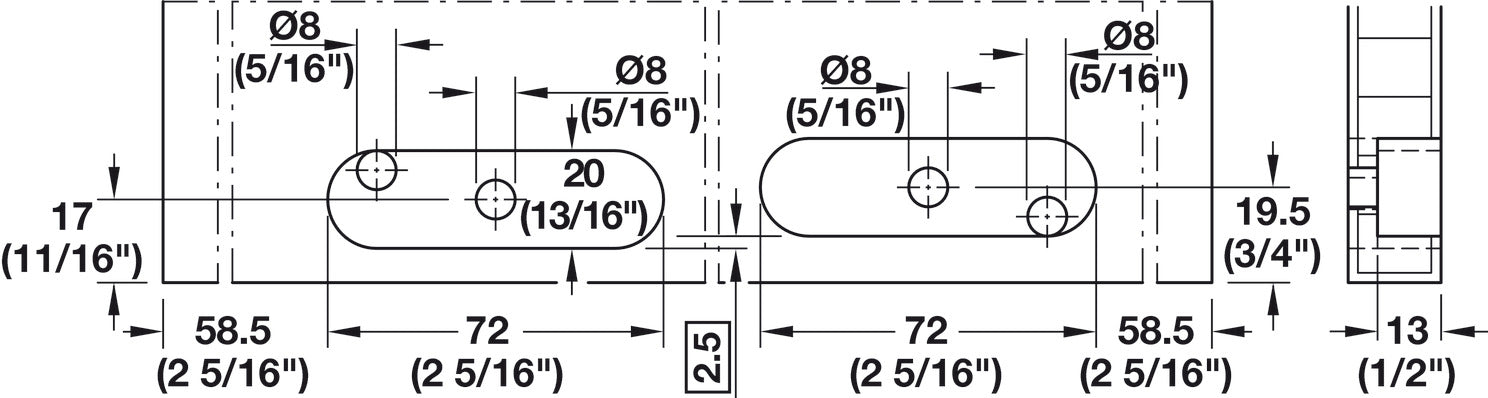

    Sliding door lock: For groove mounting into base panel

  • Order reference :

    The EFL 41 glass sliding door lock can only be used in combination with the Design 25 IF G sliding door fitting.
    The integrated feedback contact (open door alarm for glass sliding doors, for example) can be used optionally. A macro is required for controlling the feedback contact. This macro is available on request.

  • Supplied with :

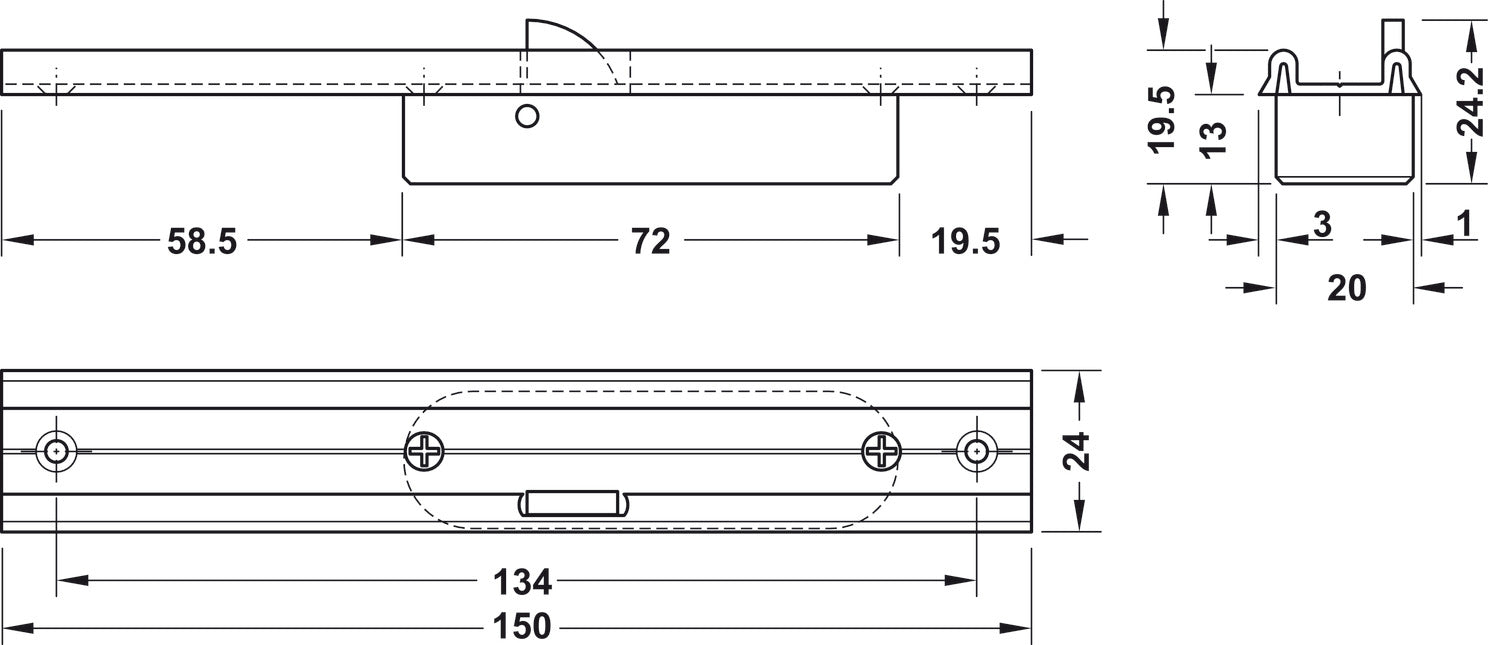

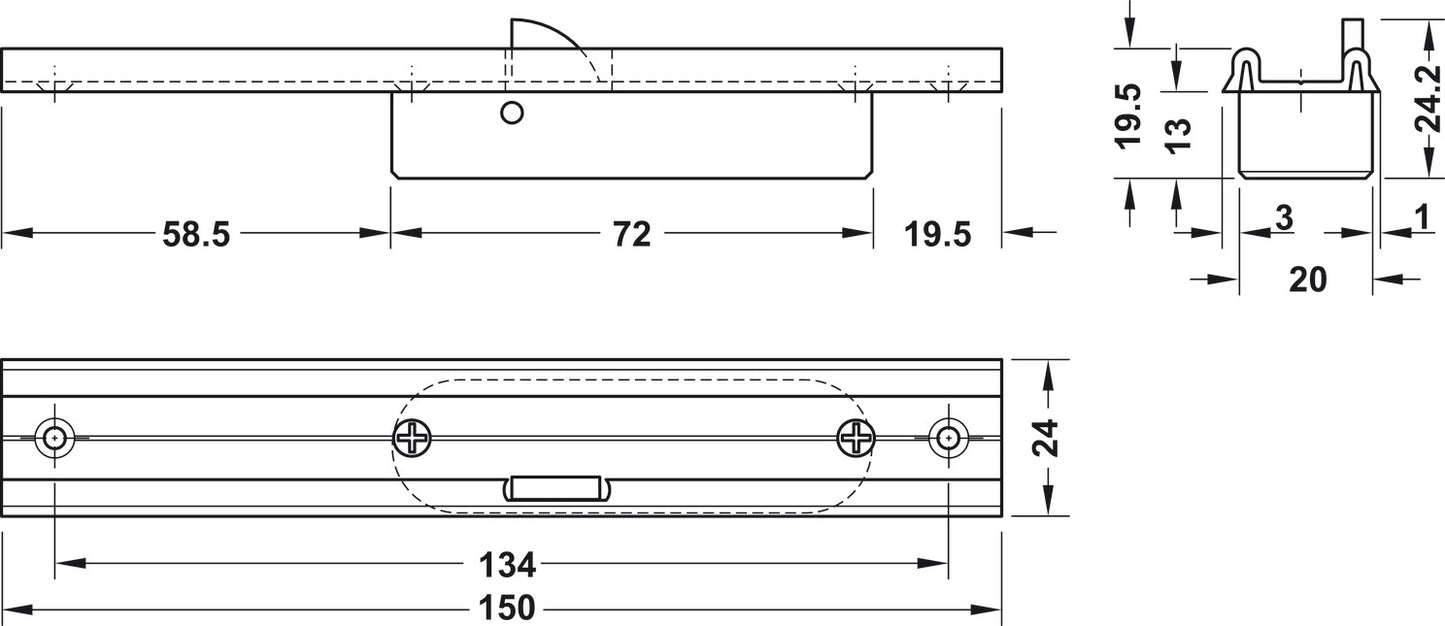

    Locking unit mounted under 150 mm (5 29/32") Design 25 IF
    Double running track
    AMP plug
    Runner catch for installation in Design 25 IF runner
    Housing profile
    3 m (118”) connecting cable with AMP plug
