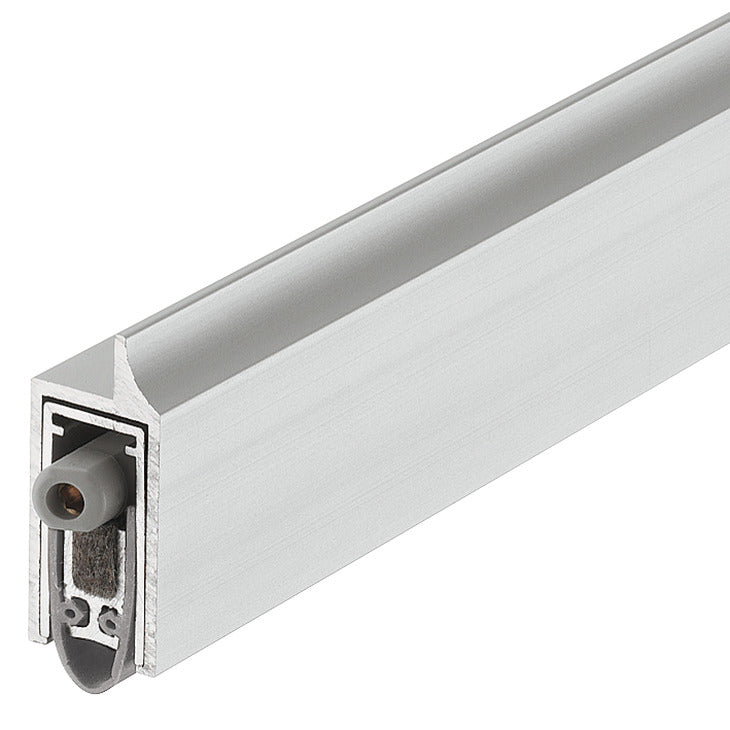

Retractable door seal, KG-S, Planet

$361.00 CAD
$361.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Length: 959 mm
  • Area of application:

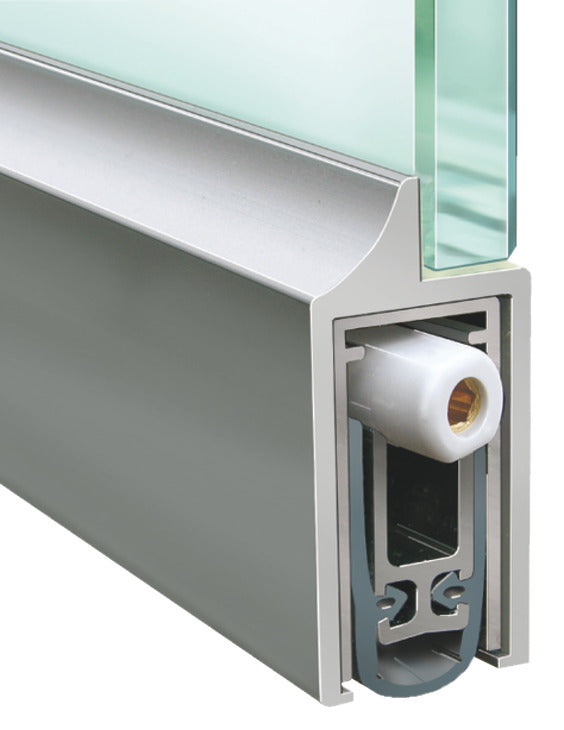

    For glass doors

  • Material:

    Carrier: Aluminium
    Sealing profile: Silicone

  • Release: on one side (hinge side)
  • Mounting: For DIN left and DIN right hand use
  • Model: KG-S
  • Color/finish: Carrier: Silver coloured Sealing profile: Grey, Carrier: Anodized EV1
  • Product type: Retractable door seal
  • Model series: KG-S
  • Mounting:

    For DIN left and DIN right hand use

  • Colour sealing profile: Gray
  • Material sealing profile: Silicone
  • Colour carrier: Silver colored
  • Refinement carrier: anodized E6/EV1
  • Material carrier: Aluminum
  • Color:

    Carrier: Silver coloured
    Sealing profile: Grey

  • Refinement :

    Carrier: Anodized EV1

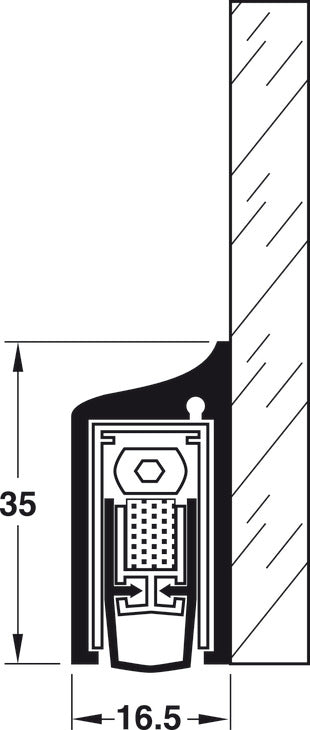

  • Sealing height max. : 18 mm
  • Installation :

    For glue fixing with UV adhesives provided on site
    can be shortened at the lock end
    the door height with KG-D8, D10 and U must be 28 mm shorter than the door height with KG-S
    adjustment of sealing height on release pin with SW 3 Allen key

  • Order reference :

    Other fixed lengths available on request.
    We recommend the glass clear joint sealant Cat. No. 003.55.170 for bonding.

  • Supplied with :

    1 Retractable door seal
    1 Release plate with screws
    Set of installation instructions
