Pocket Door System, Accuride 1432 (Hinges not Included)

$162.00 CAD

$162.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

*Free Standard Ground Shipping on Orders over $199

For swivelling up and sliding in flaps, e.g. in media furniture
No obstruction caused by open flap or open hinged door
Excellent running properties provided by synchronised runners

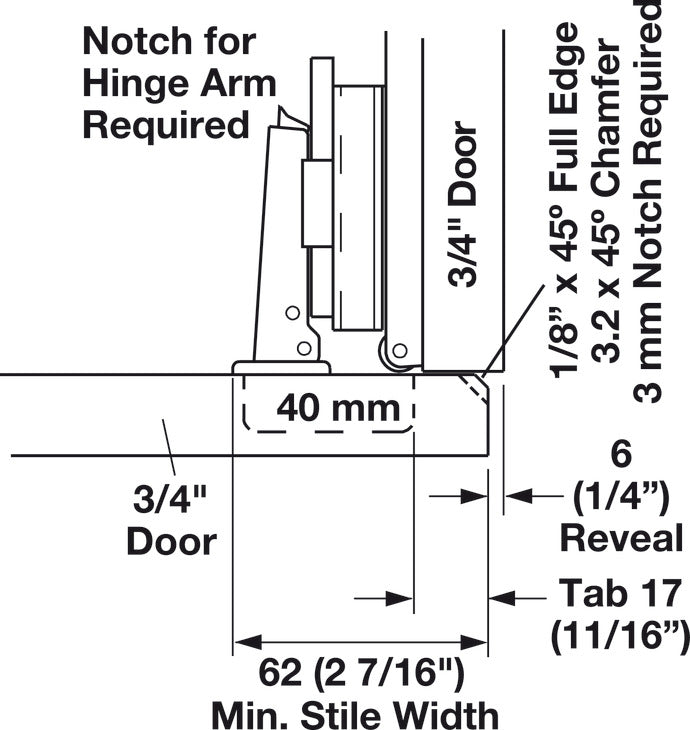

For doors 13/16â€ or thicker, please order the optional 40 mm hinge kit
For doors 36â€ â€“ 78â€ tall, see below for additional hinges required

Set: Set with tracks

Number of doors: 1

For door width: 915â€Šâ€“â€Š2,000 mm

For door height: 255â€Šâ€“â€Š660 mm

For door weight: â‰¤34 kg

Version:

Hinge carrier strip set can be shortened for use with narrower flaps
with cable system for synchronised running of left and right runners

For door thickness min.: 3/4" for doors 13/16" or thicker, please order the optional 40 mm hinge kit

For door thickness max.: 1 1/4" for doors 13/16" or thicker, please order the optional 40 mm hinge kit

For door width (inches): Up to 26"

For door height (inches): Up to 78" (for doors 36 - 78" tall), addtional hinges required

Area of application :

For pivot sliding doors (vertical installation), for flaps (horizontal installation)

For door material : wood

For door thickness : 19â€Šâ€“â€Š32 mm

Material/finish : Steel, Black, Zinc plated

Installation :

Vertically mounted concealed doors

Order reference :

Hinge carrier strip set and flap fixing set are not supplied. Please order separately.

Supplied with :

Slide mounting hardware kit
Mounting instructions
