Sliding Door Hardware, Hawa Clipo 36 H IF, set

$448.00 CAD
$448.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

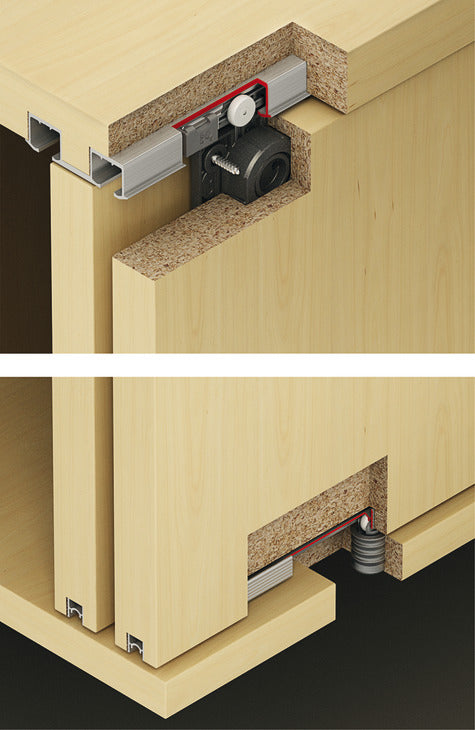

  • Optional soft close mechanism can be inconspicuously integrated into the track so it is not visible and is protected from damage
    Rattle-free floor guide
    No guide rails in the bottom of the cabinet
    Tool-less clip-on hardware allows for quick and easy door mounting

  • Number of doors: 2
  • Soft closing mechanism: with clip-in door stopper
  • For door thickness: 19 – 25 mm
  • For door width: ≤1,000 mm
  • Running position: top
  • Number of rollers: 4
  • Height adjustment facility: ±2 mm
  • Running gear guided by: Friction bearing
  • For door material: wood
  • For door thickness max.: 1"
  • For door height (inches): Max: 7' 2 5/8"
  • For door width (inches): Max: 3' 3 3/8"
  • For door thickness min.: 3/4"
  • Cabinet version : with sliding doors with zero clearance
  • Model series : Clipo 36 H IF
  • Set : Set without tracks
  • Area of application :

    For 2 doors

  • For door height : ≤2,200 mm
  • Door stopper :

    Top clip-in door stopper, for sliding into running track

  • Material/finish : Housing: Plastic Running gear: Zinc alloy Guide: Plastic Rollers: Plastic Axis: Steel
  • Adjustment facility : Height adjustment facility: ±2 mm, Height adjustment +/- 2 mm (1/16")
  • Door adjustment via : eccentric screw
  • Number of doors per system max. : 2 to 3
  • Order reference :

    Please order running and guide tracks separately.

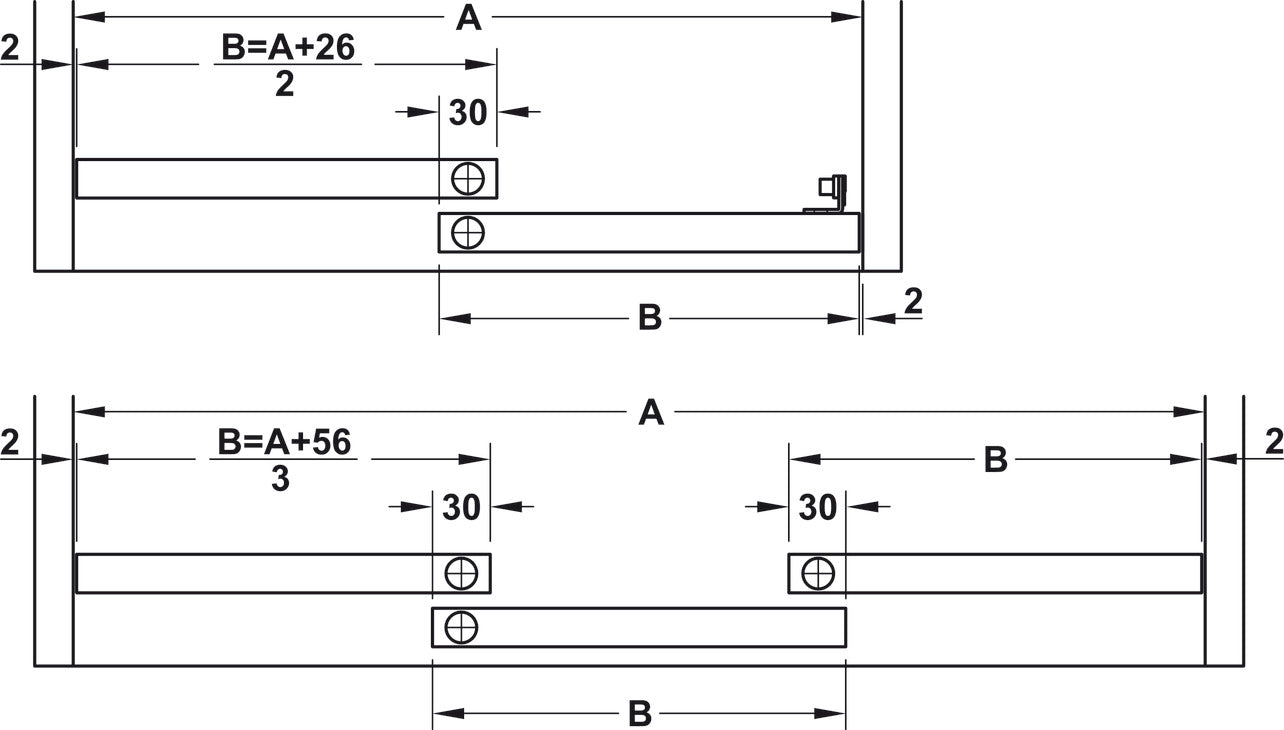

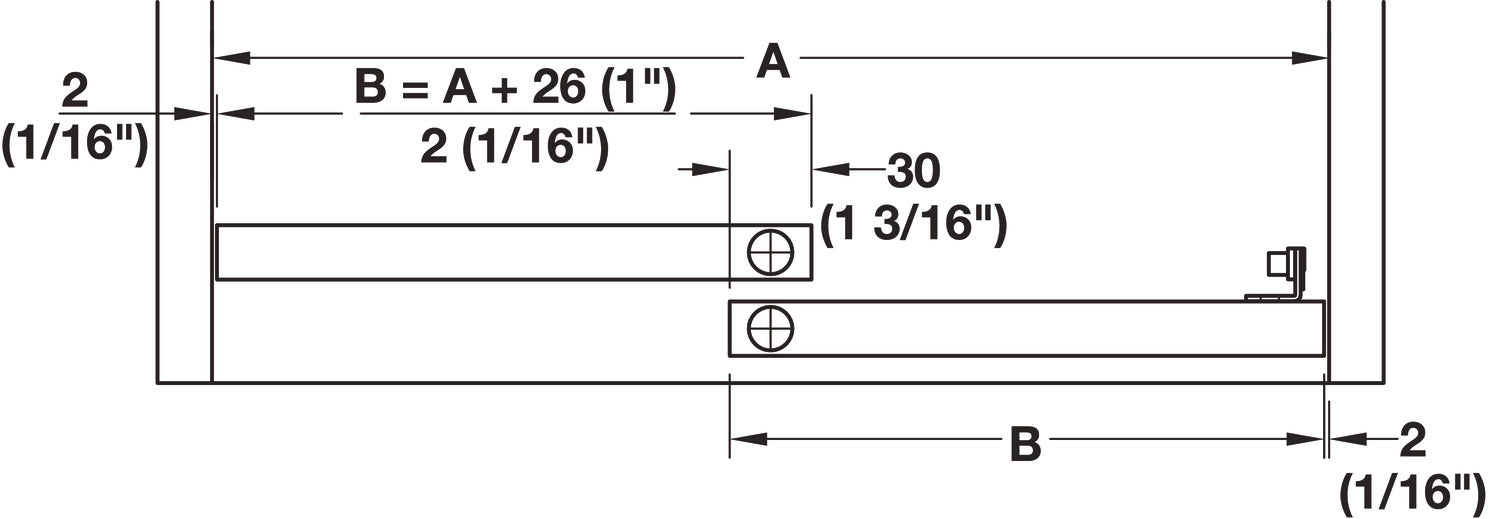

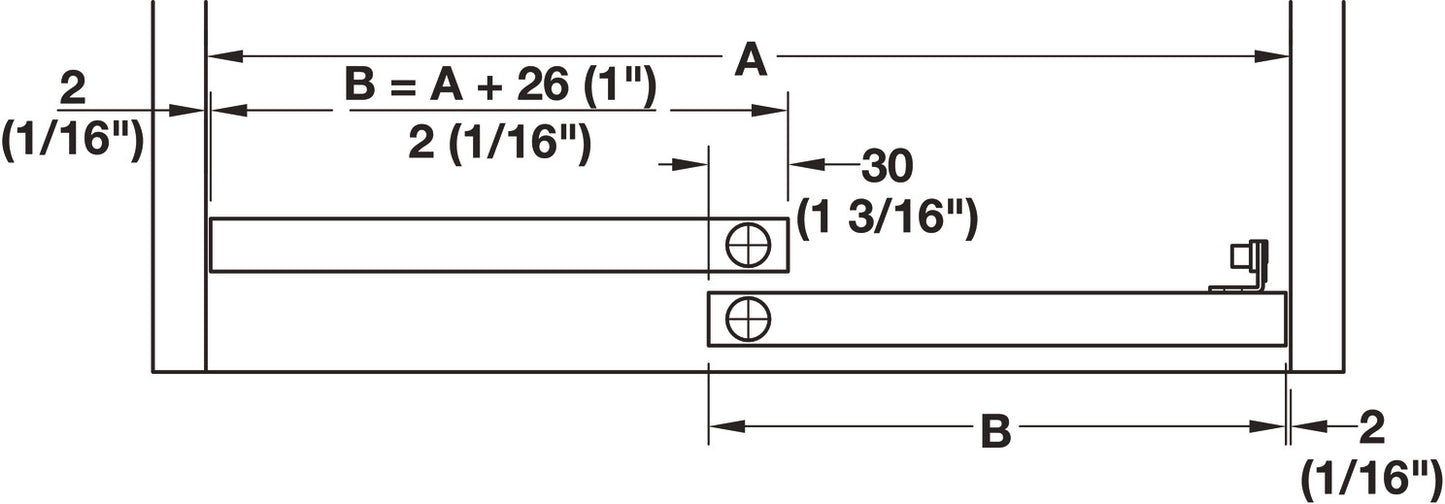

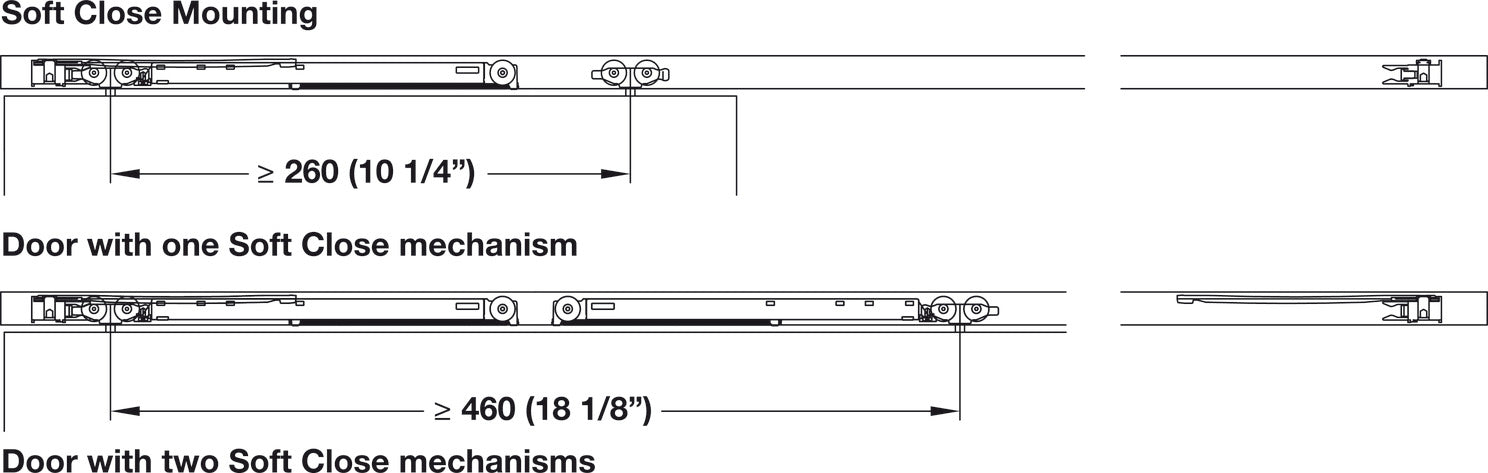

    Soft closing mechanism on one side is possible from pitch length of min. 260 mm, both sides from 460 mm. Please order soft closing mechanism set separately.

  • Supplied with :

    4 Running gears
    4 Housing pieces
    1 soft stop
    2 guides
    4 track stoppers
