Pocket Door, RP42 Complete Set

$116.00 CAD
$116.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

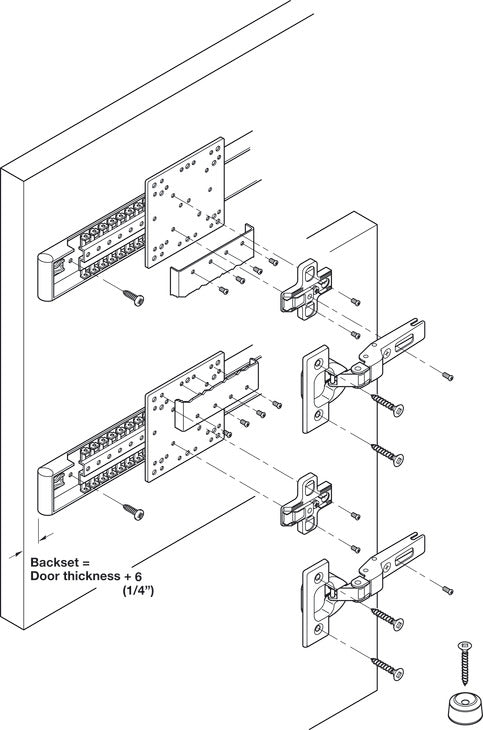

  • For thick doors 22 mm – 32 mm (7/8–1 1/4”) use the 40 mm hinge, Item No. 329.05.632, and 40 mm mounting plate, Item No. 329.80.626.For overlay applications; Door thickness from 16 mm – 19 mm (5/8– 3/4”). Maximum overlay = 10 mm (3/8”) use the 40 mm overlay hinge,Item No. 329.05.614, and 40 mm mounting plate, Item No. 329.80.626.

  • Set: Set with tracks
  • For door height: 813 – 1,067 mm
  • Overlay distance: Max.: 3/8”
  • For door thickness min.: Inset: 5/8"
  • For door thickness max.: Inset: 7/8"
  • For door height (inches): 32 - 42"
  • For door thickness : 16 – 22 mm

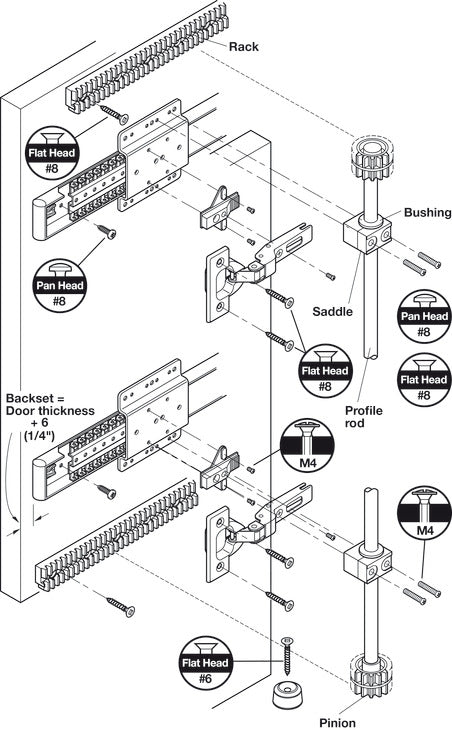

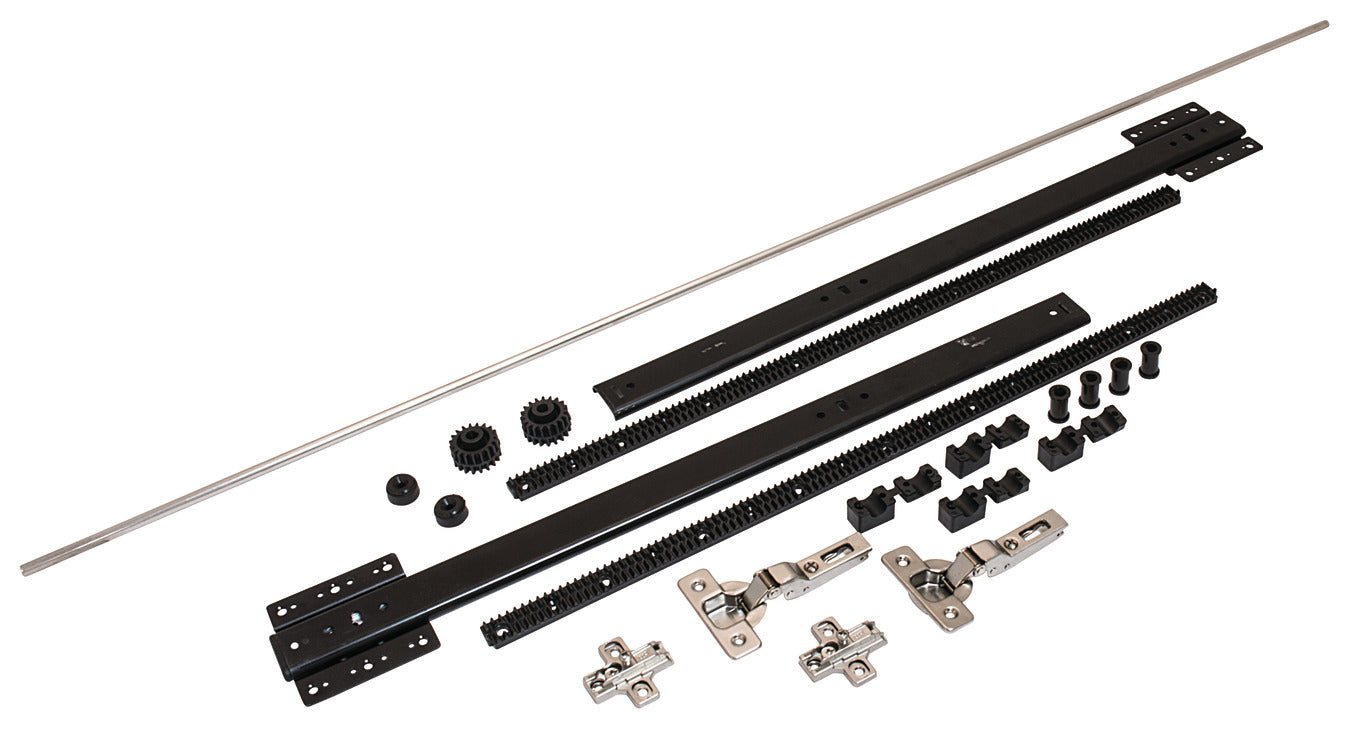

  • Supplied with :

    2 ball bearing slides
    1 profile rod 43”
    2 35 mm hinges
    2 mounting plates
    2 pinions
    4 saddles & bushings
    2 racks
    2 pivot rollers
    8 slide screws (Pan head #8)
    12 hinge and rack screws (Flat head #8)
    4 hinge mounting plate screws (M4)
    8 saddle & bushing screws (M4)
    2 pivot roller screws (Raised flat head #6)
