• Inlay Door Accessory Pack, 40 mm, for Häfele Slido F-Park 71 16A
1 6

Inlay Door Accessory Pack, 40 mm, for Häfele Slido F-Park 71 16A

$26.00 CAD
$26.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • When using free swinging hinges it is recommended to use catches.

  • Suitable for number of door leaves: 1
  • Door thickness: 19 – 32 mm
  • For door thickness min.: 3/4"
  • For door thickness max.: 1 1/4"
  • Installation : For screwing
  • Installation description :

    Fitting of door to cabinet without tools (clip system)

  • Supplied with :

    Mounting instructions
    (4) 020.05.211 – M4 x 5 mm - Hinge plate mounting screws
    (4) 015.55.639 – 3.5 x 15 mm - Hinge mounting screws
    (2) 418.09.300 – Pivot roller
    (2) 015.31.675 – Pivot roller mounting screw
    (10) 013.03.304 – Slide mounting screws

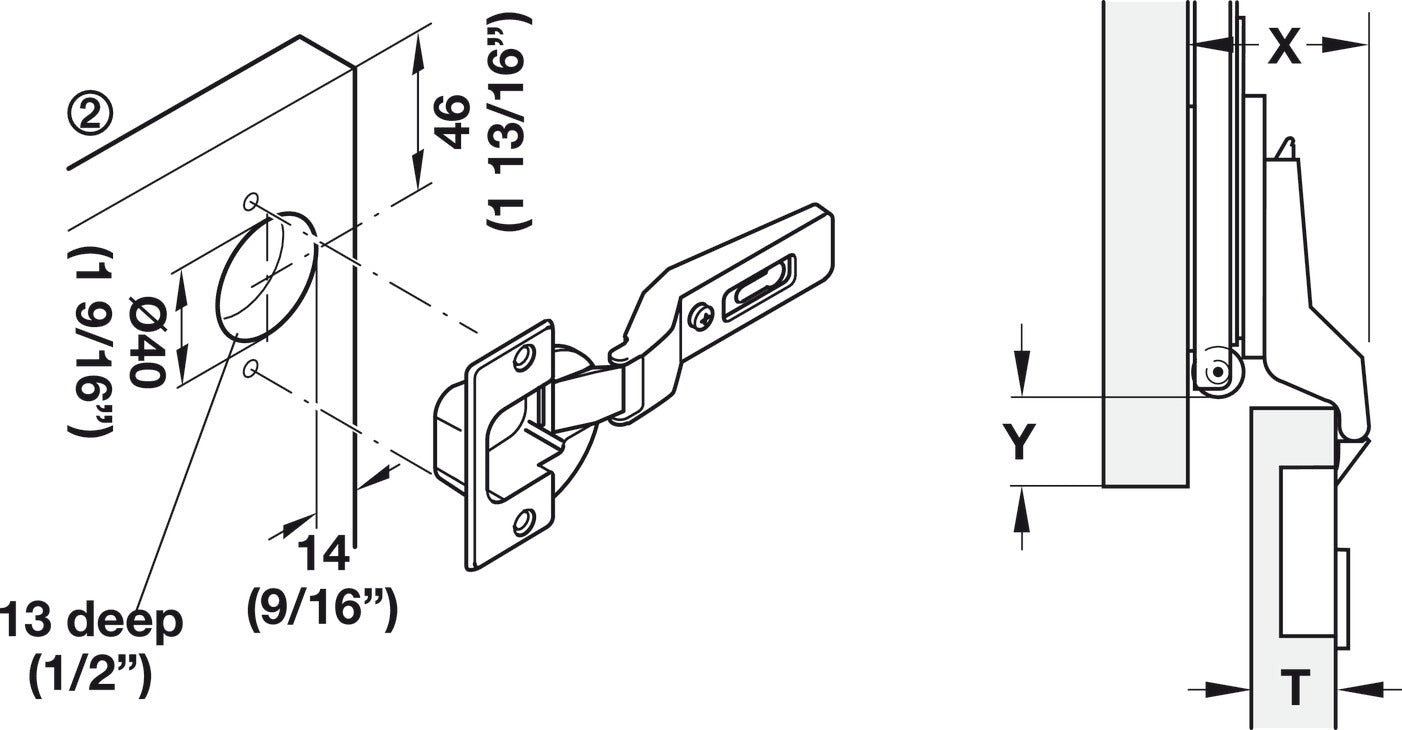

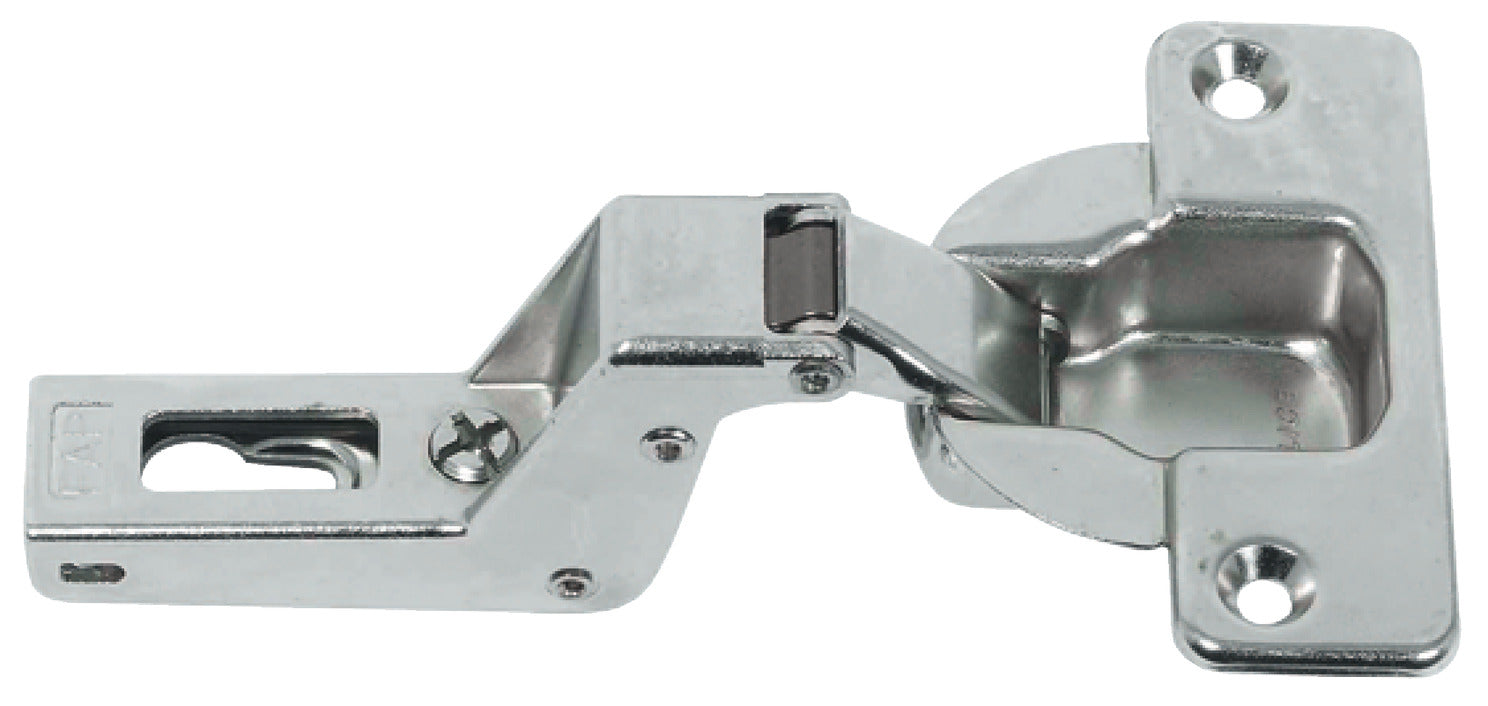

    (2) 329.04.635 – Duomatic 94º, 40 mm cup hinge, free swinging
    (2) 329.71.500 – Duomatic clip mounting plate, with single screw adjustment
