• Inlay Door Accessory Pack, 35 mm, for Häfele Slido F-Park 71 16A
1 5

Inlay Door Accessory Pack, 35 mm, for Häfele Slido F-Park 71 16A

$17.00 CAD
$17.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • When using free swinging hinges it is recommended to use catches.

  • Suitable for number of door leaves: 1

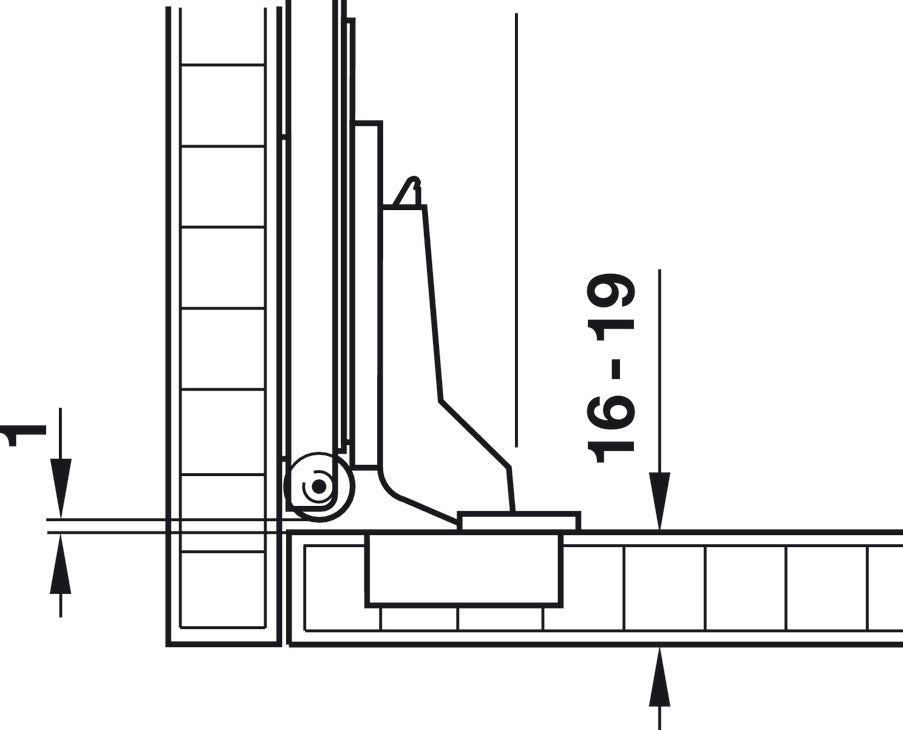

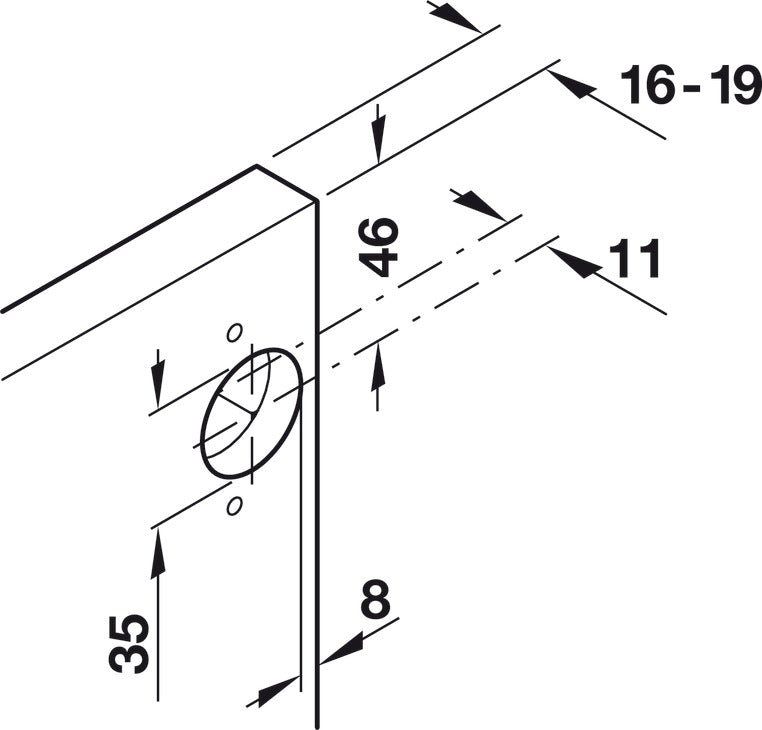

  • Door thickness: 16 – 19 mm
  • For door thickness min.: 5/8"
  • For door thickness max.: 3/4"
  • Installation : For screwing
  • Installation description :

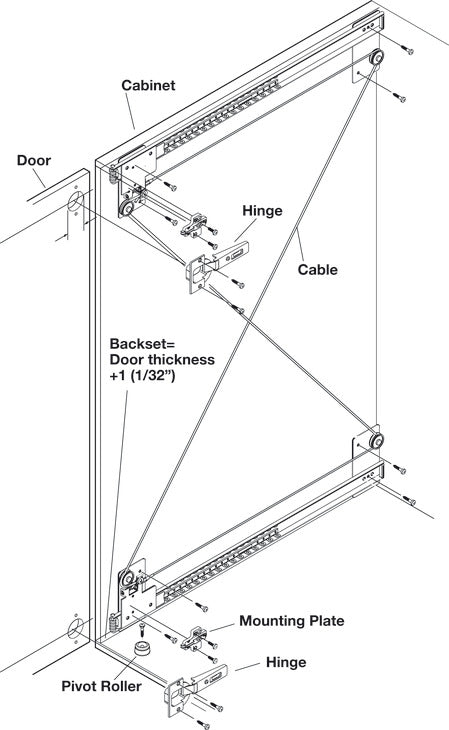

    Fitting of door to cabinet without tools (clip system)

  • Supplied with :

    Mounting instructions
    (4) 020.05.211 - M4 x 5 mm - Hinge plate mounting screws
    (4) 015.55.639 - 3.5 x 15 mm - Hinge mounting screws
    (2) 418.09.300 - Pivot roller
    (2) 015.31.675 - Pivot roller mounting screw
    (10) 013.03.304 - Slide mounting screws

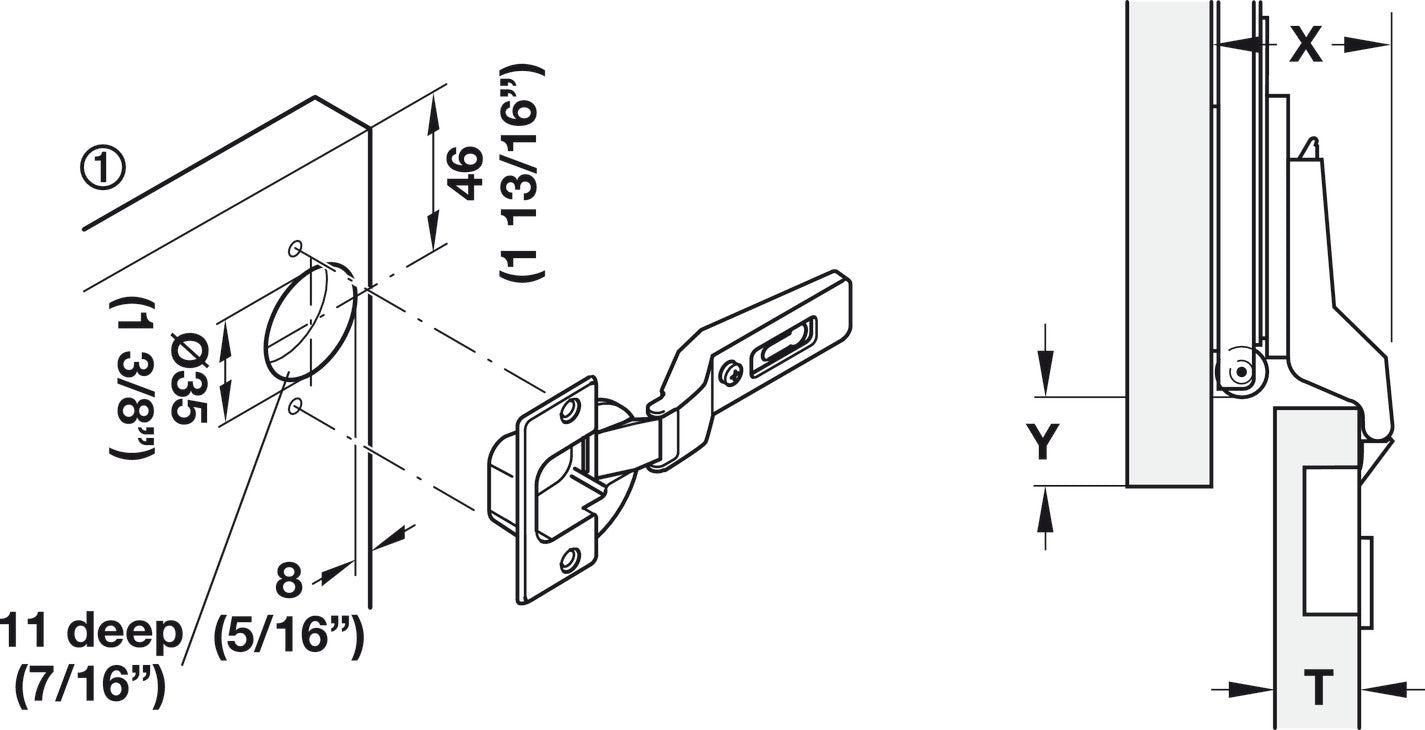

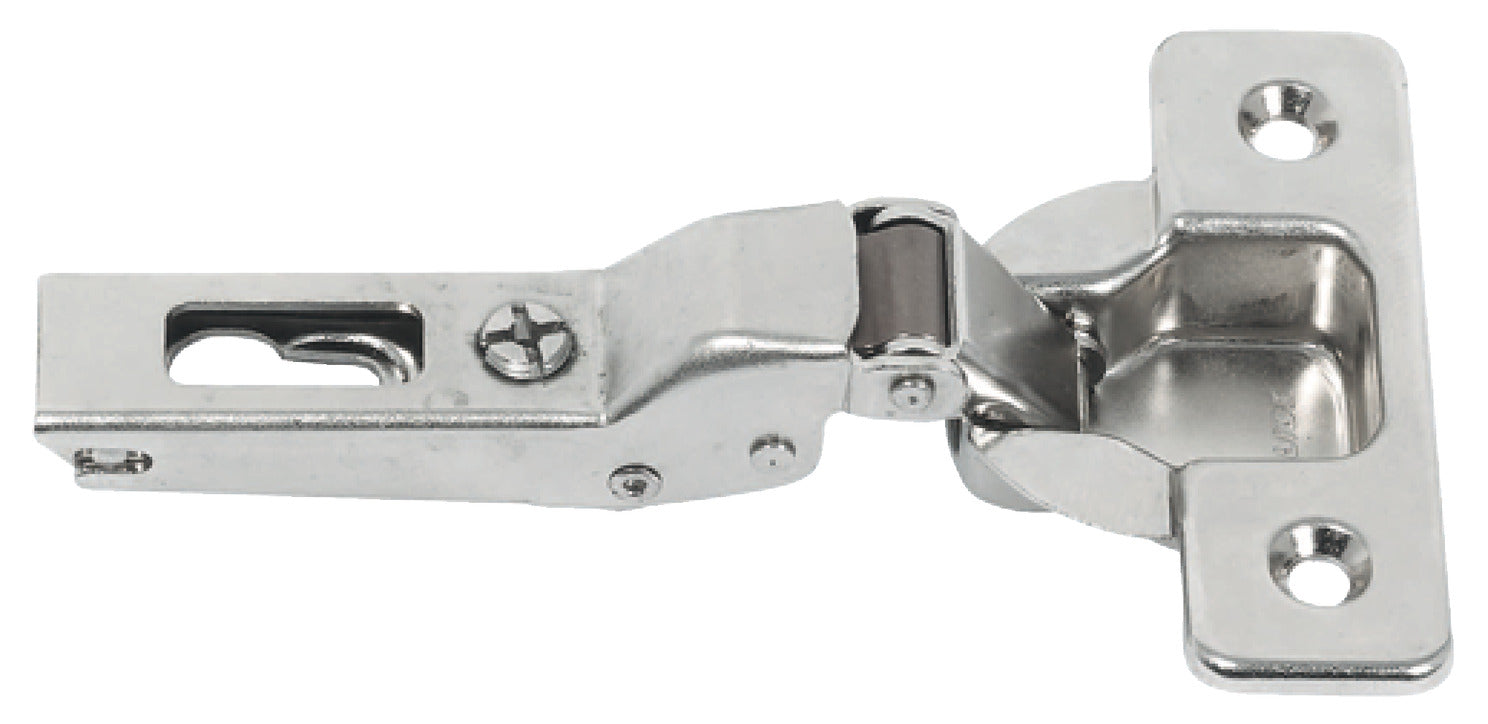

    (2) 329.31.502 - 94°, 35 mm cup hinge, free-swinging
    (2) 329.71.503 - Clip mounting plate, with single screw adjustment
