• Privacy Rosette, For Sliding Door Lock
1 3

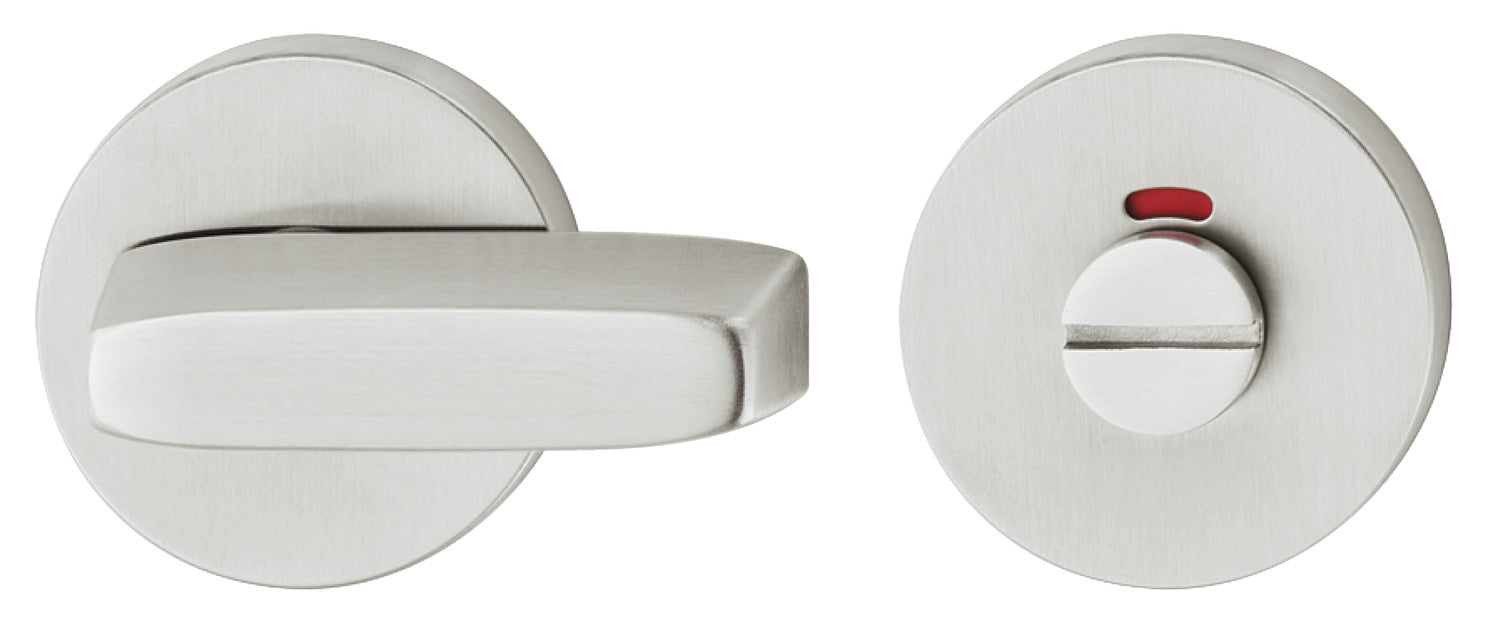

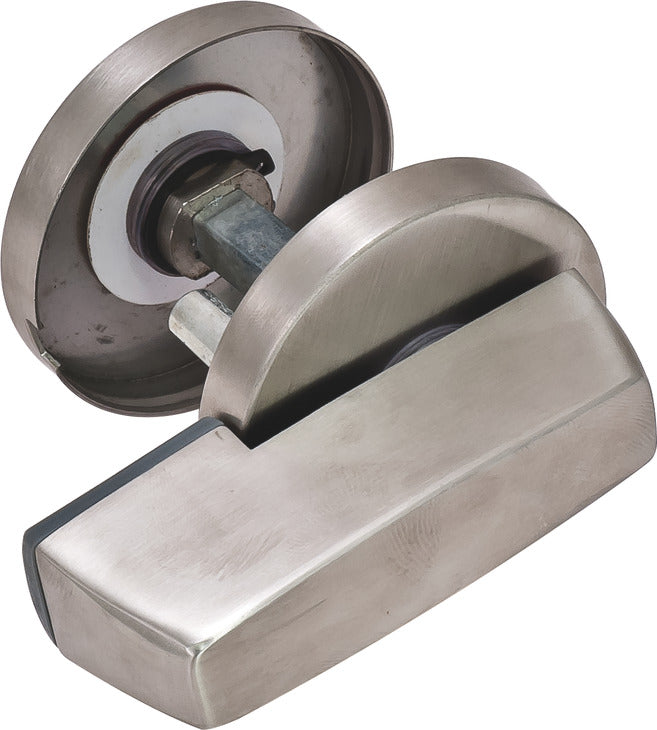

Privacy Rosette, For Sliding Door Lock

$137.00 CAD
$137.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Outer rosette includes red/white indicator disk and emergency release slot
    Inner rosette includes thumb turn

  • Area of application:

    The use on fire resistant doors is not permitted

  • Key hole type: Bathroom/WC with indicator disc red/green
  • Color/finish: matt
  • Door thickness: 37 – 52 mm

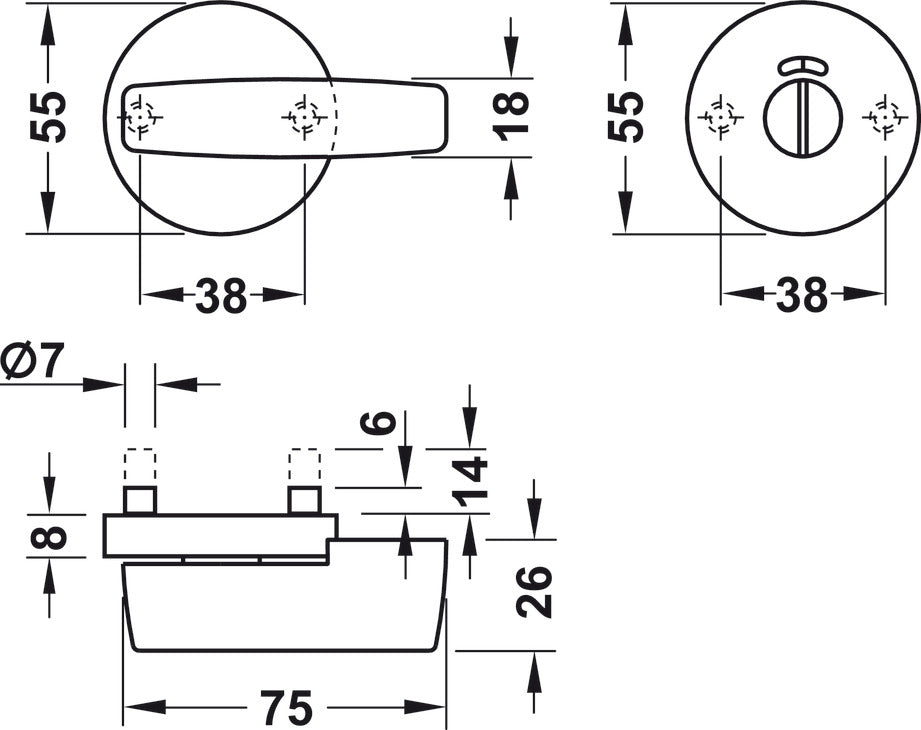

  • Rose/escutcheon Ø: 55 mm
  • Backplate / rose/escutcheon thickness: 8 mm
  • For door thickness min.: 1 7/16"
  • For door thickness max.: 2 1/16"
  • Suitable for : Häfele Startec PDH 4 model series
  • Version :

    Outer escutcheon with red/white indicator disc and emergency opening function (slot)

  • Supplied with :

    1 pair of privacy rosettes
    1 spindle at 8 x 60 mm (5/16 x 2 3/8")*
    2 machine screws M4 x 50 mm (M4 x 1 31/32")
    * for 35 mm (1 3/8") door thicknesses the 60 mm spindle has to be shortened on site
