Fastener, Concealed Mount, for Installation on One Side

$43.00 CAD
$43.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • All standard pull handles require 2 fasteners

  • Area of application:

    Wood doors, plastic & aluminum storefront doors

  • For door thickness: 40 – 50 mm

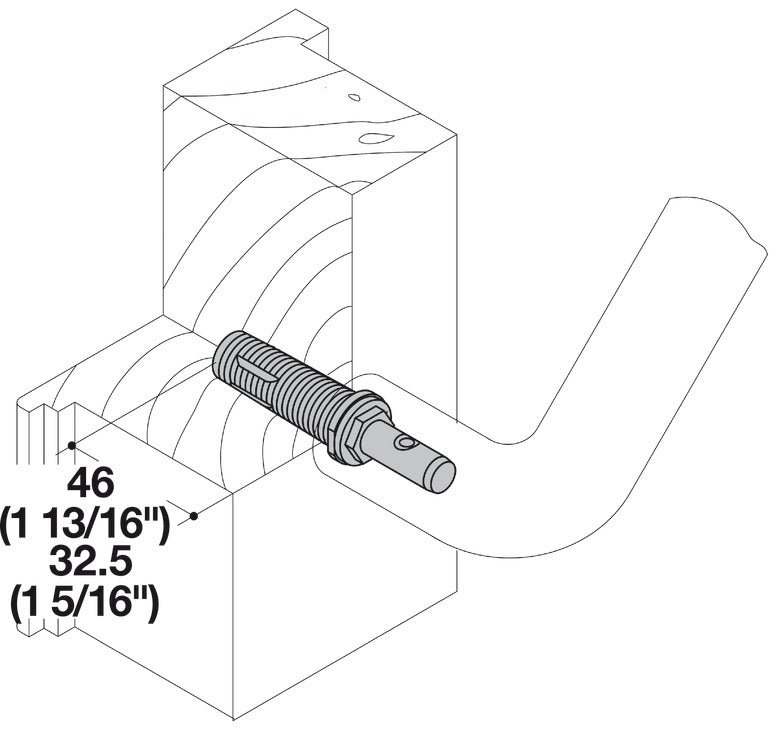

  • Dowel length: 32.5 mm
  • Model: BA 5.2
  • For door thickness min.: 1 9/16"
  • For door thickness max.: 2"
  • Drill bit (inch): 9/16"
  • Suitable for : Hewi model series 550 door handle
  • Door type : Wooden doors, Aluminum doors, Plastic doors
  • For support shape : for straight supports

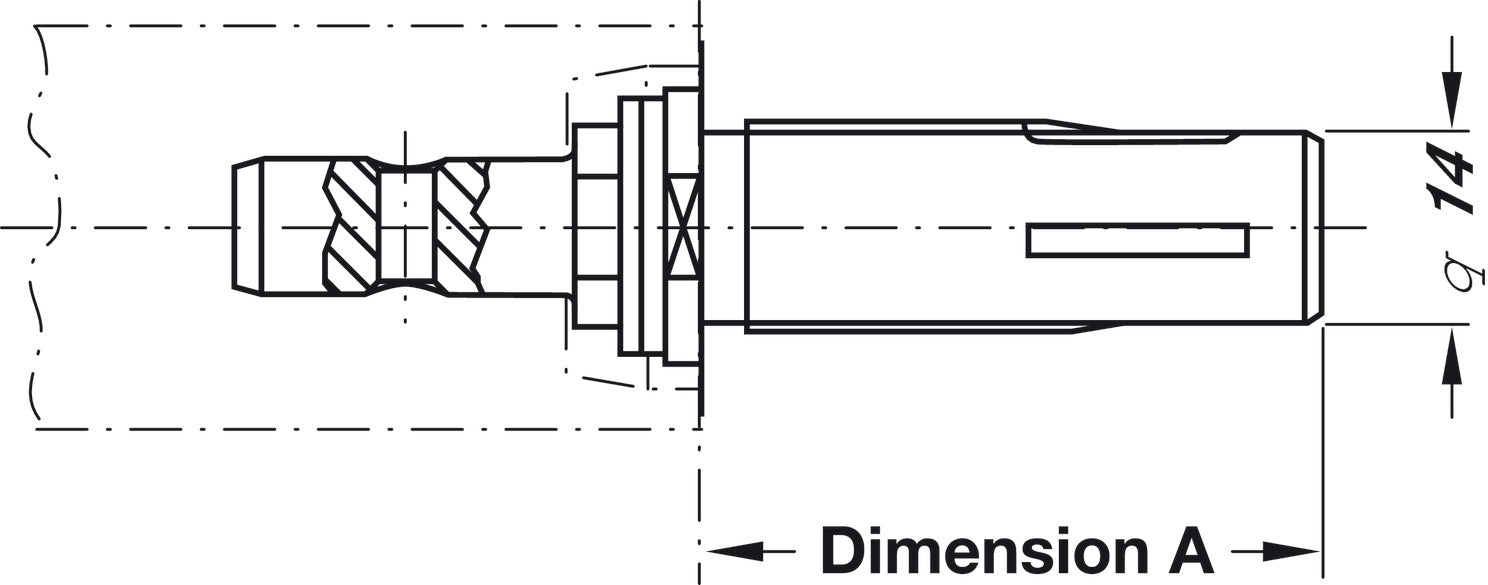

  • Drill hole Ø : 14 mm
  • Installation :

    on one side
