• Mounting Set, Back-to-Back, for Pull Handles
1 2

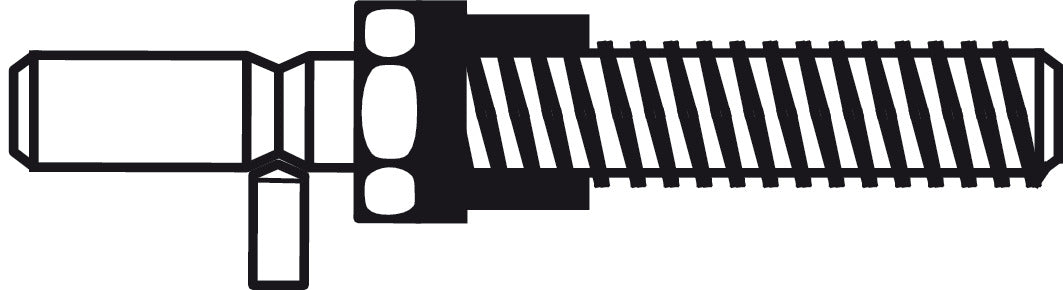

Mounting Set, Back-to-Back, for Pull Handles

$13.00 CAD
$13.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Each pull requires 2 mounting sets

  • Area of application:

    For Ø 25 mm (1") and Ø 30 mm (1 3/16") pull handles

  • For door thickness: 8 – 12 mm
  • For glass thickness (inches): 5/16" – 1/2"
  • Drill hole Ø: Door drilling Ø: 5/8"
  • For min. glass thickness (inches): 5/16"
  • For max. glass thickness (inches): 1/2"
  • Drill bit (inch): 5/8"
  • Suitable for : Startec door handle, model PH 2110, 2111, 2112, 2113, 2114, 2115, 2116, 2117, 2118, 2119, 2120, 2121, 2122, 2123, 2126, 2127, 2130, 2131, 2132, 2133, 2134, 2135
  • Door type : Glass doors
  • For support shape : for straight supports
  • Drill hole Ø : 16 mm
  • Installation :

    In pairs

  • Order reference :

    Two mounting sets are required for one pair of door handles mounted back-to-back
