• Mounting Set, One-Sided, for Pull Handles
1 3

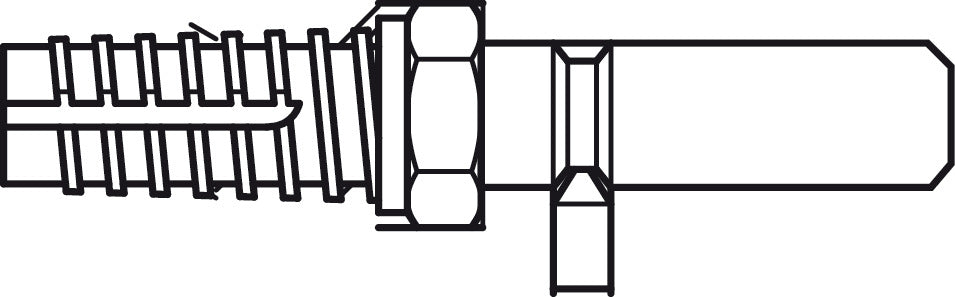

Mounting Set, One-Sided, for Pull Handles

$15.00 CAD
$15.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Each pull requires 2 mounting sets

  • Area of application:

    For Ø 25 mm (1") and Ø 30 mm (1 3/16") pull handles

  • Version:

    With self-tapping thread

  • Screw length: 28 mm
  • Drill hole Ø: Door drilling Ø (3/8") 10 mm
  • Thread Ø: 7/16"
  • Drill bit (inch): 3/8"
  • Suitable for : Startec door handle, model PH 2110, 2111, 2112, 2113, 2114, 2115, 2116, 2117, 2118, 2121, 2122, 2126, 2127, 2130, 2131, 2132, 2133, 2134, 2135, 2844, 2866
  • Door type : Metal doors, Plastic doors
  • For support shape : for straight supports
  • Drill hole Ø : 10 mm
  • Thread Ø : 11.8 mm
  • Installation :

    on one side, with self-tapping thread

  • Order reference :

    Two mounting sets are required per Pull handle
