• Foldaway Bed Fitting Set, for Lengthwise Mounting
1 7

Foldaway Bed Fitting Set, for Lengthwise Mounting

$495.00 CAD
$495.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • It is essential for foldaway beds to be secured against tipping, according to EN 1129, (check the floor suitability). Two safety stops are enclosed with every fitting set.
    Bed weight = total weight of the bed box, slatted frame, mattress and bedding

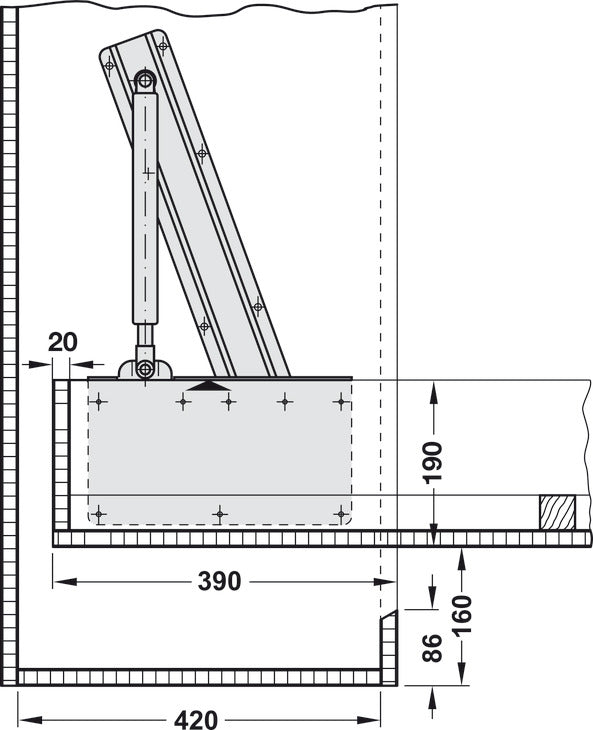

    Internal cabinet height = Mattress width + bed frame thickness (x2) + 4 15/16” (125mm)
    Internal cabinet width = Mattress length + bed frame thickness (x2) + 2 1/8” (54mm).
    A gap of 3/16” (4mm) is required on all sides between the cabinet and front panel.

  • Color/finish: Graphite black, RAL 9011, Powder coated
  • Area of application :

    For construction of foldaway beds according to customer’s own requirements

  • Material :

    Aluminum

  • Load bearing capacity : 100 kg
  • Installation :

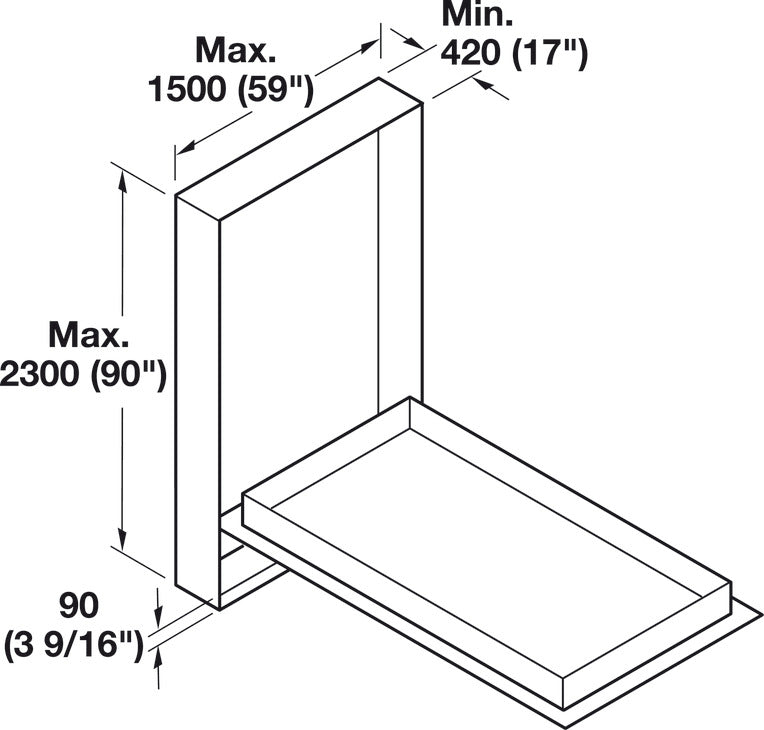

    The dimensions listed are internal cabinet dimensions.
    The cabinet and bed box constructions require a wood thickness of 13/16" (20 mm)

  • Order reference :

    Gas pistons, angular feet and retaining straps need to be ordered separately.

  • Supplied with :

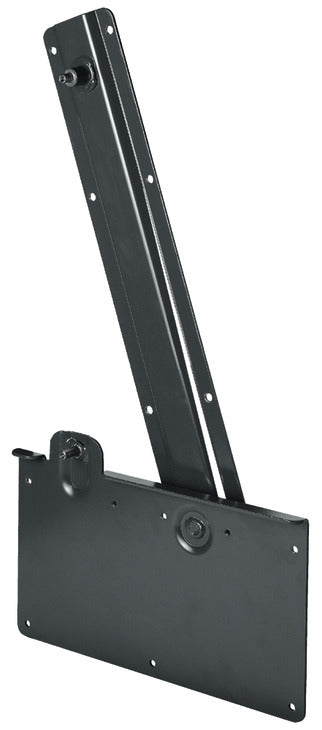

    1 Pair of foldaway bed fittings with pivot bearings and positioning bolts for gas pistons
    2 Safety Stops
    Installation instructions
