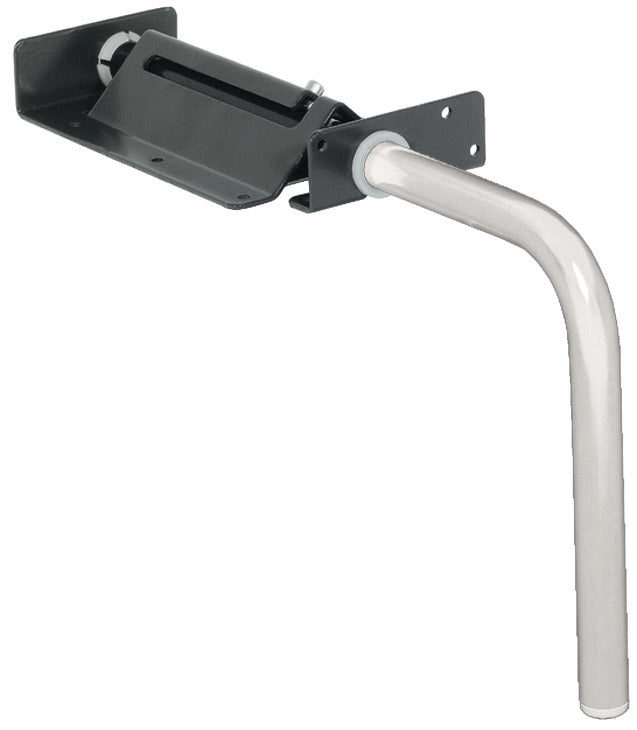

Foldaway Bed Angular Foot, For Bettlift foldaway bed fitting for end or side mounting

To support the opening bed
For use with Foldaway Fitting Bed Sets 271.95.204 and 271.95.203

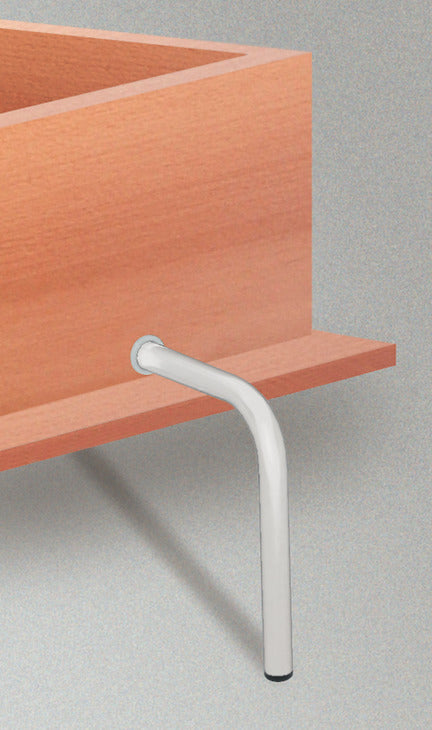

When opening the bed, the angular feet must be extracted, turned by 90º and retracted to the stop

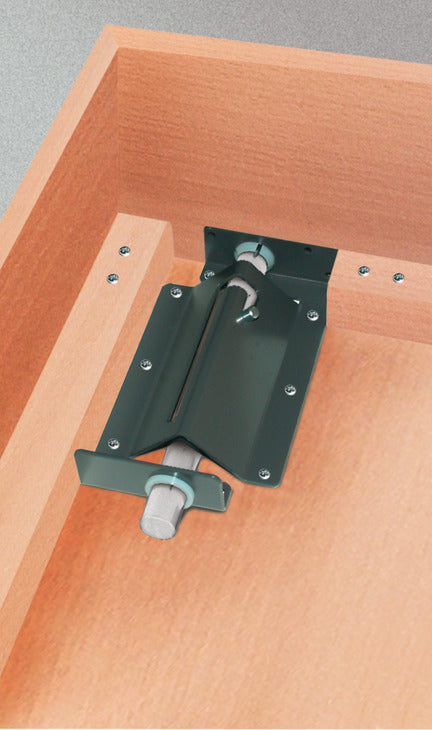

The angular feet with mounting plate are screw-mounted to the foot side of the bed frame and and to the inside of the front panel.
A minimum of 1 9/16” x 1 9/16” (40mm x 40mm) square beam is needed on four sides as a slatted frame support.
