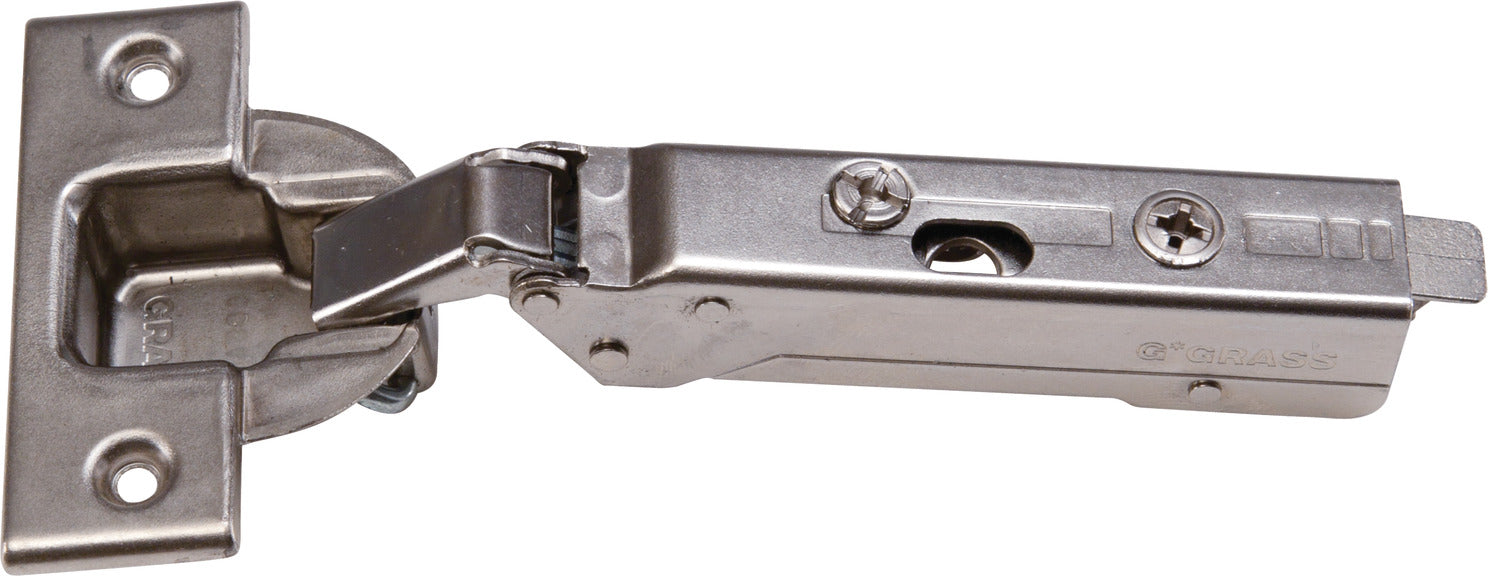

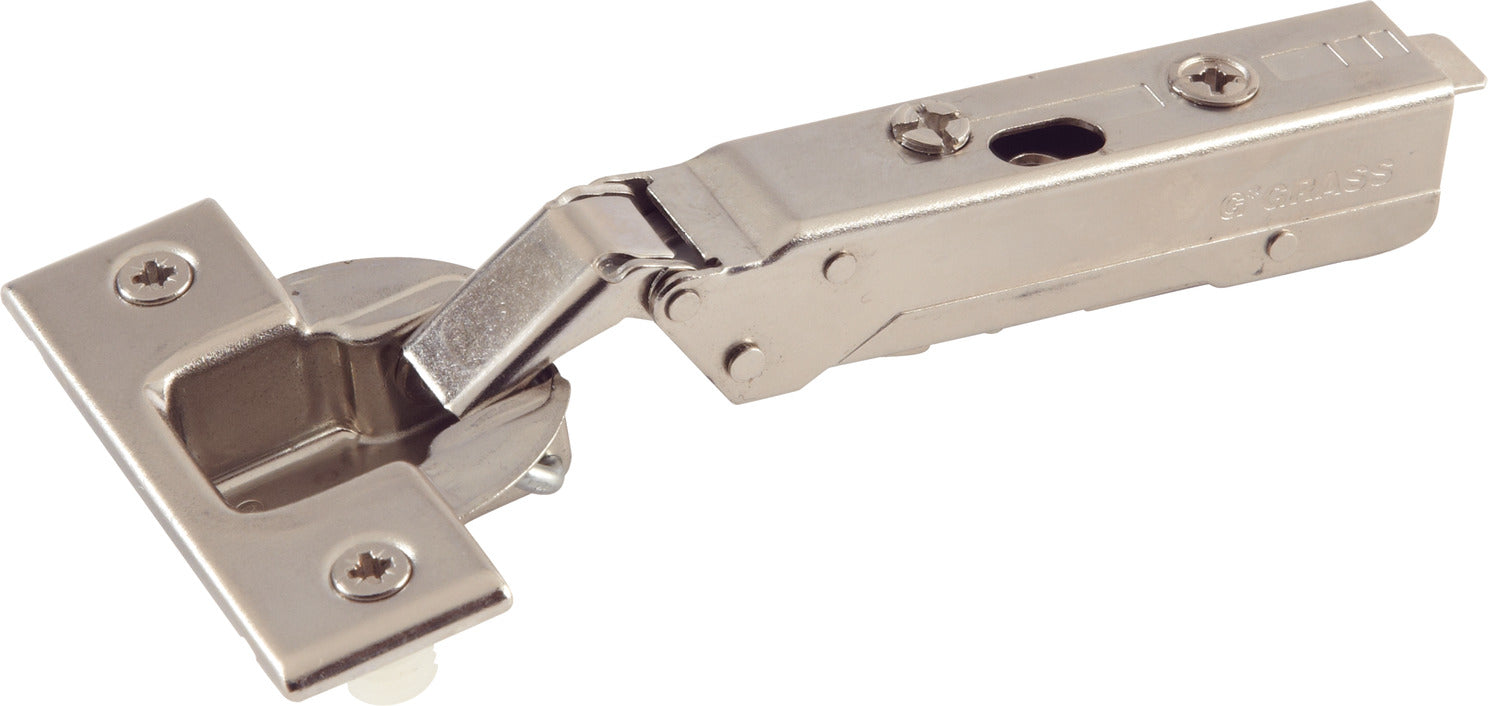

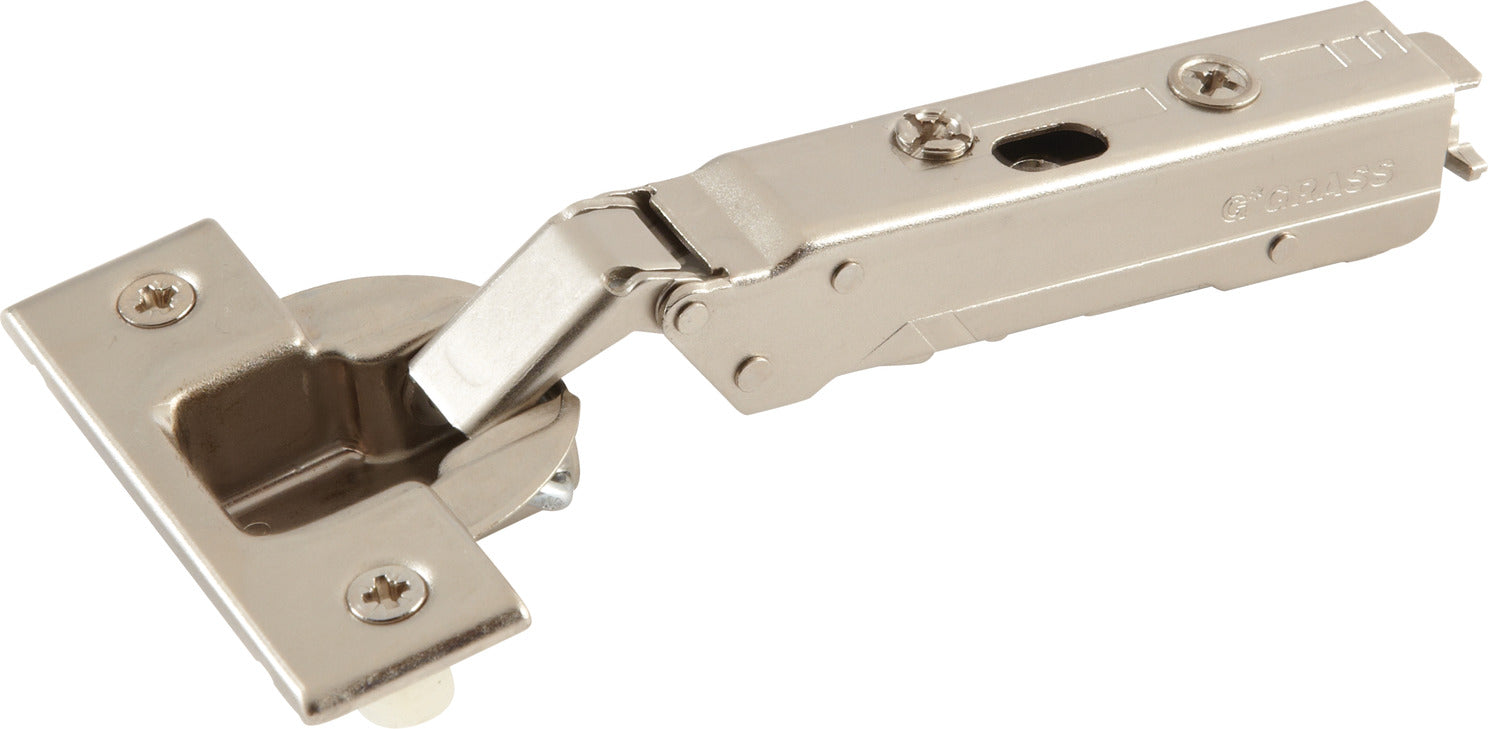

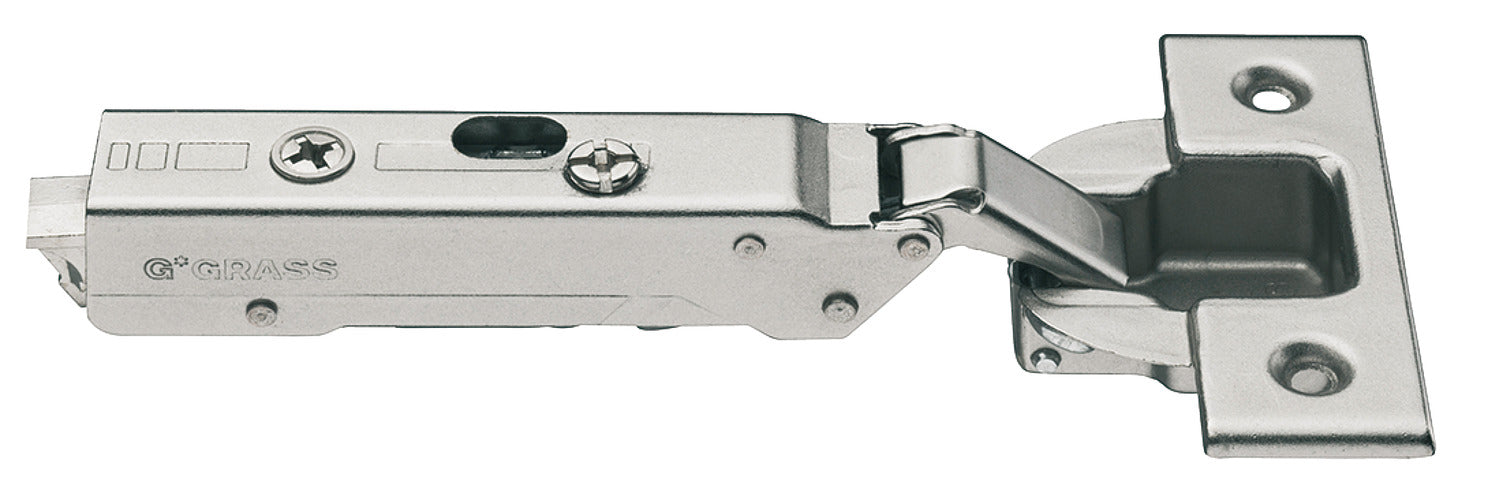

Concealed Hinge, Grass Tiomos 110°, Full Overlay Mounting

$13.00 CAD
$13.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

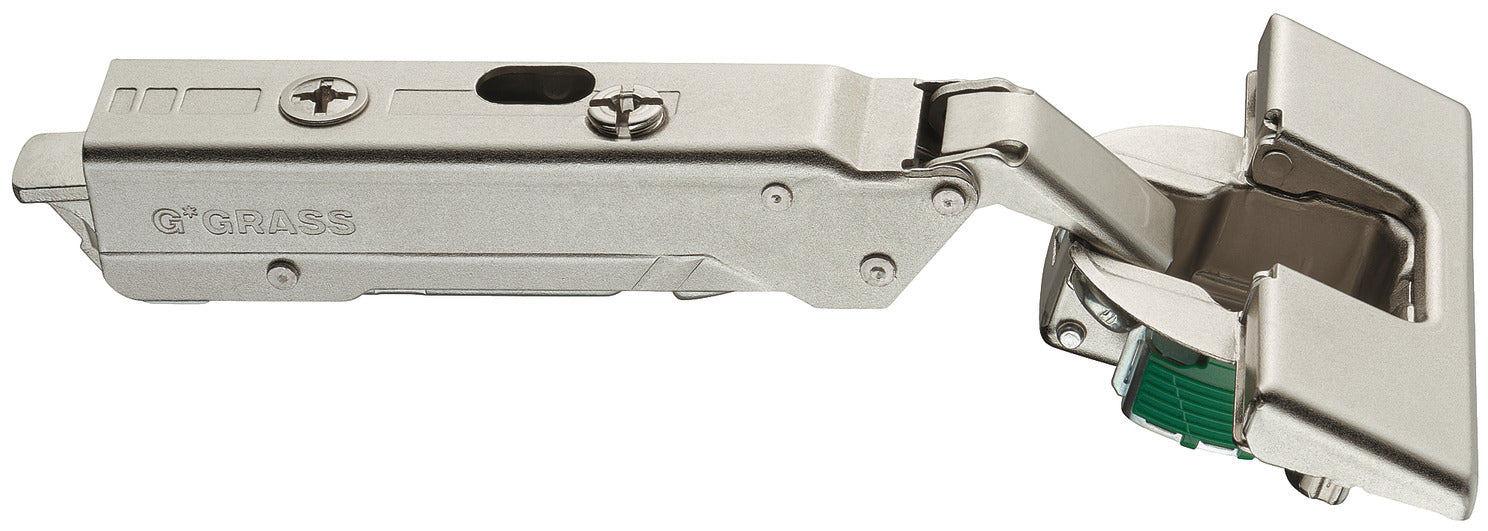

  • With or without soft closing mechanism integrated in hinge arm, with 3 settings (optional)
    With opening mechanism for comfortable opening of front panels without handles
    Optimum gap dimensions up to 24 mm door thickness

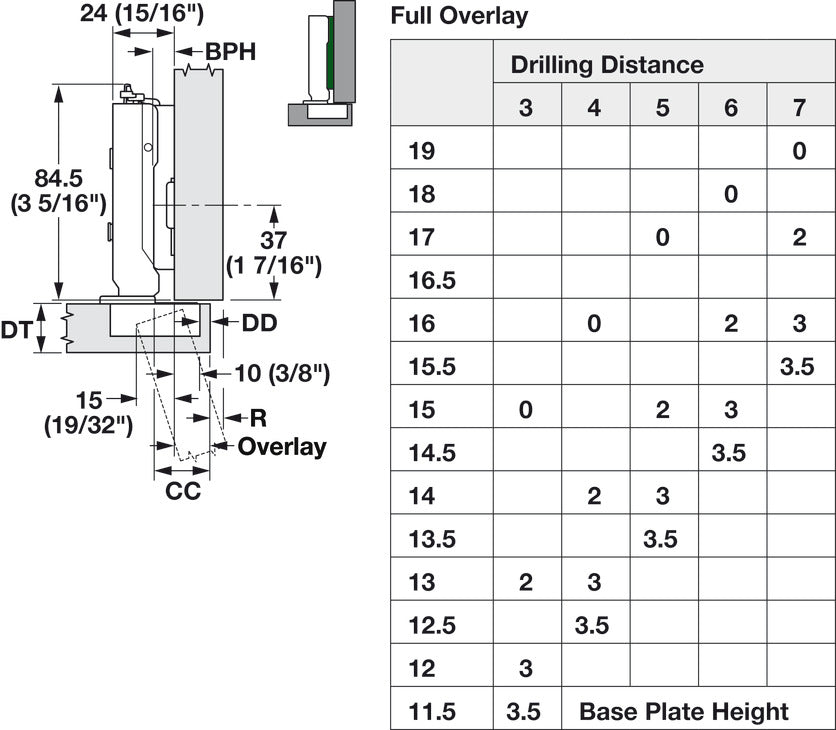

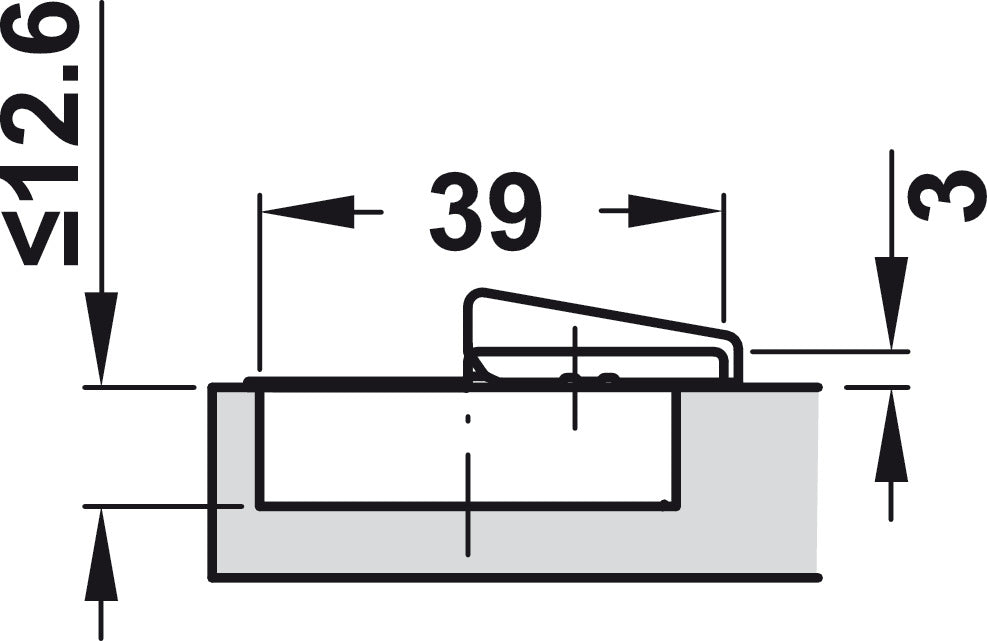

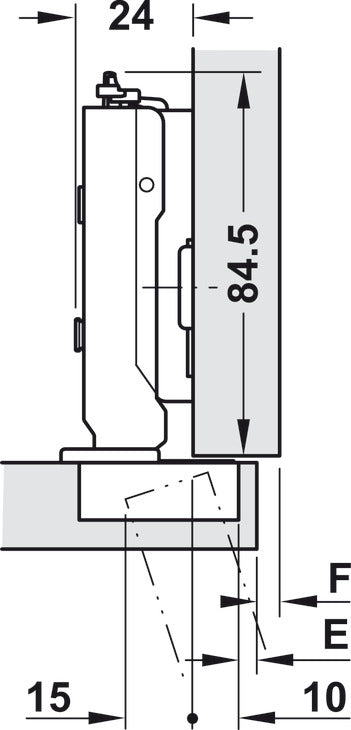

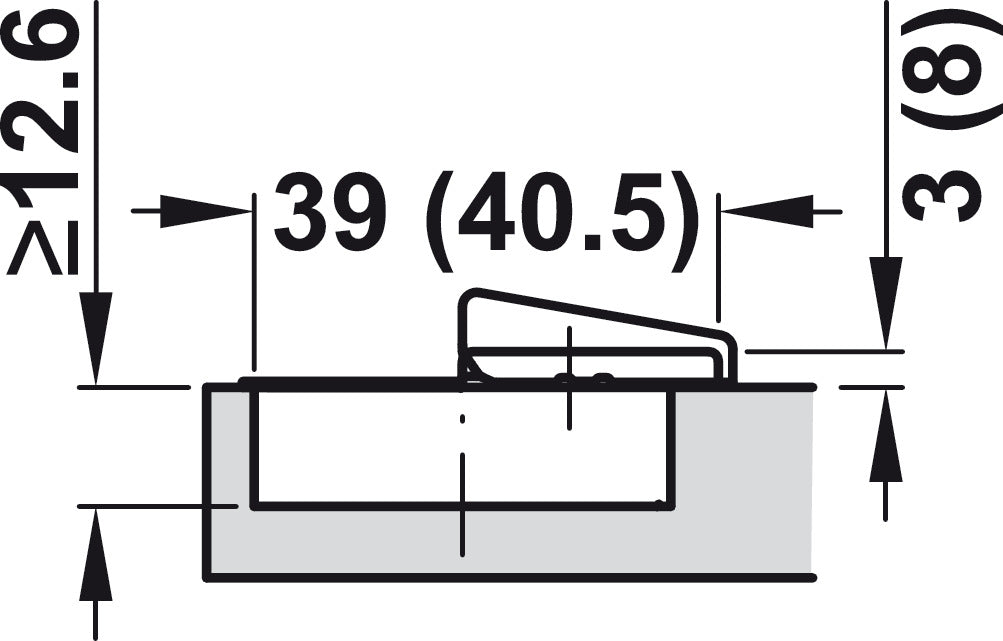

  • Dimensions in drawings and tables are calculated using factory settings and for mounting plate height (3/32”) 2 mm.

  • Color/finish: Nickel plated
  • Mounting: mounting in drilled hole, screw fixing, clip fixing, without tools
  • Model series : Tiomos 110°
  • For door material : wood

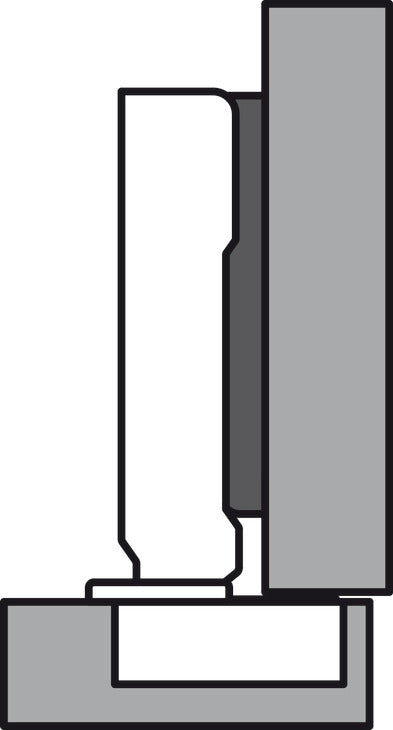

  • Concealed hinge version : full overlay
  • Crank type : Cranked
  • Opening angle : 110 °
  • Suitable for :

    Standard applications

  • Material : Steel, Hinge arm: Steel

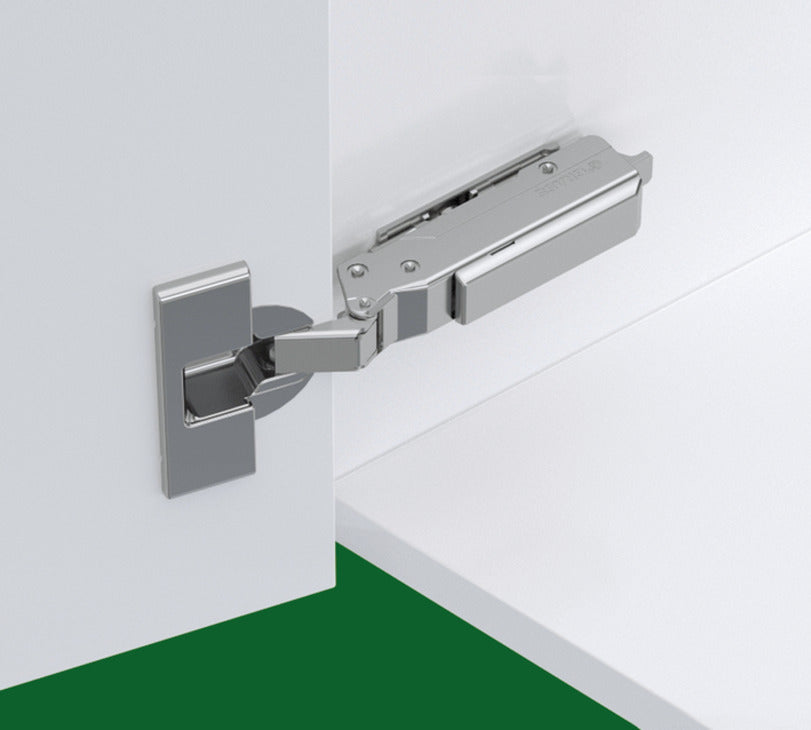

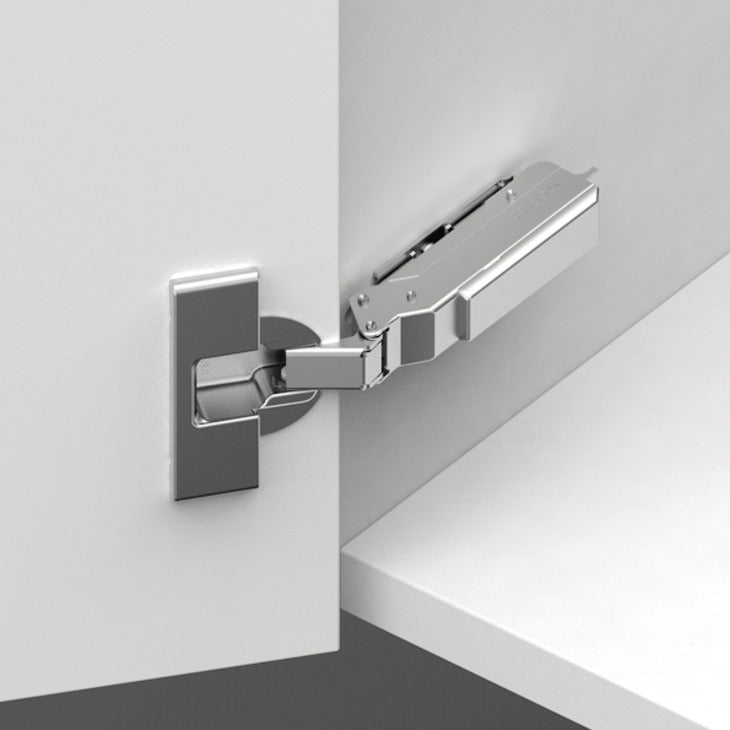

  • Installation :

    Door to cabinet without tools (clip system)

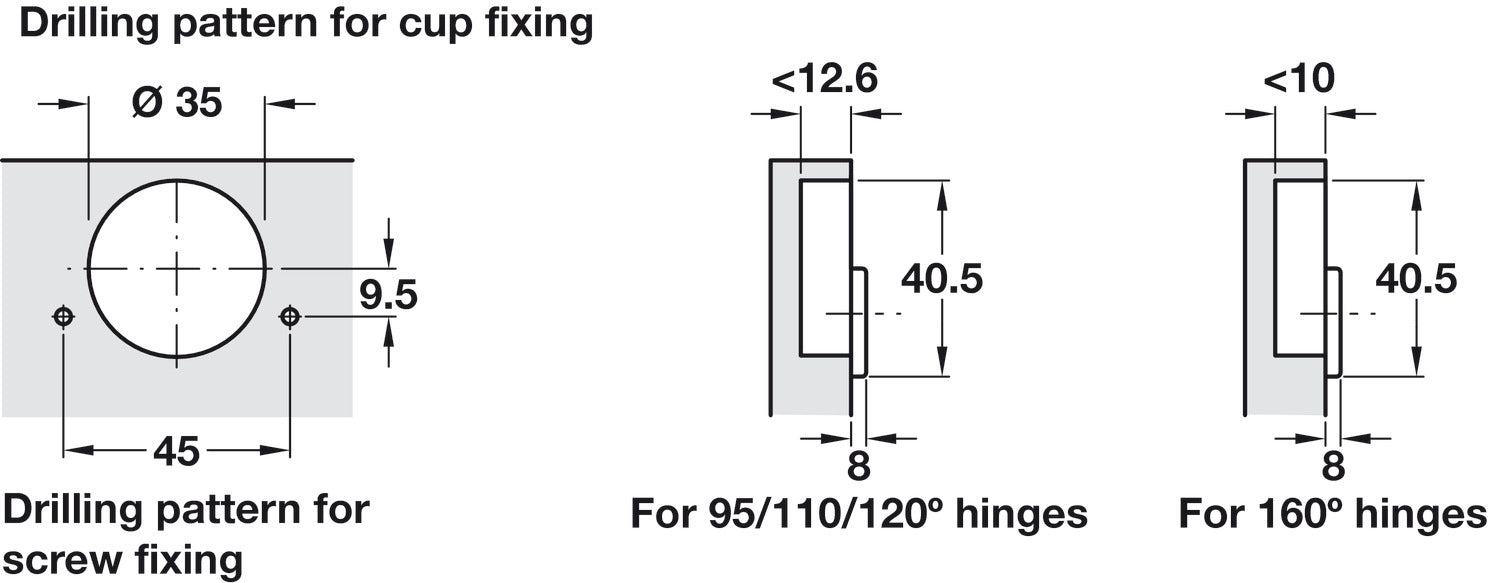

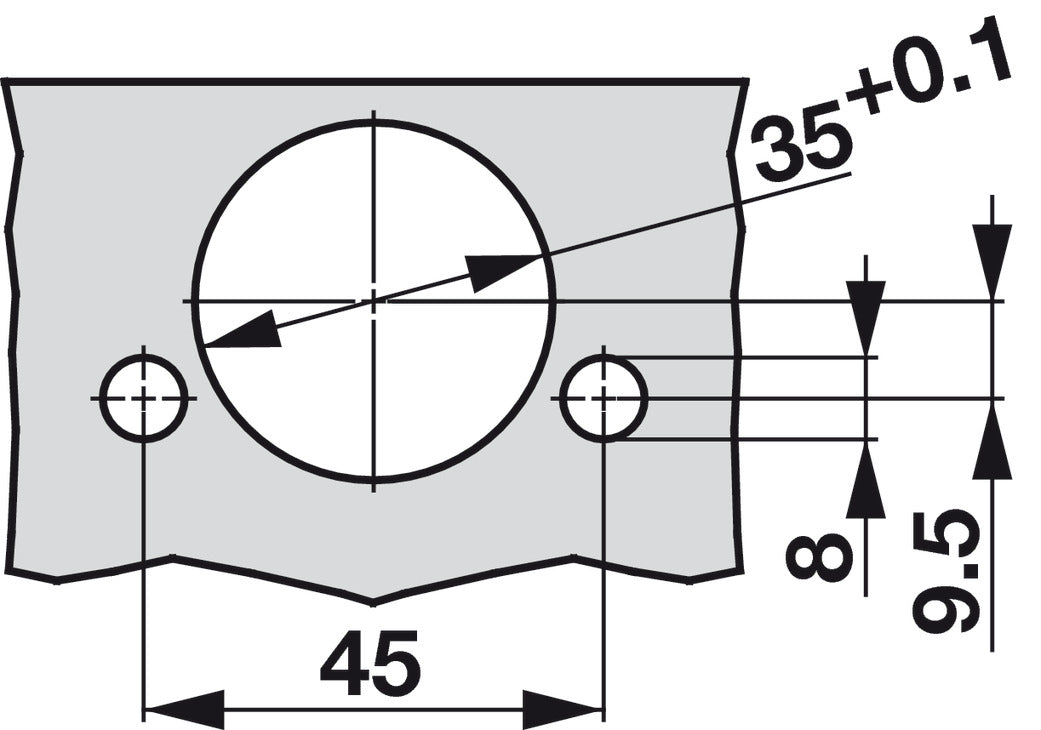

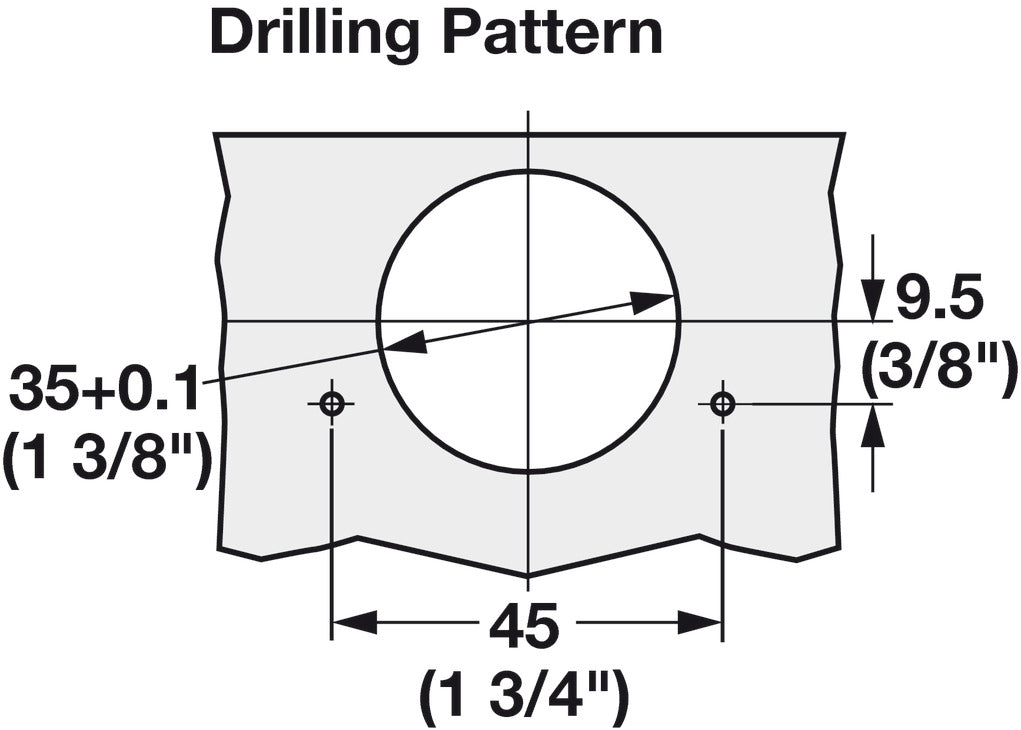

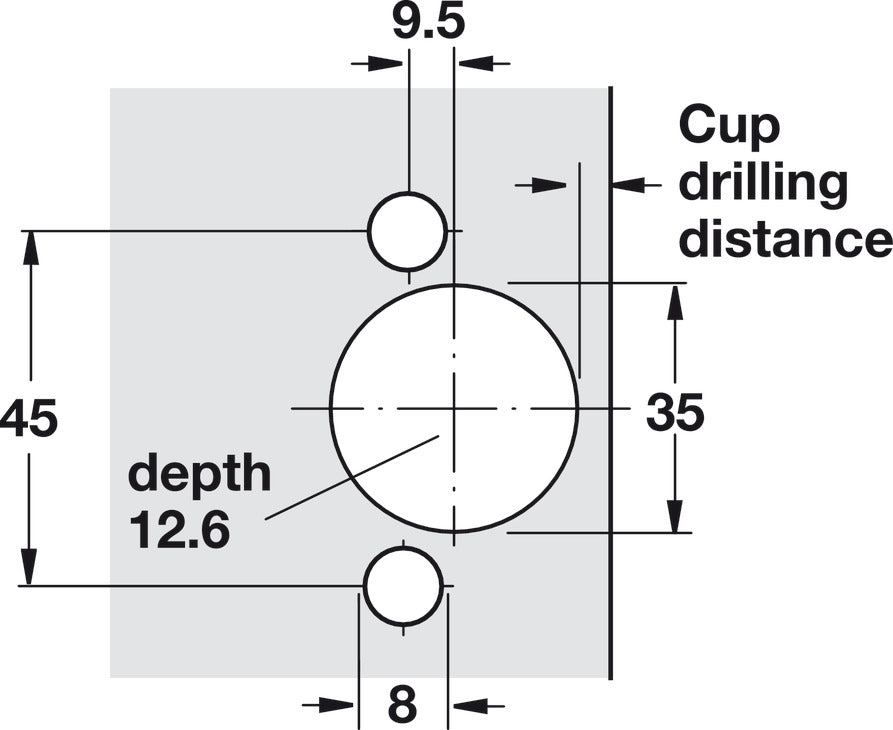

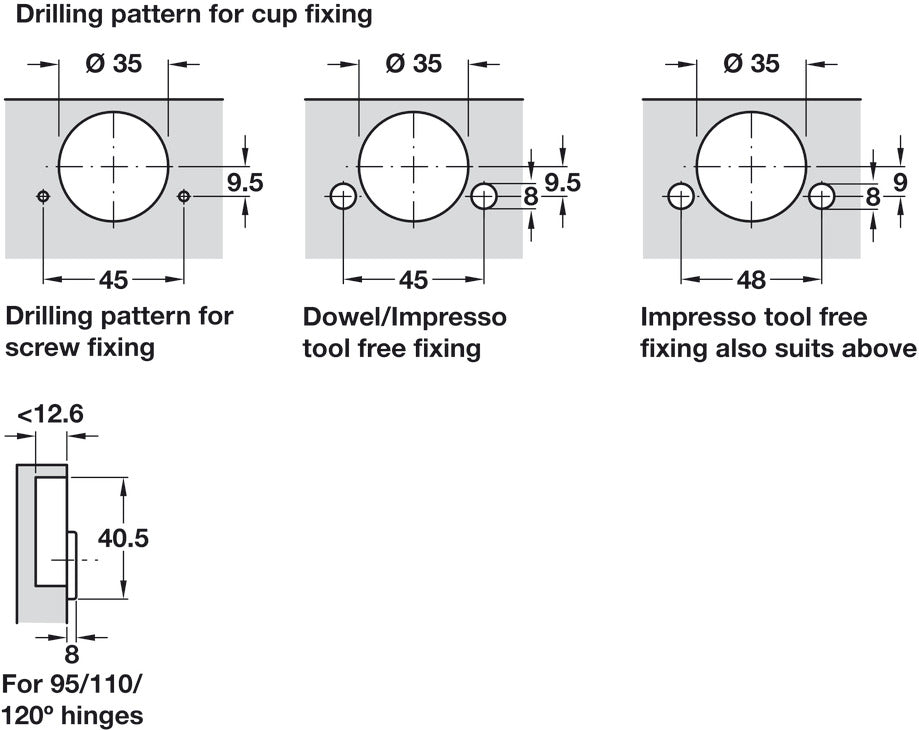

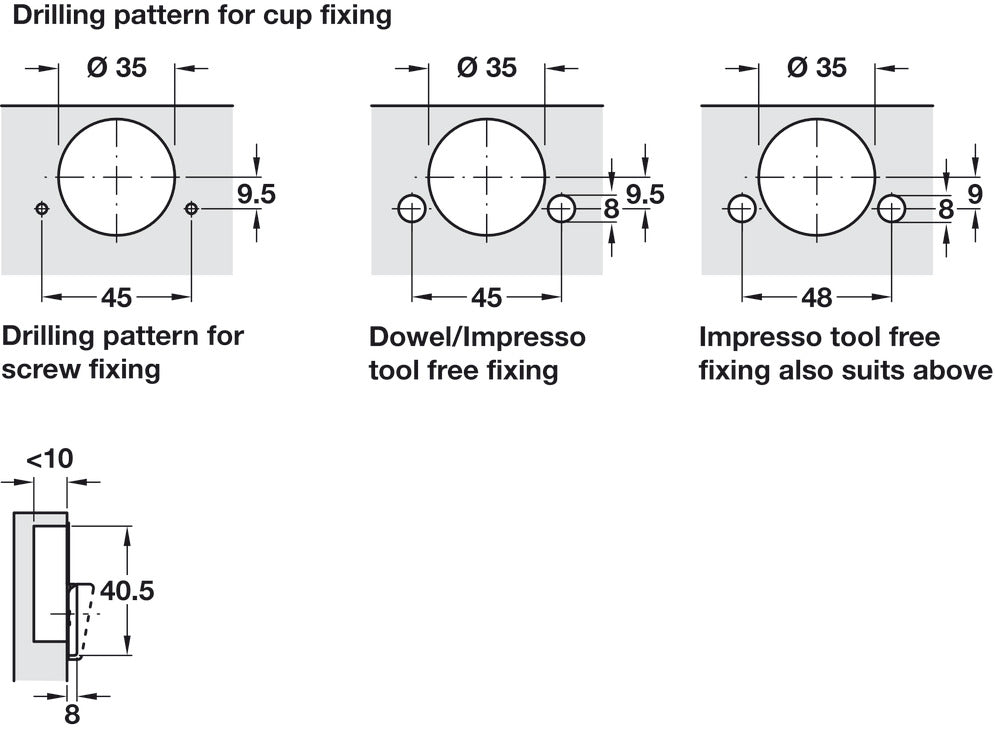

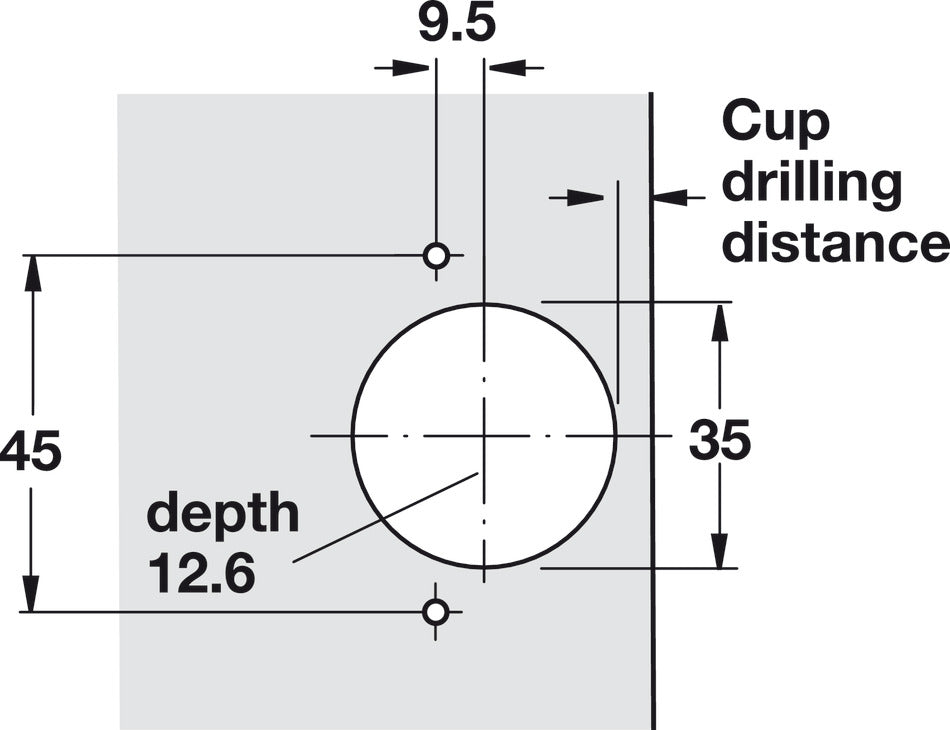

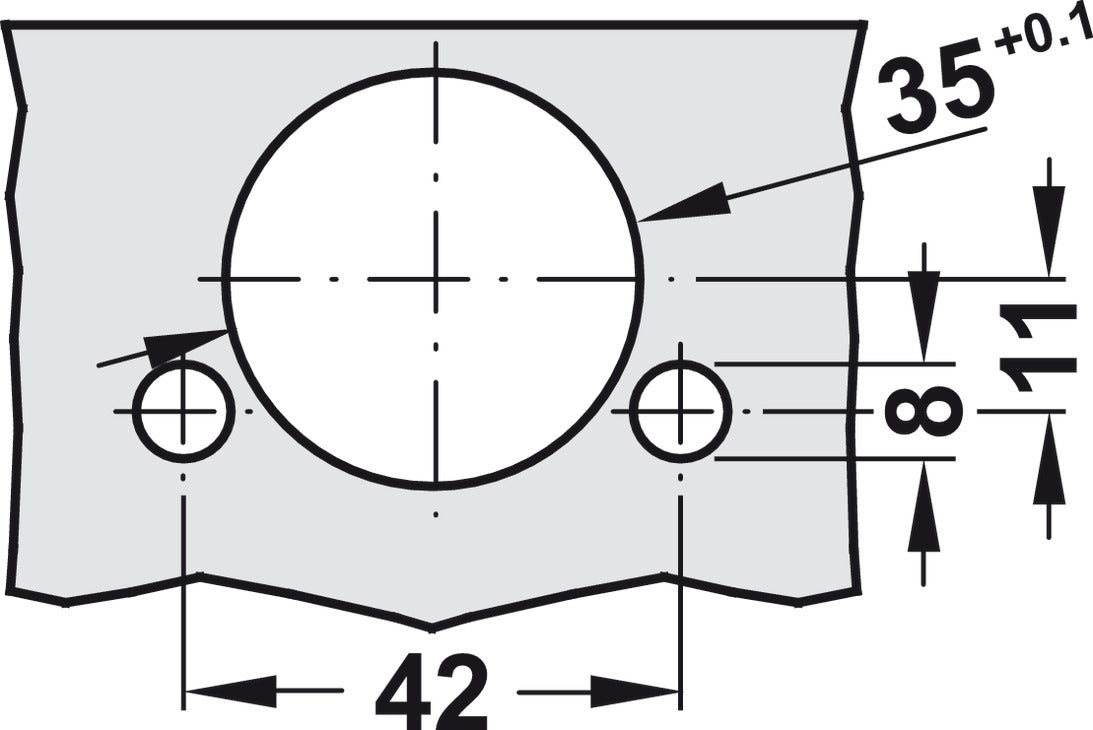

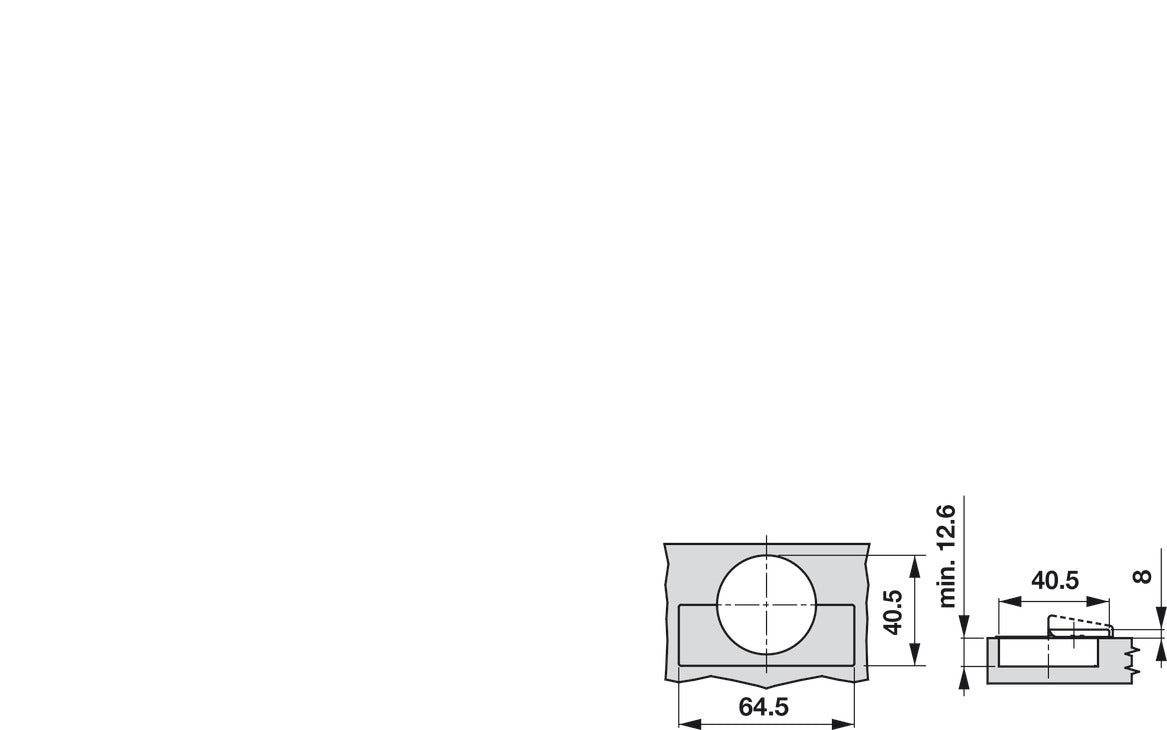

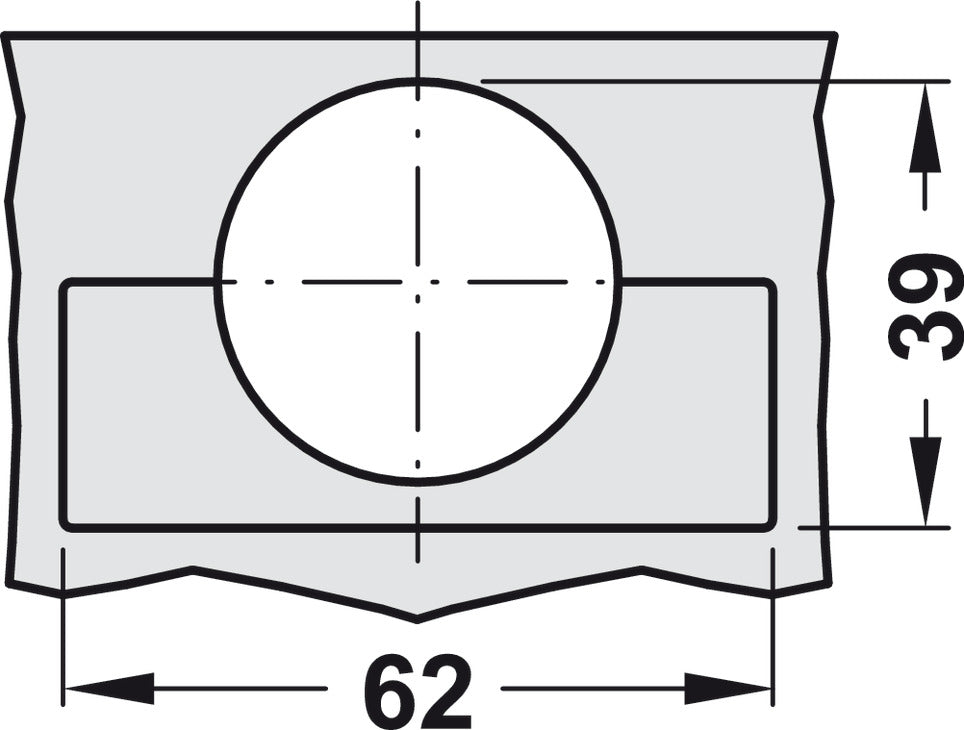

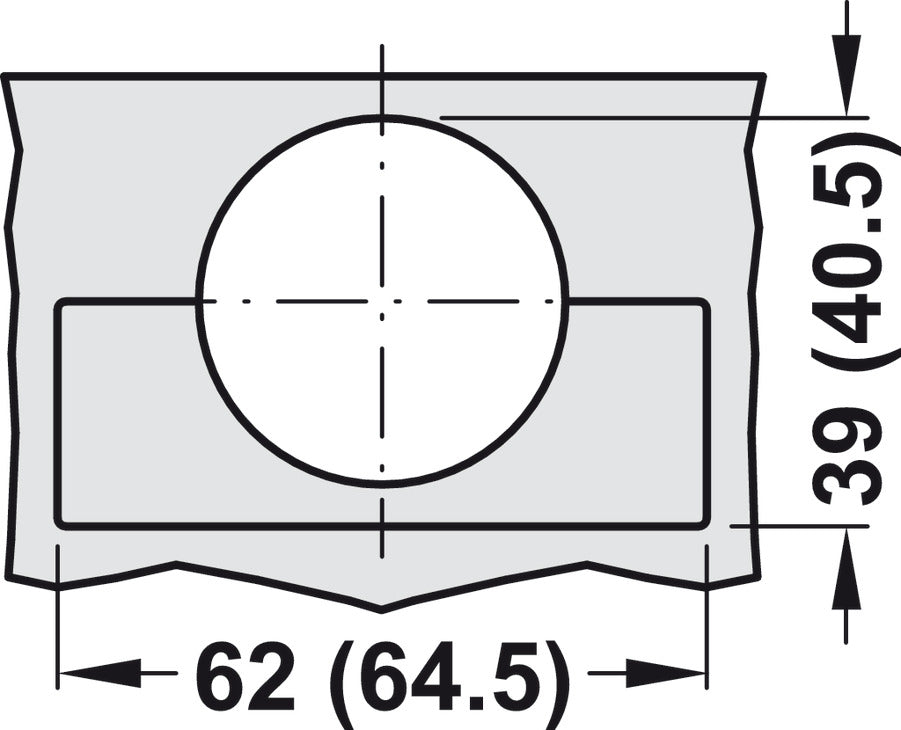

  • Door processing for assembly : cup drilling
  • Adjustment facility : Side adjustment facility: ±2 mm, Height adjustment facility: ±2.5 mm, Depth adjustment facility: -2 – 3 mm, Height adjustment depending on mounting plate
  • For wooden door thickness : 16 – 24 mm

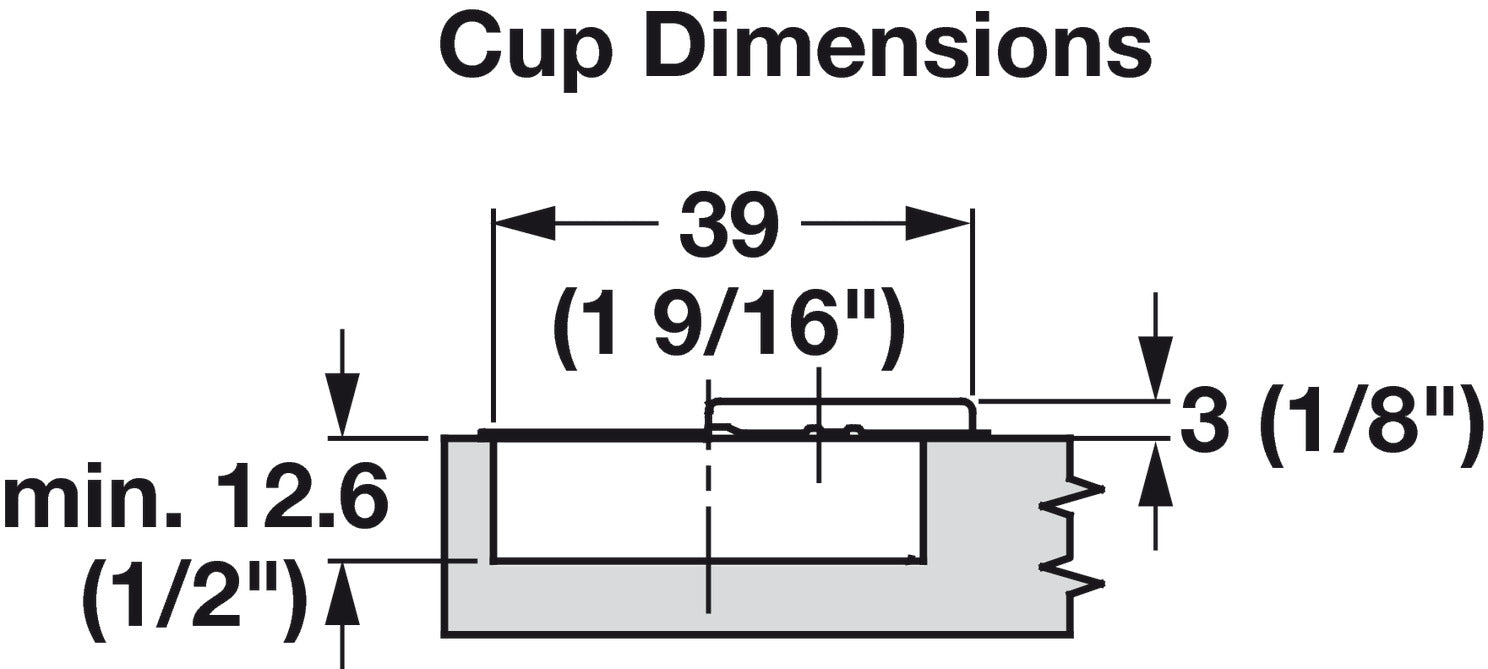

  • Cup drilling depth : 12.6 mm
  • Note :

    The dimensions specified in the drawings are calculated with a mounting plate distance of 2 mm.
    For hinges with opening mechanism please order Grass Tipmatic separately.
