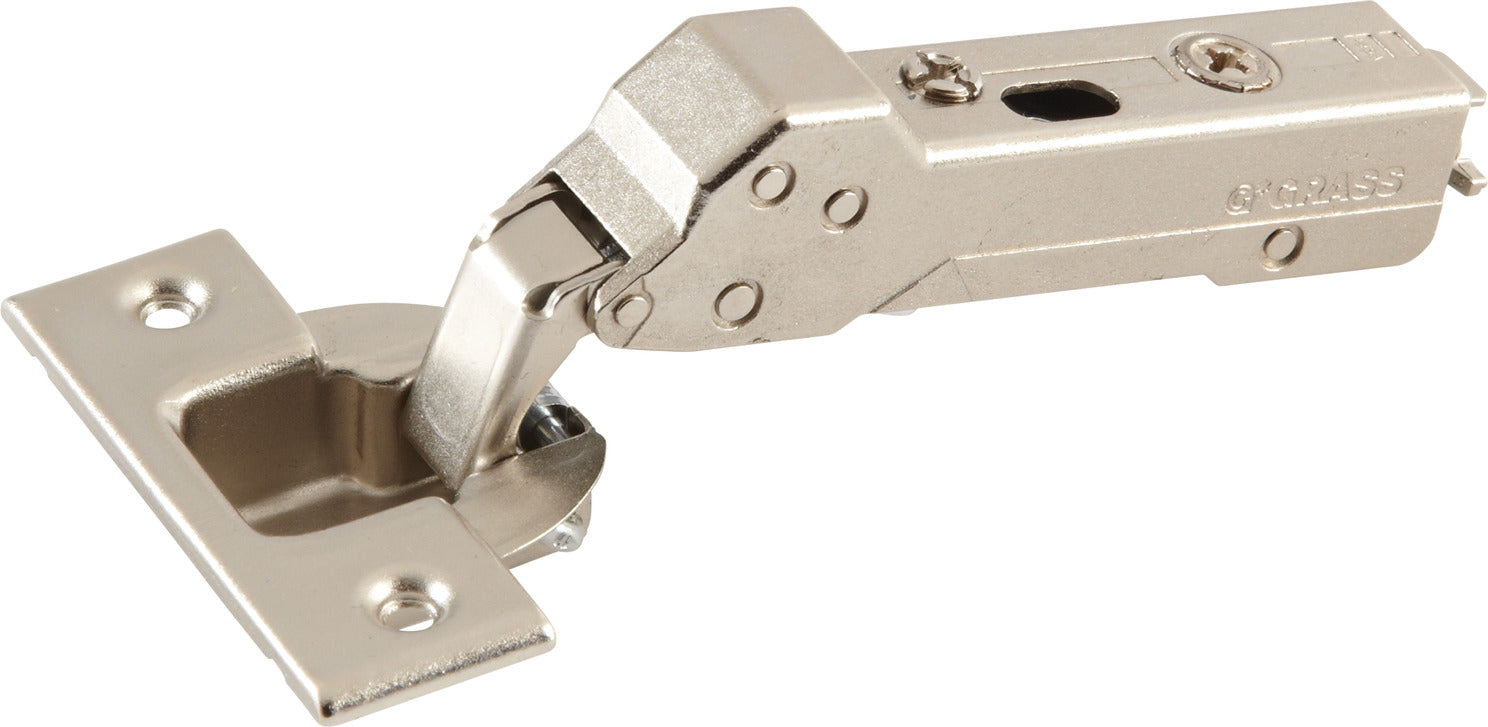

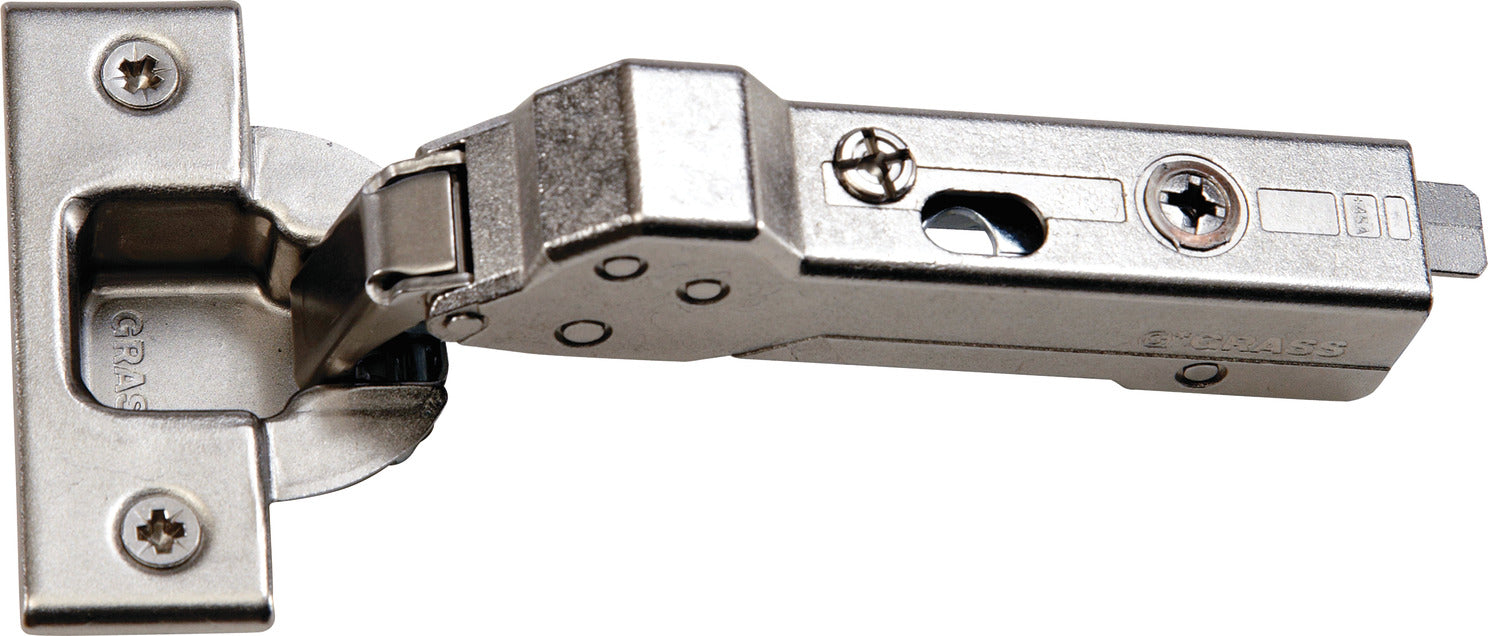

Concealed Corner Hinge, Grass TIOMOS, 110° Opening Angle, Overlay Mounting

$26.00 CAD
$26.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • With or without soft close integrated in hinge arm, with 3 settings (optional)

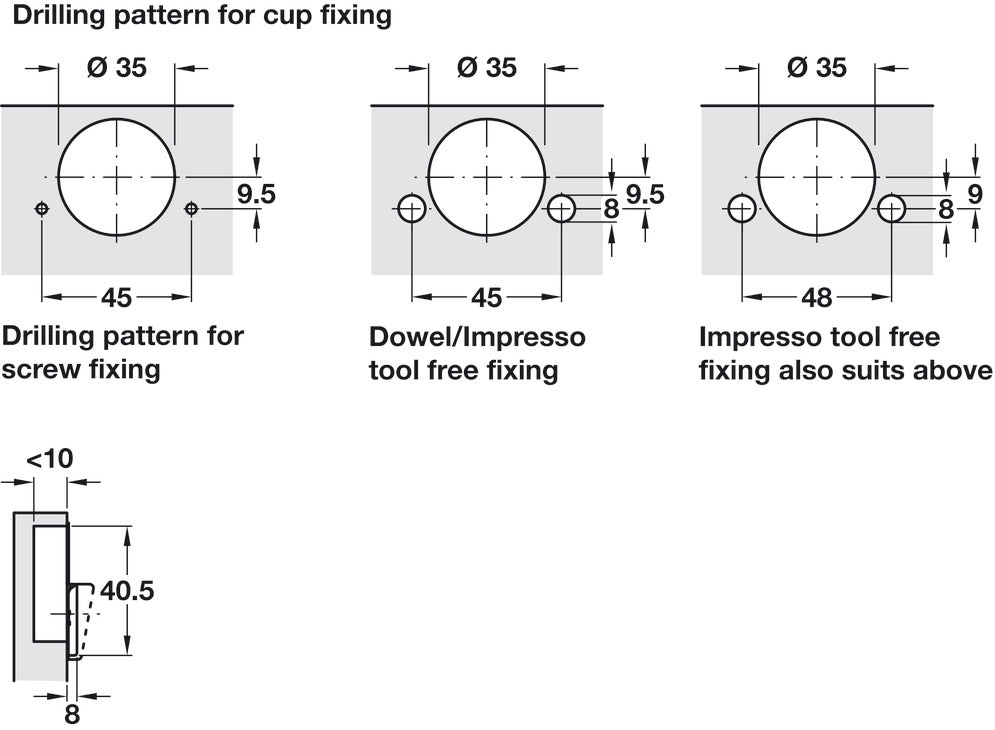

  • Cup fixing: for screw fixing
  • Color/finish: Nickel plated

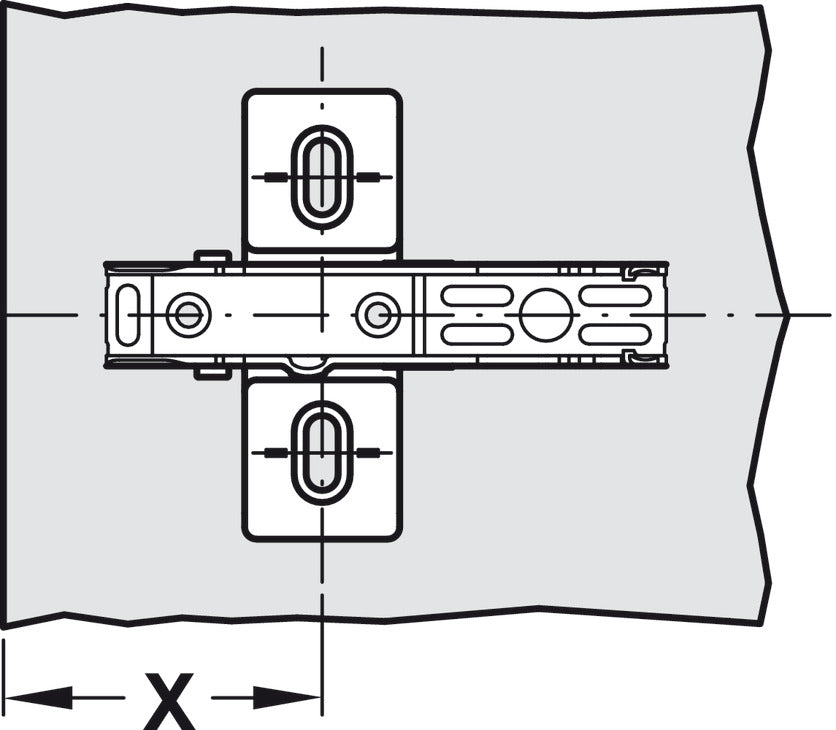

  • Mounting: mounting in drilled hole, screw fixing, clip fixing, without tools
  • Model series : Tiomos 110/45A
  • For door material : wood

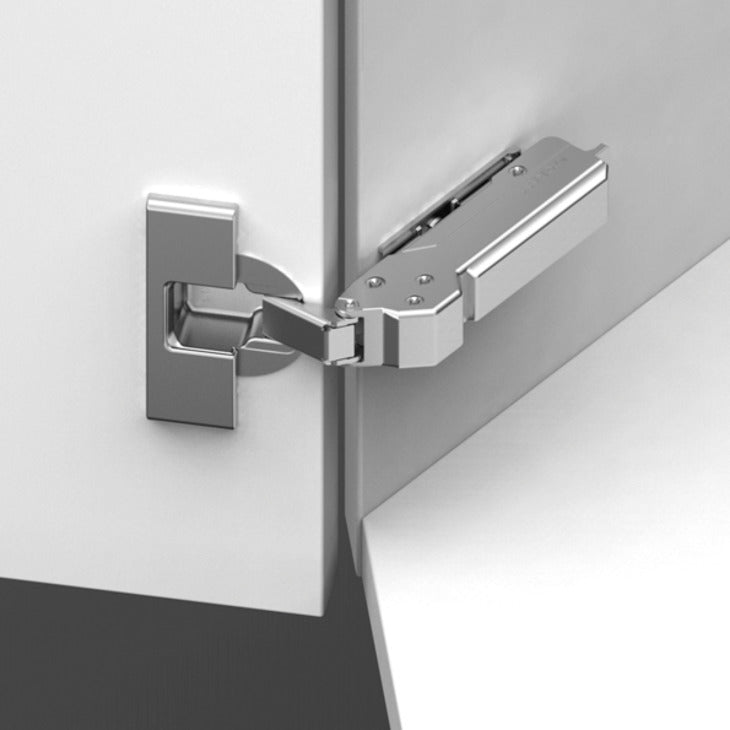

  • Concealed hinge version : blind corner application
  • Crank type : Cranked
  • Opening angle : 110 °
  • Material : Steel, Hinge arm: Zinc alloy

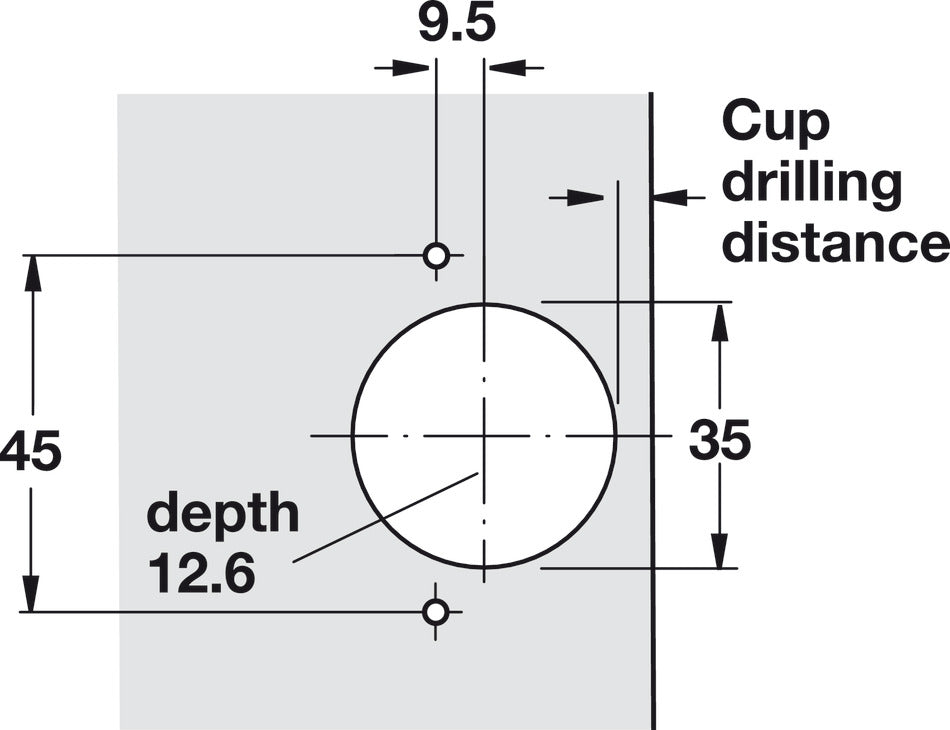

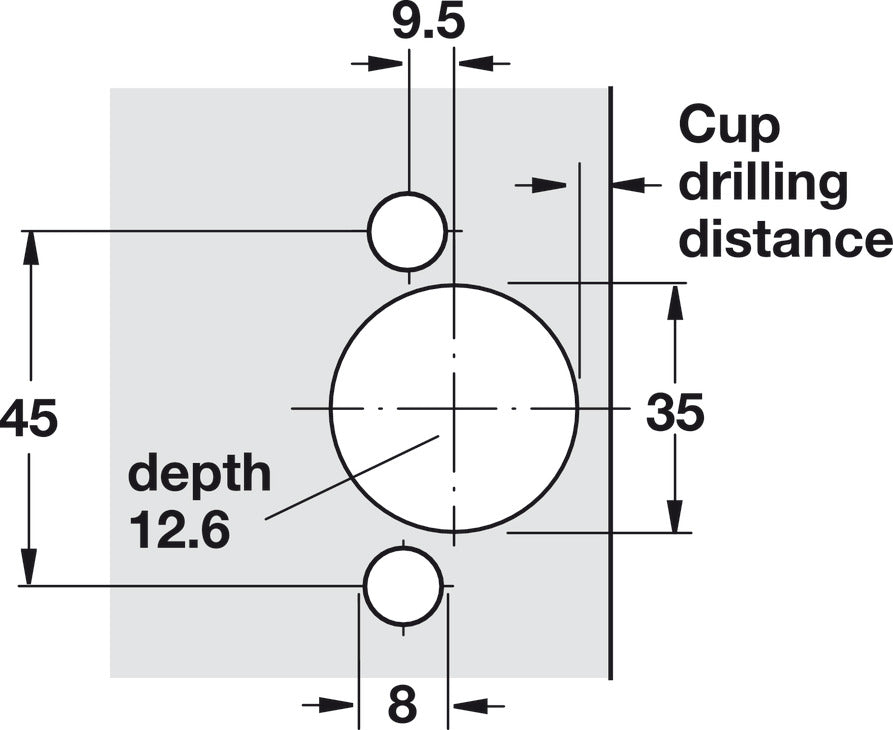

  • Door processing for assembly : cup drilling

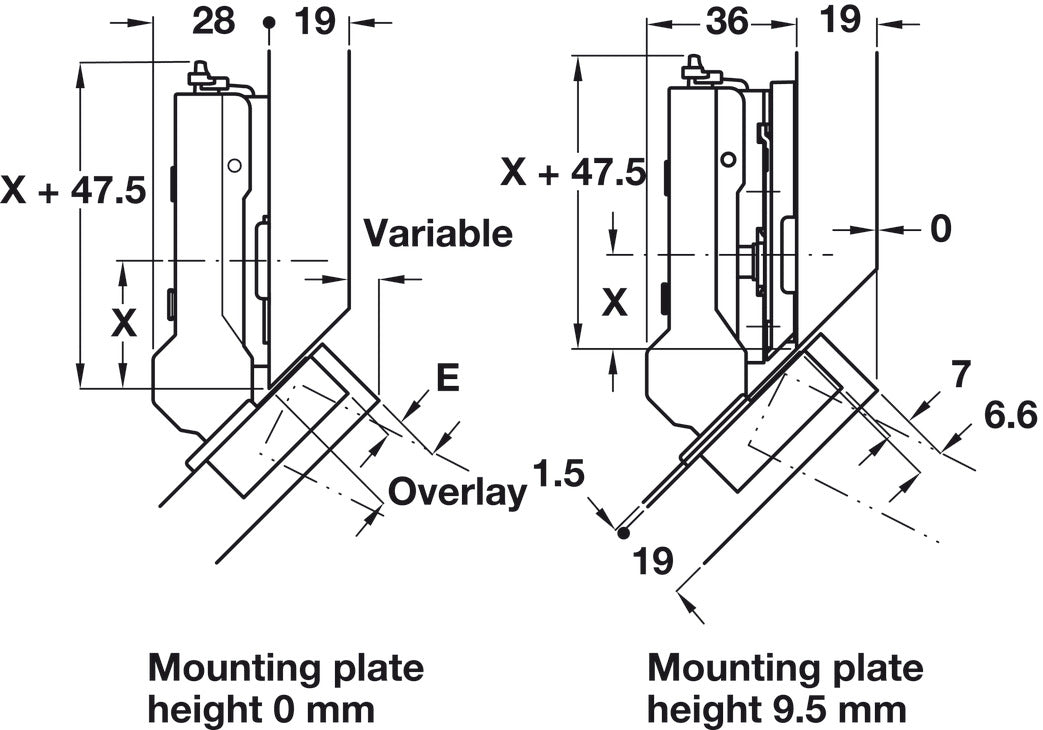

  • Adjustment facility : Side adjustment facility: ±2 mm, Height adjustment facility: ±2.5 mm, Depth adjustment facility: -2 – 3 mm
  • For wooden door thickness : 16 – 24 mm
  • For door thickness min. : Max. 15/16"
  • Cup drilling depth : 12.6 mm
  • Note :

    Trial mounting is recommended.
