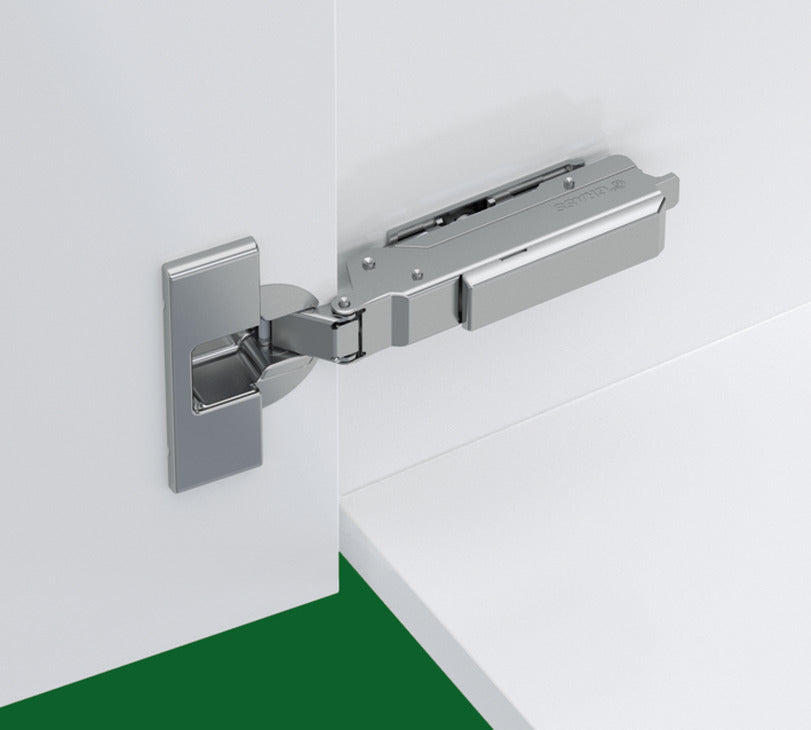

Concealed Hinge, Grass TIOMOS, 94º Opening Angle, Full Overlay
Regular price
$16.00 CAD
Regular price
Sale price
$16.00 CAD
Unit price
per
Shipping calculated at checkout.
*Free Standard Ground Shipping on Orders over $199

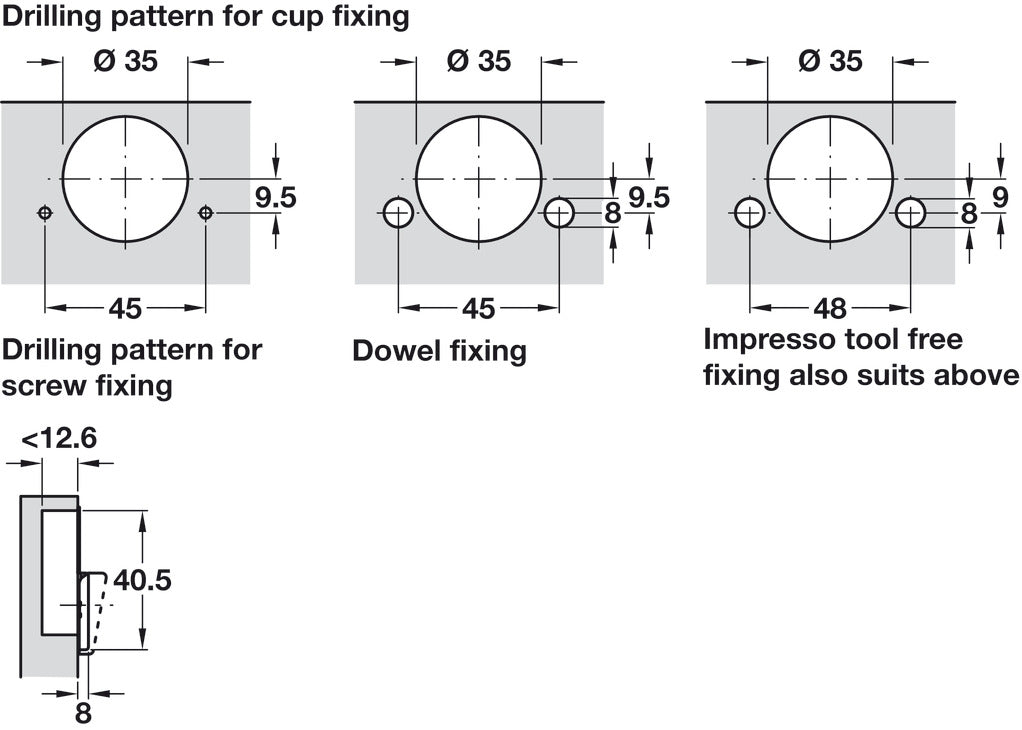

- Cup fixing: for screw fixing
- Mounting: mounting in drilled hole, screw fixing
- Model: -
- Model series : Tiomos 95°
- Concealed hinge version : full overlay plus
- Crank type : Straight
- Opening angle : 95 °
- Material : Steel, Hinge arm: Steel

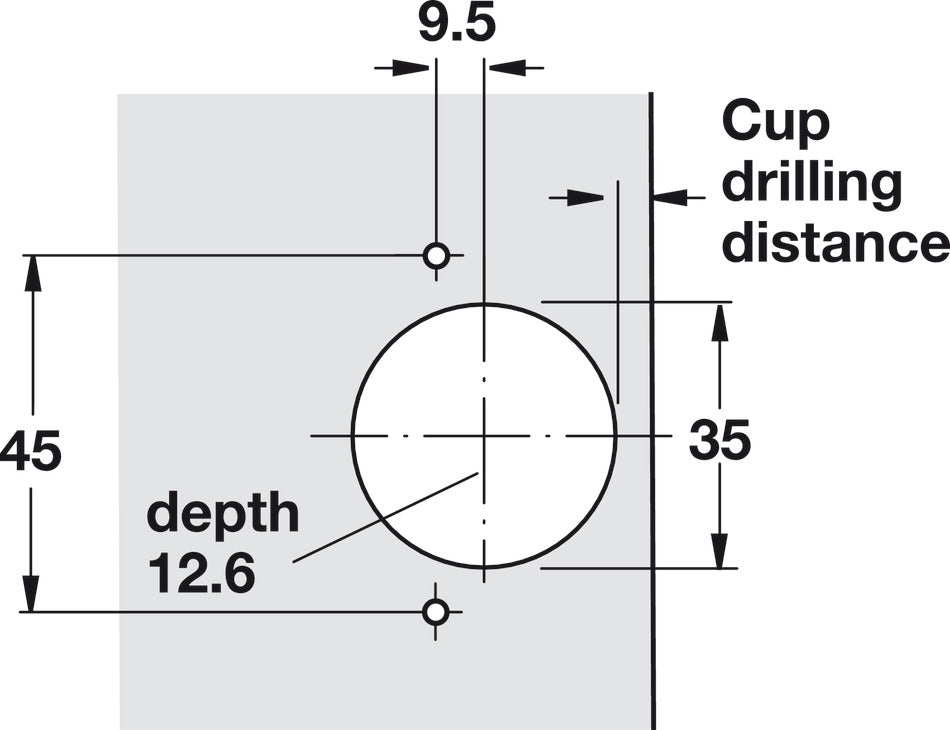

- Door processing for assembly : cup drilling
- For wooden door thickness : 28 mm
- Cup drilling depth : 12.6 mm
-
Order reference
:
Order Hospa ⌀ 3.5 mm countersunk screws separately
