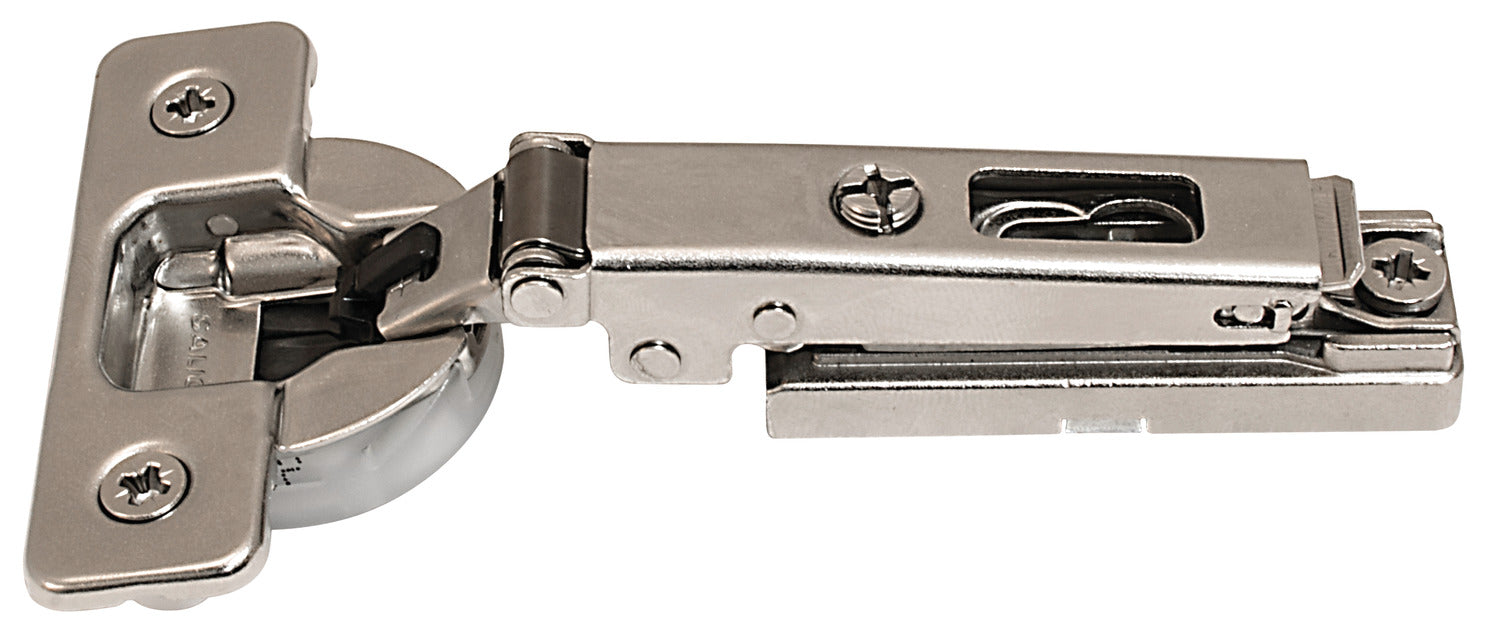

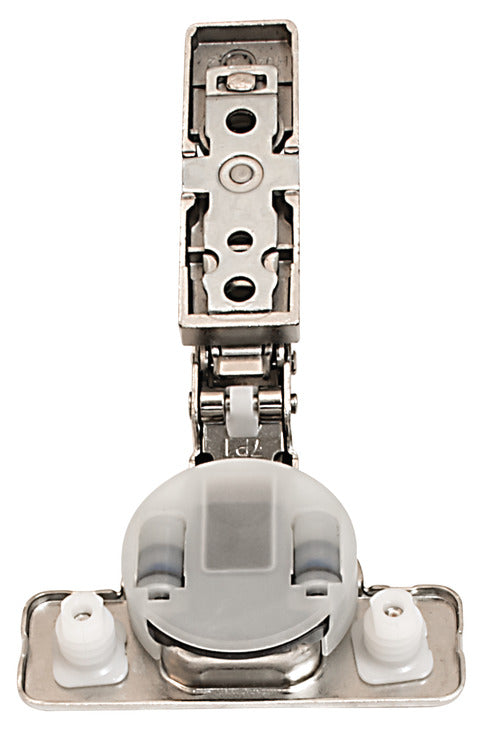

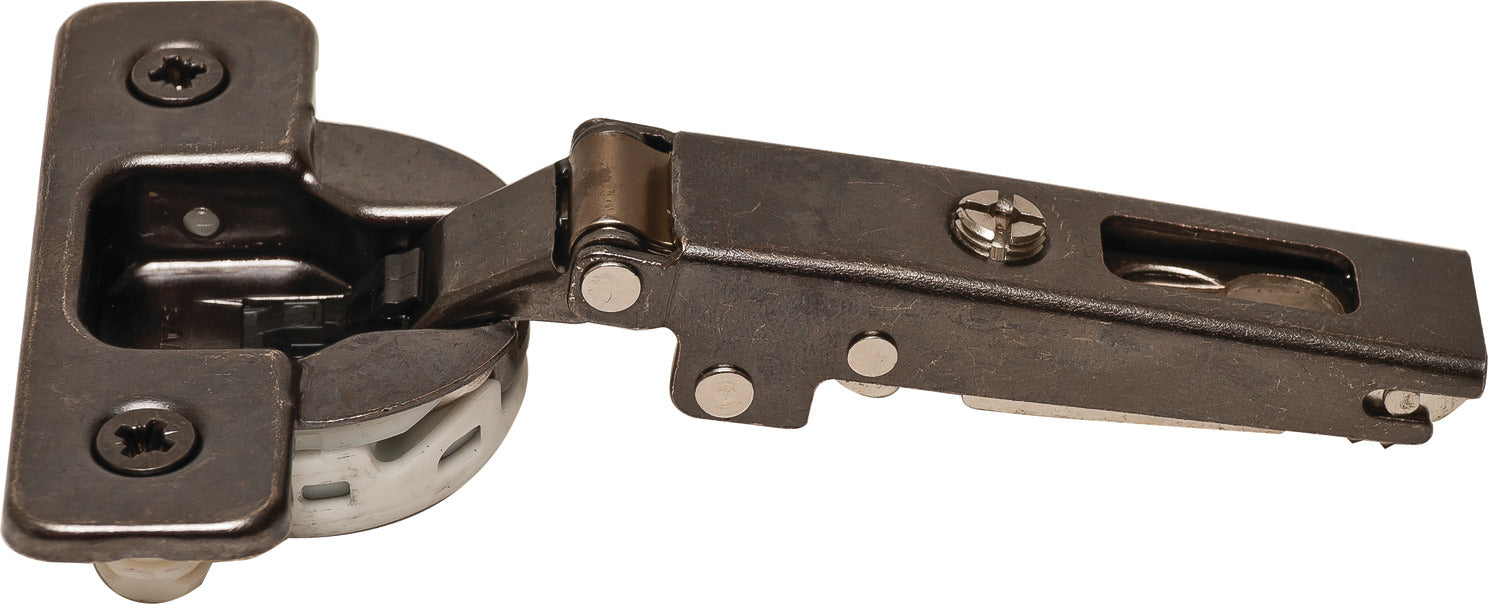

Concealed

$8.00 CAD
$8.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

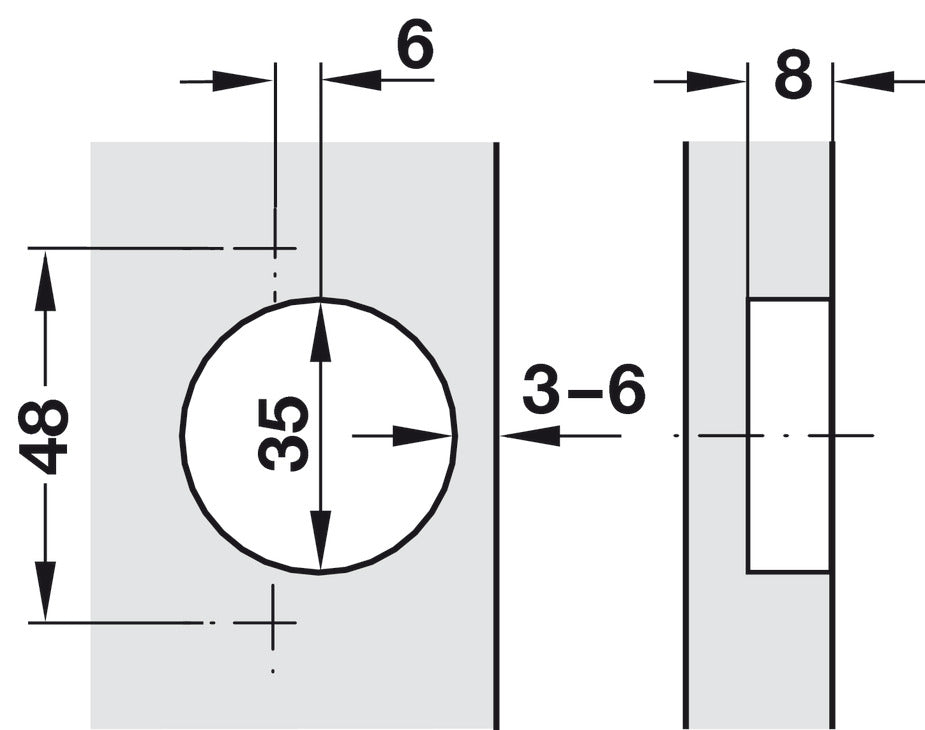

  • Required drilling depth for hinge cup only 8 mm

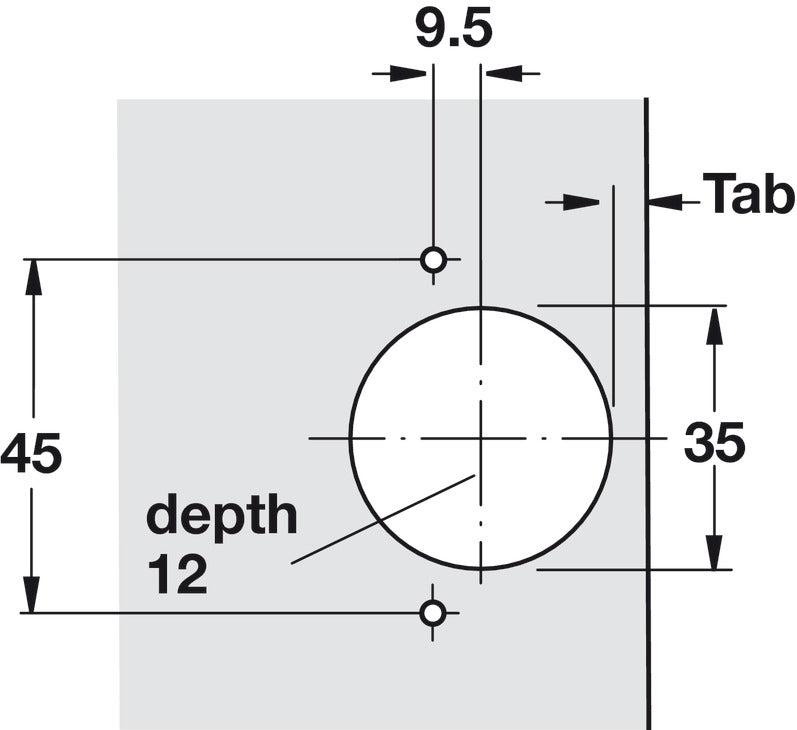

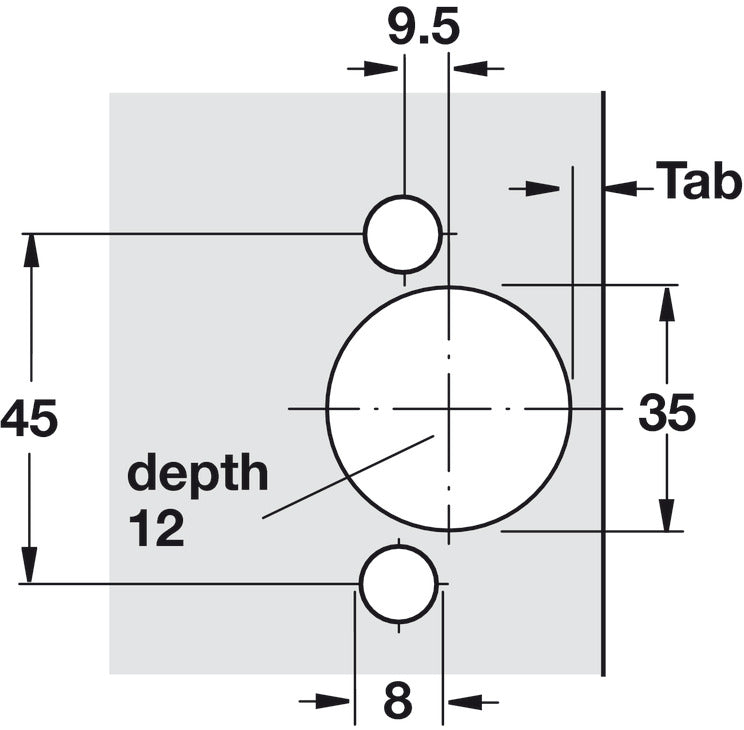

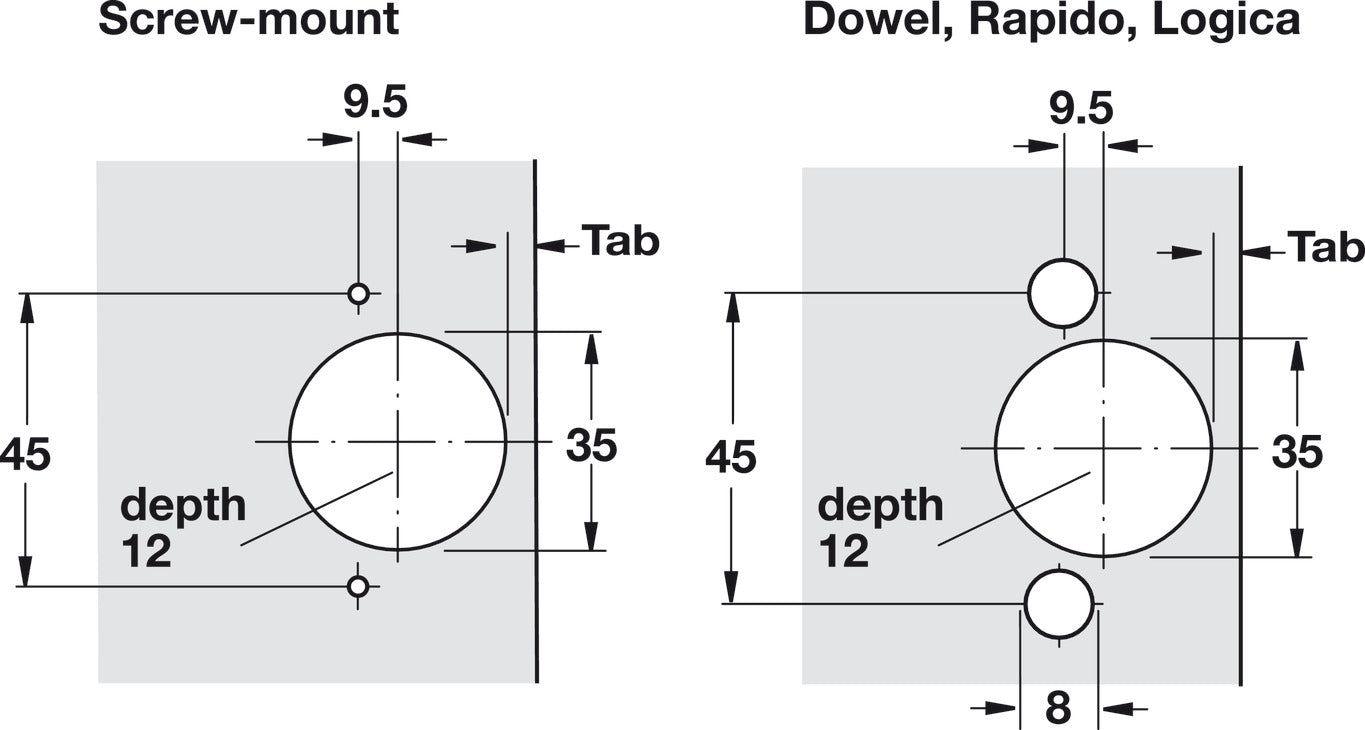

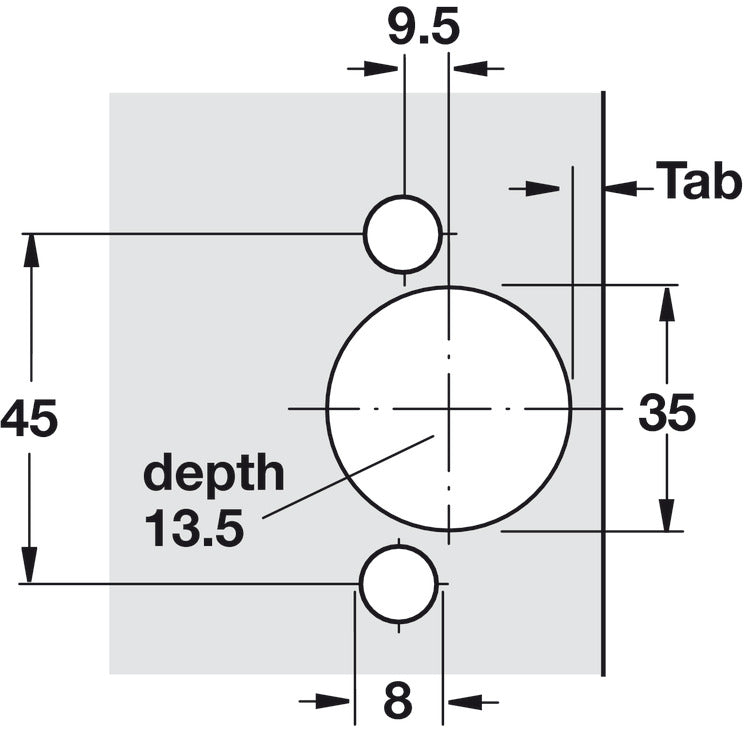

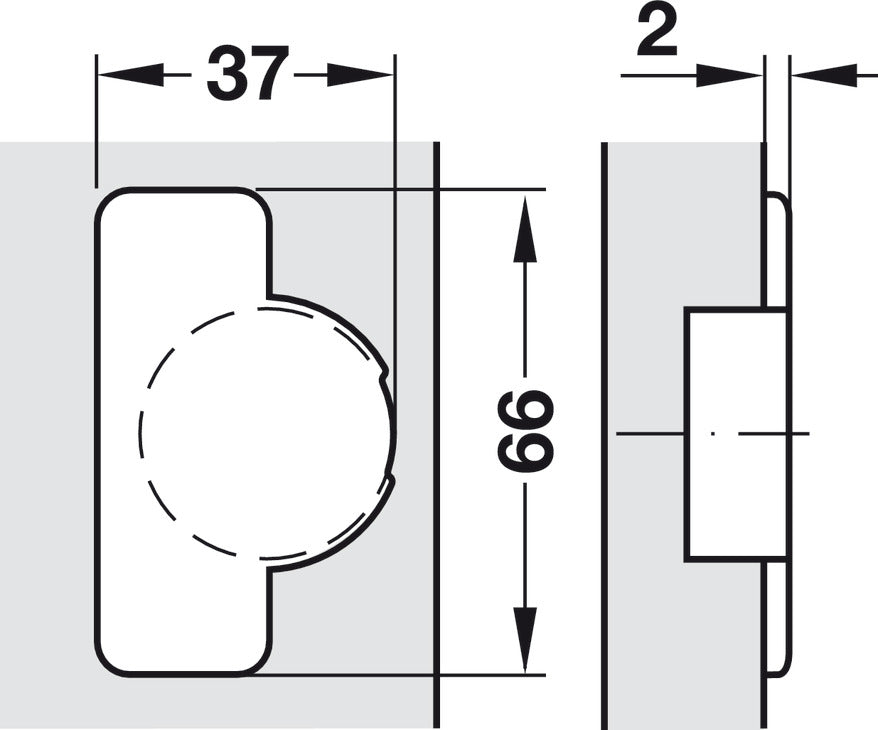

  • Drilling pattern:45/9.5
  • Mounting: mounting in drilled hole, screw fixing

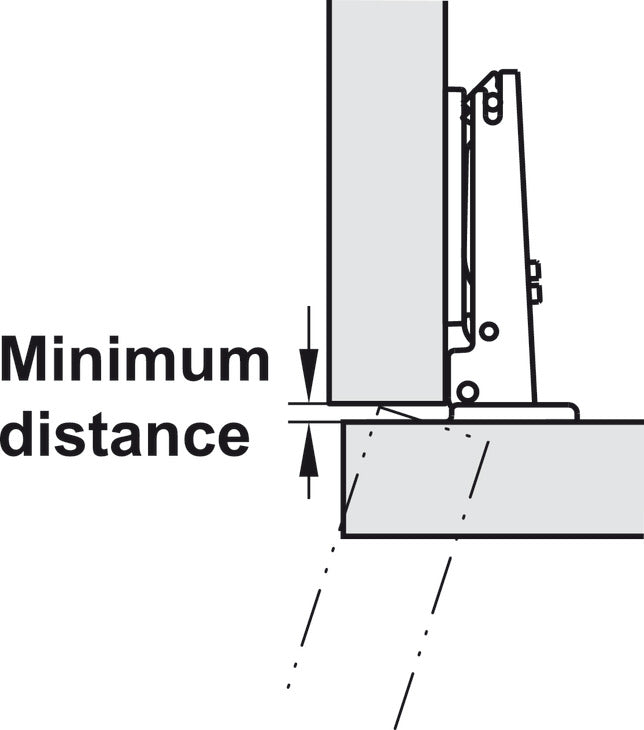

  • Distance to cup min.: 3 mm
  • Distance to cup max.: 6 mm

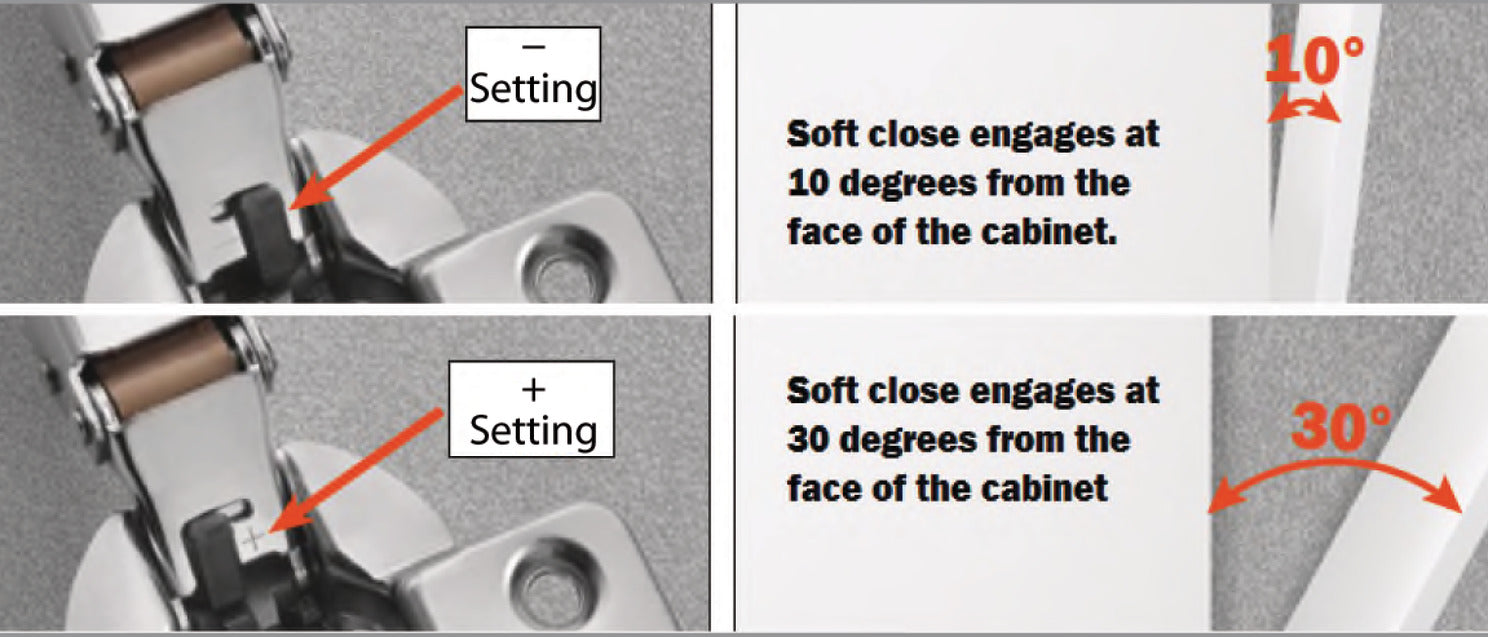

  • Model series : 100 Series
  • Opening angle : 105 °
  • Material : Steel, Hinge arm: Steel
  • Door processing for assembly : cup drilling
  • For wooden door thickness : 15 – 20 mm
  • For door thickness min. : 9/16"
  • Note :

    Dimensions and gap specifications in drawings and tables are calculated:
    Using factory settings
    For mounting plate distance 0 mm
    For door offset with max. opening angle

  • Order reference :

    Mounting plates sold separately
