• Pivot Hinge, 140° Opening Angle, Detachable
1 8

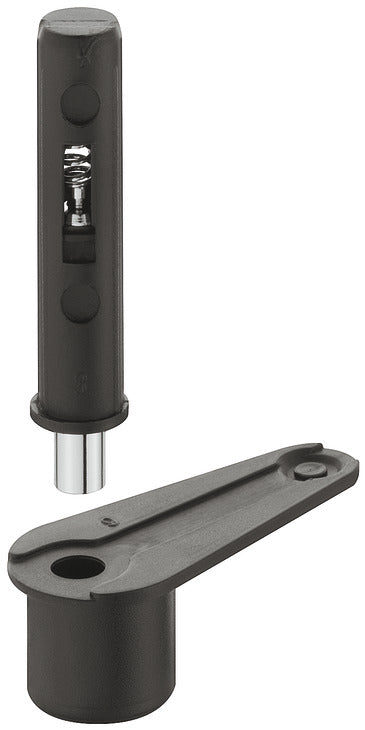

Pivot Hinge, 140° Opening Angle, Detachable

$3.00 CAD
$3.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

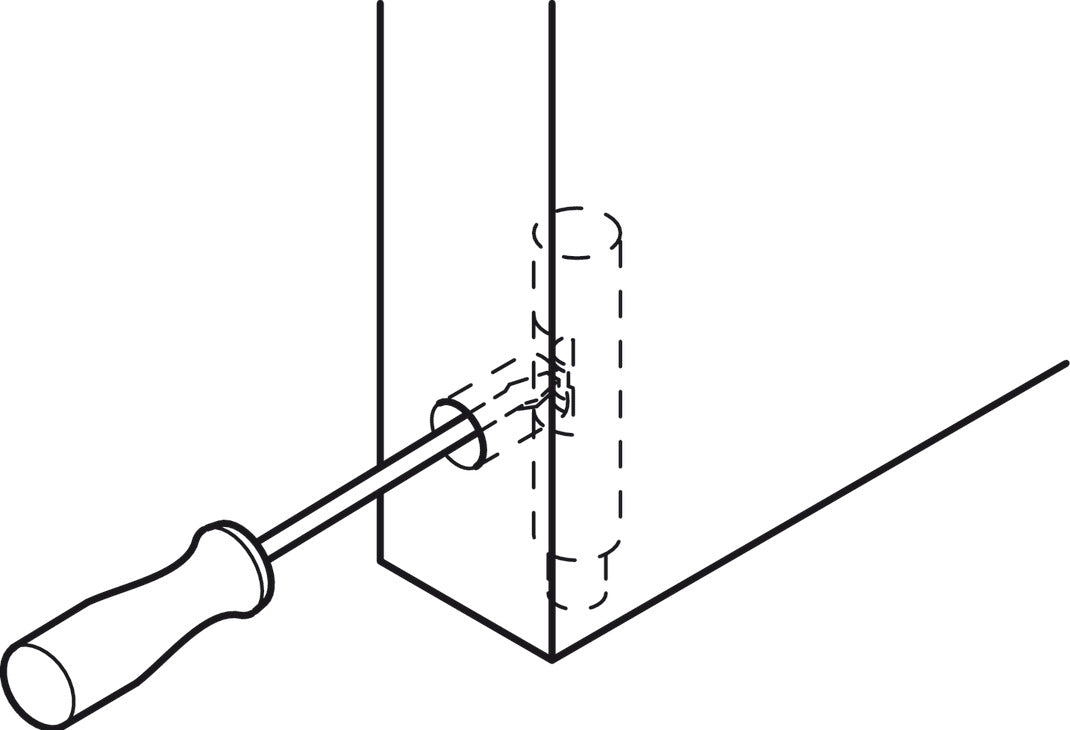

  • •To detach door, insert a small screwdriver into hole located in door edge. Then, use screwdriver to lift spring-loaded pin inside lower bushing. Important - Be sure to match holes in door and bushing.

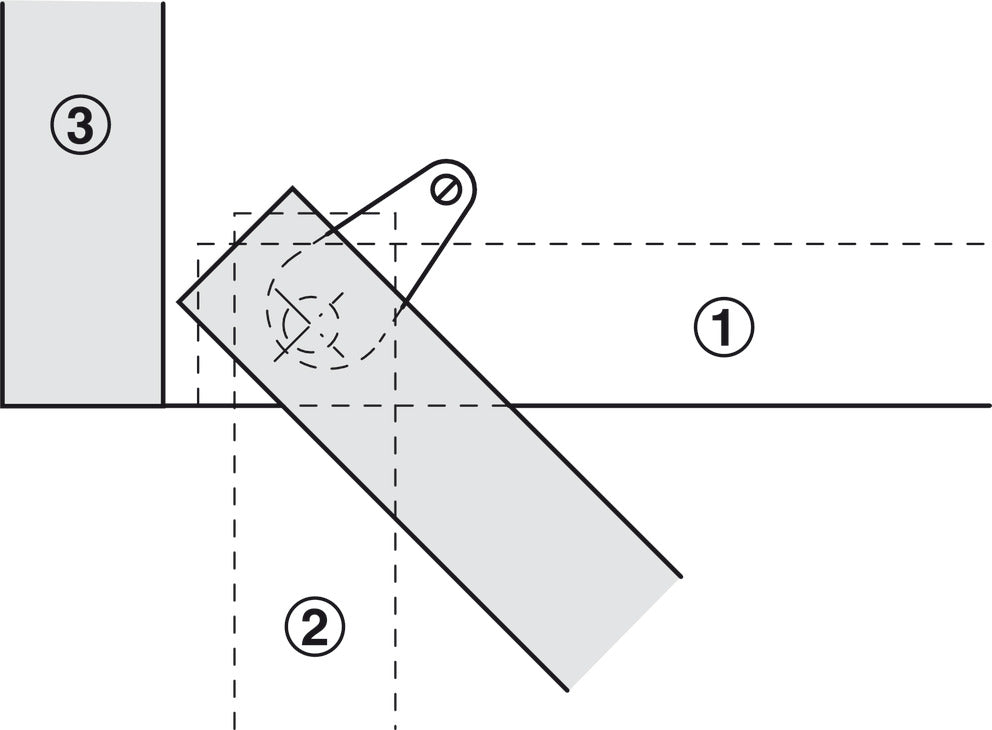

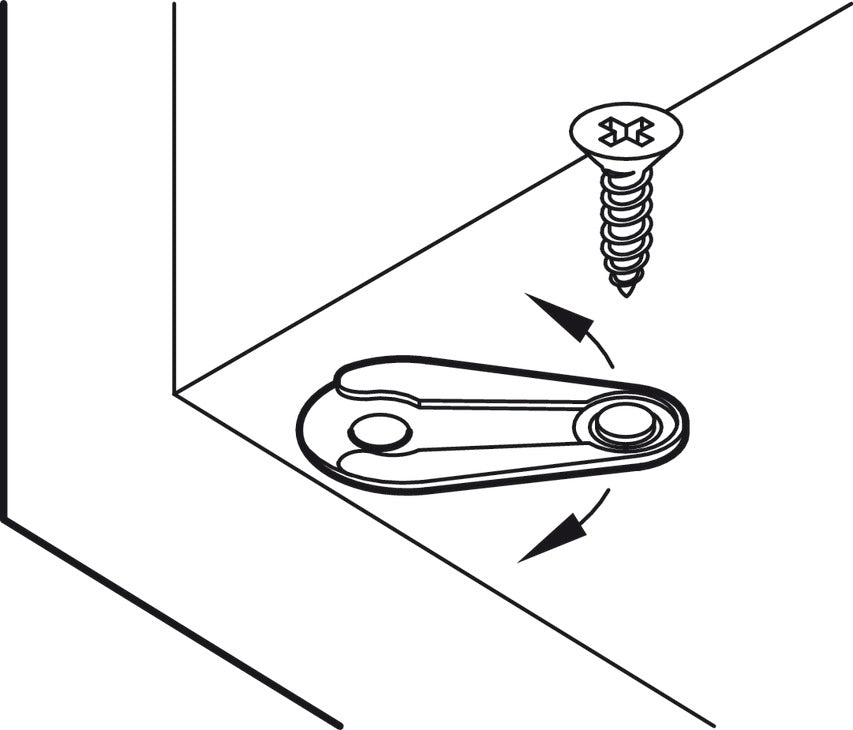

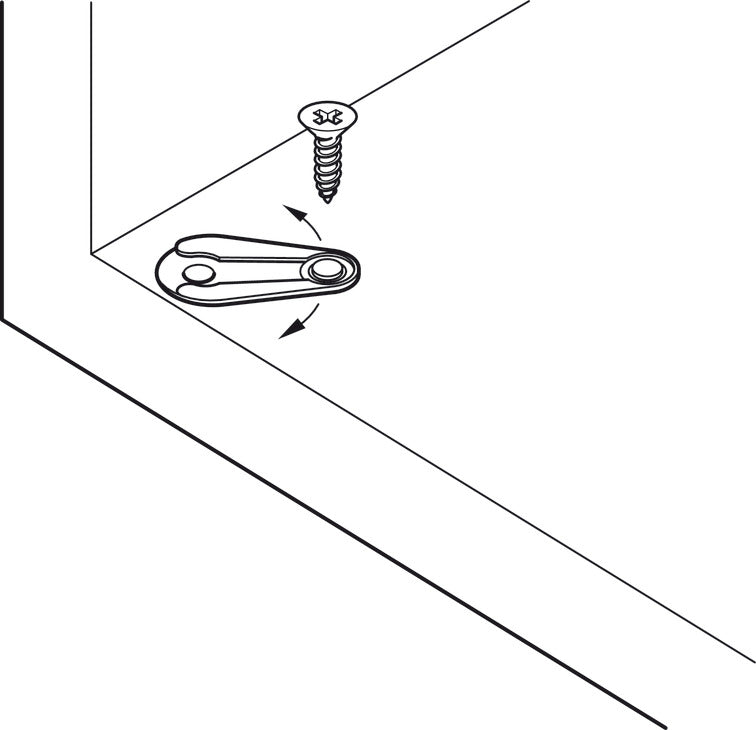

    •To increase or reduce gap, turn tab on its pivotbearing. Once adjusted as desired, secure tab in position using a small wood screw as shown.

  • Color/finish: Black
  • For door thickness min.: 1/16"
  • Area of application :

    For concealed mounting

  • Material :

    Plastic

  • Opening angle : 140 °
  • Flange thickness : 3 mm
  • For door thickness : 12 – 21 mm
  • Installation :

    For press fitting

  • Supplied with :

    2 pins & 2 bushings
