• Lateral Swing Fitting, Swingfront 20 FB, for wooden or narrow aluminum frame doors
1 16

Lateral Swing Fitting, Swingfront 20 FB, for wooden or narrow aluminum frame doors

$757.00 CAD
$757.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

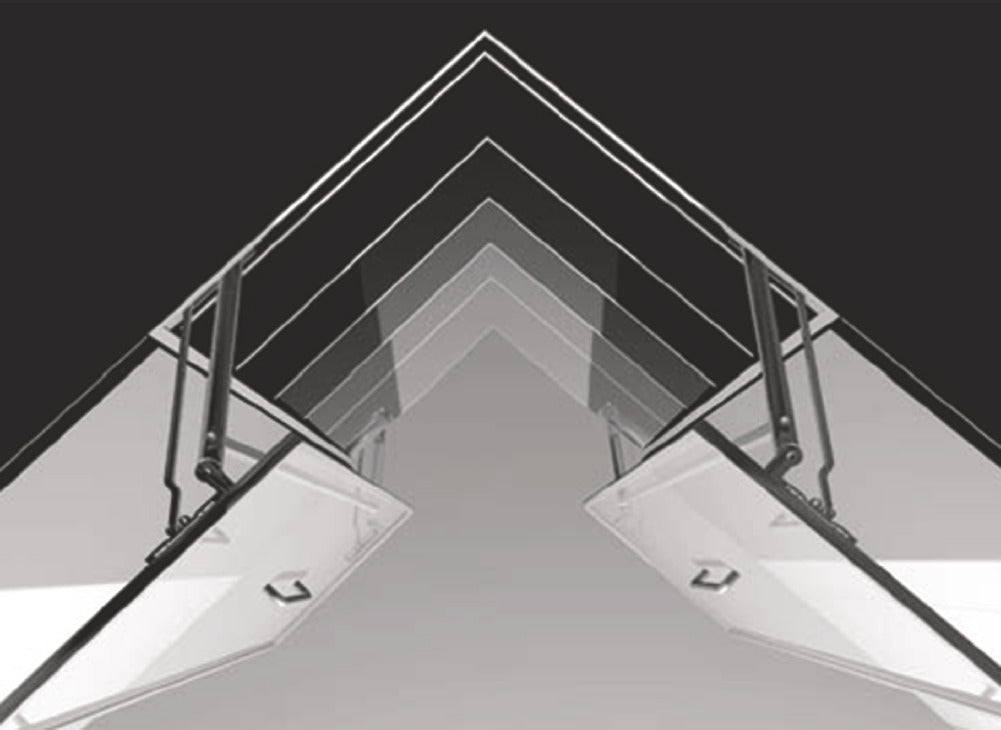

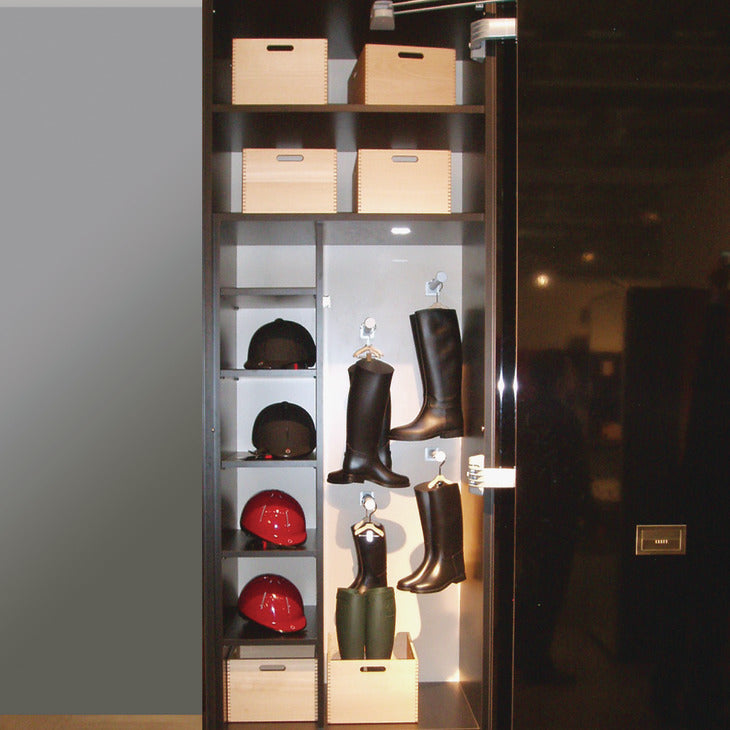

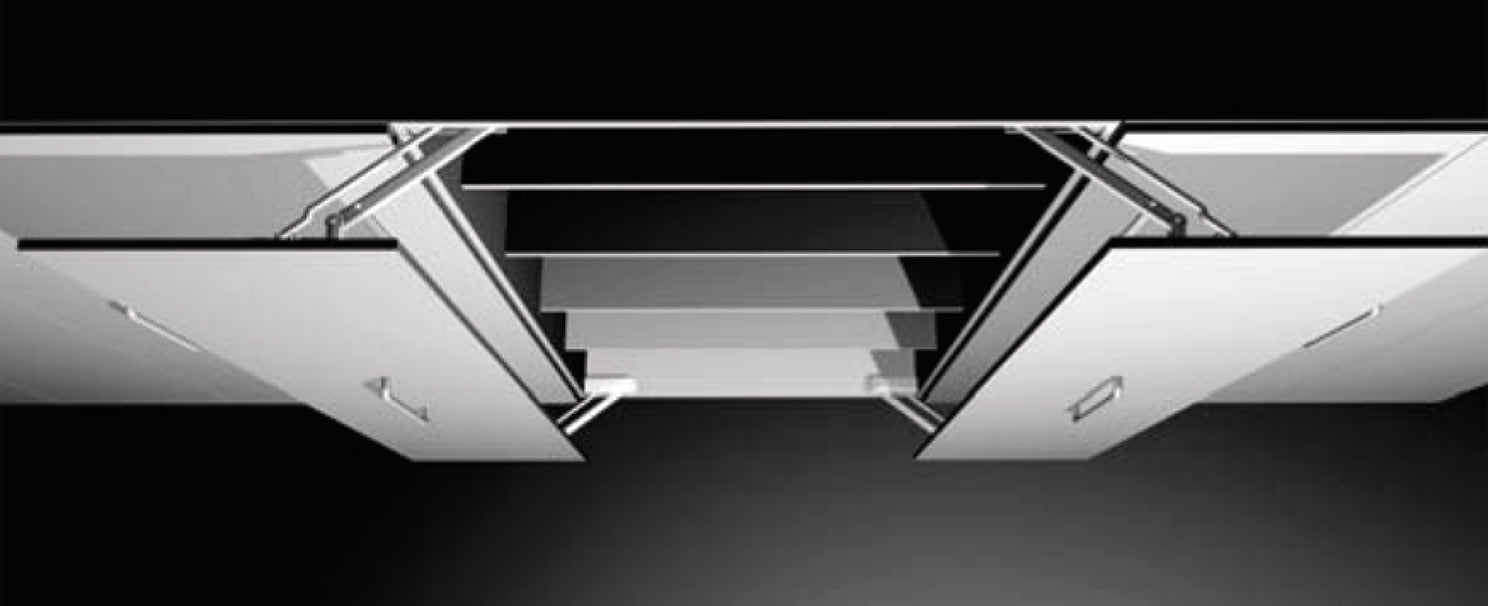

  • Door swings out to the front and to the side when being opened, allowing unlimited access to the cabinet interior
    Use in straight cabinets or in corner solutions

  • Product type: Lateral Swing Fitting
  • Material:

    Zinc alloy

  • Version:

    with soft closing mechanism

  • Color/finish: Silver coloured, Powder coated
  • Door weight max.: 20 kg

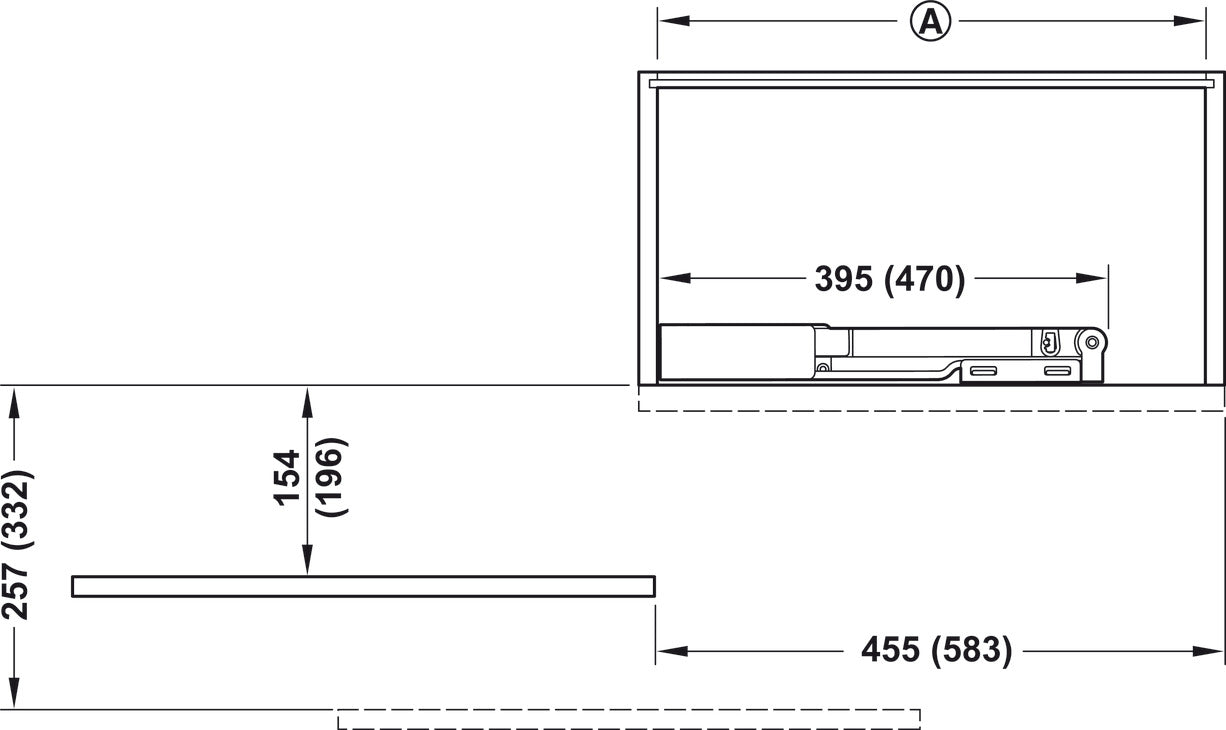

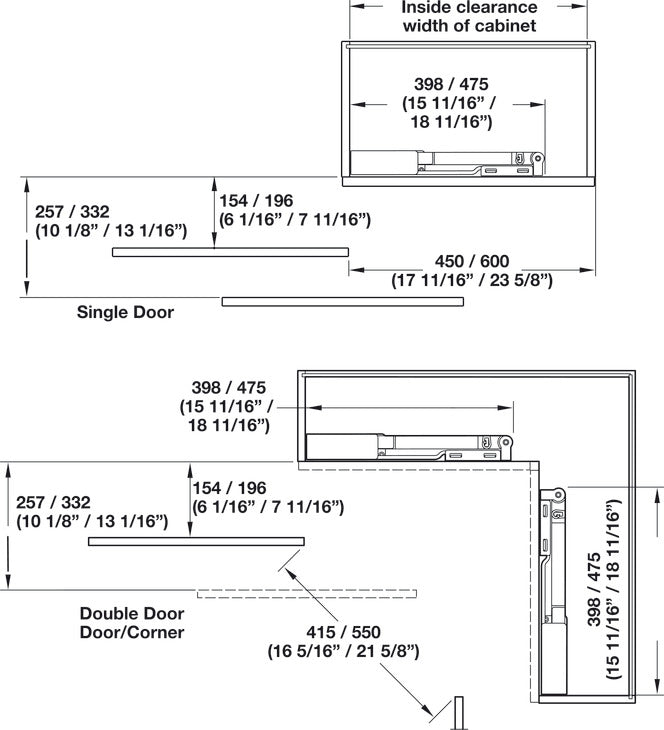

  • Internal cabinet width: Min. 15 11/16" or 18 11/16"
  • Area of application :

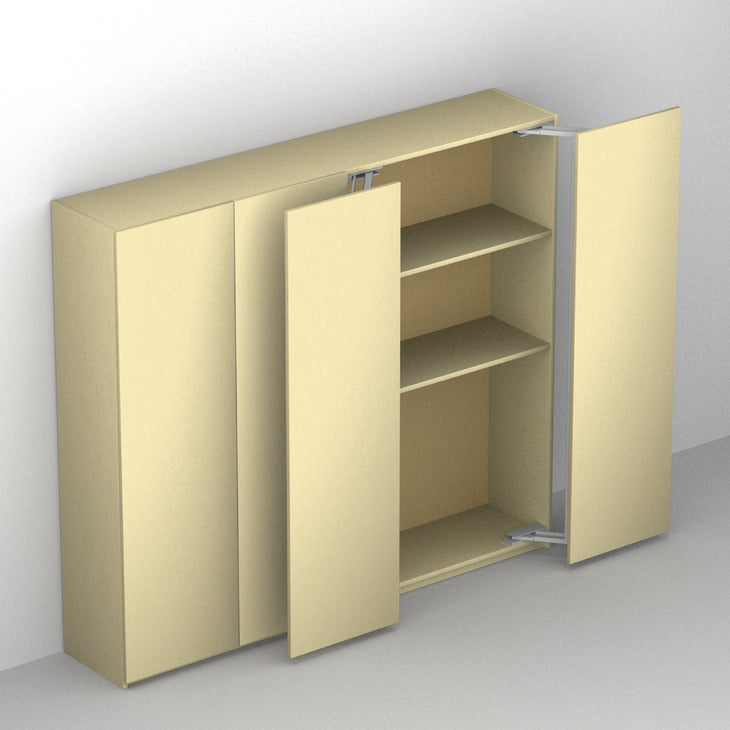

    Can be used for single doors, double doors with straight cabinet design and for corner solutions

  • Internal cabinet height : 2576 mm
  • Internal cabinet height : Max. 8' 5 7/16"
  • Adjustment facility : Tilting angle, Vertical, Horizontal
  • Order reference :

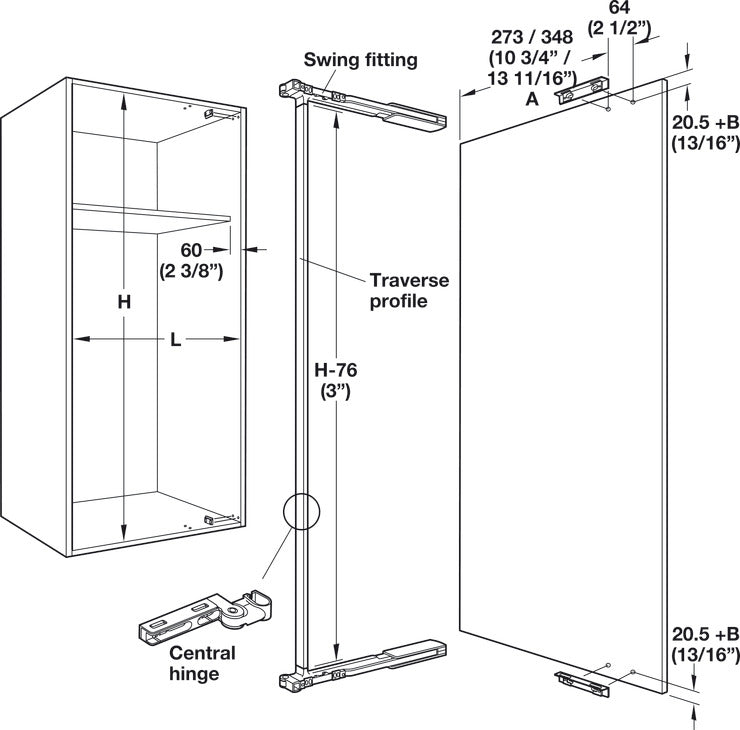

    Please order traverse profile and central hinge separately.

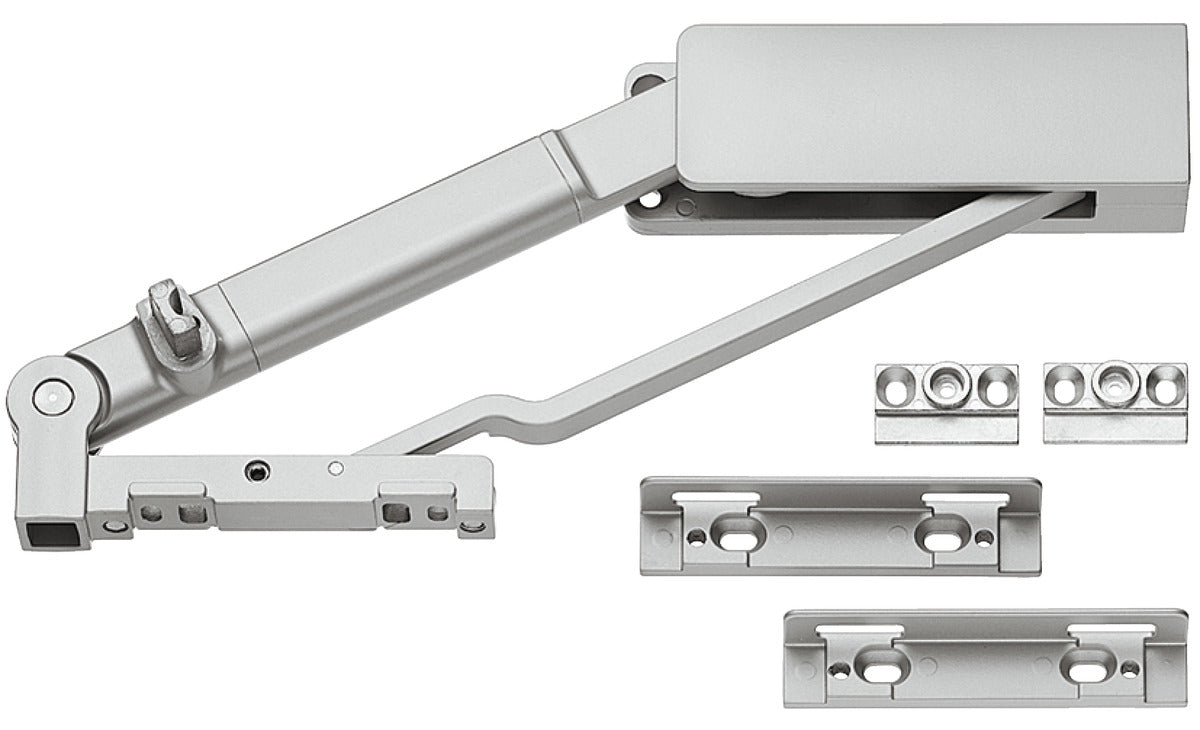

  • Supplied with :

    2 Swing fittings
    2 Door fastenings brackets
