Front lift up fitting, Free swing

$242.00 CAD
$242.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Full access to the cabinet contents
    Ideal for large front panels
    Modern design thanks to clear-cut contours
    Minimum opening resistance, multi-position stop function and soft opening and soft closing mechanism for extremely pleasant operating feeling
    Rational and time-saving assembly provided by plugs, pre-mounted Euro screws and clip fixing of front panel and cross strut, eccentric adjustment of front panel

  • Set type: Set

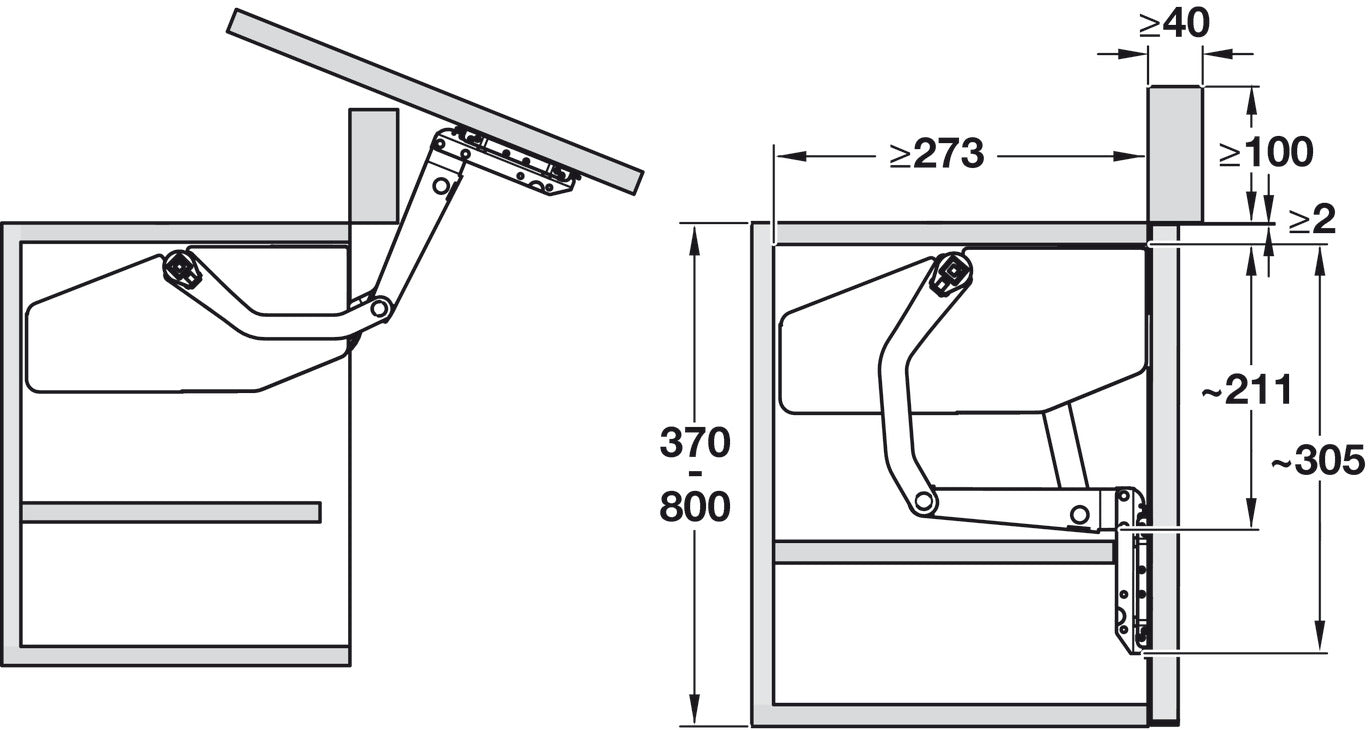

  • For cabinet depth: 273 mm
  • For lid height:
  • Cover color/finish: Grey, Fitting: Nickel-plated; cover cap gray
  • Color/finish: Fitting: nickel plated, Fitting: Nickel-plated; cover cap gray
  • Flap fitting type : Lift up flap fitting
  • Area of application :

    For one-piece doors made from wood, glass or with aluminum frame

  • Model series : Free swing
  • Material :

    Fitting: Plastic, steel
    cover cap: Plastic

  • Lid material : Wood, Glass, Aluminum frame
  • Order reference :

    Cross bars and adapters for glass front panels or narrow aluminum frames (if applicable) must be ordered separately.
    Use two Free swing sets for flap widths > 1800 mm (70 7/8”).

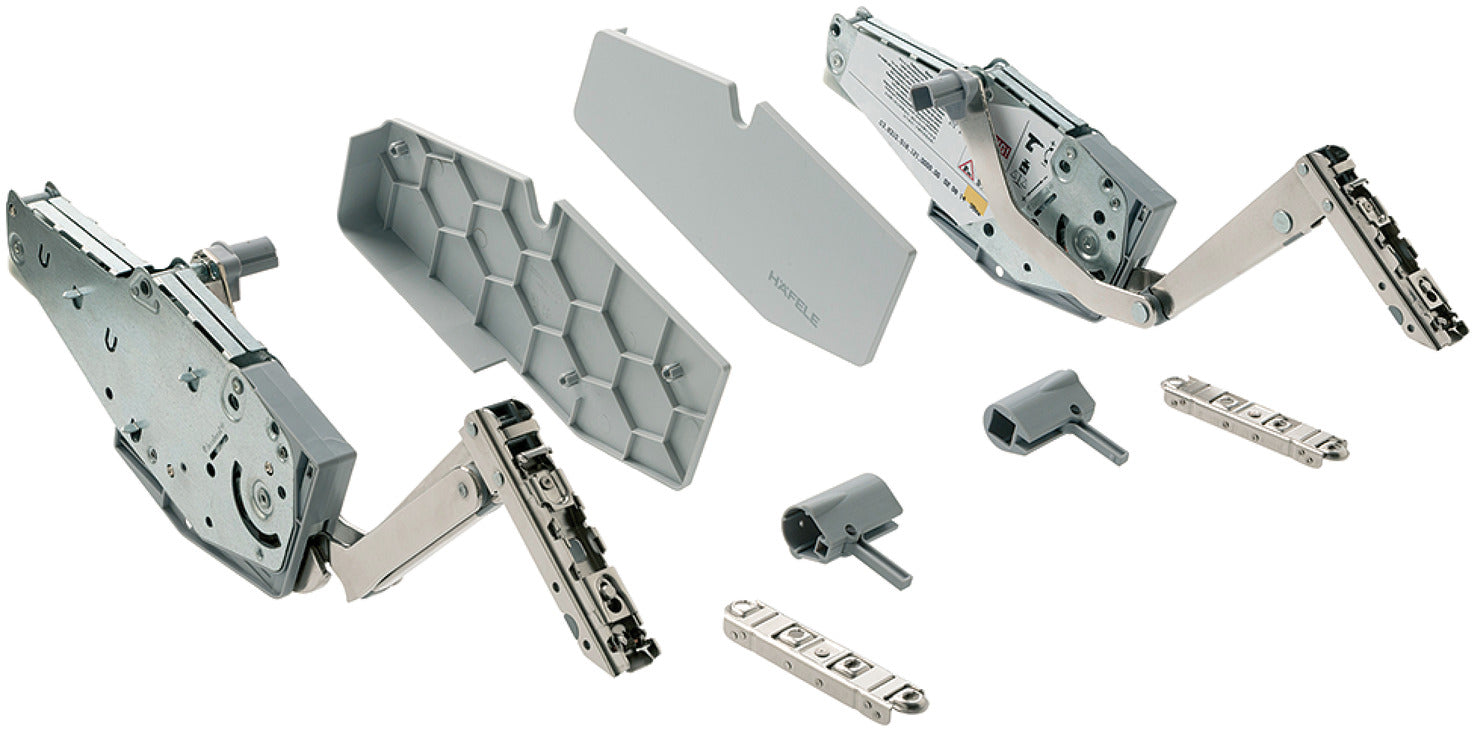

  • Supplied with :

    1
    lift up flap fitting set
    (1 piece each left/right, including front fixing brackets for wooden flaps or flaps with wide aluminium frame, installation instructions and paper drilling template)
    1
    cover cap set grey, white or anthracite
    (1 piece each left/right)
