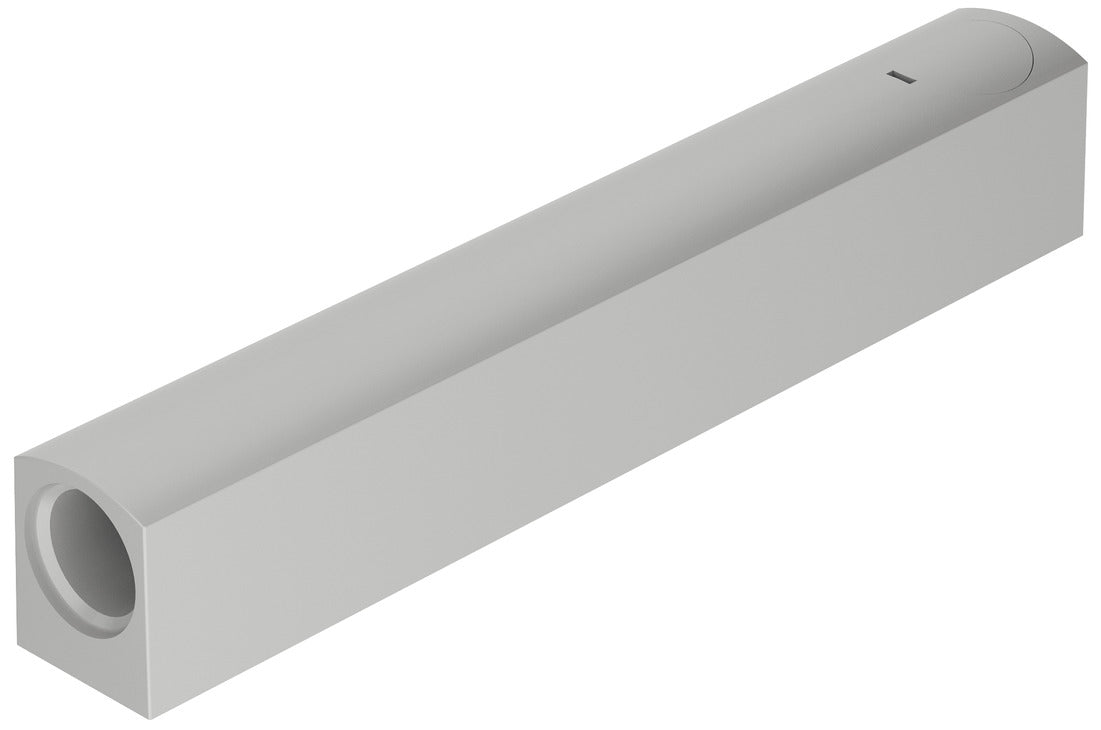

• Housing, Screw-mounted
1 5

Housing, Screw-mounted

$6.00 CAD
$6.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Installation:

    For mounting in drilled hole Ø 10 mm or sliding into screw-on housing

  • Color/finish: Light gray, similar to RAL 7035
  • Area of application :

    For front panels without handles, with Free flap 1.7 and 3.15 stay flap fitting, up to a width of max. 1,200 mm

  • Material : Plastic
  • Installation reference :

    Recommended screw type:
    Head diameter: 7–9 mm
    Thread Ø: 3.5–4.5 mm
    Screw length ≥15 mm
