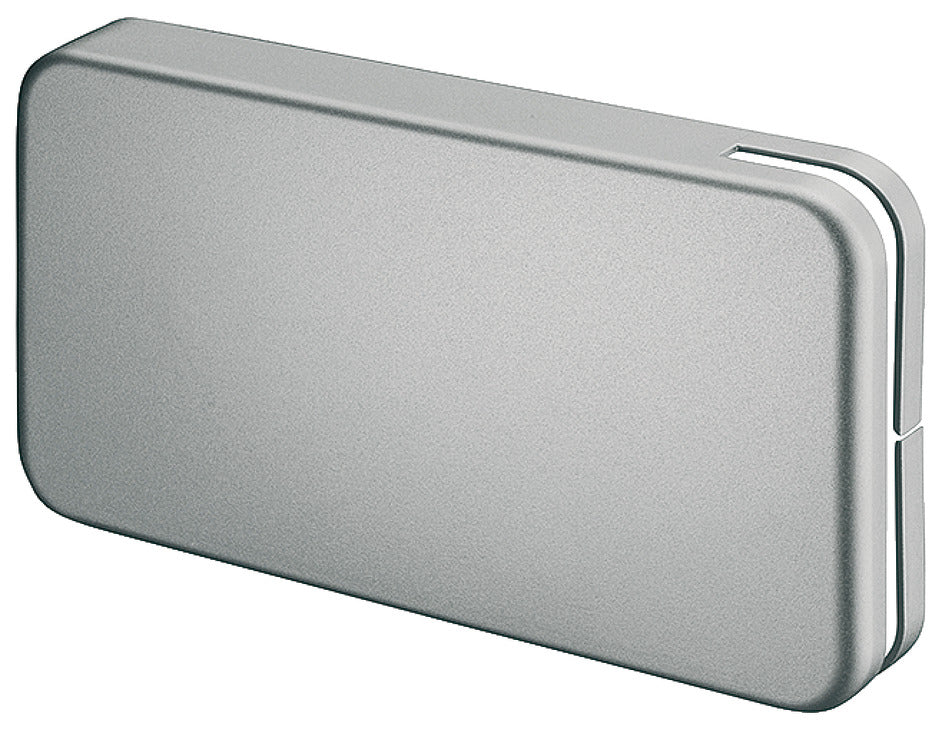

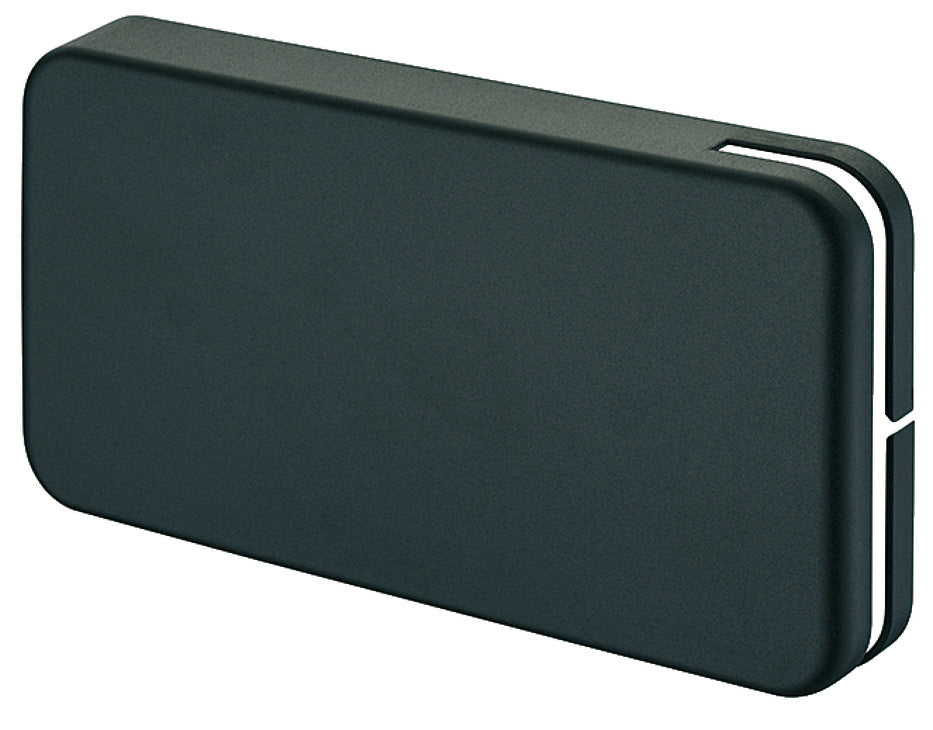

Flap Stay, Miniwinch

$108.00 CAD
$108.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

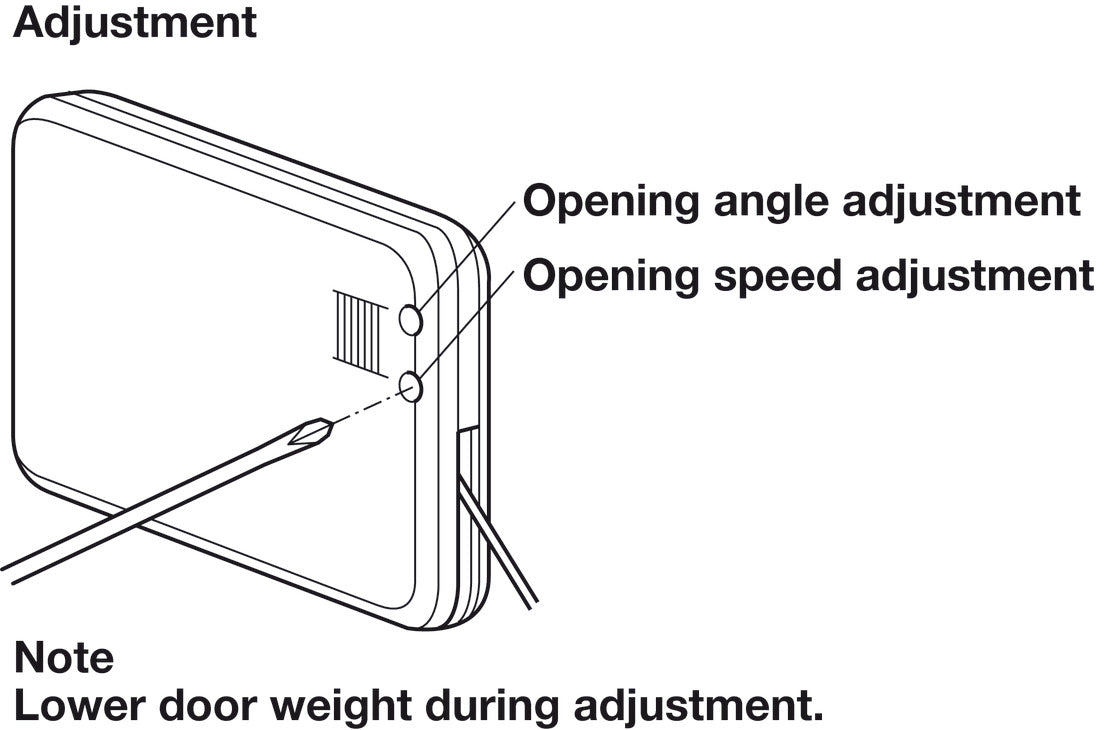

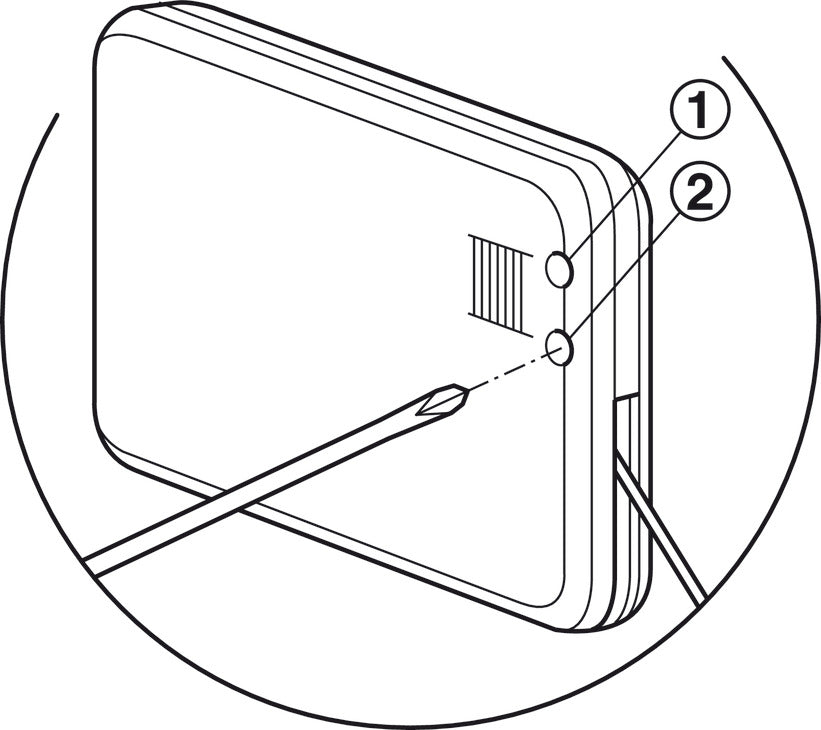

  • Opening angle and braking effect can be adjusted
    With soft and self closing mechanisms
    No time-consuming cabinet processing required

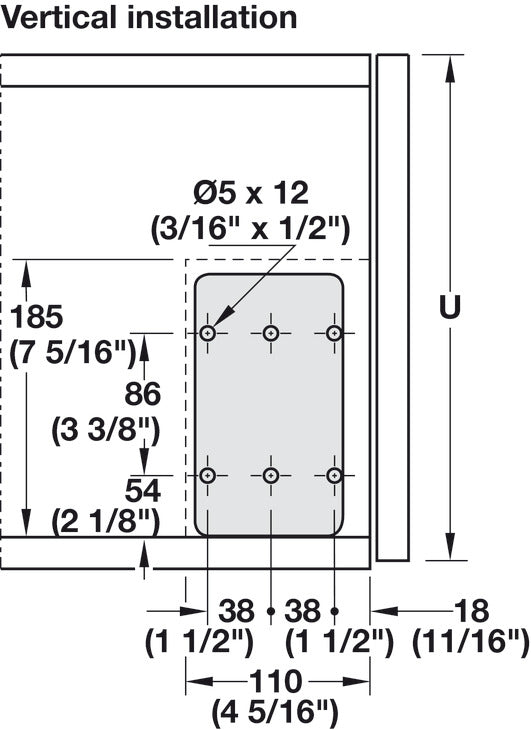

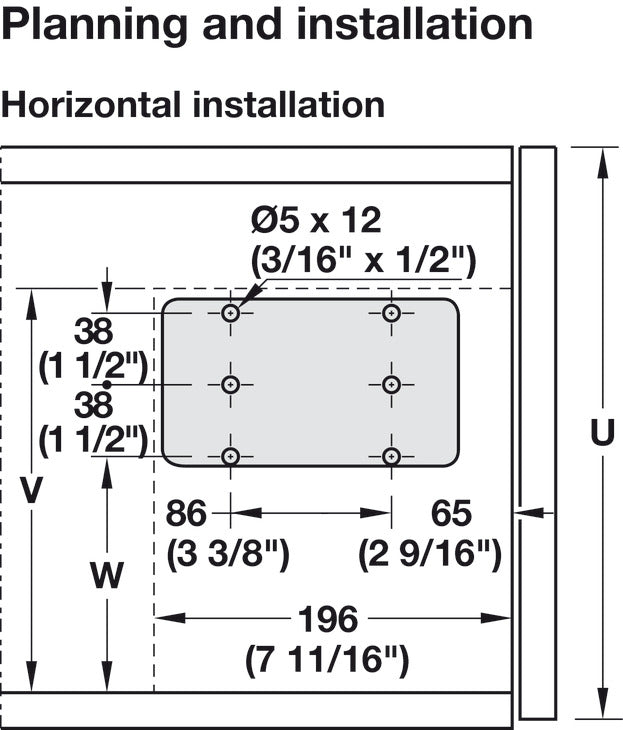

    For horizontal or vertical installation (extremely little space requirement inside the cabinet)
    Lift mechanism suitable for left or right hand use

  • Version:

    With soft and self closing mechanism

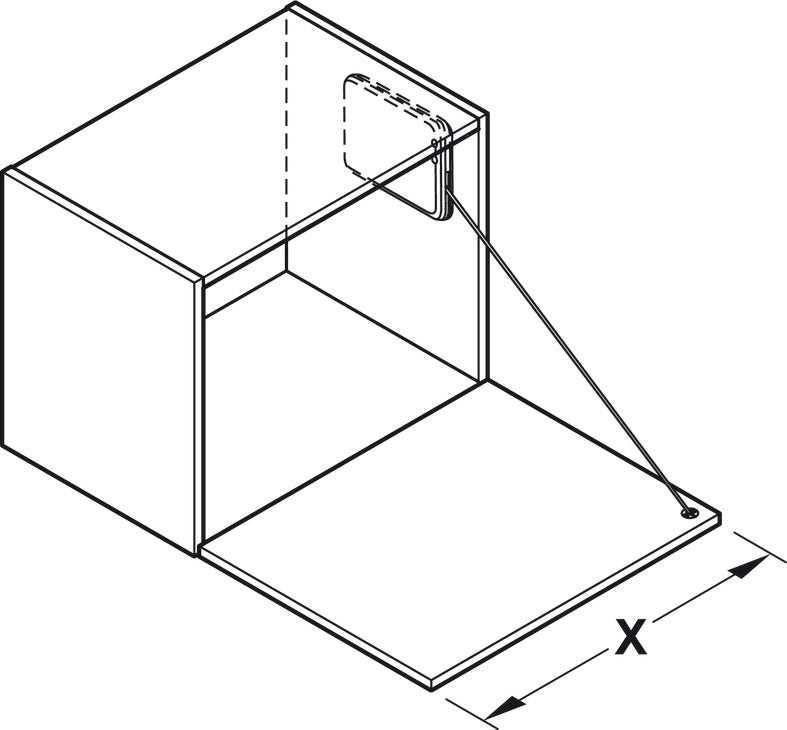

    With pull cable

  • For cabinet depth: 110 mm

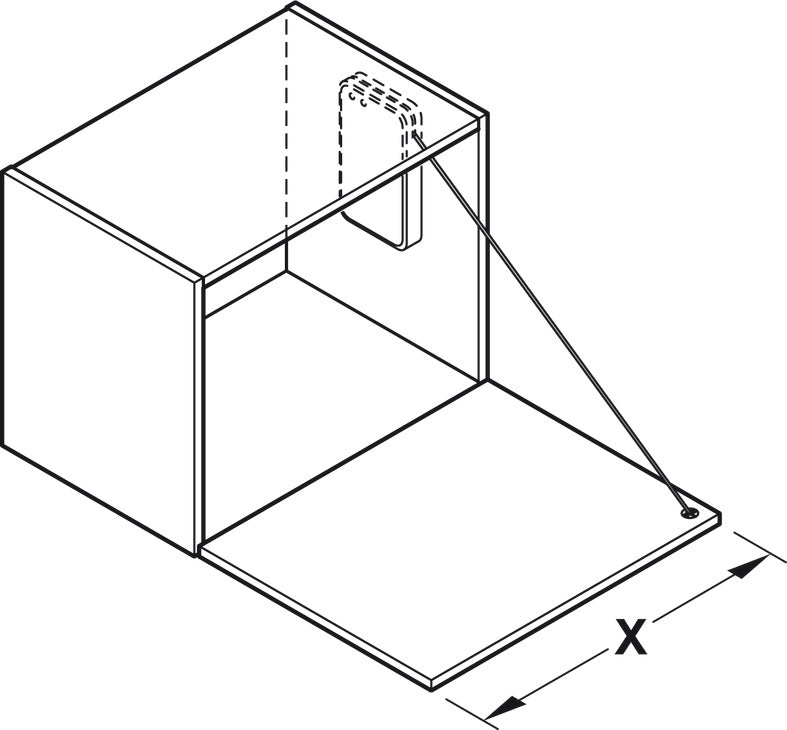

  • For lid height: 200 – 480 mm
  • For lid weight: 12 kg

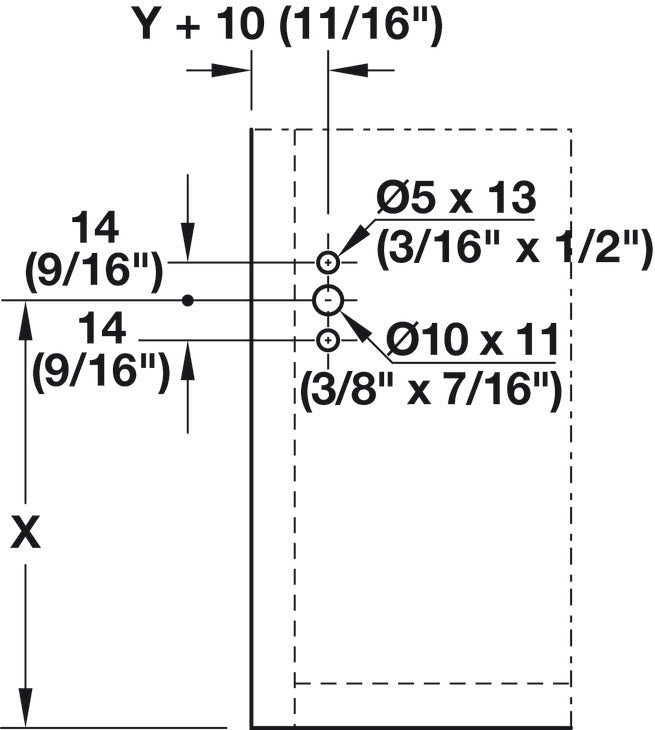

  • Installation:

    For screw fixing with Euro screws

  • For lid height max.: 18 7/8"
  • For lid height min.: 7 7/8"
  • Flap fitting type : Flap stay
  • Area of application :

    for wooden flaps

  • Model series : PCS 300
  • Material :

    Fitting and cover caps: Plastic, front fixing bracket: Zinc alloy

  • Supplied with :

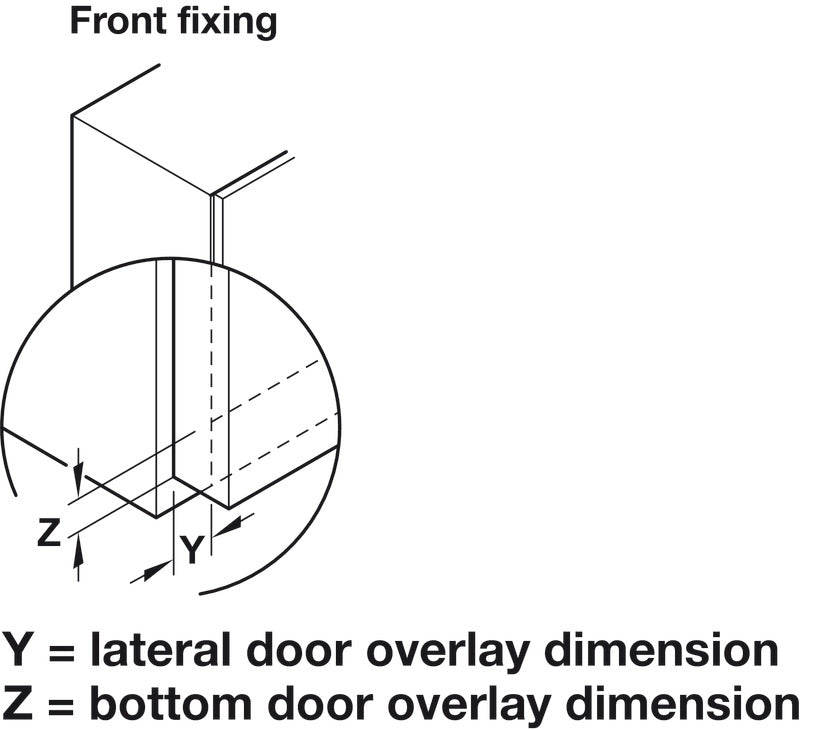

    Front fixing bracket
    Cover cap
    Mounting material
