Additional Wall Reader, WT 100, Tag-it<sup>TM</sup> ISO

$858.00 CAD
$858.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Connection cable between reader and control module is supplied by customer.
    Cable type is RS485, PLTC/CM 22AWG, or CL3R C(UL) CMR 20 AWG.
    Reader is mounted into reader socket.
    Minimum clearance between 2 readers is 250 mm (9 13/16").
    Wall terminals must be installed by a qualified electrician, in compliance with all governing codes.
    Reader must be surface mounted if it is applied to a metal face of a control panel or similar application.

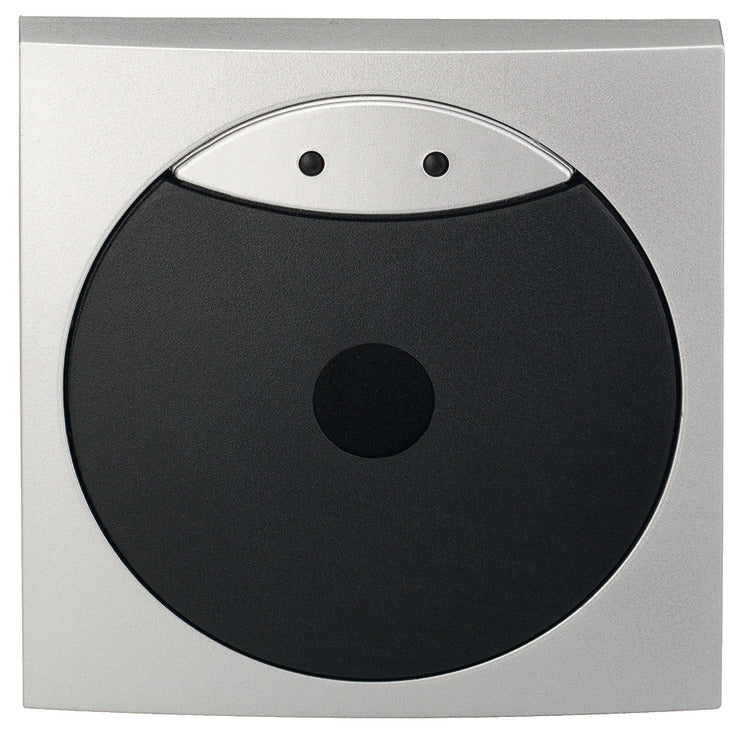

  • Product type: Wall reader
  • Color/finish: Anthracite colored Silver colored
  • Area of application :

    Mains operated

  • Transponder technology : Tag-itâ„¢-ISO®
  • Material : Plastic
  • Installation reference :

    Notes on operation and installation

    When using an additional wall reader, the total cable length to both wall readers must not exceed 35 m, please contact a Dialock specialist if deviating from this.

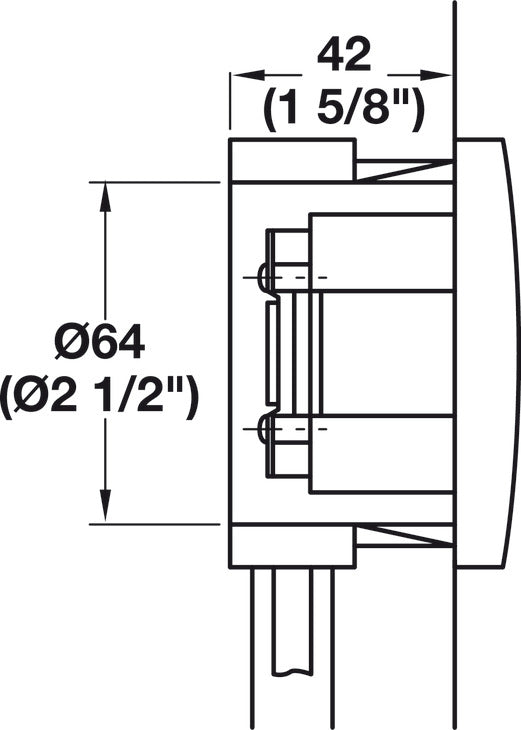

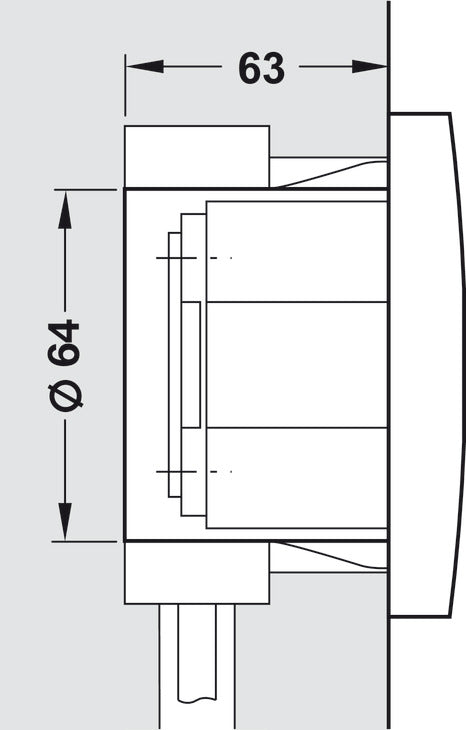

    Installation of wall reader in flush-mount socket with 2 device fastening screws (60 mm in accordance with DIN).
    Ensure that screw points are horizontal.

    Minimum distance between 2 wall readers 250 mm.

    Installing the wall reader in a metal environment requires planning.

  • Supplied with :

    1 WRU 100 R2 wall reader with standard design, with frame

    1 configuration transponder No. 20 (for addressing the wall reader)
