• Additional Wall Reader, Wall Terminal System 55
1 7

Additional Wall Reader, Wall Terminal System 55

$741.00 CAD
$741.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Product type: Wall reader
  • Area of application :

    Mains operated

  • Transponder technology : Tag-itâ„¢-ISO®
  • Installation reference :

    Notes on operation and installation

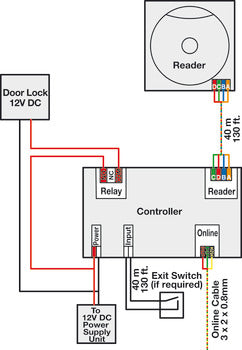

    If an additional wall reader is being used, the total cable length to both wall readers must not exceed 35 m, contact the Dialock specialists if deviating from this.

    Minimum distance between 2 wall readers 250 mm.

    Installing the wall reader in a metal environment requires planning.

  • Order reference :

    Please order frame separately.

  • Supplied with :

    1 wall reader without Gira frame, with clamping block
    1 configuration transponder No. 20 (for addressing the wall reader)
