Additional Reader, WRU 200, Dialock, for indoor or outdoor use

For use as authorisation writer,
block lock function
for controlling any type of doors, gates, car park barriers, furniture and furnishings, lights,, alarm systems, video surveillance,..

mains-operated wall reader, contactless activation with Dialock key
- Red/green LEDs for indicating unlocking and locking
- for service personnel: Indication of the operating status (e.g. offline)

Notes on operation and installation

Connection between WRU 200 wall reader and WTC 200 controller with 4-core installation cable in accordance with VDE 0815: Type J-Y (St) Y 2 x 2 x 0.8 mm (twisted pair, shielded), maximum length 100 m, please contact a Dialock specialist iif deviating from this.

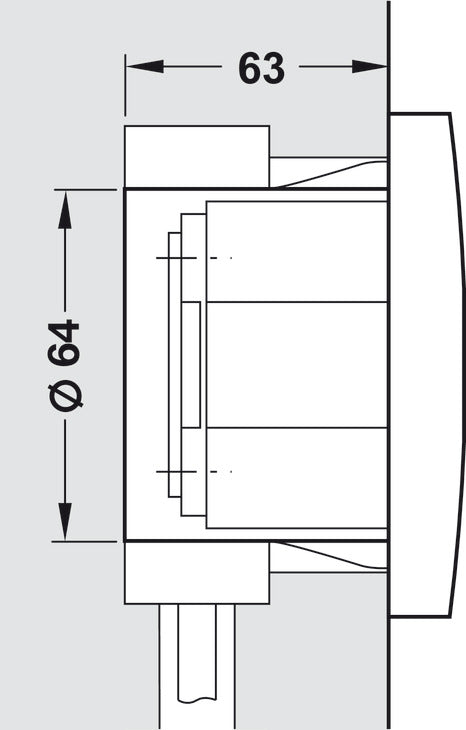

Installation of wall reader in flush-mount socket with 2 device fastening screws (60 mm in accordance with DIN).
Ensure that screw points are horizontal.

Minimum distance between 2 wall readers 250 mm.

Installing the wall reader in a metal environment requires planning.

Please order supplementary and optional components, e.g. energy control terminal, voltage supply and lock, separately.

1 WRU 200 wall reader
1 configuration transponder No. 20 (for addressing the wall reader)
