Online Network Device, ND 101, Tag-it<sup>TM</sup> ISO

$768.00 CAD
$768.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • The ND 101 is used to connect up to eight Dialock Wall Terminals via RS 232 interface which connects to the TCP/IP network

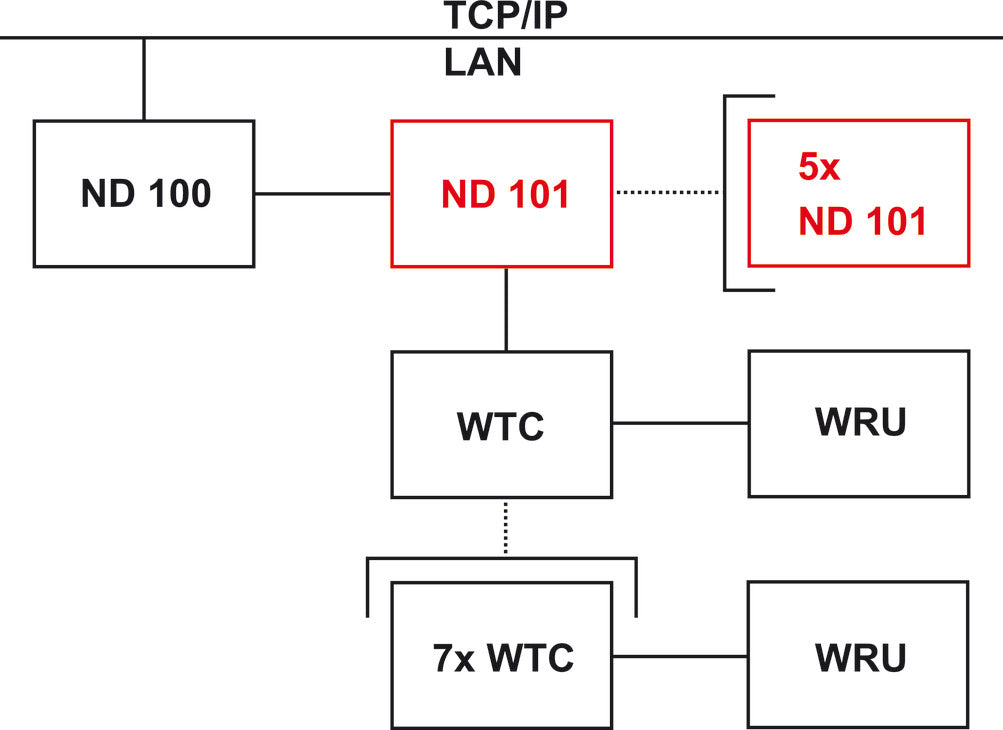

    Up to six ND 101s can be connected to an ND 100, i.e. a max of 48 Wall Terminals can be connected to an online cluster
    8 RS 232 connections for up to 8 Dialock Wall Terminals with a distance of up to 100 meters
    1 RS 232 interface to connect to ND 100 or ND 101
    1 RS 232 interface to connect additional ND 101s
    Very low power consumption: Power can be supplied from the ND 100

  • Product type: Online Network Device
  • Area of application :

    For bundling data signals from the WT wall terminal sets (connection to electronic control unit) and transferring to the ND 100 online adapter
    For connecting max. 8 WT wall terminal sets and 5 other ND 101 online extensions (max. 48 WT wall terminal sets can be networked at one ND 100 online adapter).

  • Order reference :

    ND 100 online adapter, please order separately.
