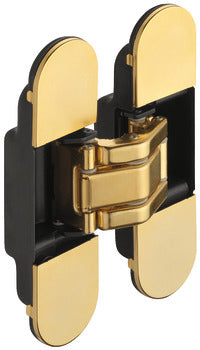

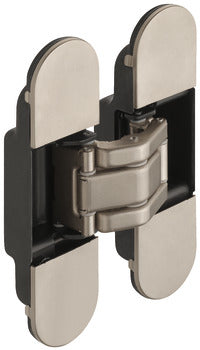

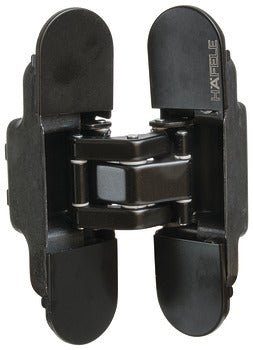

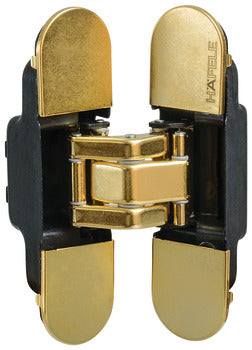

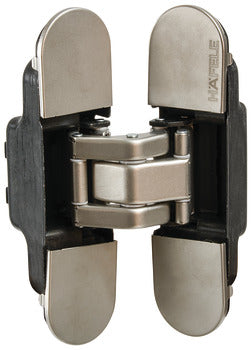

Door Hinge, Atomika

$92.00 CAD
$92.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Door width max.: 900 mm
  • Material: Steel
  • Model: H12
  • For door width (inches): ≤ 35 7/16"
  • Model series : H12
  • Area of application :

    For flush interior wood doors - 3D Adjustable

  • Max. door weight for 2 hinges : 60 kg
  • Opening angle : 180 °
  • Door height max. : 2100 mm
  • Door thickness : 38 – 45 mm
  • Adjustment facility : 3D Continuous, Side: ±1 mm, Height: ±3 mm, Closing pressure: ±1 mm
  • Order reference :

    Fixing material supplied.
    Hex key for adjustment supplied.
    Other finishes available on request.
