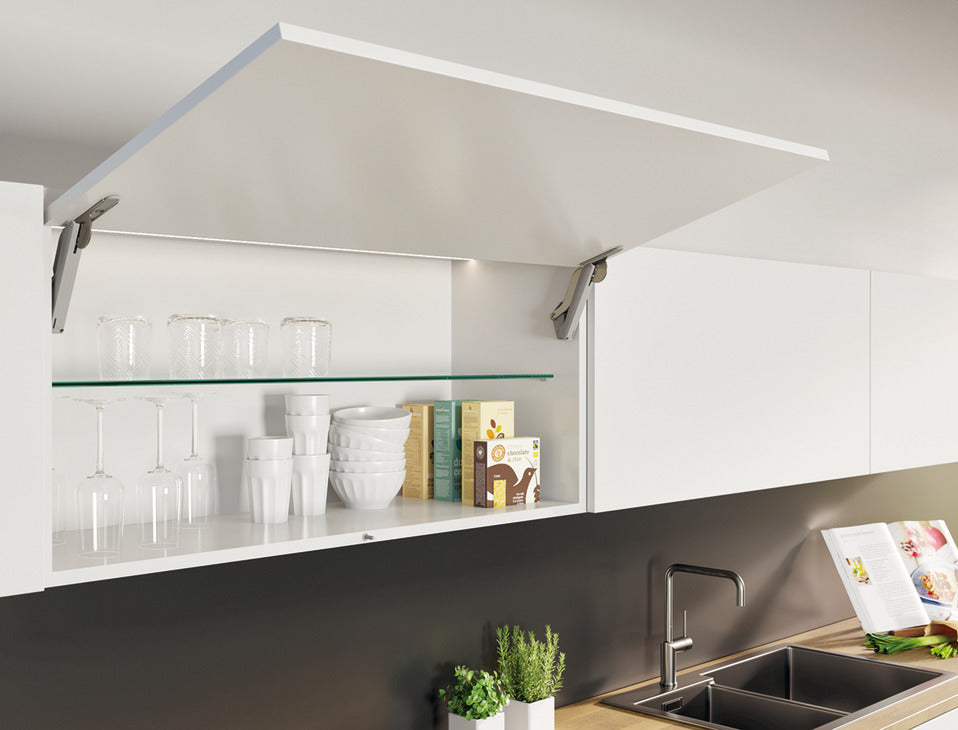

Swing-Up Fitting, Häfele Free space 1.8 push

$73.00 CAD
$73.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • For cabinet height: 225 – 650 mm
  • For lid height: 650 mm
  • Installation:

    Fitting for screw fixing with pre-mounted Euro screw
    front panel fixing without tools, for sliding onto pre-mounted fixing screws

  • Flap fitting type : Stay flap fitting
  • Area of application :

    For all stay flap applications without handle with front height up to 650 mm (Push-to-Open)

  • Model series : Free space 1.8 push
  • Material :

    Housing: Plastic
    front fixing bracket and support lever: Steel

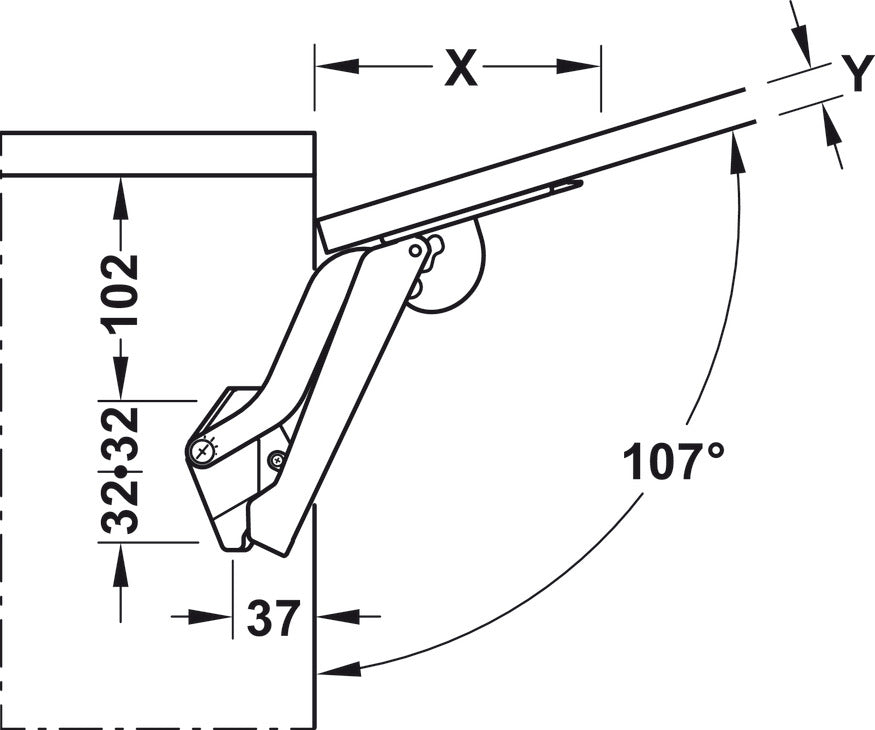

  • Opening angle : 90 – 107 °
  • Lid material : Wood, Aluminum frame
  • Order reference :

    The model selection of the stay flap fitting for front panels without handle depends on the cabinet height and flap weight. Model selection see sample measurements table.
    Please order suitable screw set 372.27.600 for aluminium frame front panels from frame width 45 mm.
    Please order screw-on housing for push catch separately.
    We recommend to use the stronger fitting model when in doubt.

  • Supplied with :

    1 stay flap fitting set (1 piece each left/right)
    2 front fixing brackets with pre-mounted screws
    1 free push catch

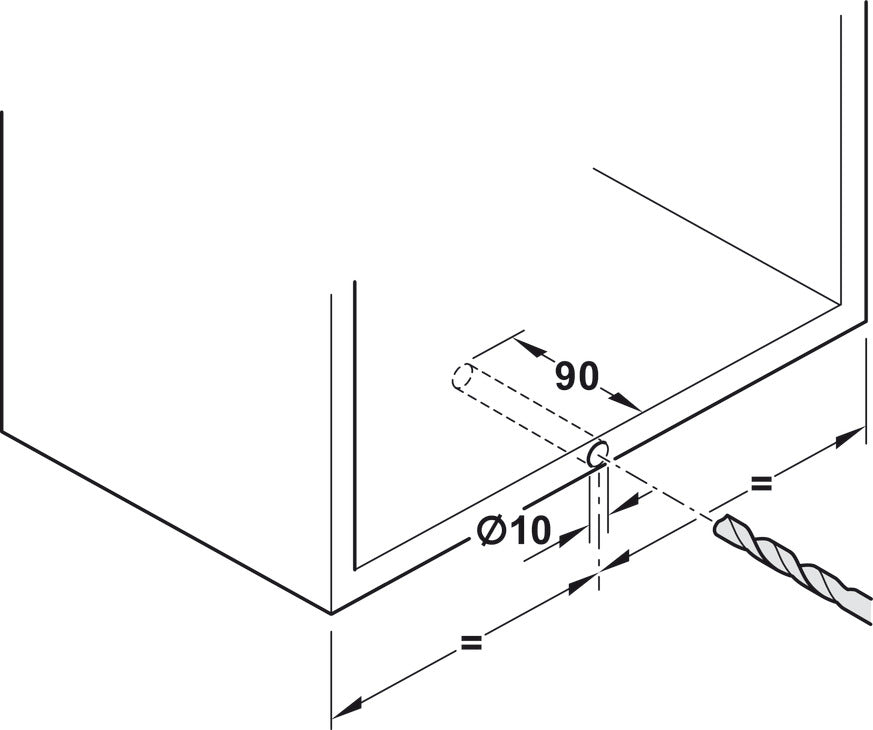

    fitting instructions with paper drilling template for side panel
