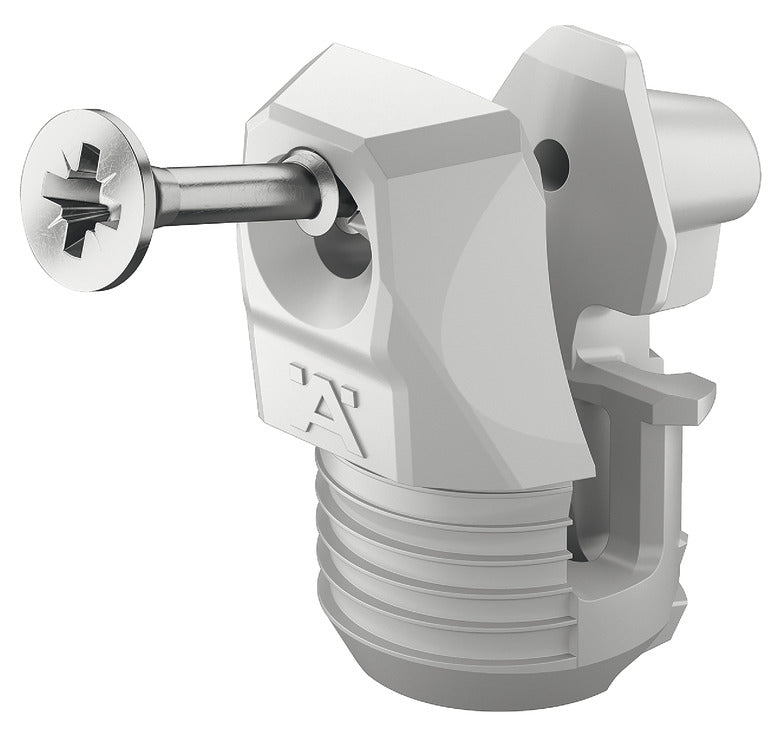

• Rear Panel Connector, Ixconnect RPC S 15/25
1 4

Rear Panel Connector, Ixconnect RPC S 15/25

$1.00 CAD
$1.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Screw fixing takes place from the front which allows mounting of large furniture items on the final installation location
    Pre-positioning possible
    Guiding and mounting aid
    One-piece due to pre-mounted screw
    Processing of rear panel not required
    Removable

  • Material:

    Plastic

  • Color/finish: White

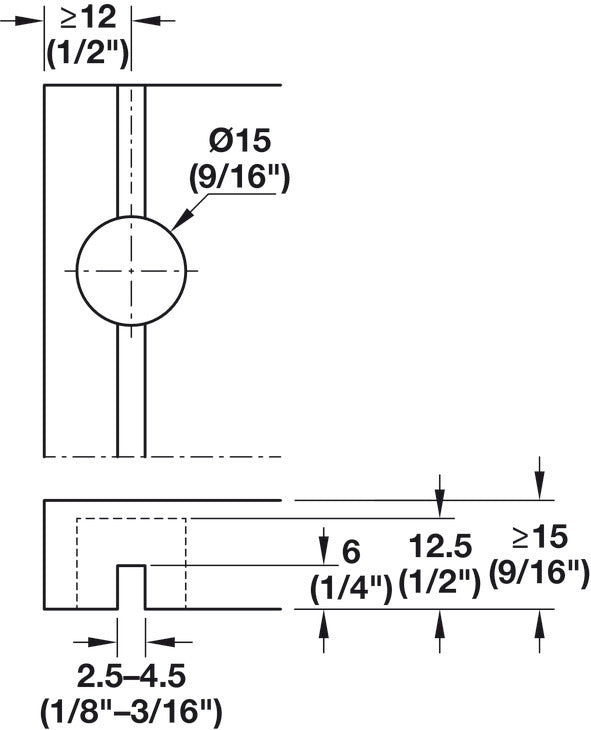

  • For wood thickness: From 9/16"
  • Drill hole Ø: 9/16"
  • Area of application :

    For medium-sized and large furniture items

  • For wood thickness : 15 mm
  • Groove depth min. : 6 mm
  • For drill hole Ø : 15 mm
  • Rear panel thickness : 2,5 – 3.5 mm
  • Installation :

    For screw fixing from the front

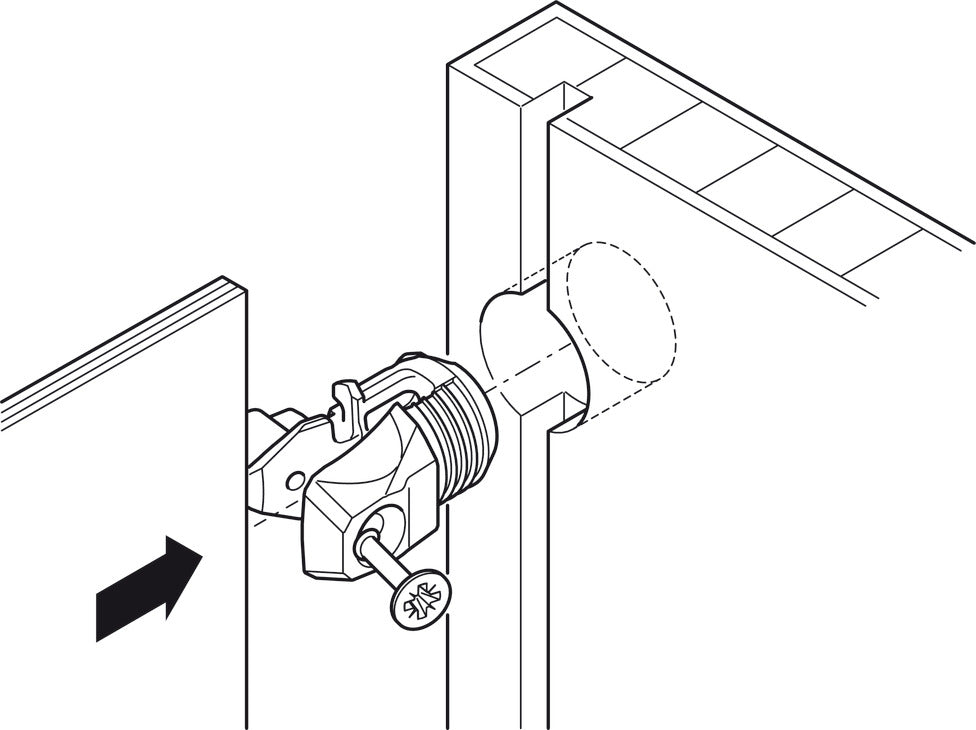

  • Functioning principle :

    Pre-inserted into a drill hole in the groove and serves as a guiding and mounting aid for the rear panel.
    When the screw is screwed in, the rear panel is pulled forwards and stiffens the furniture item accordingly.
